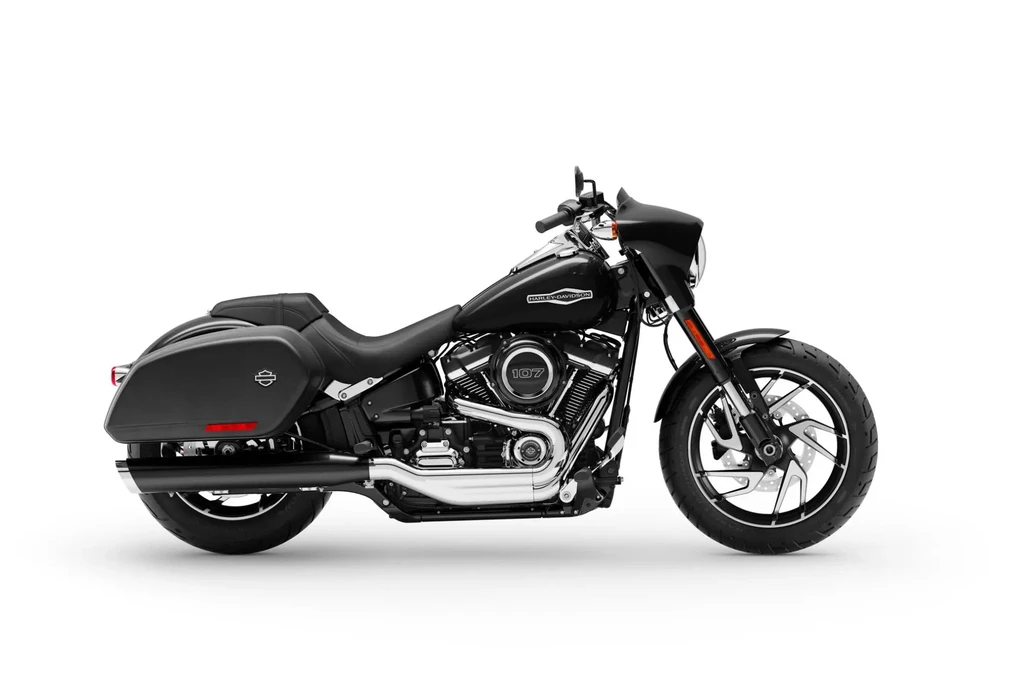

Harley Davidson Sport Glide (2020 – 2021)

Harley Davidson Sport Glide (2020 - 2021)

The 2020-2021 Harley-Davidson Sport Glide is an aggressive factory-custom cruiser that embodies power, performance, and versatility.

Its Milwaukee-Eight 107 V-Twin engine delivers a responsive ride with plenty of torque to tackle any terrain. The redesigned Softail frame and suspension provide a smooth ride without sacrificing the classic Harley feel.

A detachable fairing offers flexibility for riders to customize their experience on-the-fly. Inverted front forks and a rear mono-shock allow for personalized handling profiles, including adjustments for extra cargo or passengers.

The Sport Glide’s blacked-out engine, aggressive machine-cut wheels, and black mufflers give it a sleek, stealthy appearance.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity107 cubic inches / 1746 cc
Max Torque146 Nm / 108 ft-lb @ 2750 rpm
Fuel Tank Capacity5.0 US gallons / 18.9 L
Weight (Wet/Kerb)699 lbs / 317 kg
Seat Height26.8 inches / 680 mm
Harley Davidson Sport Glide (2020 - 2021)

All Specifications

Make & Model

ModelHarley Davidson Sport Glide
Year2020 – 2021

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement107 cubic inches / 1746 cc
Bore x Stroke100 x 111 mm
Compression Ratio10.0:1
Max Torque146 Nm / 108 ft-lb @ 2750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-into-1, catalyst in muffler

Performance

Top Speedn/a

Transmission

ClutchMechanical, 10 plate wet, assist & conventional
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Final DriveBelt, 32/66 ratio

Electrical & Electronics System

StarterElectric
ABSStandard

Chassis & Suspension

Frame TypeMild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Front SuspensionSingle cartridge 43 mm inverted with aluminum fork triple clamps, triple rate spring
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionHidden, free piston, coil-over monoshock, 43mm stroke, toothless hydraulic pre-load adjustment
Rear Suspension Travel3.4 inches / 86 mm
Rake30
Trail150 mm / 5.9 in
SwingarmMild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Wheels & Brakes

WheelsBlack, machine highlighted, Mantis cast aluminum
Front Tire Size130/70B18 63H BW
Rear Tire Size180/70B16 77H BW
Front BrakesSingle 300 mm discs, 4 piston fixed caliper
Rear BrakesSingle 292 mm disc, 2 piston floating caliper
ABSStandard

Dimension & Weights

Overall Length2325 mm / 91.5 in
Overall Width960 mm / 37.8 in
Overall Height1120 mm / 44.1 in
Seat Height26.8 inches / 680 mm
Wheelbase64 inches / 1625 mm
Ground Clearance120 mm / 4.7 in
Fuel Tank Capacity5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight699 lbs / 317 kg
Dry Weight304 kg / 670 lbs

Features

  • Redesigned Softail frame
  • Milwaukee-Eight 107 V-Twin engine
  • Mini batwing-inspired fairing
  • Detachable saddlebags
  • Rigid clamshell saddlebags
  • Inverted front forks
  • Rear mono-shock with external preload adjustment
  • Lightweight design
  • Stiffness for responsive ride
  • Quick detach front mini-fairing
  • LED forward-lighting system
  • USB port
  • Keyless ignition
  • Blacked-out Milwaukee-Eight engine
  • Mantis cast aluminum wheels
  • Black mufflers
