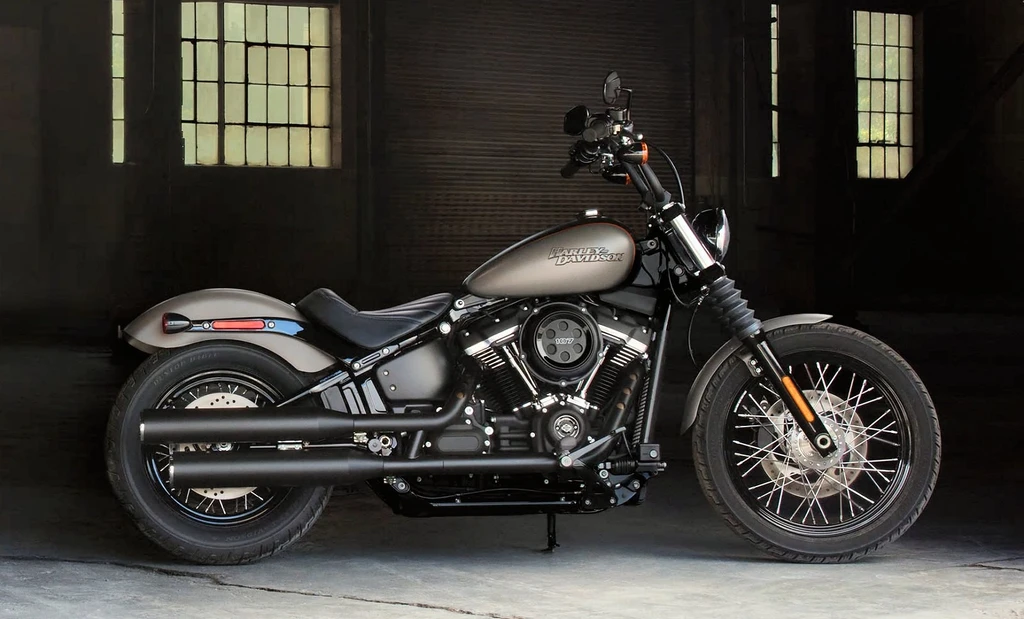

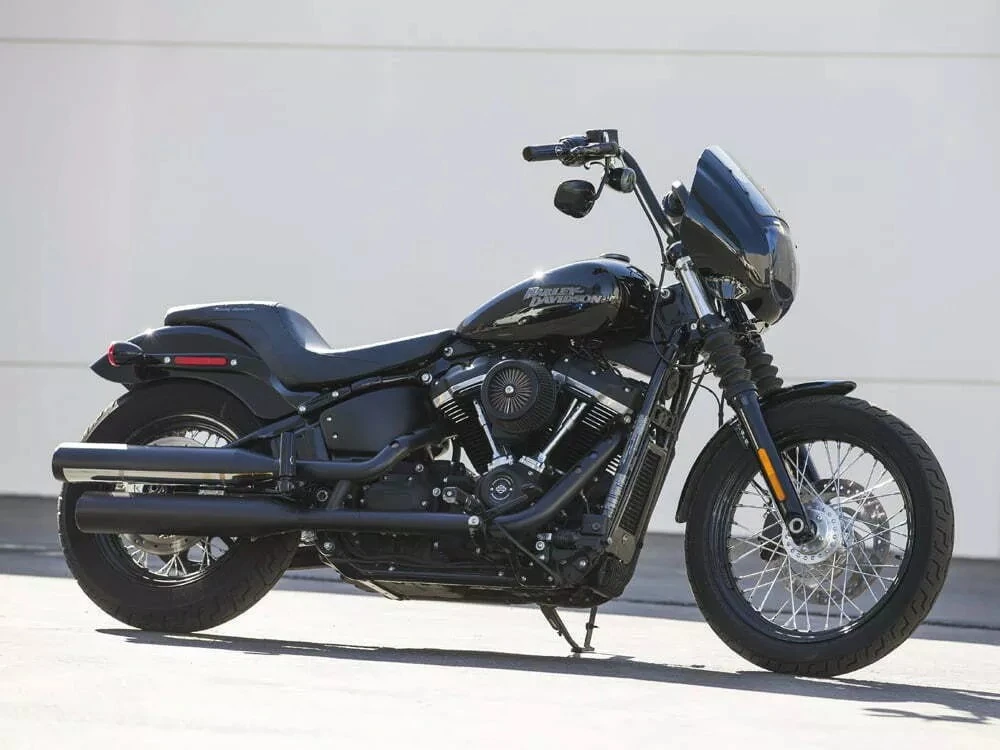

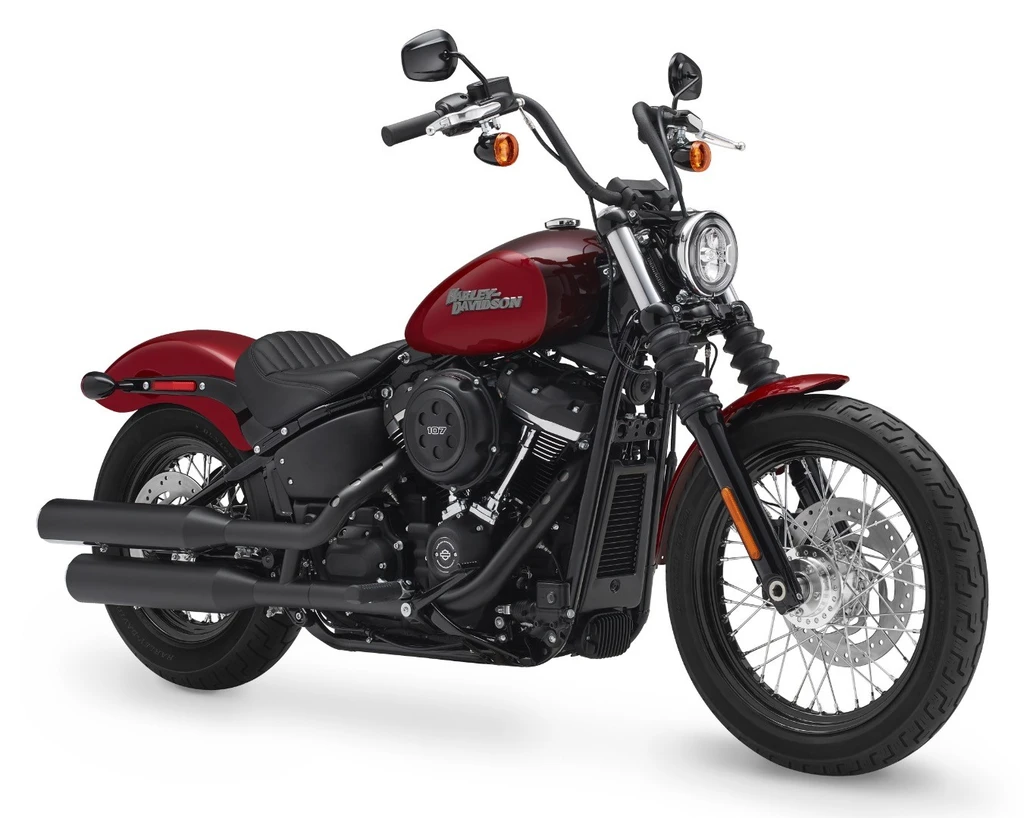

Harley Davidson Softail Street Bob (2018 – 2019)

Harley Davidson Softail Street Bob (2018 - 2019)

The all-new Harley-Davidson Softail Street Bob is a stripped-down, raw bobber that embodies the spirit of rebellion and freedom.

With its 7.7kg weight reduction, this bike is quicker and stronger than ever before, making it the perfect ride for those who crave the thrill of the open road.

Powered by the Milwaukee-Eight 107 V-Twin engine, the Street Bob delivers a raw, unbridled power that’s simply intoxicating.

Whether you’re carving up twisties or cruising down the highway, this bike will grab hold of you and refuse to let go, its potent engine and agile handling making it an absolute blast to ride.

With its bold, blacked-out aesthetic and minimalist features, the Street Bob is a true testament to Harley-Davidson’s commitment to creating motorcycles that are as raw as they are refined.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1746 cc / 107 cub in
Max Torque145 Nm / 107 ft-lb @ 3250 rpm
Fuel Tank Capacity3.5 US gallons / 2.0 L
Weight (Wet/Kerb)654.7 lbs / 297 kg
Seat Height26.8 inches / 680 mm
Harley Davidson Softail Street Bob (2018 - 2019)

All Specifications

Make & Model

ModelHarley Davidson Softail Street Bob
Year2018 – 2019

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1746 cc / 107 cub in
Bore x Stroke100 x 111 mm
Compression Ratio10.0:1
Max Torque145 Nm / 107 ft-lb @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-into-1-into-2 dual side, catalyst in muffler

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa Inverted forks
Rear SuspensionMono Shock
Rake30
Trail157 mm / 6.2 in

Wheels & Brakes

Front Wheel/Rim Size9 Gloss Black, Steel Laced
Front Tire Size100/90B19,57H,BW
Rear Wheel/Rim SizeGloss Black, Steel Laced
Rear Tire Size150/80B16,77H,BW
Front BrakesSingle disc, 4 piston caliper, fixed
Rear BrakesSingle disc, 2 piston caliper, floating

Dimension & Weights

Overall Length2320 mm / 91.3 in
Seat Height26.8 inches / 680 mm
Wheelbase64.2 inches / 1630 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity3.5 US gallons / 2.0 L
Wet (kerb/curb) Weight654.7 lbs / 297 kg
Dry Weight286 kg / 630.5 lbs

Features

  • New Milwaukee-Eight engine
  • Powered by 107 V-Twin engine
  • 7.7kg lighter
  • Stripped down, raw bobber style design
  • Spoked wheels
  • Chopped mudguards
  • Hidden digital instrument screen
  • Mini-ape bars
  • Mid-mount controls
  • Keyless ignition
  • LED forward lighting
  • Digital instrumentation
  • More lean angle
  • Laced wheels
  • Dark finishes
  • All-new Softail Frame
  • High Performance Front Suspension
  • High Performance Rear Mono Shock
