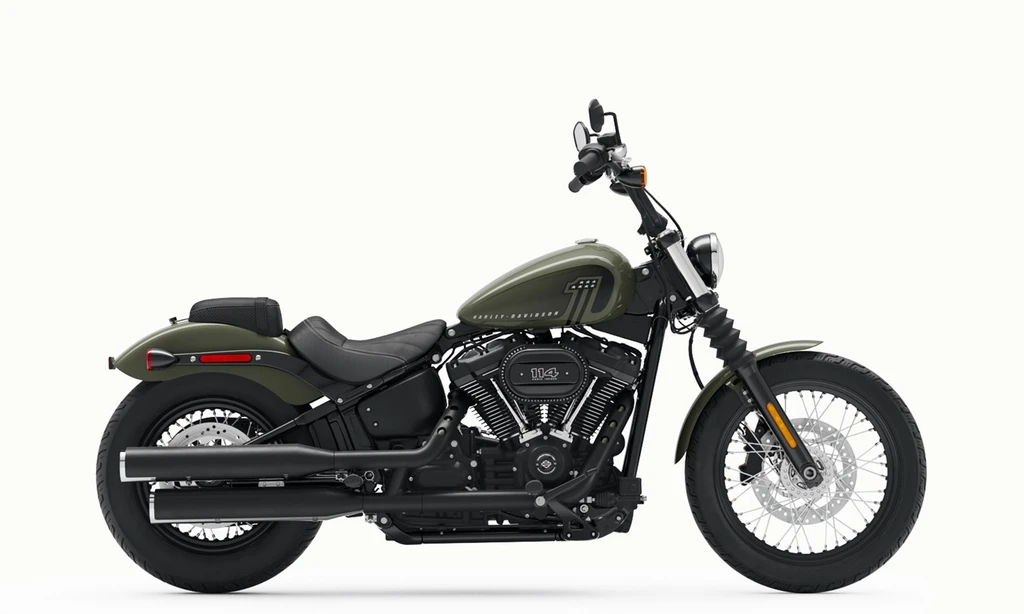

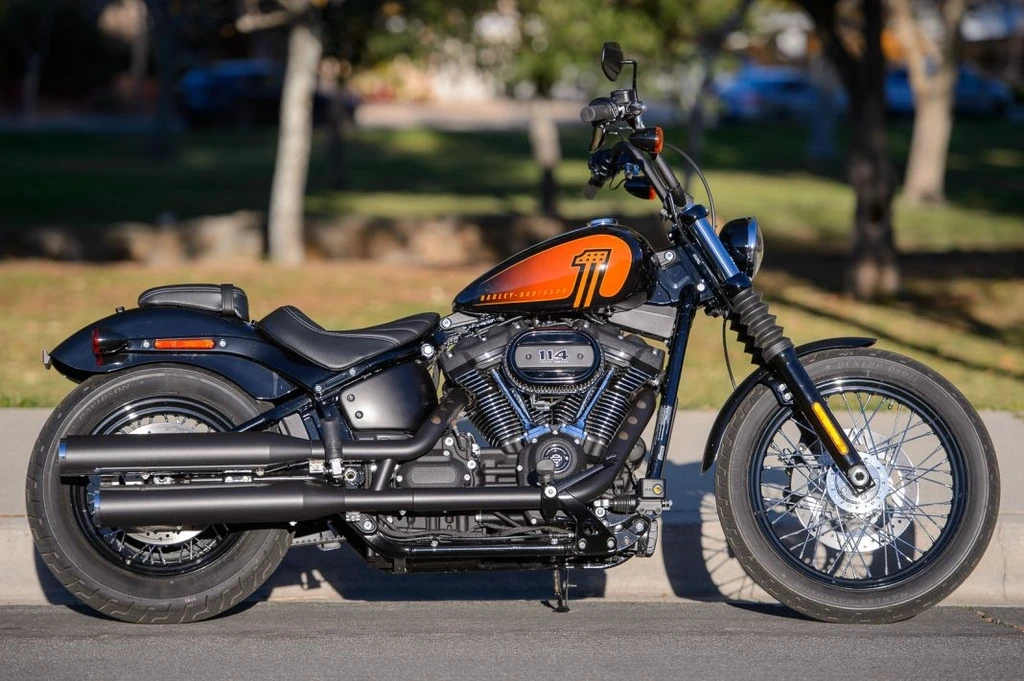

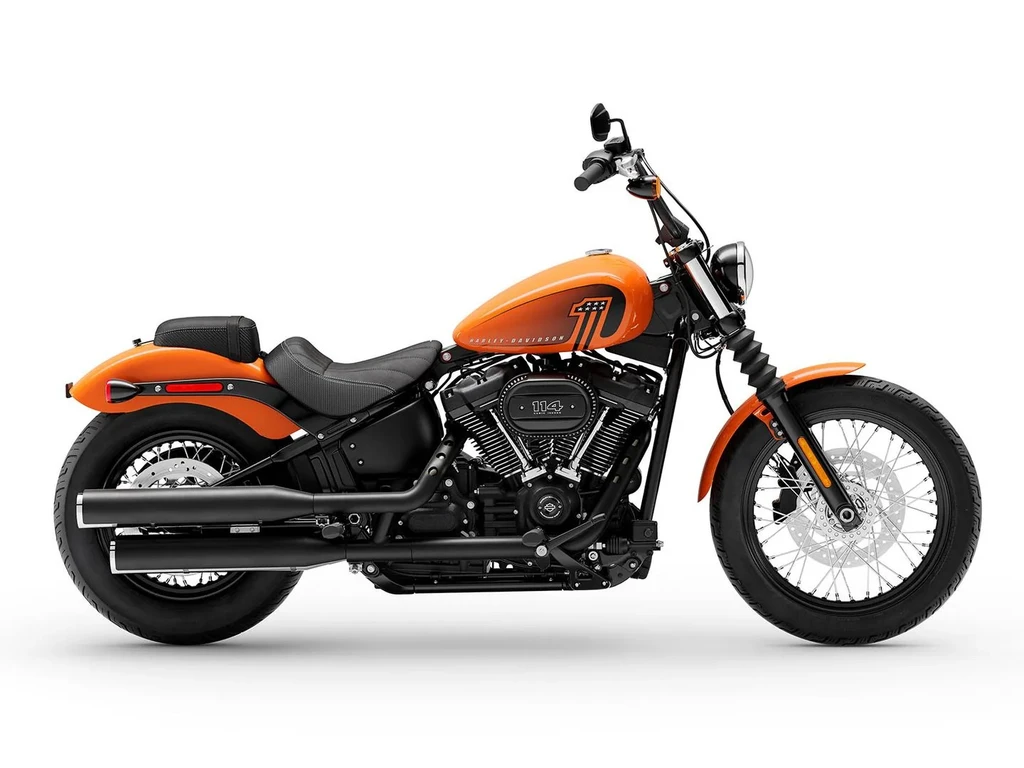

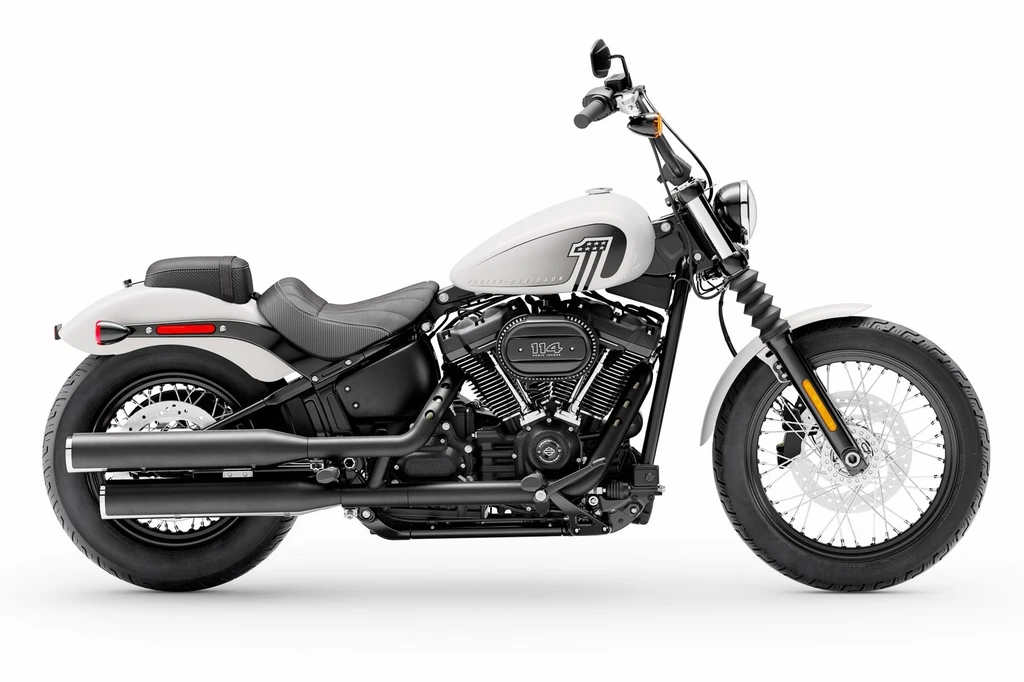

Harley Davidson Softail Street Bob 114 (2021)

Harley Davidson Softail Street Bob 114 (2021)

The 2021 Harley-Davidson Softail Street Bob 114 embodies the essence of a stripped-down bobber, where performance meets raw style.

Its sleek design is underpinned by a modern suspension system, offering a smooth ride and exceptional handling. The rigid-mounted Milwaukee-Eight V-Twin engine contributes to its responsiveness, delivering strong acceleration and precise braking performance. With a classic 45-degree cylinder angle, the engine exudes that unmistakable Harley-Davidson look-sound-feel.

The Street Bob’s riding experience is further enhanced by the dual counter-balancers cancelling primary vibration at idle, ensuring rider and passenger comfort. Four-valve cylinder heads promote airflow through eight total valves, optimizing power delivery and performance.

Experience the raw power of the 2021 Harley-Davidson Softail Street Bob 114 – where passion meets freedom on the open road.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1868 cc / 114 cu in
Max Torque119 ft-lb / 161 nm
Fuel Tank Capacity3.5 US gallons / 13.2 L
Weight (Wet/Kerb)659 lbs / 299 kg
Seat Height25.8 inches / 655 mm
Harley Davidson Softail Street Bob 114 (2021)

All Specifications

Make & Model

ModelHarley Davidson Softail Street Bob 114
Year2021

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1868 cc / 114 cu in
Bore x Stroke102 x 114.3 mm
Compression Ratio10.5:1
Max Torque119 ft-lb / 161 nm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-into-2 offset shotgun, catalyst in muffler

Performance

Top Speedn/a

Transmission

ClutchMechanical, 10 plate wet, assist & conventional
Gearbox6 Speed Cruise Drive
Gear Ratios1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final DriveBelt, 32/66 ratio

Electrical & Electronics System

Starter1.6 kW electric with solenoid shift starter motor engagement
ABSOptional

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Front SuspensionDual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionHidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
Rear Suspension Travel3.4 inches / 86 mm
Rake30
Trail157 mm / 6.2 in
SwingarmMild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer

Wheels & Brakes

WheelsGloss Black, Steel Laced
Front Tire Size100/90B19,57H,BW
Rear Tire Size150/80B16,77H,BW
Front BrakesSingle 300mm disc, 4 piston caliper, fixed
Rear BrakesSingle 292mm disc, 2 piston floating caliper
ABSOptional

Dimension & Weights

Overall Length2320 mm / 91.3 in
Overall Width865 mm / 34.1 in
Overall Height1160 mm / 45.7 in
Seat Height25.8 inches / 655 mm
Wheelbase64.2 inches / 1630 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity3.5 US gallons / 13.2 L
Wet (kerb/curb) Weight659 lbs / 299 kg
Dry Weight288 kg / 634 lbs

Features

  • Dual-bending valve 49 mm telescopic fork with aluminum fork triple clamps
  • Dual rate spring
  • Gaiter covers on fork
  • Hidden monoshock with coil-over design
  • Free piston design
  • Cam-style preload adjustment
  • 43mm stroke length
  • Milwaukee-Eight V-Twin engine
  • Rigid-mounted engine in the frame
  • Dual counter-balancers to cancel primary vibration
  • Four-valve cylinder heads (2 exhaust, 2 intake valves per head)
  • Dual spark plugs for complete combustion
  • 10.0:1 compression ratio
  • Single camshaft design for reduced mechanical noise
  • Precision cooling system
  • Digital riser gauge on the front end
