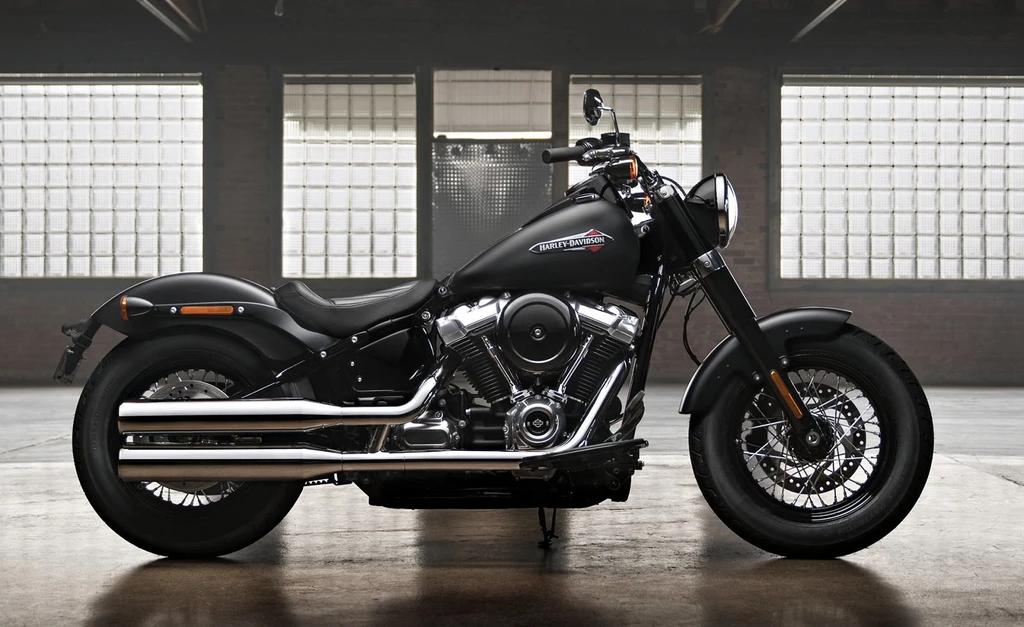

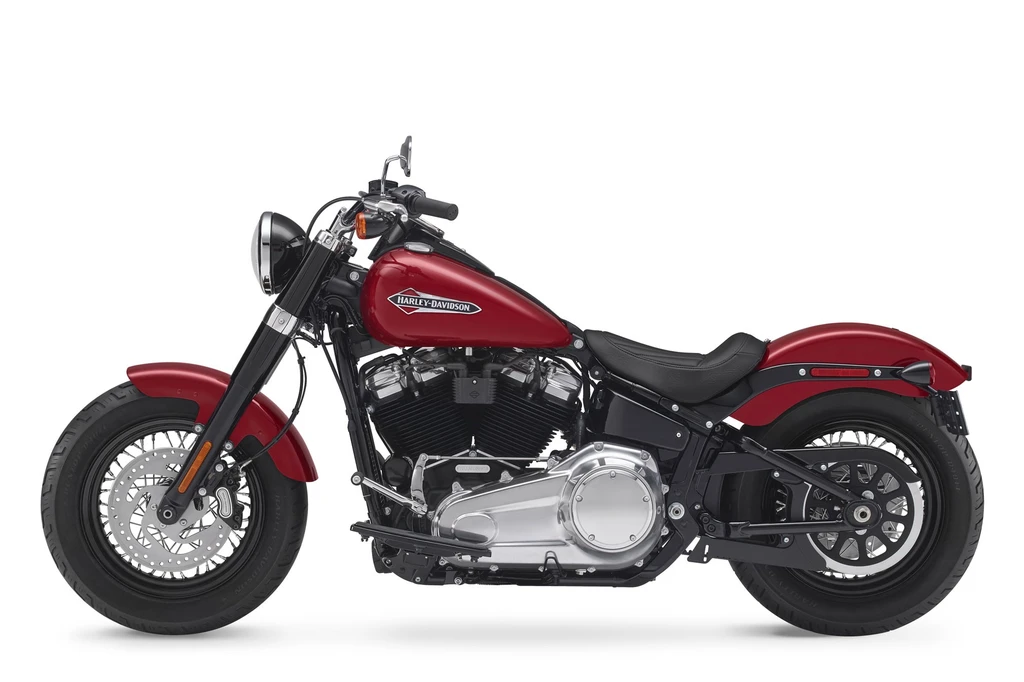

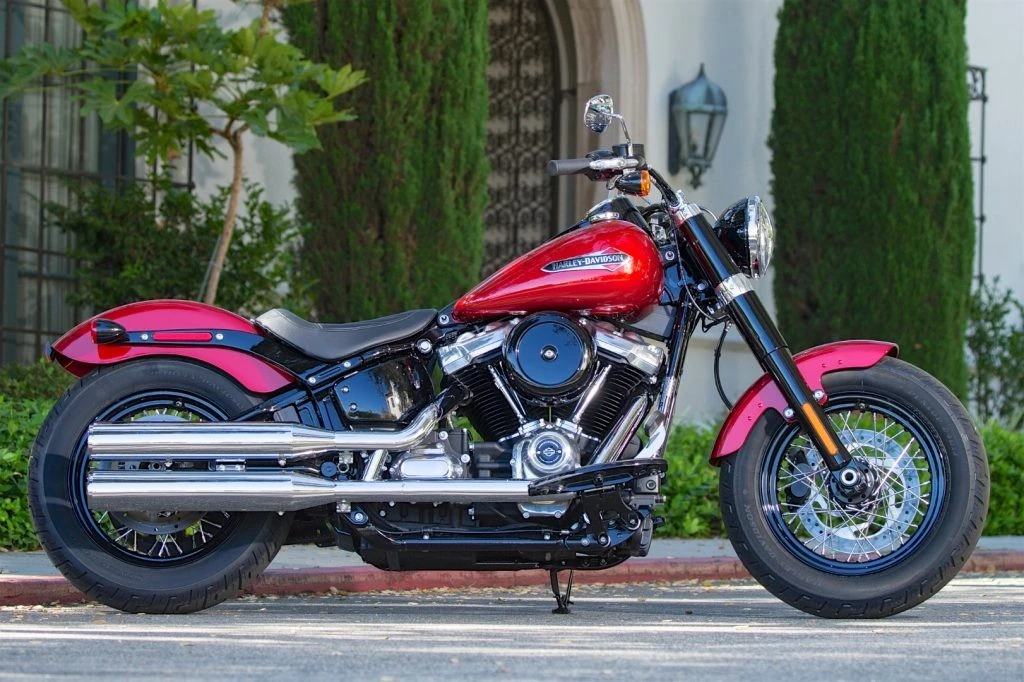

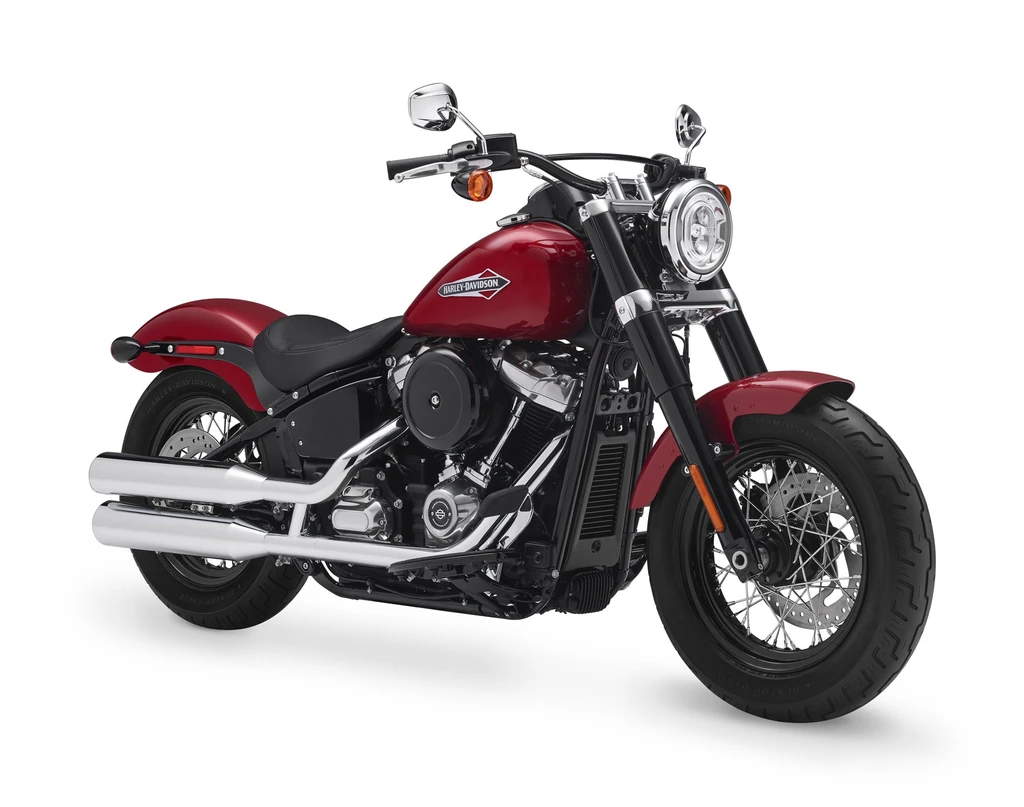

Harley Davidson Softail Slim (2018 – 2019)

Harley Davidson Softail Slim (2018 - 2019)

The Harley-Davidson Softail Slim embodies the raw, vintage essence of bobber culture, stripped down to its most essential elements and amped up with a potent dose of power.

With 35 pounds shaved off its previous weight, this all-new model delivers even more lean angle and responsive handling, making it the perfect companion for carving through twisty roads. The Milwaukee-Eight 107 engine is primed to unleash its full fury, backed by high-performance suspension that includes a new Showa SDBV front fork and easily adjustable mono-shock rear suspension.

As you settle into the low-slung Tuck-And-Roll seat, every detail of the bike’s design seems tailored to an unadulterated riding experience – from the dark polished finishes to the black steel laced wheels. With its authentic bobber style and pure, soul-satisfying rumble, the Harley-Davidson Softail Slim is an invitation to unleash your inner rebel and hit the open road with reckless abandon.

This is a bike that embodies the very essence of freedom, one that will leave you breathless and begging for more.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1746 cc / 107 cub in
Max Torque145 Nm / 107 ft-lb @ 3250 rpm
Fuel Tank Capacity5.0 US gallons / 18.9 L
Weight (Wet/Kerb)671 lbs / 304 kg
Seat Height26 inches / 660 mm
Harley Davidson Softail Slim (2018 - 2019)

All Specifications

Make & Model

ModelHarley Davidson Softail Slim
Year2018 – 2019

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1746 cc / 107 cub in
Bore x Stroke100 x 111 mm
Compression Ratio10.0:1
Max Torque145 Nm / 107 ft-lb @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-into-1-into-2 dual side, catalyst in muffler

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa Inverted forks
Rear SuspensionMono Shock adjustable
Rake30
Trail147 mm / 5.8 in

Wheels & Brakes

WheelsGloss Black, Steel Laced
Front Tire Size130/90B16,53H,BW
Rear Tire Size150/80B1677H,BW
Front BrakesSingle 292 mm discs, 4 piston caliper
Rear BrakesSingle 292 mm disc, 2 piston caliper

Dimension & Weights

Seat Height26 inches / 660 mm
Wheelbase64.2 inches / 1630 mm
Ground Clearance120 mm / 4.7 in
Fuel Tank Capacity5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight671 lbs / 304 kg
Dry Weight291 kg / 642 lbs

Features

  • 35lb lighter than previous model
  • More power from Milwaukee-Eight engine
  • Greater lean angle for improved handling
  • Redesigned front and rear suspension
  • Milwaukee-Eight 107 engine
  • Authentic bobber-style design
  • Daymaker Signature LED Headlamp
  • Hollywood Handlebars
  • Tuck & Roll Style Seat
  • Dark Polished Finishes
  • Low-Slung Tuck-And-Roll Seat
  • Milwaukee-Eight Big Twin Engine
  • High Performance Front Suspension
  • Showa SDBV suspension technology
  • High Performance Rear Mono Shock
  • Easily adjustable mono-shock rear suspension
  • Lighter and stiffer frame compared to previous models
  • Signature LED Forward Lighting
