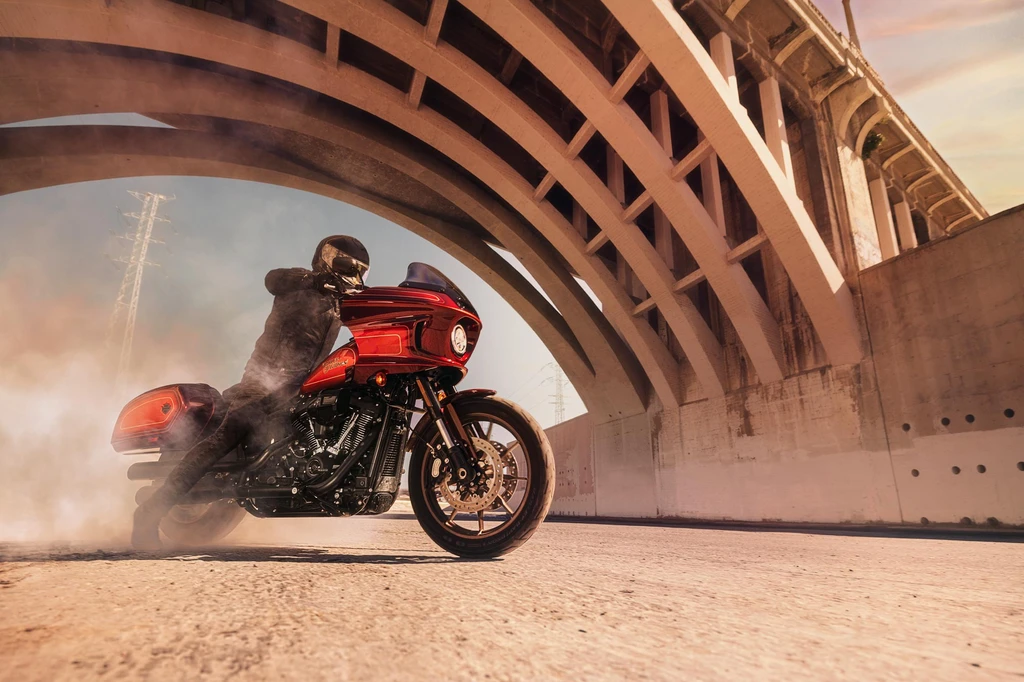

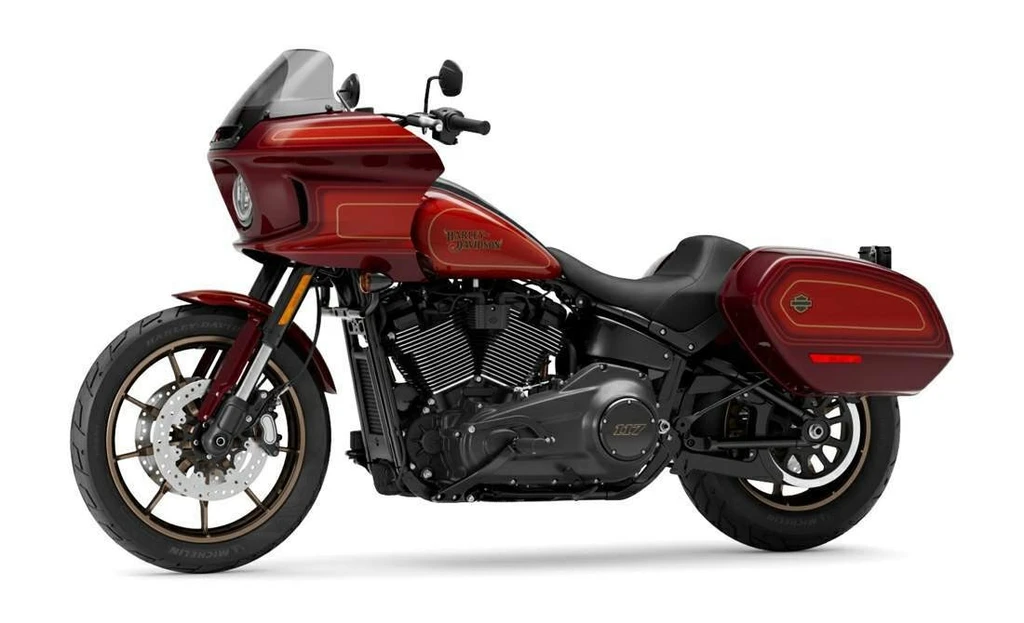

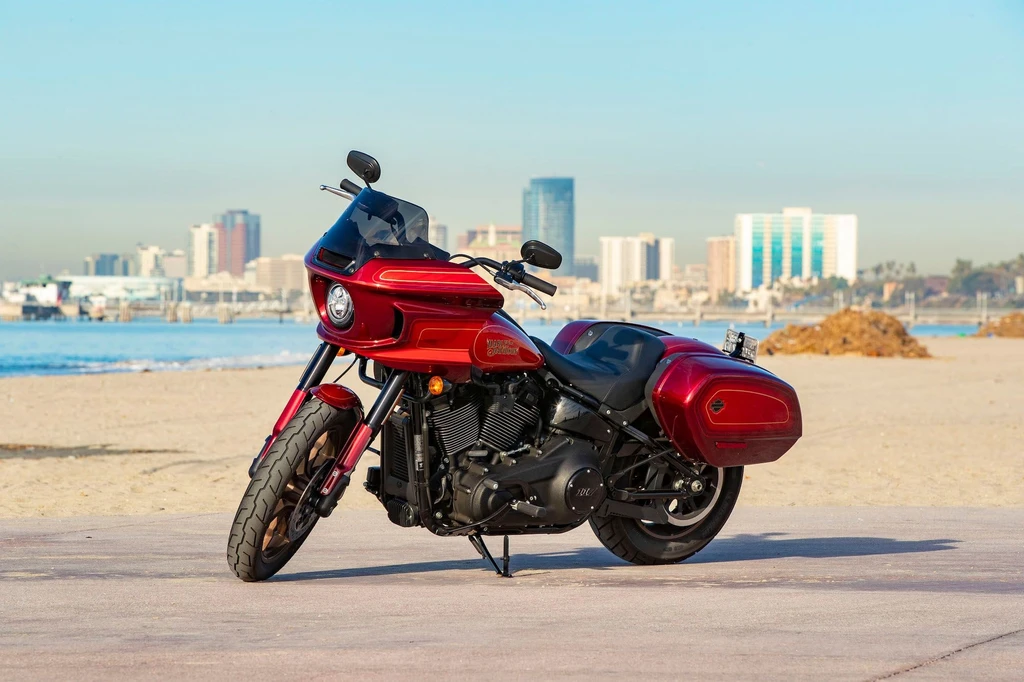

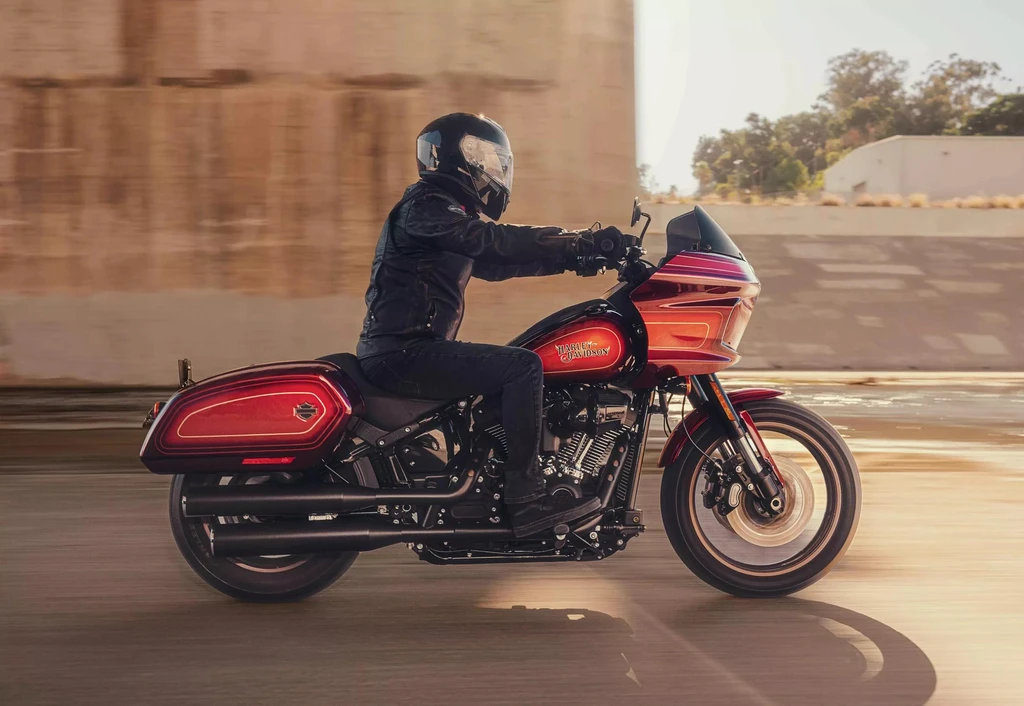

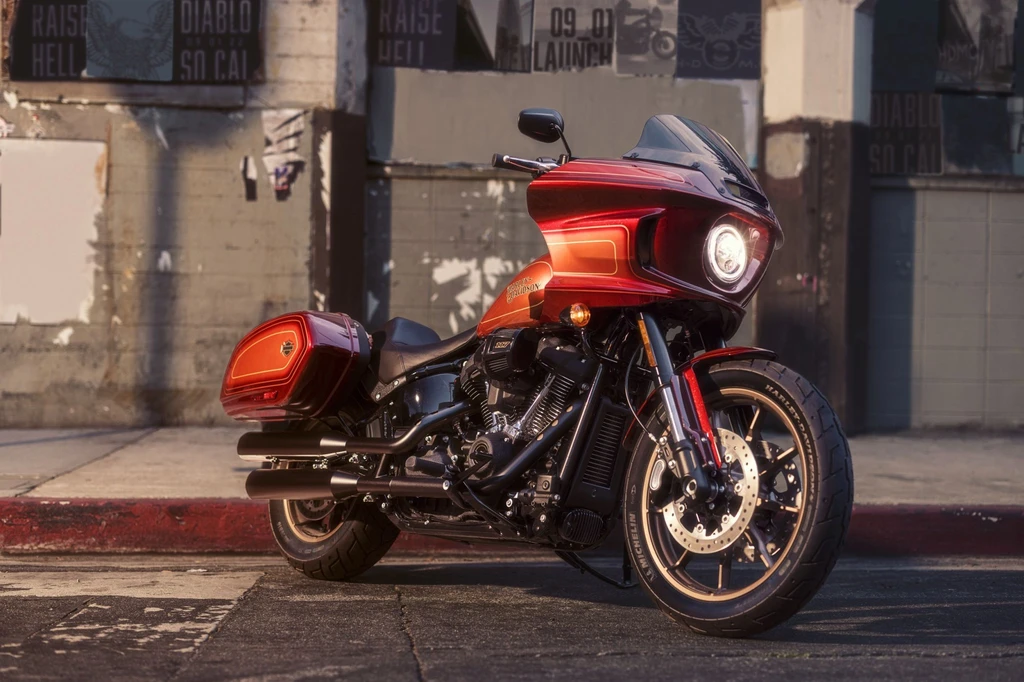

Harley Davidson Softail Low Rider ST El Diablo (2022)

The 2022 Harley-Davidson Softail Low Rider ST El Diablo is a sizzling addition to the Icons Collection, drawing inspiration from the iconic 1983 FXRT and the counterculture movement it spawned.

Under its sleek, paneled exterior lies a potent Milwaukee-Eight 117 engine, delivering a thrilling ride experience with its smooth, V-Twin power and responsive handling. The chassis is tailored for agility, featuring a single-cartridge inverted fork and hidden monoshock with hydraulic preload adjustment.

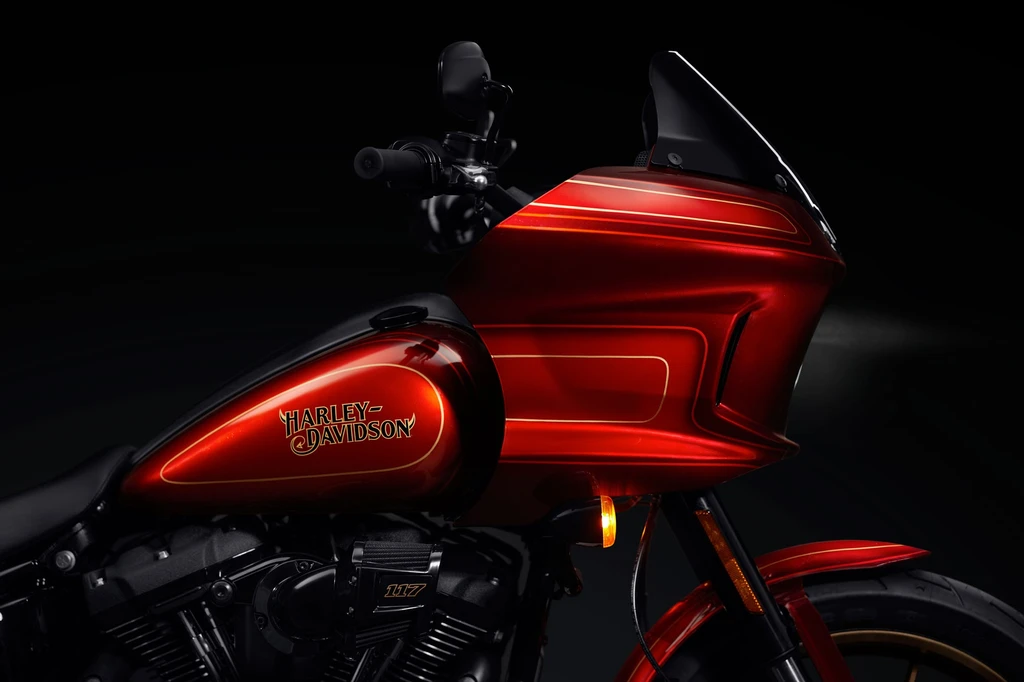

This limited-edition bike exudes the spirit of Southern California’s 80s custom scene, with meticulously crafted paint schemes that are as much a work of art as they are a statement of rebellion. Rockford Fosgate-powered audio elevates the riding experience to new heights, while its exclusive nature and individually serialized build make it a true collector’s item.

The result is an unapologetic, high-performance machine that embodies the essence of California cool, ready to hit the open road with attitude, style, and a soundtrack to match.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	117 cubic inches / 1923 cc
Max Power	105 hp / 78 kW @ 5020 rpm
Max Torque	125 ft-lb / 169 nm
Fuel Tank Capacity	5 US gallons / 18.9 L
Seat Height	27 inches / 686 mm

*n/a – information not provided by manufacturer

Harley Davidson Softail Low Rider ST El Diablo (2022)

All Specifications

Make & Model

Model	Harley Davidson Softail Low Rider ST El Diablo
Year	2022

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	117 cubic inches / 1923 cc
Bore x Stroke	103.5 x 114.3 mm
Compression Ratio	10.2:1
Max Horsepower	105 hp / 78 kW @ 5020 rpm
Max Torque	125 ft-lb / 169 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	2-into-2 offset shotgun, catalyst in muffler

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanical, 10 plate wet, assist & conventional
Gearbox	6 Speed
Gear Ratios	1st 9.3112nd 6.4543rd 4.7934th 3.8825th 3.3076th 2.79
Final Drive	Belt, 32/66 ratio

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Front Suspension	Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Front Suspension Travel	5.1 inches / 130 mm
Rear Suspension	Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Rear Suspension Travel	4.4 inches / 112 mm
Rake	28
Trail	145 mm / 5.7 in
Swingarm	Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer

Wheels & Brakes

Wheels	Dark bronze, Radiate cast aluminum wheel
Front Tire Size	110/90B19,62H,BW
Rear Tire Size	180/70B16,77H,BW
Front Brakes	2 x 300mm discs, 4 piston caliper
Rear Brakes	Single 292mm disc, 2 piston floating caliper
ABS	Standard

Dimension & Weights

Seat Height	27 inches / 686 mm
Wheelbase	63.6 inches / 1615 mm
Ground Clearance	150 mm / 5.9 in
Fuel Tank Capacity	5 US gallons / 18.9 L
Dry Weight	319 kg / 703.2 lbs

Features

Four-stroke V-Twin engine
Milwaukee-Eight 117 engine
Pushrod-operated overhead valves
Hydraulic self-adjusting lifters
4 valves per cylinder
Single-fire non-wasted map-controlled spark ignition
6-speed transmission
Single cartridge fork with aluminum triple clamps and triple rate spring
Hidden free piston coil-over monoshock
Hydraulic preload adjustment on shock
43 mm inverted fork
56 mm stroke on monoshock
Aluminum triple clamps
Harley-Davidson Audio powered by Rockford Fosgate
Individualized serialized paint scheme
