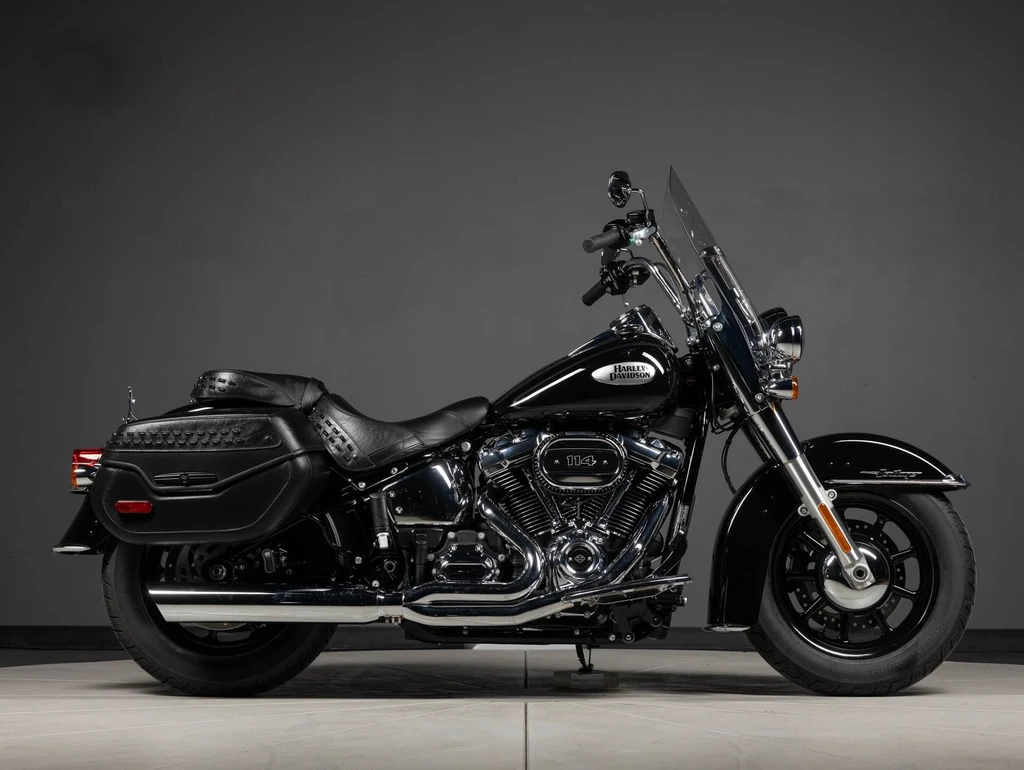

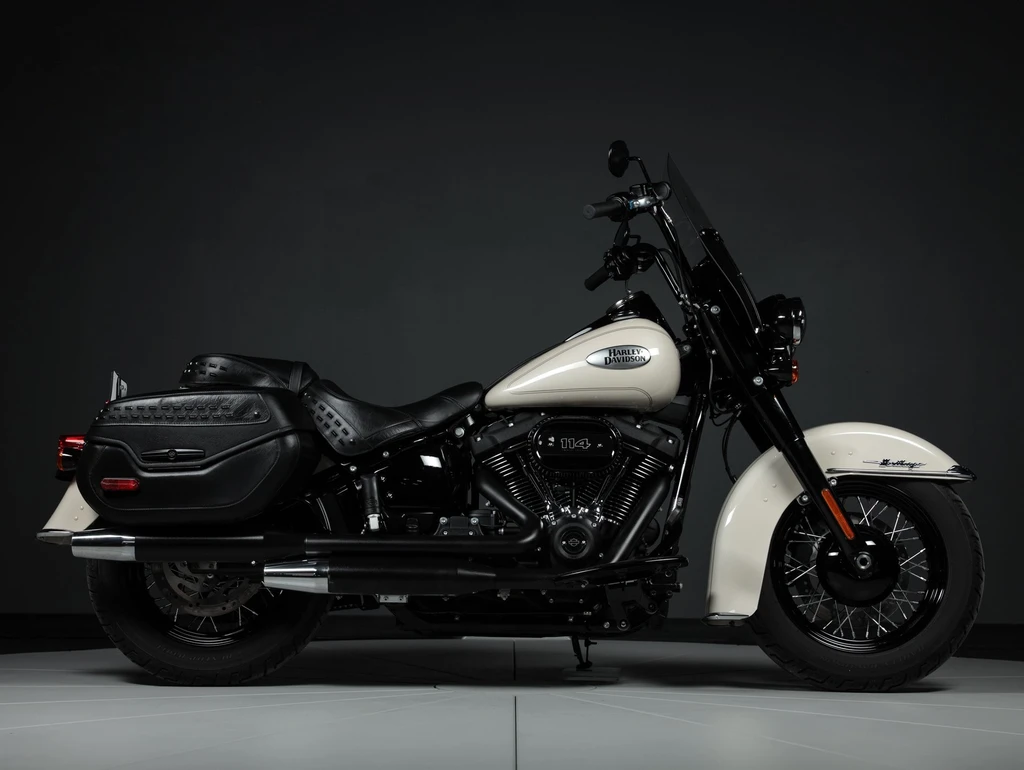

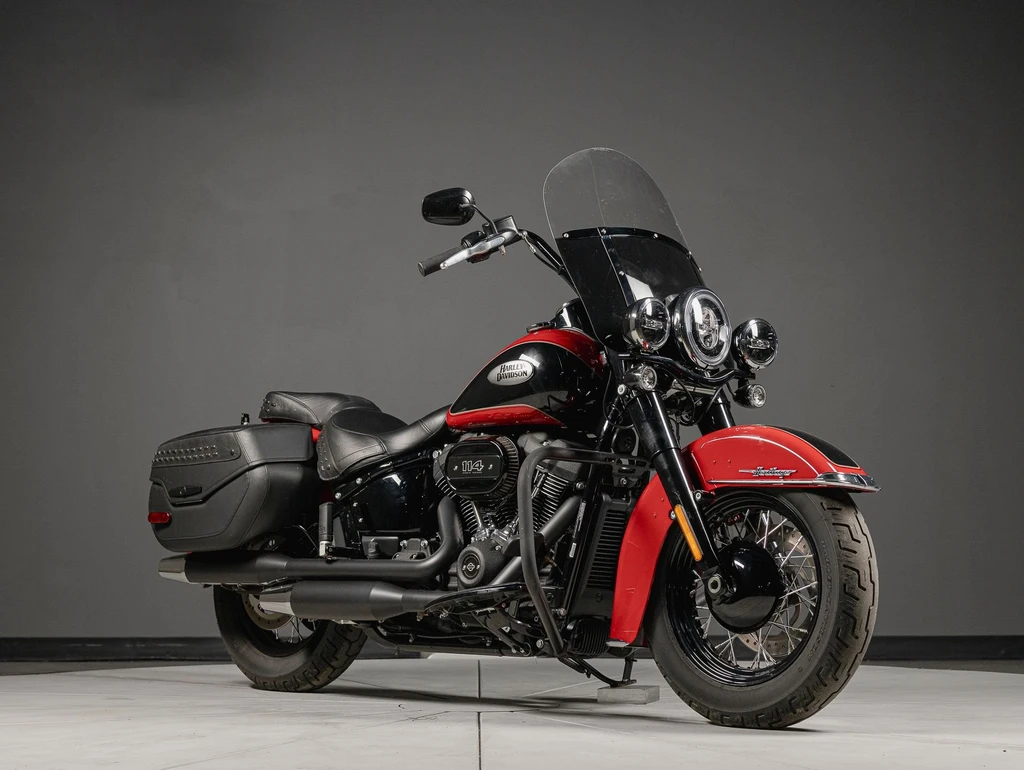

Harley Davidson Softail Heritage Classic 114 (2020 – 2021)

Harley Davidson Softail Heritage Classic 114 (2020 - 2021)

The Harley-Davidson Softail Heritage Classic 114 embodies quintessential American cruiser style with its vintage details and rock and roll flair.

A new Chrome trim option is available for riders who crave a brighter look, while the Black trim version boasts distinct styling elements. The powertrain features a sleek Wrinkle Black finish on upper rocker covers, camshaft cover, transmission cover, and primary cover, contrasting with Gloss Black lower rocker covers.

Whether cruising through town or carving up country roads, the Heritage Classic 114 delivers an authentic riding experience infused with modern technology. With its rich heritage and bold style, this motorcycle is the ultimate statement of freedom and adventure, allowing riders to connect with their inner spirit and hit the open road with unbridled joy and abandon.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity113.9 cubic inches / 1868 cc
Max Torque119 ft-lb / 161 nm
Fuel Tank Capacity5 US gallons / 18.9 L
Weight (Wet/Kerb)728 lbs / 330 kg
Seat Height26.3 inches / 668 mm
Harley Davidson Softail Heritage Classic 114 (2020 - 2021)

All Specifications

Make & Model

ModelHarley Davidson Softail Heritage Classic 114
Year2020 – 2021

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement113.9 cubic inches / 1868 cc
Bore x Stroke102 x114 mm
Compression Ratio10.5:1
Max Torque119 ft-lb / 161 nm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-into-2 shorty dual, catalyst in muffler

Performance

Top Speedn/a

Transmission

ClutchMechanical, 10 plate wet, assist & conventional
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Final DriveBelt, 32/66 ratio

Electrical & Electronics System

StarterElectric
ABSStandard

Chassis & Suspension

Frame TypeMild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports
Front SuspensionDual-bending valve 49 mm telescopic with aluminum fork triple clamps, dual rate spring, “beer can” covers
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionHidden, free piston, coil-over monoshock, 56mm stroke; hydraulic preload adjustment
Rear Suspension Travel112mm / 4.4
Rake30
Trail140 mm / 4.7 in
SwingarmMild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Wheels & Brakes

WheelsGloss black, 9-spoke cast aluminum
Front Tire Size130/90B16,73H,BW
Rear Tire Size150/80B16,77H,BW
Front BrakesSingle 300 mm disc, 4 piston fixed caliper
Rear BrakesSingle 292 mm disc, 2 piston floating caliper
ABSStandard

Dimension & Weights

Overall Length2415 mm / 95.1 in
Overall Width930 mm / 36.6 in
Overall Height1370 mm / 53.9 in
Seat Height26.3 inches / 668 mm
Wheelbase64.2 inches / 1630 mm
Ground Clearance120 mm / 4.7 in
Fuel Tank Capacity5 US gallons / 18.9 L
Wet (kerb/curb) Weight728 lbs / 330 kg
Dry Weight316 kg / 697 lbs

Features

  • Chrome trim option for rider who prefers a brighter look
  • Black trim version with new styling elements
  • Wrinkle Black upper rocker covers
  • Gloss Black lower rocker covers
  • Gloss Black rear lightbar
  • Windshield brackets in Gloss Black
  • Front lightbar in Gloss Black
  • Turn signal standoffs in Gloss Black
  • Black mirrors and triple clamps
  • Black Anodized wheel hubs and hub cap
  • Matte Black exhaust shields with Chrome muffler tips
  • Black 9-Spoke cast aluminum wheels (Chrome trim)
  • Chrome Laced wheels (Chrome trim)
  • Black Laced wheels (Black trim)
  • Wide variety of motorcycle styles in the Cruiser segment
  • Authentic heritage meets modern technology for power and style
  • New paint colors across the Cruiser model line-up

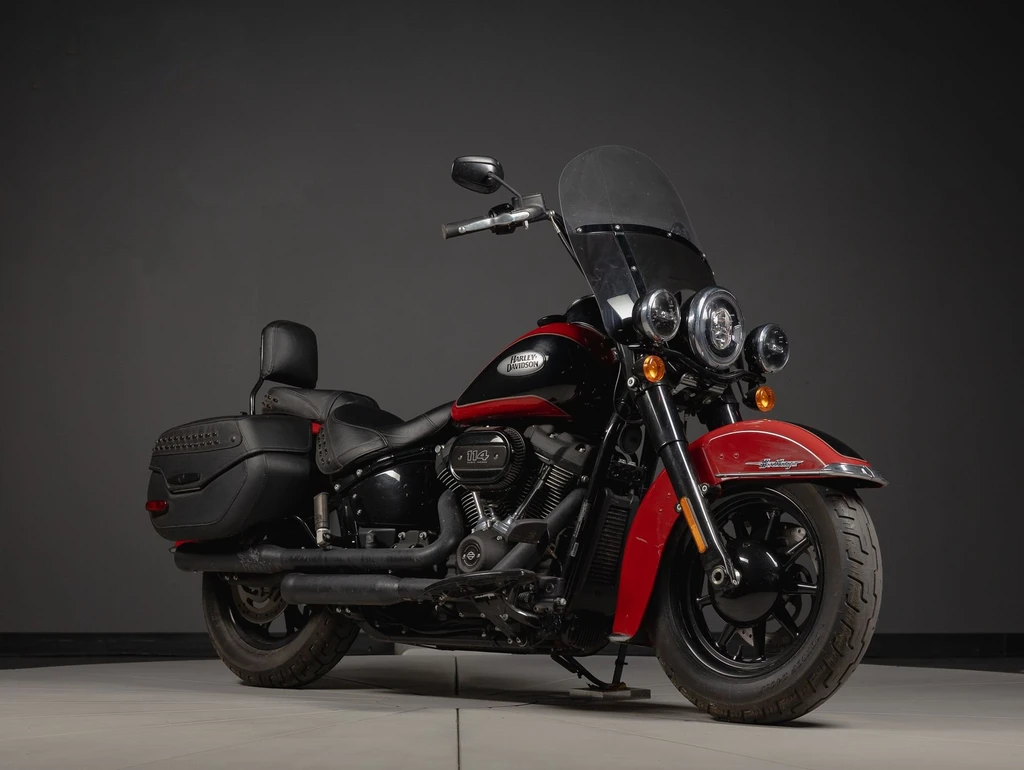

Harley Davidson Softail Heritage Classic 114 (2020 - 2021)

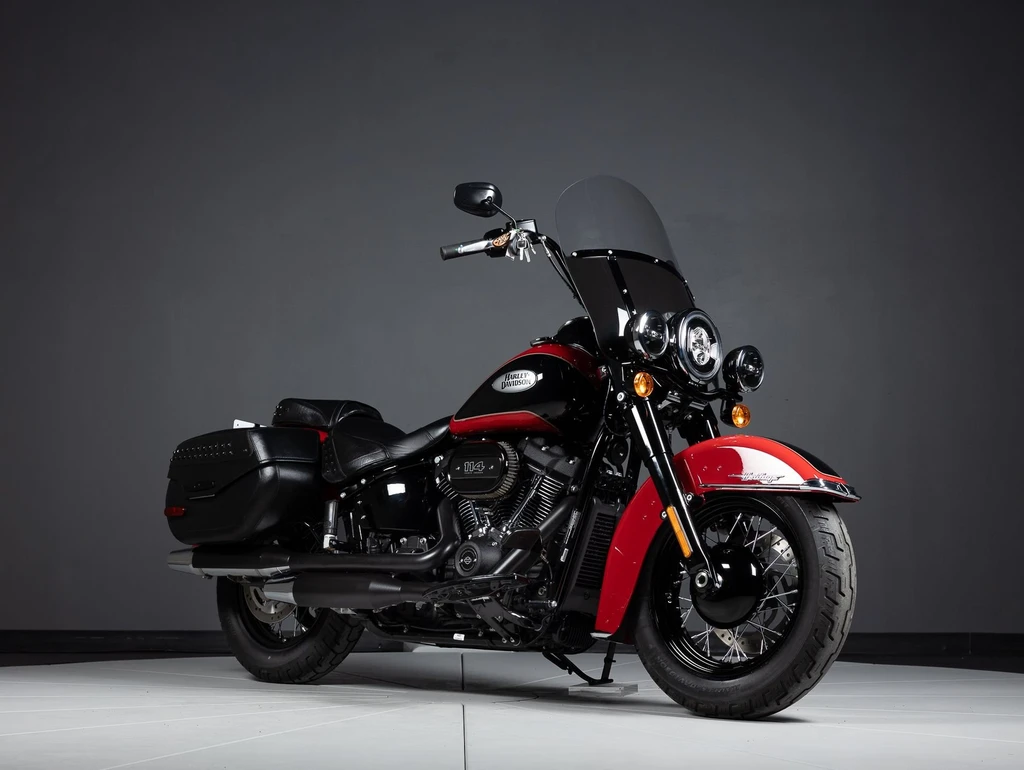

Harley Davidson Softail Heritage Classic 114 (2020 - 2021)

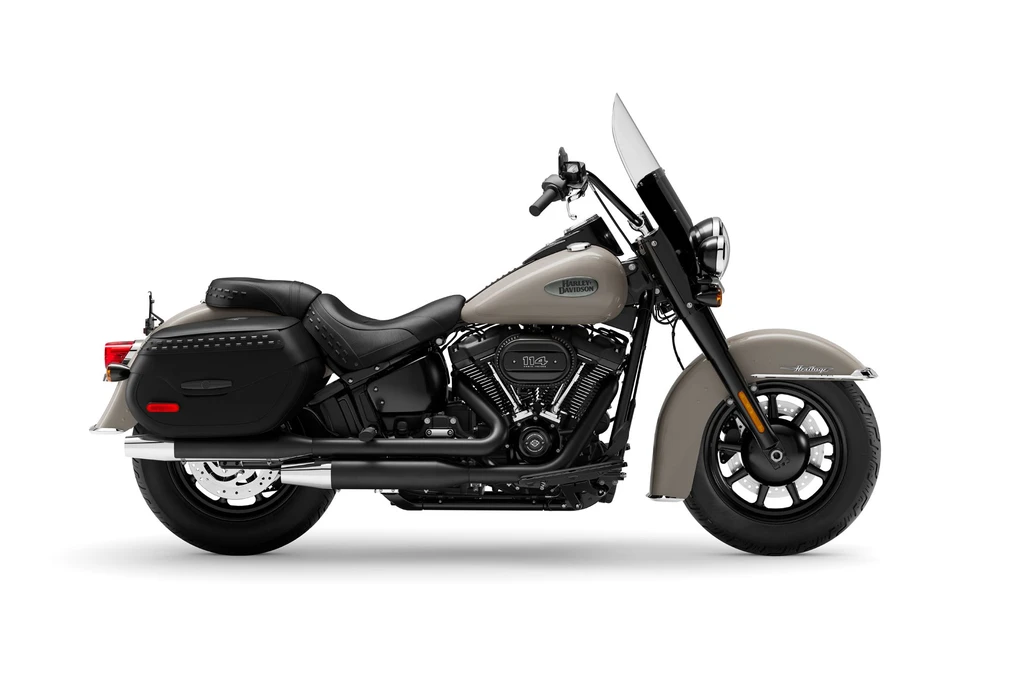

Harley Davidson Softail Heritage Classic 114 (2020 - 2021)

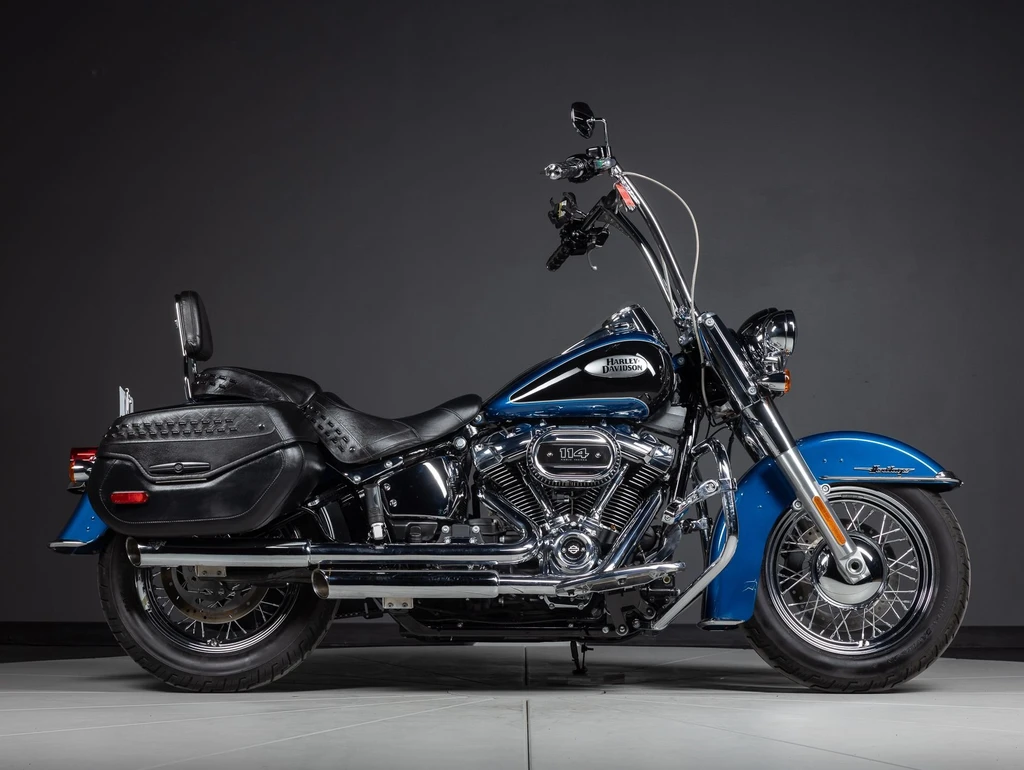

Harley Davidson Softail Heritage Classic 114 (2020 - 2021)
