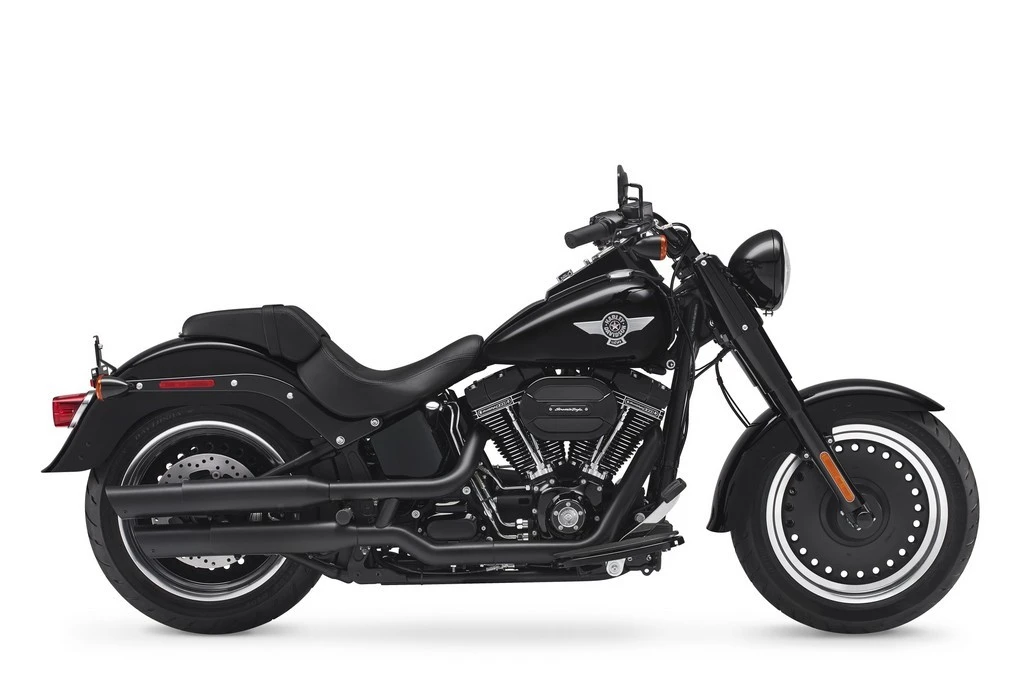

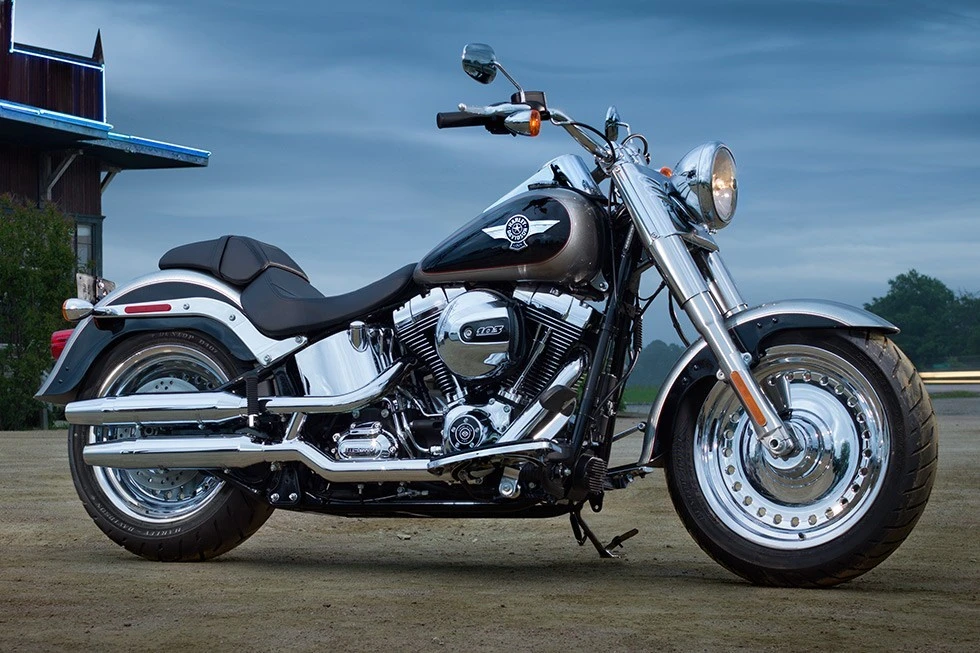

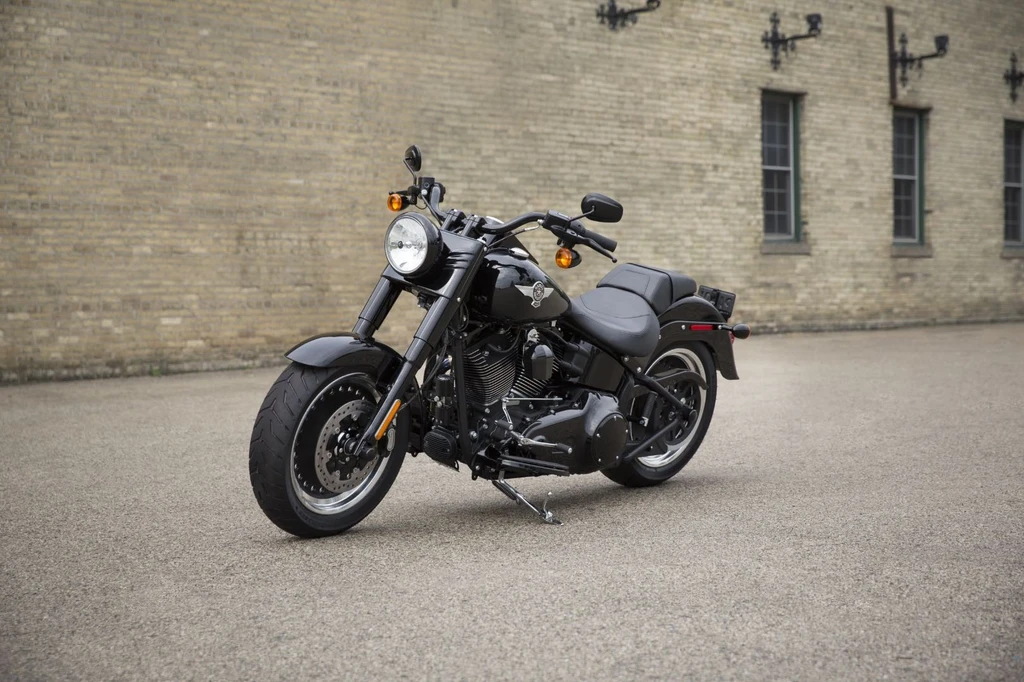

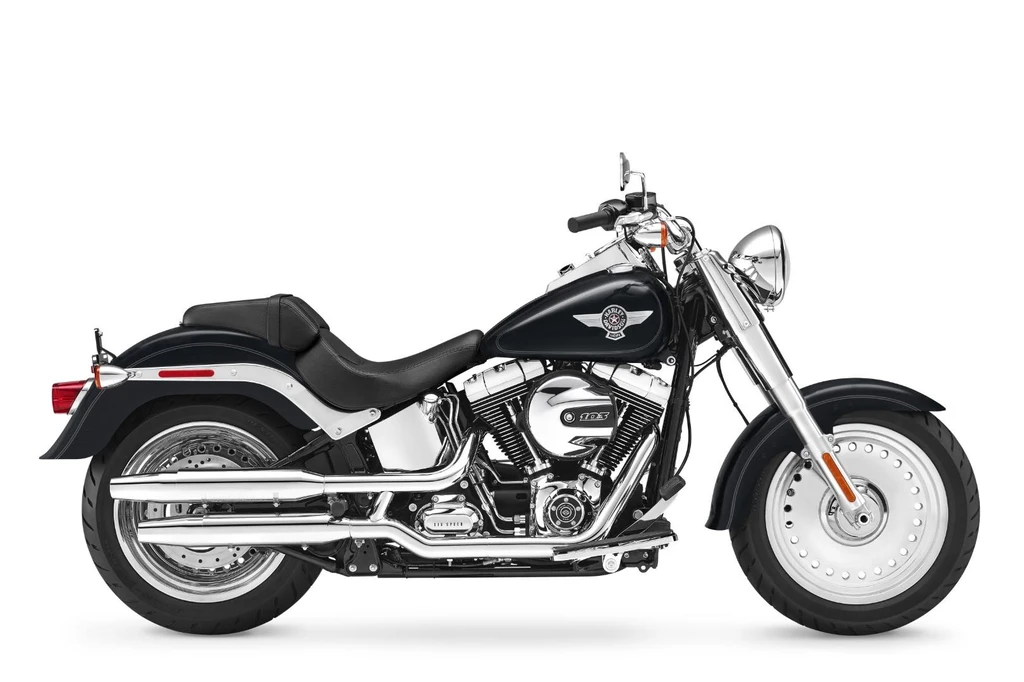

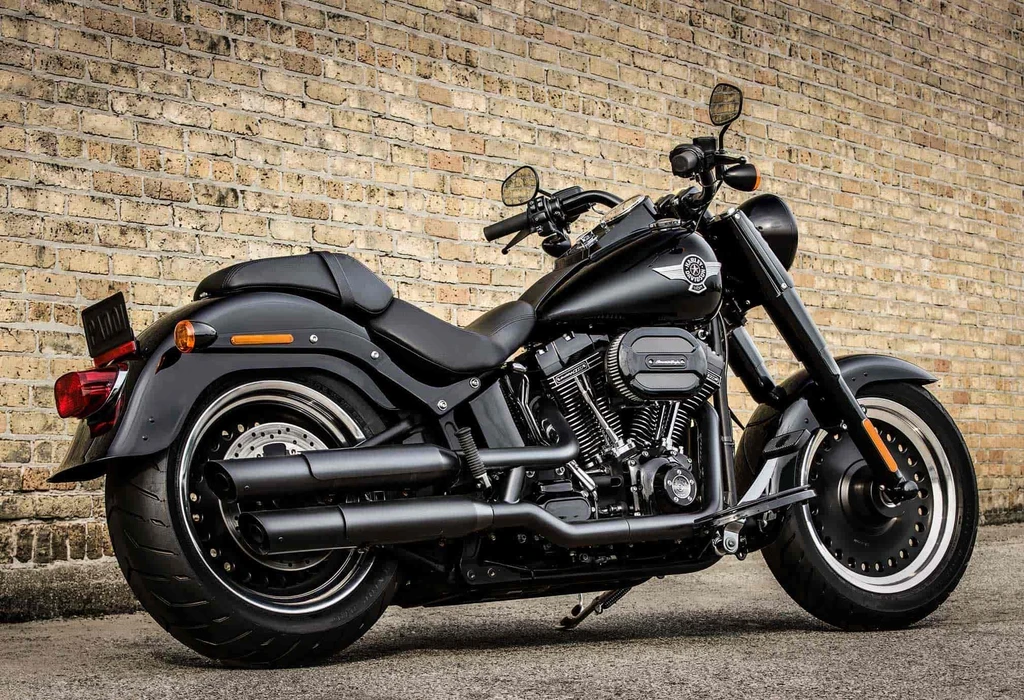

The Harley-Davidson Softail Fat Boy 2017 is an unapologetic heavyweight bike that embodies the very essence of a fat custom motorcycle. Its distinctive rear fender, coupled with its imposing stature, makes it impossible to ignore on the road.
At the heart of this behemoth lies the Electronic Sequential Port Fuel Injection (ESPFI) Output Twin Cam 103B engine, which unleashes pounding torque and delivers power smoothly through the 6-Speed Cruise Drive transmission. This potent combination is further enhanced by the rigid mounted engine and twin hidden rear shocks that provide a clean look reminiscent of vintage hardtails.
As you ride the Fat Boy, its commanding presence and responsive handling come together to create an exhilarating experience. The low-profile, ergonomic handlebar and full-length rider footboards contribute to a comfortable riding position, while the beefy 200 mm wide rear tire provides ample grip on any road surface.
Whether you’re carving through twisties or cruising down the highway, the Harley-Davidson Softail Fat Boy 2017 is an unforgettable ride that leaves an indelible mark on your senses.
Key Specifications
Engine Type
Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler
Engine Capacity
1690 cc / 103.1 cub in.
Max Torque
132 Nm / 13.4 kgf-m / 98.2 ft. lbs @ 3250 rpm
Fuel Tank Capacity
18.9 Litres / US 5.0 gal
Weight (Wet/Kerb)
733 lbs / 332 kg
Seat Height
25.0 inches / 635 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Softail Fat Boy
Year
2017
Engine
Engine Type
Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler
Displacement
1690 cc / 103.1 cub in.
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Max Torque
132 Nm / 13.4 kgf-m / 98.2 ft. lbs @ 3250 rpm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System
Air cooled
Exhaust
Chrome, over/under shotgun exhaust with dual mufflers
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
