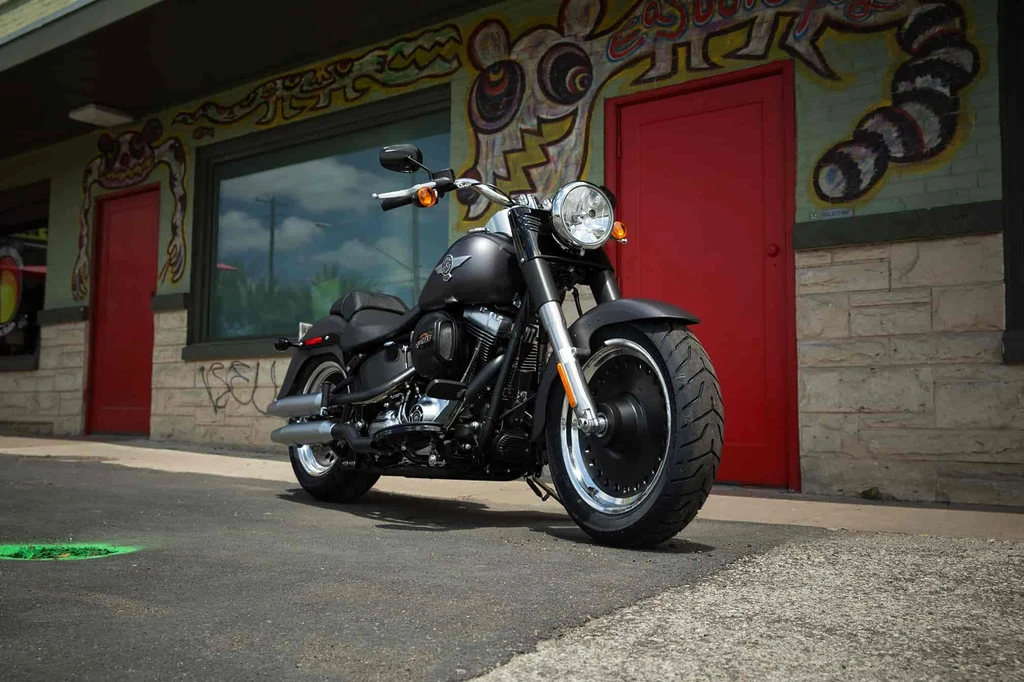

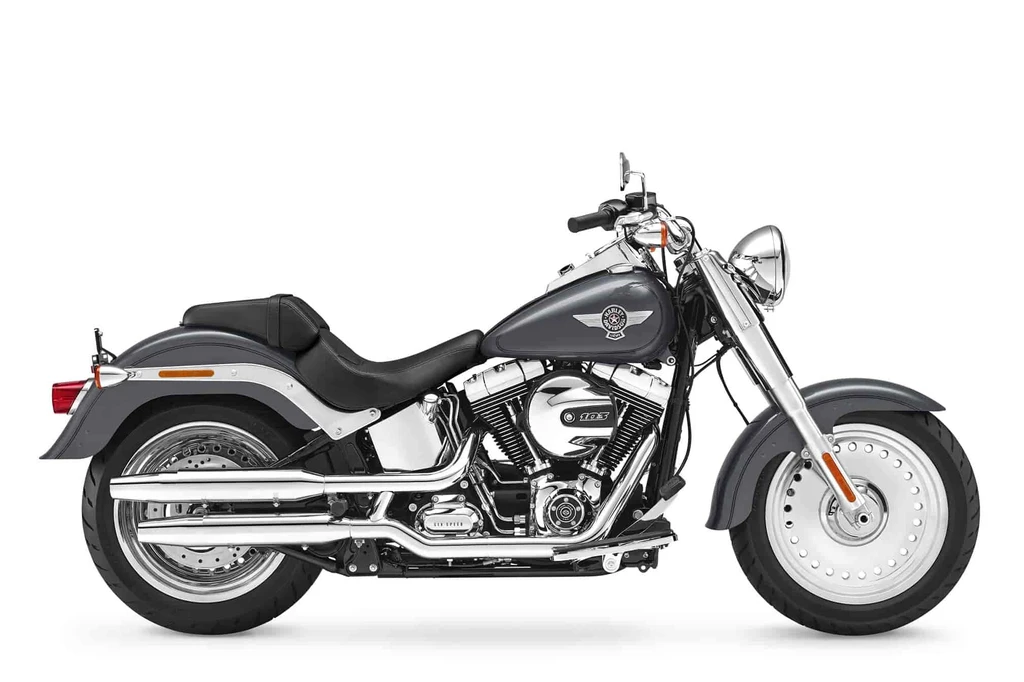

The Harley-Davidson Softail Fat Boy 2016 is a behemoth of a bike, with its fat tires, bars, fender, and powerful Twin Cam 103BTM engine that turns heads wherever it rolls. The Fat Boy’s bold styling statement is matched by its comfortable riding stance, making it the epitome of heavyweight motorcycles.
At its heart lies a rigid-mounted, counter-balanced V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), delivering a rich, full-bodied exhaust note that’s as smooth as it is powerful. The 6-speed Cruise Drive Transmission and big, fat tires combine to make this bike an absolute joy to ride.
With its comprehensive package of standard features, including Anti-lock Braking System (ABS) and Smart Security System option, the Harley-Davidson Softail Fat Boy 2016 represents the ultimate in heavyweight luxury and performance. Whether you’re cruising down the highway or carving up twisty roads, this bike is an unforgettable experience that leaves a lasting impression: it’s a ride that will forever change your perspective on freedom.
Key Specifications
Engine Type
Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler
Engine Capacity
1690 cc / 103.1 cub in.
Max Torque
132 Nm / 13.4 kgf-m / 98.2 ft. lbs @ 3250 rpm
Fuel Tank Capacity
18.9 Litres / US 5.0 gal
Weight (Wet/Kerb)
730 lbs / 331 kg
Seat Height
25.0 inches / 635 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Softail Fat Boy
Year
2016
Engine
Engine Type
Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler
Displacement
1690 cc / 103.1 cub in.
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Max Torque
132 Nm / 13.4 kgf-m / 98.2 ft. lbs @ 3250 rpm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System
Air cooled
Exhaust
Chrome, over/under shotgun exhaust with dual mufflers
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
