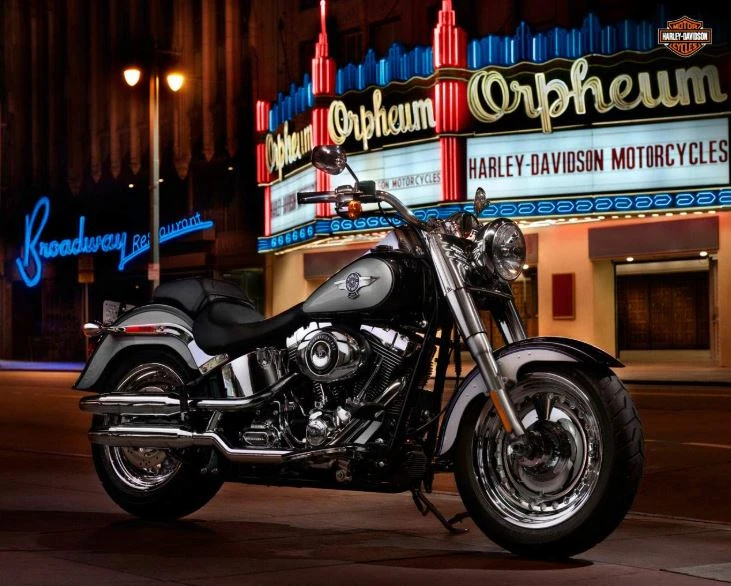

The Harley-Davidson Softail Fat Boy is an unmistakable icon on two wheels, a true heavyweight that exudes bold styling and confidence. At its heart lies the mighty counter-balanced Twin Cam 103B V-Twin engine, fueled by Electronic Sequential Port Fuel Injection (ESPFI) for unparalleled power.
This boulevard legend’s charm extends beyond its raw performance to deliver an effortlessly comfortable riding stance, perfect for cruising the open road or carving through twisties. For 2013, Harley-Davidson has refined the Fat Boy experience with new features such as a larger odometer display and the option of the Security Package, which pairs Anti-lock Braking System (ABS) with Smart Security System.
With its distinctive fat tires, massive fender, and signature chrome accents, this motorcycle is a true head-turner. But it’s not just about looks – beneath its sleek surface lies a richly engineered machine that rewards every twist of the throttle. The Harley-Davidson Softail Fat Boy 2013 truly embodies the spirit of American muscle, delivering an unforgettable riding experience that leaves nothing to be desired.
Key Specifications
Engine Type
Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler
Engine Capacity
1690 cc / 103.1 cub in.
Max Torque
134 Nm / 13.7 kgf-m / 98.8 ft. lbs @ 3500 rpm
Fuel Tank Capacity
5.0 US gallons / 18.9 L
Weight (Wet/Kerb)
725 lbs / 329 kg
Seat Height
25.0 inches / 635 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Softail Fat Boy
Year
2013
Engine
Engine Type
Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler
Displacement
1690 cc / 103.1 cub in.
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Max Torque
134 Nm / 13.7 kgf-m / 98.8 ft. lbs @ 3500 rpm
Engine Management System
Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System
Air cooled
Exhaust
Chrome, over/under shotgun exhaust with dual mufflers
