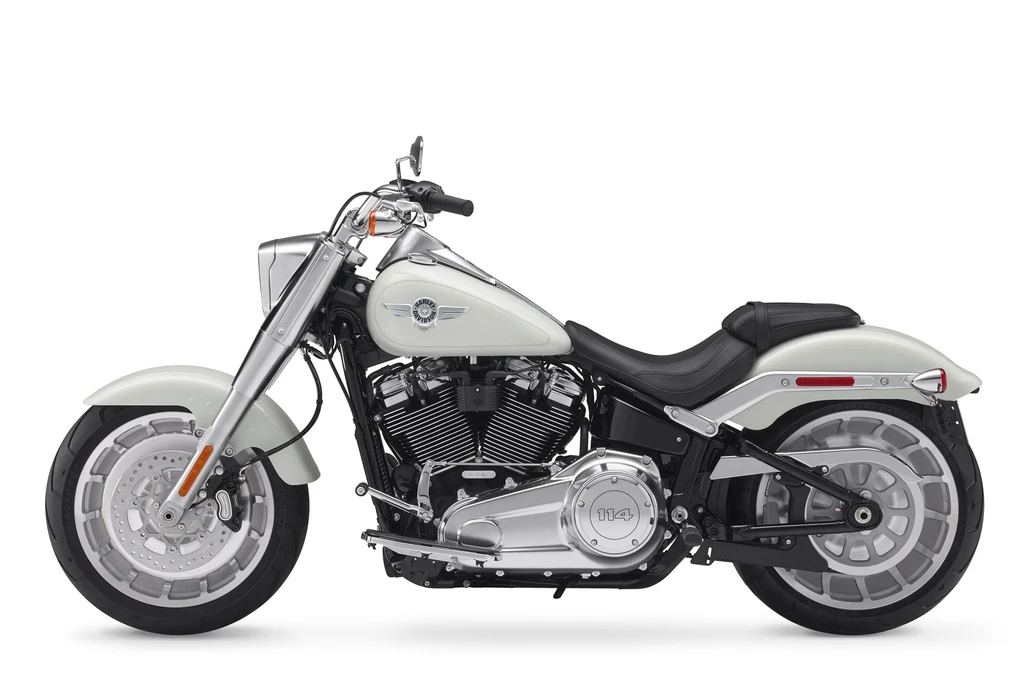

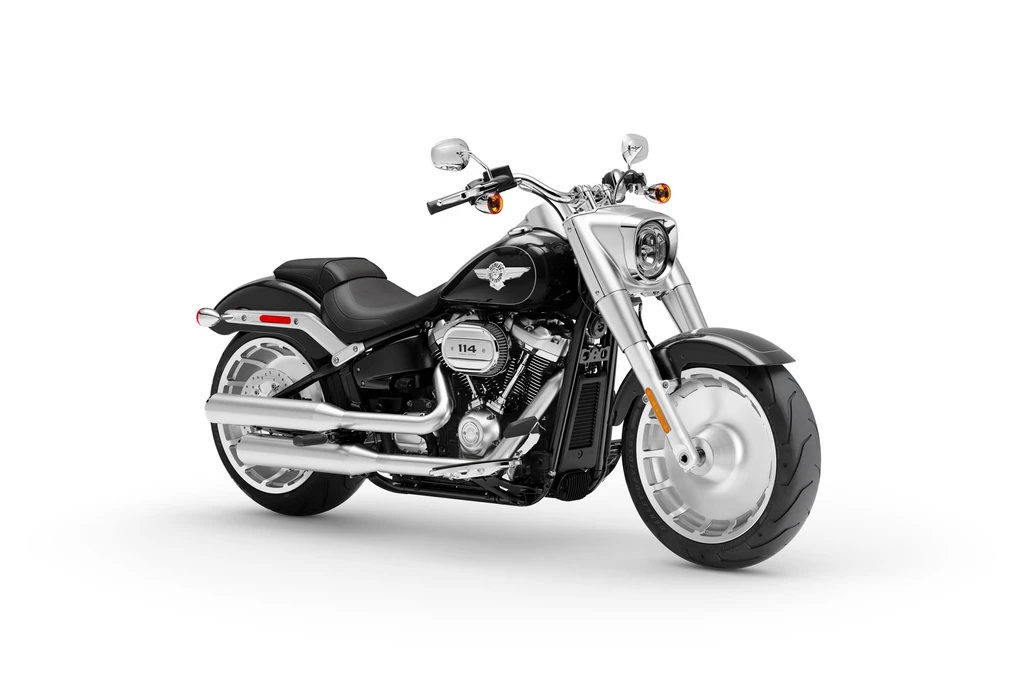

The Harley-Davidson Softail Fat Boy 114 is the ultimate expression of American muscle, boasting an imposing presence on the road with its beefy 240mm rear tire and jaw-dropping satin chrome finishes.
The Milwaukee-Eight V-Twin engine pumps out a powerful pulse, delivering smooth, unrelenting torque that’s impossible to resist. And with a 29-pound weight reduction, this behemoth is now more agile and responsive than ever before.
But it’s not just about raw power – the Fat Boy’s ride is an experience in itself, with a lighter and stiffer frame, high-performance suspension, and a smooth, refined character that’s impossible to match. Whether you’re cruising down Main Street or carving up twisties, this bike will stop traffic.

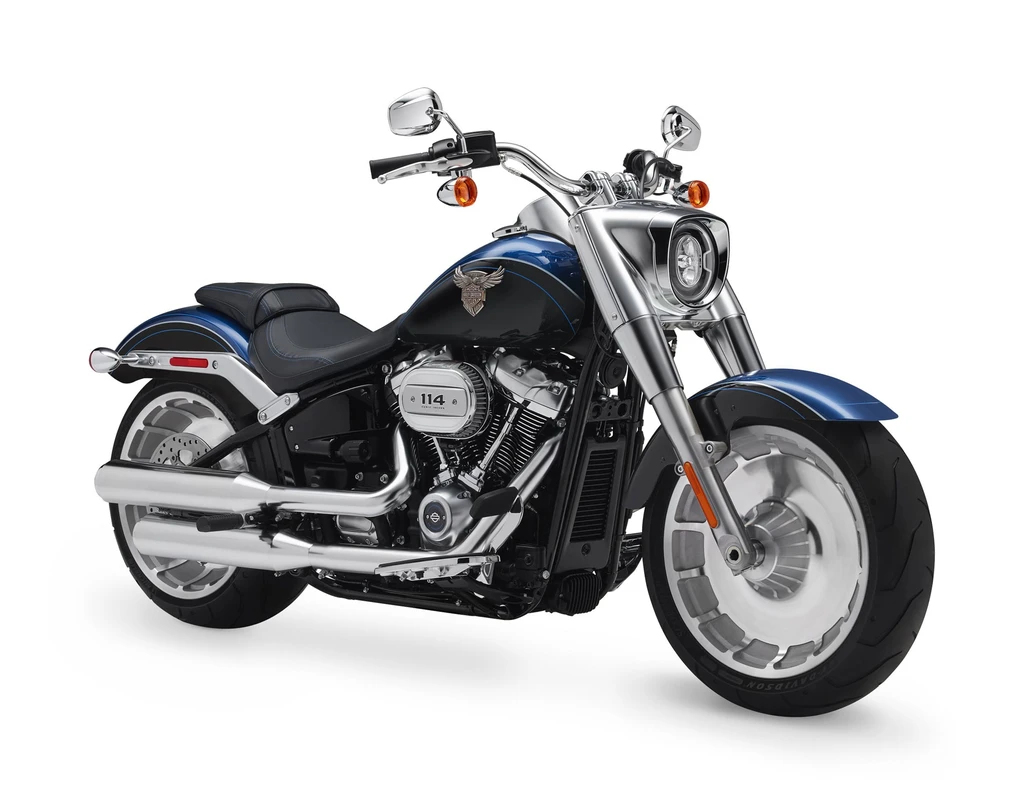

And for those who crave exclusivity, two Limited Edition 115th Anniversary paint schemes are available on select models, each serialized and uniquely numbered for the ultimate collector’s item.
Key Specifications
Engine Type
Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity
113.9 cubic inches / 1868 cc
Max Torque
114.3 ft-lb / 155 nm
Fuel Tank Capacity
18.9 Litres / US 5.0 gal
Weight (Wet/Kerb)
699 lbs / 317 kg
Seat Height
26.4 inches / 675 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Softail Fat Boy 114
Year
2018 – 2019
Engine
Engine Type
Four stroke, V-Twin, 2 Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement
113.9 cubic inches / 1868 cc
Bore x Stroke
102 x114.3 mm
Compression Ratio
10.5:1
Max Torque
114.3 ft-lb / 155 nm
Engine Management System
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
