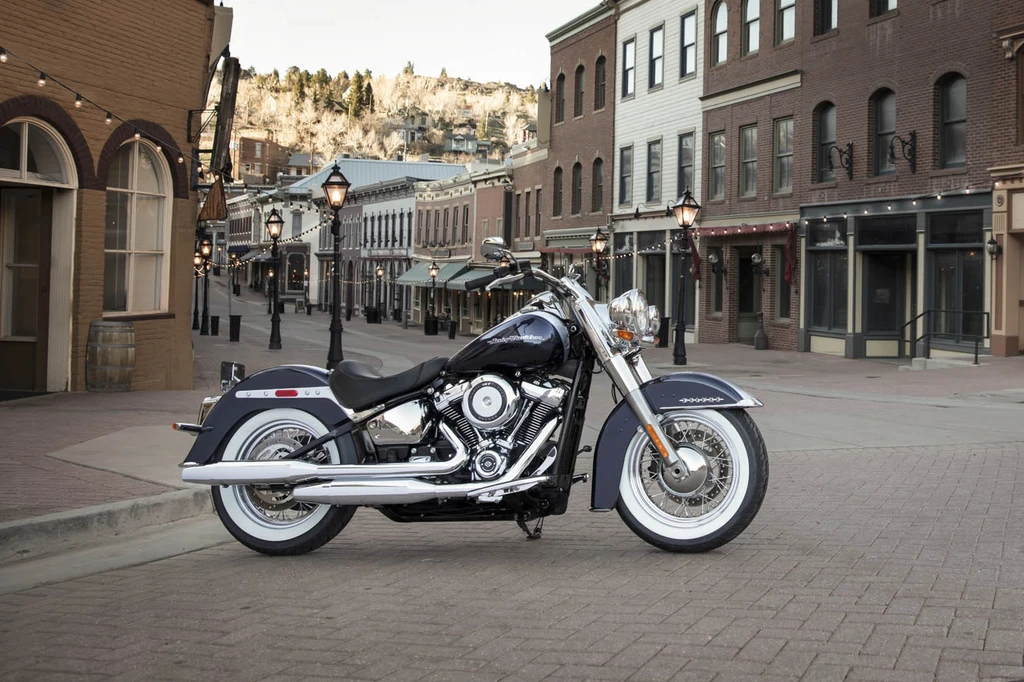

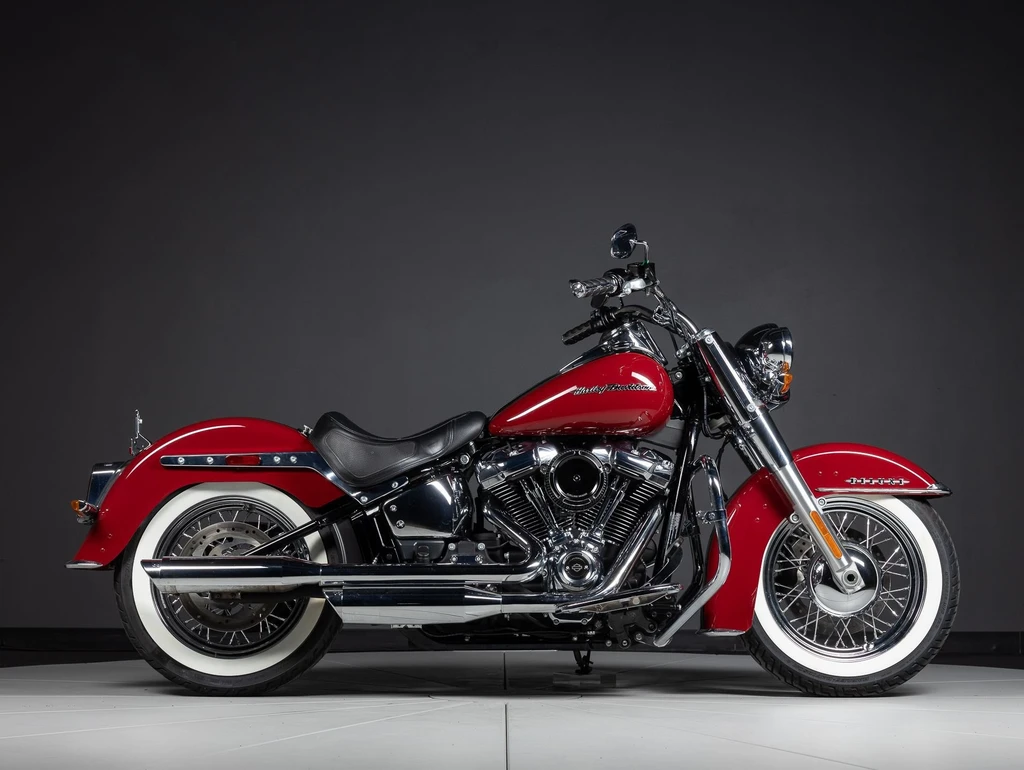

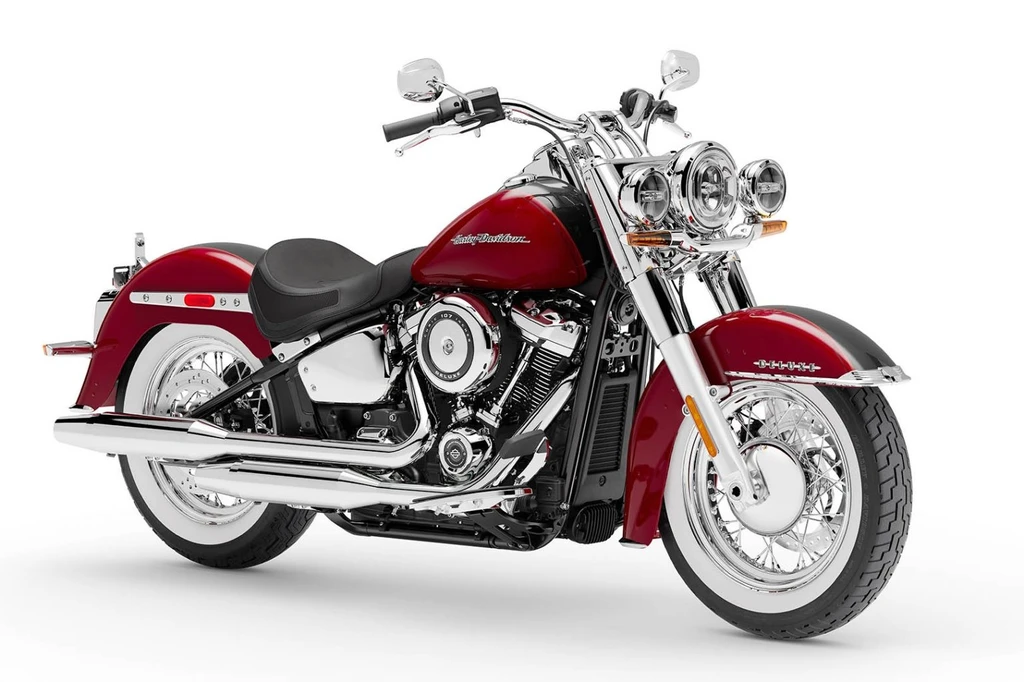

Harley Davidson Softail Deluxe (2020)

The 2020 Harley-Davidson Softail Deluxe is a masterclass in blending vintage charm with modern muscle.

Underneath its gleaming chrome exterior lies the potent Milwaukee-Eight engine, delivering effortless power and smooth operation. Paired with an agile Softail frame and suspension, this boulevard cruiser turns heads while effortlessly devouring miles.

Its sleek, nostalgic styling nods to the 1950s, but without sacrificing handling or performance. The iconic pullback riser bars provide confidence-inspiring ergonomics, ensuring a comfortable ride from dawn till dusk.

At night, LED lighting illuminates the road ahead and announces your presence with precision. With its powerful V-Twin engine purring in harmony, you’ll be drawn to the open road again and again.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1746 cc / 107 cub in
Max Torque	148 Nm / 109 ft-lb @ 3000 rpm
Fuel Tank Capacity	5 US gallons / 18.9 L
Weight (Wet/Kerb)	696.6 lbs / 316 kg
Seat Height	26.7 inches / 680 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson Softail Deluxe
Year	2020

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1746 cc / 107 cub in
Bore x Stroke	100 x 111 mm
Compression Ratio	10.0:1
Max Torque	148 Nm / 109 ft-lb @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	2-into-2 shorty dual, catalyst in muffler

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Front Suspension	Showa Inverted forks
Rear Suspension	Mono Shock adjustable
Rake	30
Trail	145 mm / 5.7 in

Wheels & Brakes

Wheels	Chrome Steel Laced
Front Tire Size	MT90B16 72H
Rear Tire Size	MU85B16 77H
Front Brakes	2 x Disc, 4 piston caliper
Rear Brakes	Single Disc, 2 piston floating caliper

Dimension & Weights

Overall Length	2415mm / 95 in
Seat Height	26.7 inches / 680 mm
Wheelbase	64.2 inches / 1630 mm
Ground Clearance	115 mm / 4.5 in
Fuel Tank Capacity	5 US gallons / 18.9 L
Wet (kerb/curb) Weight	696.6 lbs / 316 kg
Dry Weight	303 kg / 668 lbs

Features

Milwaukee-Eight engine
Easy-handling Softail frame and suspension
Lighter than ever imagined
Bright, nostalgic boulevard cruiser styling
Chrome pullback riser for improved ergonomics
Confidence-inspiring, easy-reach ergonomics
LED headlight
Running lights
Turn signals
Tombstone tail/stop light
Powerful V-Twin engine
Smooth-running engine
Crisp throttle response
Pure, soul-satisfying rumble
Responsive ride due to lightweight design and stiffness
