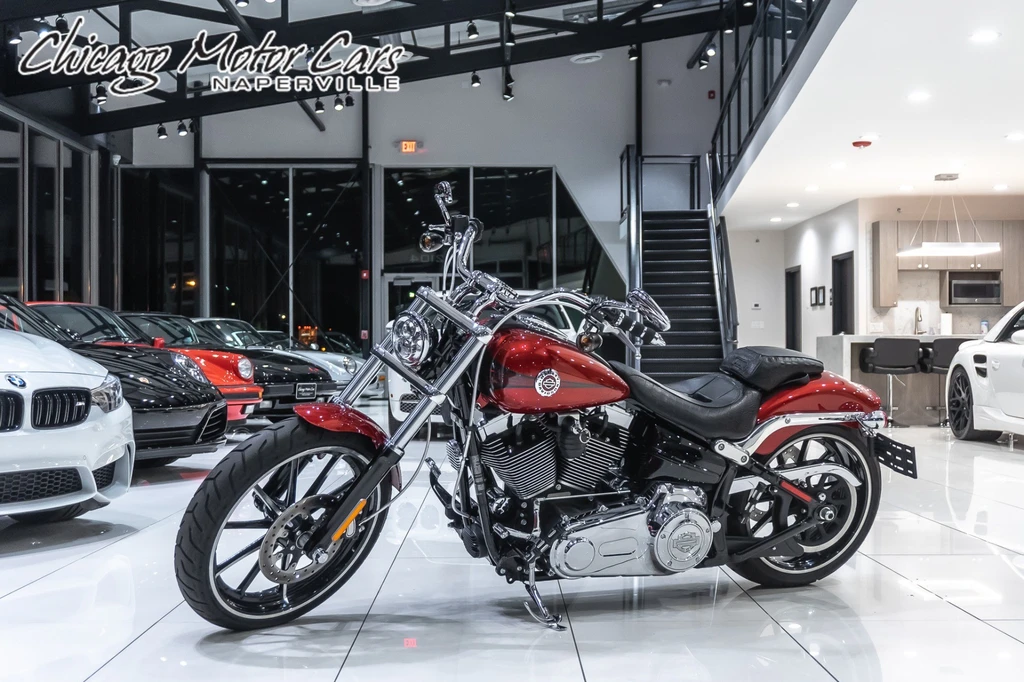

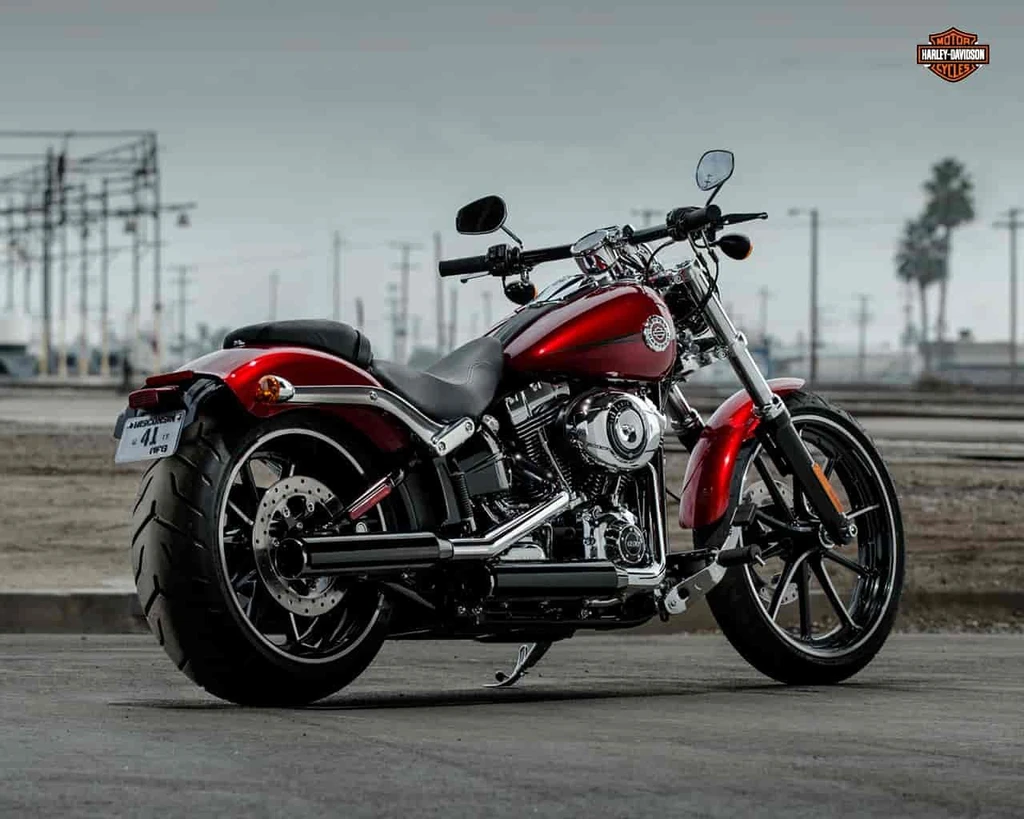

The 2013 Harley-Davidson Softail Breakout FXSB is an unapologetic urban prowler, bred for midnight escapades and rugged good looks.
Its sleek, low-slung profile is punctuated by a massive 240mm rear tire, visually balanced by thick forks and chopped fenders. A shaved tank console and drag handlebar only add to its aggressive stance.
At the heart of this performance cruiser lies a Twin Cam 103 powertrain, delivering a muscular dose of American V-Twin torque that’s impossible to ignore. With its rigid-mounted, counter-balanced powertrain, every twist of the wrist is met with an instant response, creating an unbreakable connection between rider and machine.
The Breakout is more than just a bike – it’s an experience, a rebellious attitude that refuses to be tamed.
Key Specifications
Engine Type
Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Engine Capacity
1690 cc / 103.1 cu in
Max Torque
99.5 ft-lb / 134 nm
Fuel Tank Capacity
5.0 US gallons / 18.9 L
Weight (Wet/Kerb)
675 lbs / 306 kg
Seat Height
24 inches / 610 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson Softail Breakout FXSB
Year
2013
Engine
Engine Type
Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Displacement
1690 cc / 103.1 cu in
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Max Torque
99.5 ft-lb / 134 nm
Engine Management System
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
