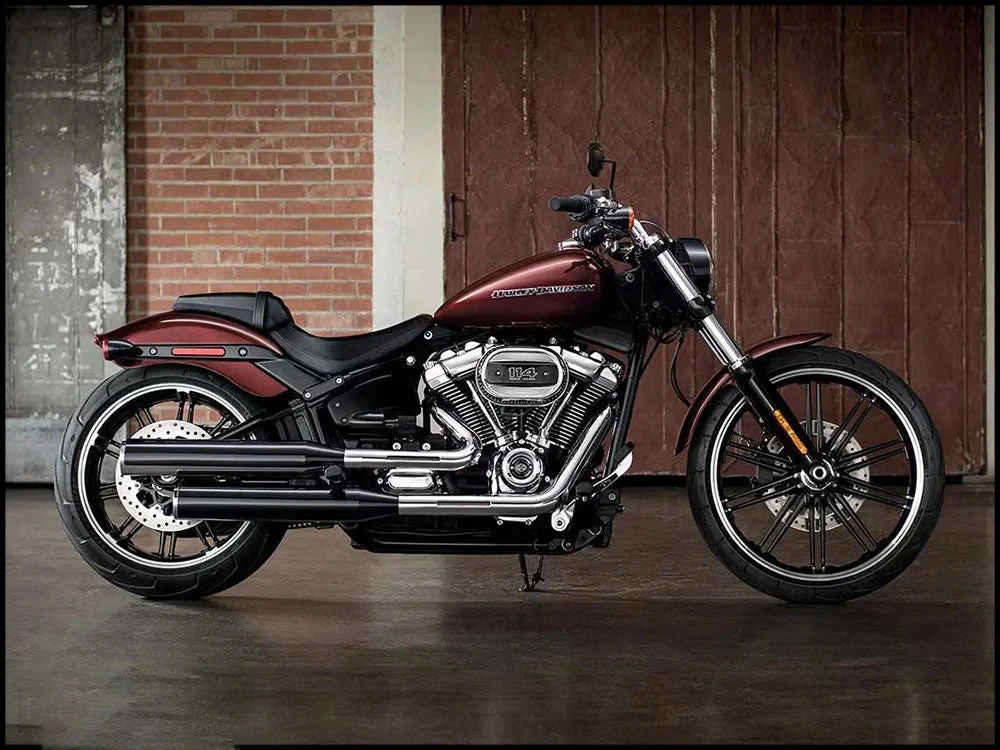

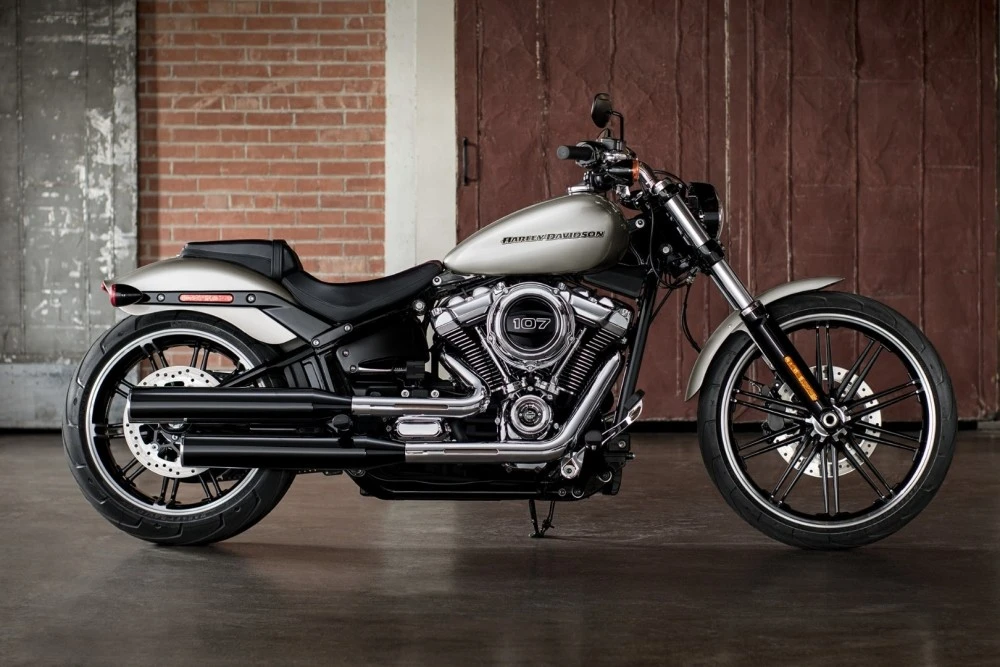

Harley Davidson Softail Breakout (2018)

Harley Davidson Softail Breakout (2018)

The Harley-Davidson Softail Breakout embodies the essence of modern muscle, where sleek lines meet unbridled power.

This imposing machine boasts a new, smaller tank that puts its Milwaukee-Eight engine on full display, a subtle yet striking visual cue that hints at its incredible capabilities. The 240mm rear tire is a masterclass in design, engineered to leave an indelible mark on the asphalt.

But it’s not just about aesthetics – the Breakout’s all-new suspension ensures maximum power transfer to the road, while its significant weight reduction (a whopping 35 pounds) makes every twist of the throttle feel more responsive and alive.

With a choice of 107 or 114 engine displacements, this motorcycle promises an exhilarating ride experience that’s equal parts raw power and refined sophistication. And when you finally hit the open road, you’ll be convinced: the Harley-Davidson Softail Breakout is the ultimate statement of dragster attitude and style.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1746 cc / 107 cub in
Max Torque148 Nm / 109 ft-lb @ 3000 rpm
Fuel Tank Capacity13.2 L / 3.5 US gal
Seat Height26.2 inches / 665 mm
Harley Davidson Softail Breakout (2018)

All Specifications

Make & Model

ModelHarley Davidson Softail Breakout
Year2018

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1746 cc / 107 cub in
Bore x Stroke100 x 111 mm
Compression Ratio10.0:1
Max Torque148 Nm / 109 ft-lb @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
Exhaust2-into-1-into-2 dual side, catalyst in muffler

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front SuspensionShowa Inverted forks
Rear SuspensionMono Shock
Rake34
Trail145 mm / 5.7 in

Wheels & Brakes

WheelsGloss black, Gasser II cast aluminum
Front Tire Size130/60B21,63H,BW
Rear Tire Size240/40R18,79V,BW
Front BrakesSingle 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 2 piston caliper

Dimension & Weights

Seat Height26.2 inches / 665 mm
Wheelbase66.7 inches / 1695 mm
Ground Clearance115 mm / 4.5 in
Fuel Tank Capacity13.2 L / 3.5 US gal
Dry Weight294 kg / 648 lbs

Features

  • 240mm Rear Tire
  • Digital Riser Gauge
  • Wide digital instrumentation
  • Speed readout
  • Fuel gauge
  • Gear indicator
  • Milwaukee-Eight Big Twin Engine
  • Available in 107 and 114 engine displacements
  • All-New Softail Frame
  • Lighter and stiffer frame compared to previous models
  • High Performance Front Suspension
  • New Showa SDBV suspension technology
  • Linear damping characteristics
  • High Performance Rear Mono Shock
  • Easily adjustable mono-shock rear suspension
  • Dynamic cornering capability
  • 35lb weight reduction
