Harley Davidson Road King (2019 – 2020)

Harley Davidson Road King (2019 - 2020)

The Harley-Davidson Road King embodies the essence of a modern classic, with its Hiawatha headlamp and nacelle paying homage to the 1960s while boasting the raw power of the Milwaukee-Eight 107 engine.

A plush ride is ensured by the Showa dual-bending valve front suspension and rear emulsion shocks, putting riders firmly in control. The addition of cast Impeller wheels and one-touch bags completes this touring masterpiece.

The stripped-down nostalgic style of the Road King has been reimagined for the modern era, with a potent engine that brings it all into the present, fast. This is not just a motorcycle – it’s an invitation to explore the world in the most epic way possible.

With its iconic V-Twin design and massive torque, the Milwaukee-Eight 107 engine delivers unparalleled performance, crisper throttle response, and a truer, cleaner sound. Whether carving through twisties or cruising down the highway, the Road King is the ultimate touring machine that will leave you breathless with every ride.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1746 cc / 107 cub in.
Max Torque151 Nm / 111.4 ft/lb @ 3250 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)836 lbs / 379 kg
Seat Height26.3 inches / 668 mm
Harley Davidson Road King (2019 - 2020)

All Specifications

Make & Model

ModelHarley Davidson Road King
Year2019 – 2020

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1746 cc / 107 cub in.
Bore x Stroke100 x 111 mm / 3.937 x 4.374 in
Compression Ratio10.0:1
Max Torque151 Nm / 111.4 ft/lb @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

ClutchHydraulically actuated 9 plate wet, Assist & Slip
Gearbox6 Speed
Gear Ratios1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Final DriveBelt

Electrical & Electronics System

StarterElectric
ABSStandard

Chassis & Suspension

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension49 mm forks, Dual Bending Valve
Front Suspension Travel4.6 inches / 117 mm
Rear SuspensionPremium low height hand-adjustable rear shocks
Rear Suspension Travel2.15 inches / 54.6 mm
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

WheelsBlack, Turbine Cast Aluminium
Front Wheel/Rim Size9 Impeller Cast Aluminum
Front Tire SizeBW 130/80B17 65H
Rear Wheel/Rim SizeImpeller Cast Aluminum
Rear Tire SizeBW 180/65B16 81H
Front Brakes2 x 300 mm disc, caliper type 32 mm, 4-piston fixed, dual floating rotors
Rear BrakesSingle 300 mm, caliper type 32 mm, 4-piston, fixed rotor
ABSStandard

Dimension & Weights

Seat Height26.3 inches / 668 mm
Wheelbase64 inches / 1625 mm
Ground Clearance135 mm / 5.3 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight836 lbs / 379 kg
Dry Weight362 kg/ 798 lbs

Features

  • Milwaukee-Eight 107 and Milwaukee-Eight 114 engines
  • Most powerful and coolest-running motors ever built by Harley-Davidson
  • Smoother, stronger, and more durable
  • Crisper throttle response
  • Truer, cleaner sound
  • Four valves per cylinder
  • Single chain-driven cam
  • Dual spark plugs
  • Counter-balanced
  • Rubber mounted
  • Showa dual-bending valve front suspension
  • Rear emulsion shocks
  • Cast Impeller wheels
  • One-touch bags
  • Reflex dual disc linked Brembo brakes with ABS
  • Dual Halogen headlamps and fog lamps
  • Brighter turn signals and brake lights
  • Beefy steering head and front forks

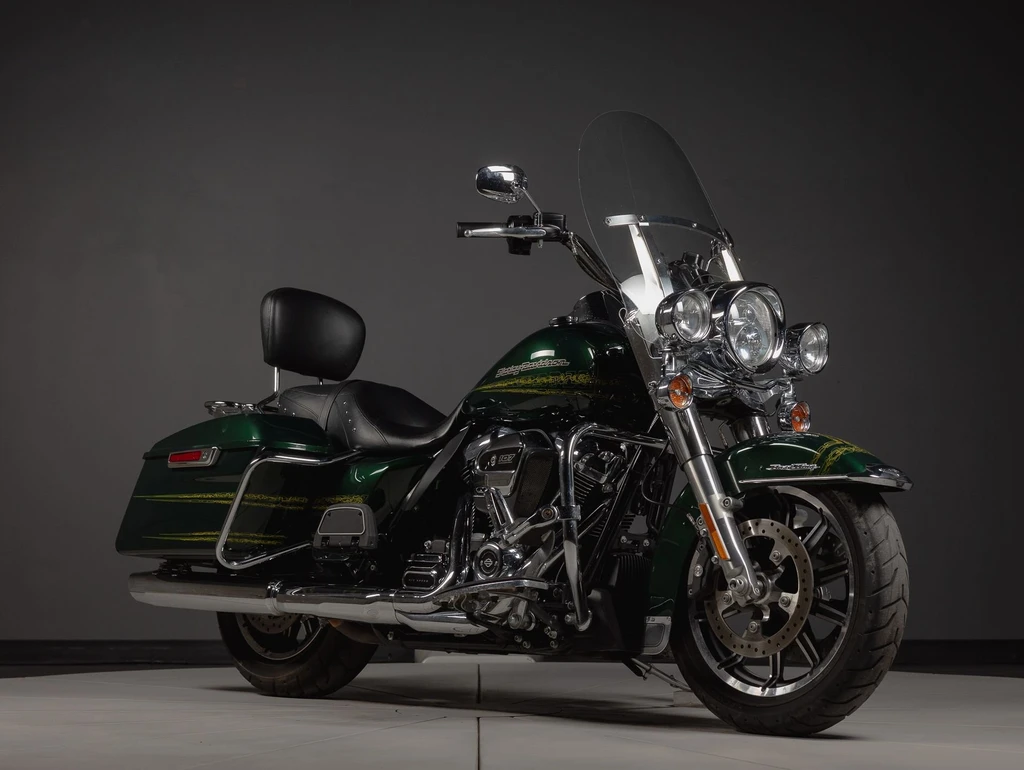

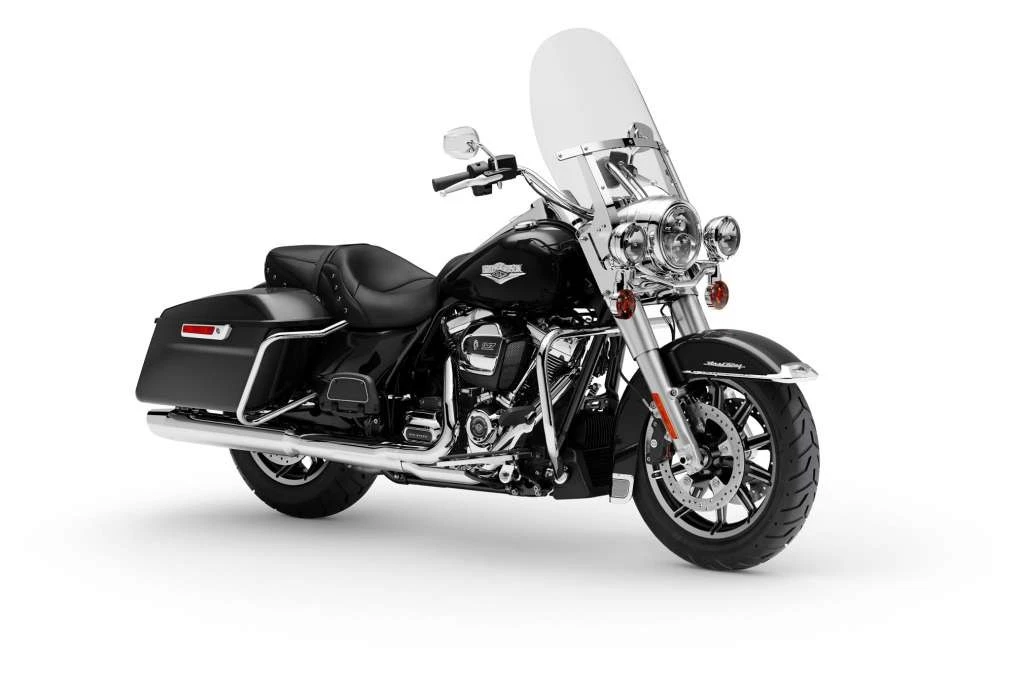

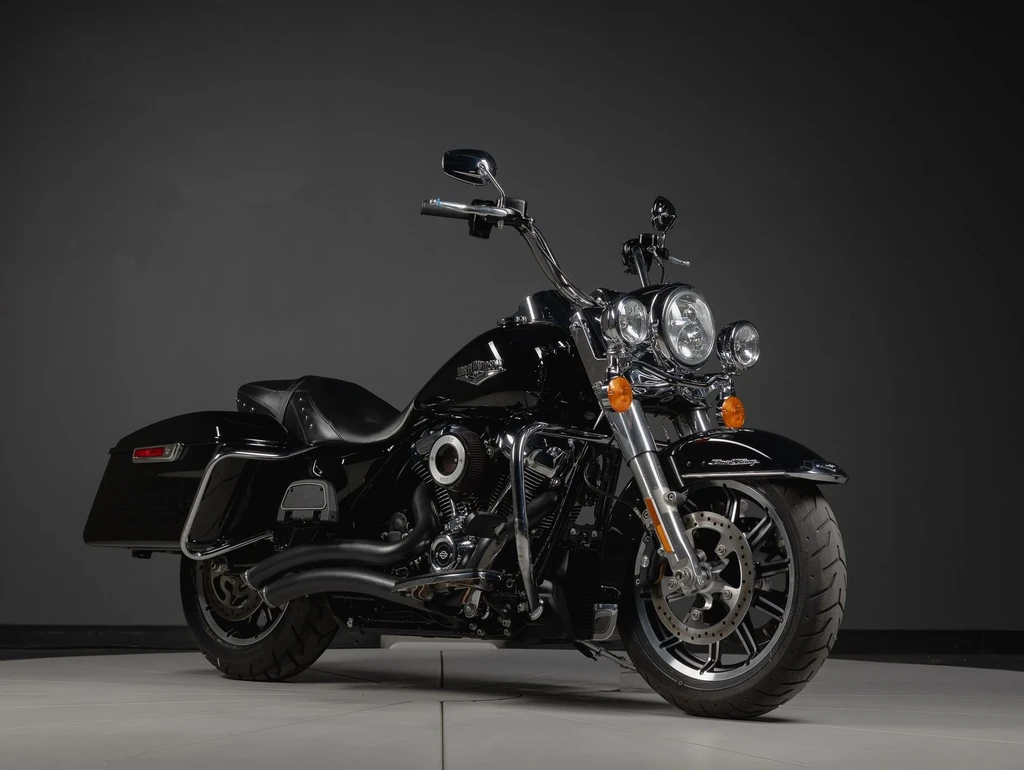

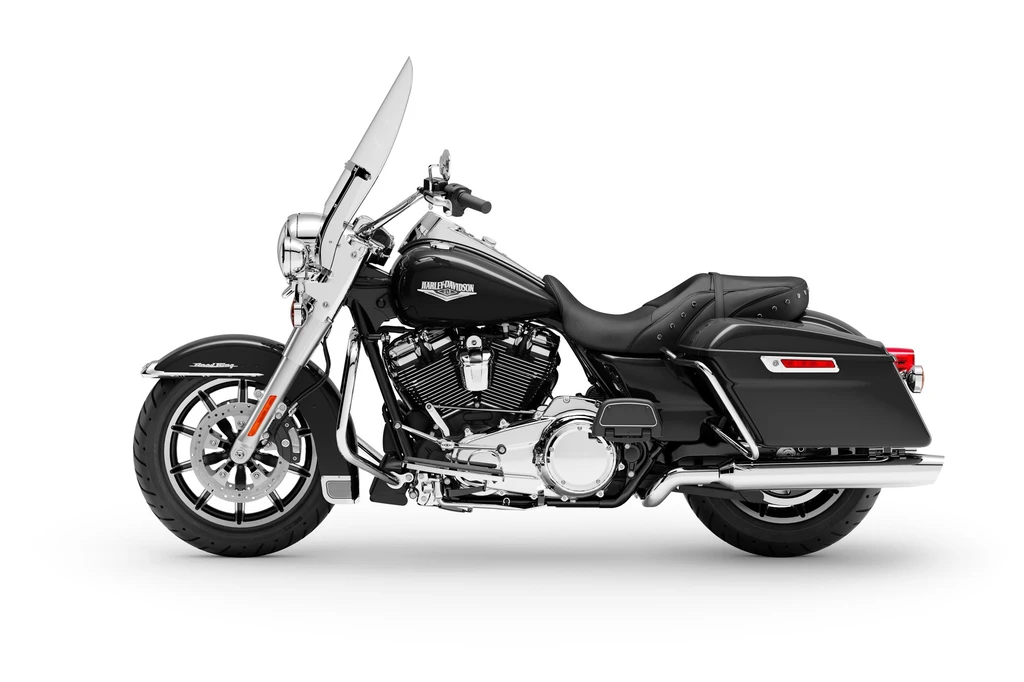

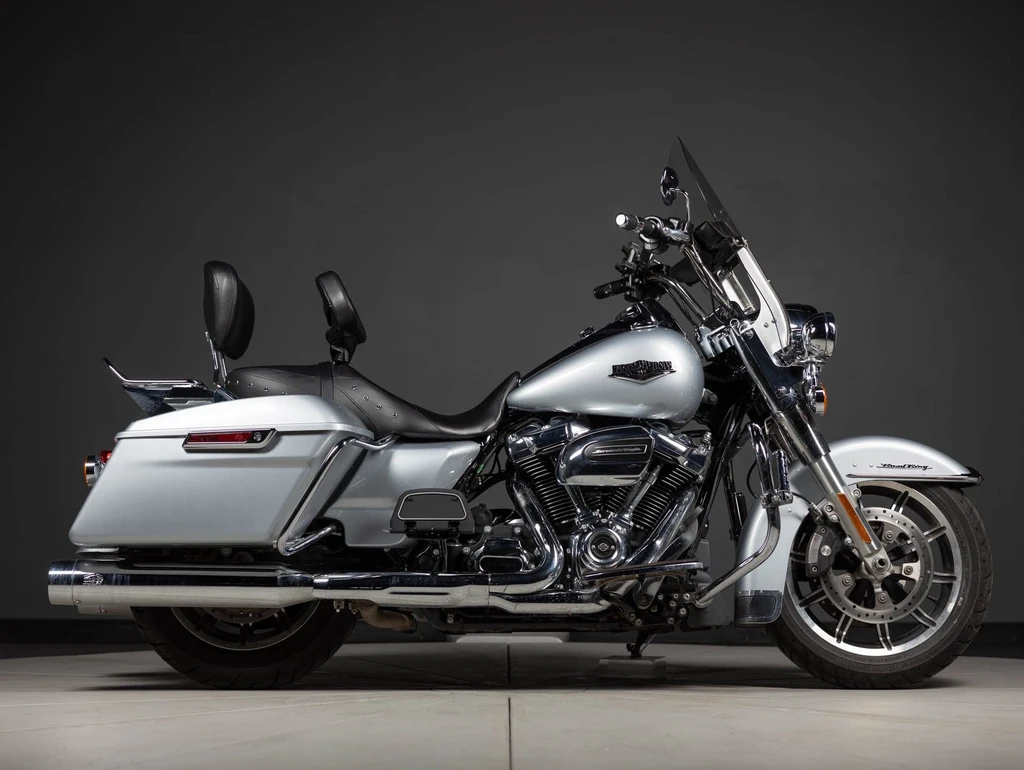

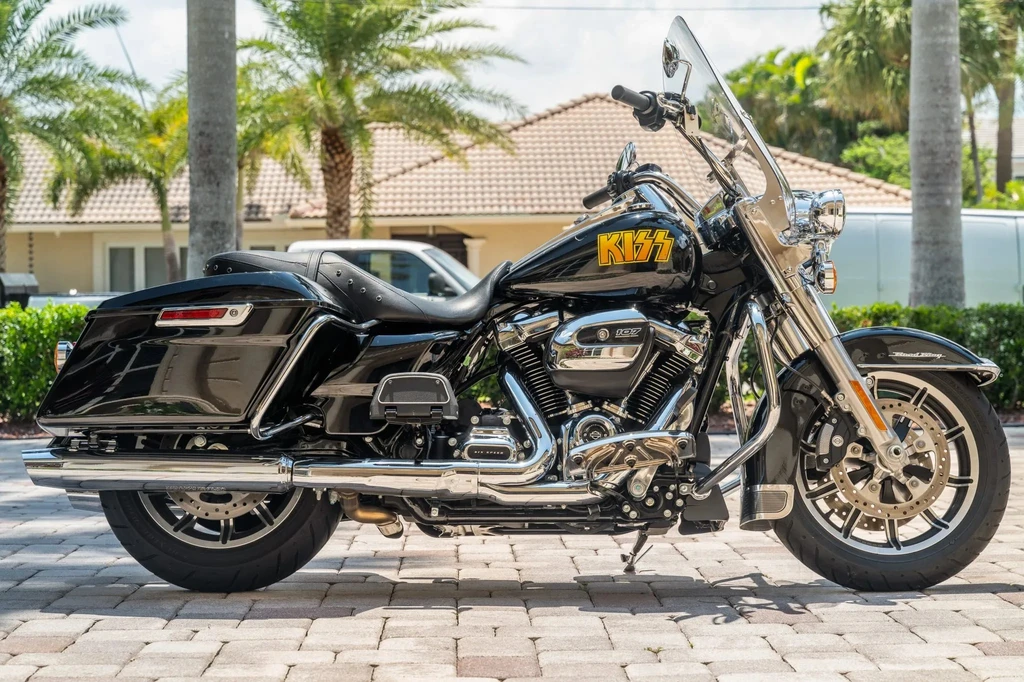

Harley Davidson Road King (2019 - 2020)
