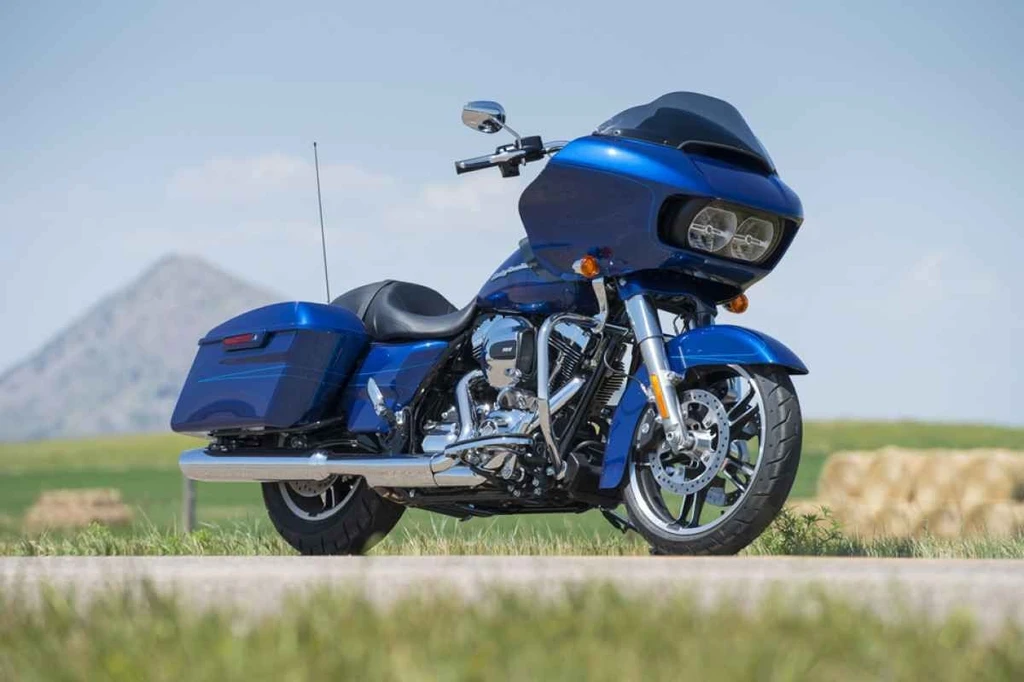

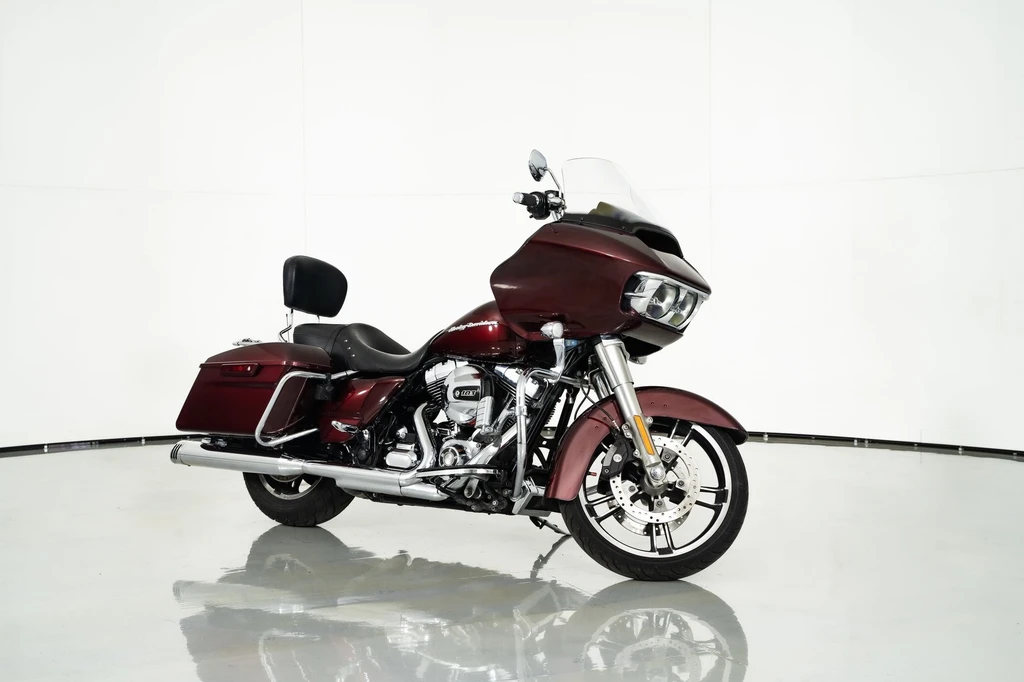

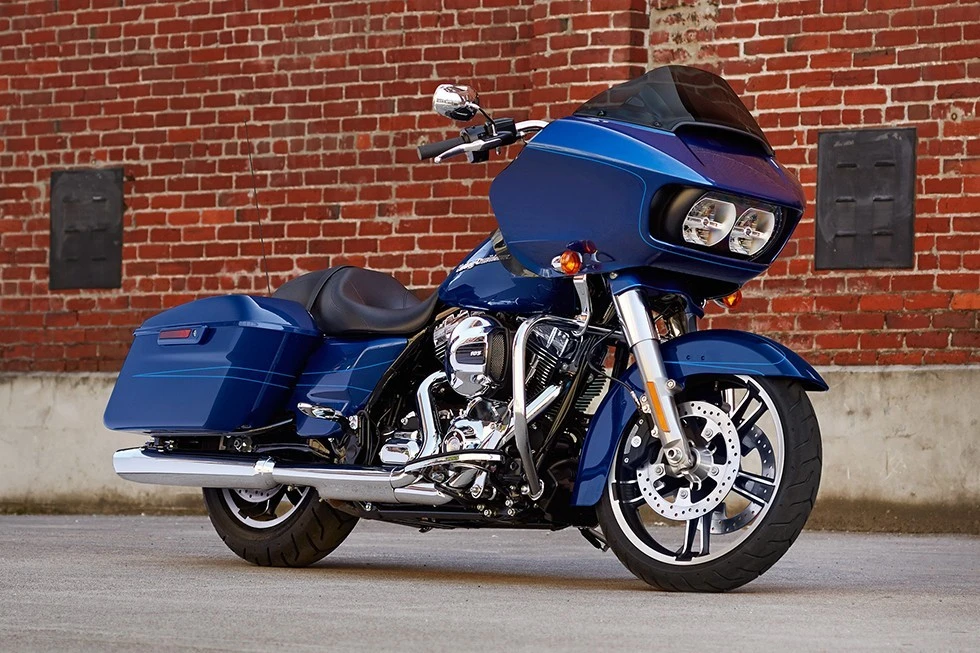

Harley Davidson Road Glide Special (2015 – 2016)

Harley Davidson Road Glide Special (2015 - 2016)

The Harley-Davidson Road Glide Special is a tour-de-force of power and comfort, engineered to conquer the open road with authority. Shaped by wind tunnel testing, its frame-mounted fairing features a triple splitstream vent that expertly manages airflow, reducing head buffeting while maintaining a comfortable riding experience.

The Dual Daymaker Reflector LED headlamp pierces through darkness, illuminating the path ahead with brilliant white beams. At the heart of the bike is the Boom! Box 4.3 infotainment system, controlled by twin joysticks on a swept-back handlebar that puts the rider in a commanding position.

The High Output Twin Cam 103 V-Twin engine delivers abundant torque at your fingertips, its burbling exhaust notes through two chrome mufflers a constant reminder of its raw power. With touring features like One-Touch hard saddlebags, cruise control, and adjustable air-ride rear suspension, the Road Glide Special is built for the long haul.

The result is an attitude-packed ride that devours miles with ease, its sleek new look and premium features elevating it above the base model. With a refined engine, advanced infotainment system, and unmatched touring capabilities, the 2015 Harley-Davidson Road Glide Special stands as a testament to the brand’s unwavering commitment to excellence in every aspect of motorcycling.

Key Specifications

Engine TypeFour stroke, V-Twin, Twin Cam 103 with integrated oil cooler
Engine Capacity1690 cc / 103 cu. in.
Fuel Tank Capacity6 US gallons / 22.7 L
Weight (Wet/Kerb)849 lbs / 385 kg
Seat Height27.4 inches / 696 mm
Harley Davidson Road Glide Special (2015 - 2016)

All Specifications

Make & Model

ModelHarley Davidson Road Glide Special
Year2015 – 2016

Engine

Engine TypeFour stroke, V-Twin, Twin Cam 103 with integrated oil cooler
Displacement1690 cc / 103 cu. in.
Bore x Stroke98.4 x 111.1 mm / 3.875 in. x 4.374 in
Compression Ratio9.7:1
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

ClutchHydraulically actuated, 9 plate wet, with high performance spring
Gearbox6 Speed Cruise Drive
Gear Ratios1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.000 / 5th 3.407 / 6th 2.875
Final DriveBelt, 32/68 ratio

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG weldedSwingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension41.3 mm telescopic, triple circuit damping
Rear SuspensionLow air-adjustable low profile air ride rear suspension
Rake26
Trail173 mm / 6.8 in

Wheels & Brakes

Front Wheel/Rim SizeEnforcer Cast Aluminum 19 in. x 3.5 in.
Front Tire Size130/60B19 61H
Rear Wheel/Rim SizeEnforcer Cast Aluminum 16 in. x 5 in.
Rear Tire SizeBW 180/65B16 81H
Front Brakes2x 300mm discs 4 piston calipers
Rear BrakesSingle 300mm discs 4 piston caliper

Dimension & Weights

Seat Height27.4 inches / 696 mm
Wheelbase64 inches / 1625 mm
Ground Clearance135 mm / 5.3 in
Fuel Tank Capacity6 US gallons / 22.7 L
Wet (kerb/curb) Weight849 lbs / 385 kg
Dry Weight369 kg / 813 lbs

Features

  • Triple splitstream vent for reduced head buffeting
  • Dual Daymaker Reflector LED headlamp
  • Boom! Box 4.3 infotainment system with color screen
  • Twin joysticks on swept-back handlebar
  • High Output Twin Cam 103 V-Twin engine
  • Two chrome mufflers
  • One-Touch hard saddlebags
  • Cruise control
  • Easy-to-read gauges
  • Adjustable air-ride rear suspension
  • Ergonomic hand controls with improved tactile feel
  • Reflex Linked Brakes with ABS (on Road Glide Special)
  • Premium Boom! Box 6.5GT infotainment system with touch screen and GPS navigation
  • Gloss Black painted inner fairing (on Denim models)
  • Hand-applied pinstriping (on Denim models)
  • Rubber-mounted, Air-Cooled 1690 cc High Output Twin Cam 103 engine
  • Integrated Oil-Cooler
  • Low-maintenance belt drive
