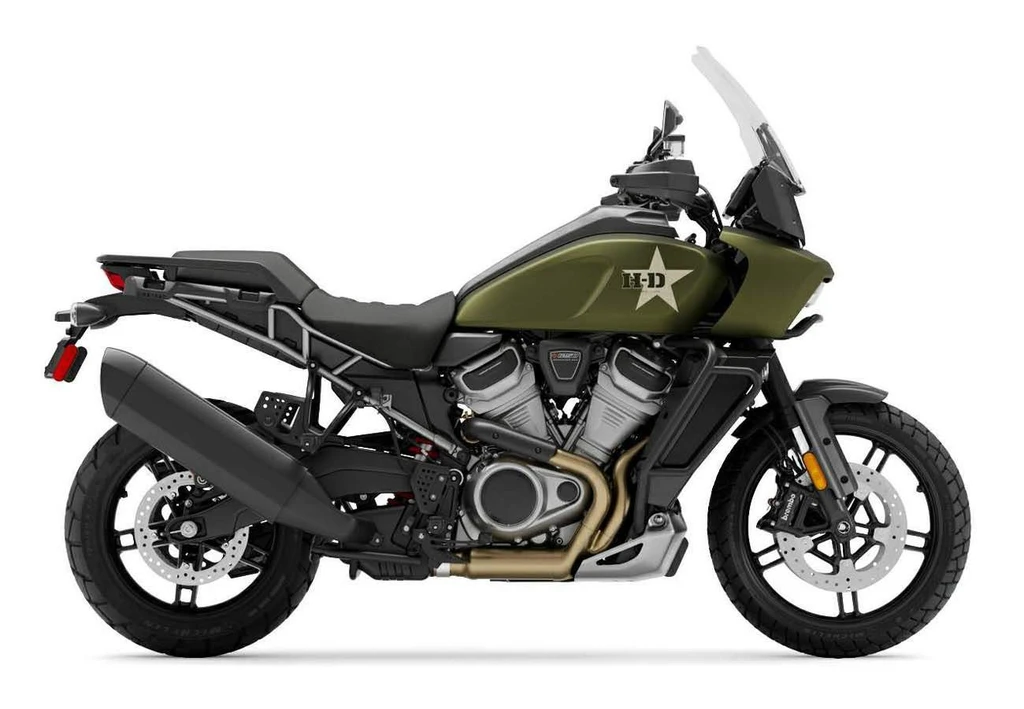

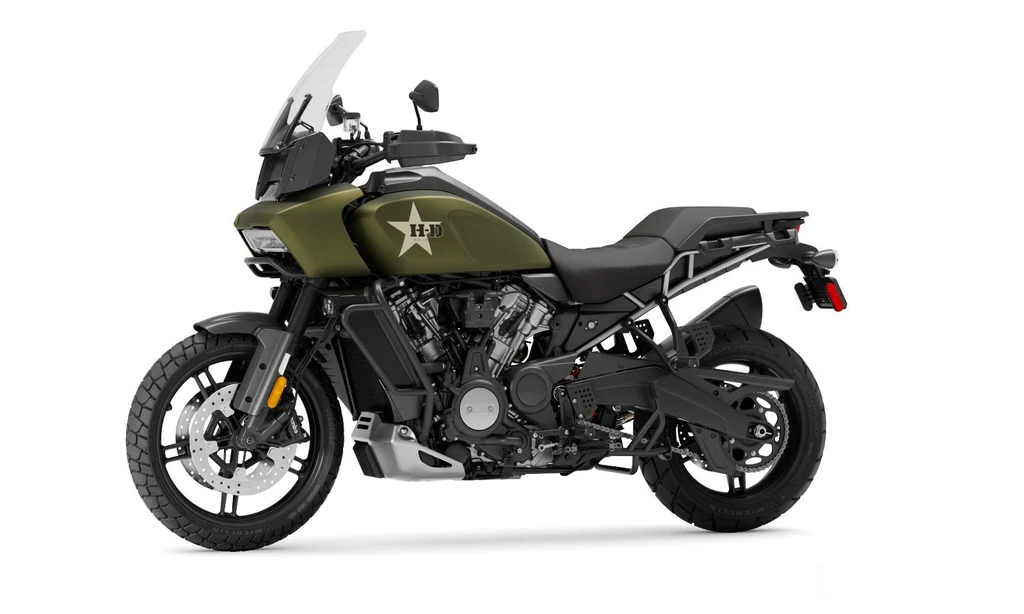

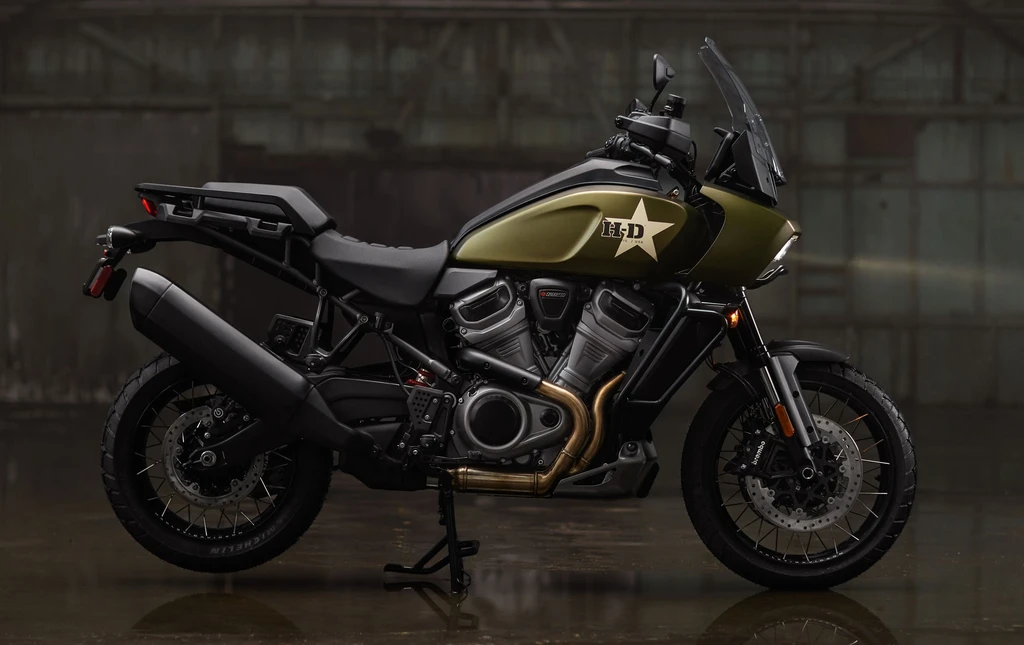

Harley Davidson Pan America 1250 Special G.I. (Enthusiast Collection) (2022)

The Harley-Davidson Pan America 1250 Special G.I. marks the debut of the brand’s Enthusiast Collection, a limited-edition series that pays tribute to the unique backgrounds and passions of Harley-Davidson riders.

Inspired by the legacy of U.S. Armed Forces veterans who ride Harleys, this special edition model is draped in stunning Mineral Green Denim Deluxe paint, an all-new color created specifically for this collection. At its heart lies a potent 1250cc Revolution Max engine, delivering unparalleled power and torque to the Pan America’s Adventure Touring platform.

With its exceptional handling and comfort, this bike invites riders to explore new horizons on two wheels, embracing the thrill of adventure and freedom that only a Harley-Davidson can provide. And as part of the Enthusiast Collection, each Pan America 1250 Special G.I. is truly one-of-a-kind, making it an exceptional addition to any rider’s collection.

Key Specifications

Engine Type	Four stroke, 60 V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder
Engine Capacity	76.3 cubic inches / 1252 cc
Max Power	150 hp / 112 kW @ 9000 rpm
Max Torque	94 ft-lb / 127 nm
Fuel Tank Capacity	5.6 US gallons / 21.2 L
Weight (Wet/Kerb)	569 lbs / 258 kg

*n/a – information not provided by manufacturer

Harley Davidson Pan America 1250 Special G.I. (Enthusiast Collection) (2022)

All Specifications

Make & Model

Model	Harley Davidson Pan America 1250 Special G.I. (Enthusiast Collection)
Year	2022

Engine

Engine Type	Four stroke, 60 V-twin Revolution Max 1250, Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT, four valves per cylinder
Displacement	76.3 cubic inches / 1252 cc
Bore x Stroke	105 x 72.3 mm
Compression Ratio	13.0:1
Max Horsepower	150 hp / 112 kW @ 9000 rpm
Max Torque	94 ft-lb / 127 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Semi-dry sump
Cooling System	Liquid cooled
Exhaust	2-into-1-into-1, catalyst in header

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanical, 8 plate wet, assist & slip, 1090N
Gearbox	6 Speed
Primary Drive Ratio	Gear, 49/89
Gear Ratios	1st 13.11 / 2nd 9.687 / 3rd 7.509 / 4th 6.057 / 5th 5.08 / 6th 4.436

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Stressed-member, high strength low alloy steel trellis frame; stamped, cast,and forged junctions; MIG welded; aluminum forged mid-structure
Front Suspension	47mm inverted fork with electronically adjustable semi-active damping control (optional: Adjustable Right Height (ARH)), Aluminum fork triple clamps
Front Suspension Travel	7.5 inches / 191 mm
Rear Suspension	Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping, adjustable Ride Height (ARH)
Rear Suspension Travel	7.5 inches / 191 mm
Rake	25
Trail	108 mm / 4.3 in
Swingarm	One-piece cast aluminum

Wheels & Brakes

Wheels	Aluminum cast, satin black (optional: annodized aluminum tubeless laced)
Front Wheel/Rim Size	3.0 x 19
Front Tire Size	120/70R19 60V
Rear Wheel/Rim Size	4.50 x 17
Rear Tire Size	170/60R17 72V
Front Brakes	2x 320mm discs, radially mounted, monoblock, 4-piston caliper
Rear Brakes	Single 280mm disc, floating, single piston caliper
ABS	Standard

Dimension & Weights

Overall Length	2270 mm / 89.4 in
Overall Width	975 mm / 38.4 in
Overall Height	1510 mm / 59.4 in
Wheelbase	62.4 inches / 1585 mm
Ground Clearance	175 mm / 6.9 in
Fuel Tank Capacity	5.6 US gallons / 21.2 L
Wet (kerb/curb) Weight	569 lbs / 258 kg
Dry Weight	242 kg / 534 lbs

Features

Here are the key features of the Harley-Davidson Enthusiast Collection:
Mineral Green Denim Deluxe paint
Metallic effect with subtle gold highlight
Available only for Pan America 1250 Special and Tri Glide Ultra models
Limited quantities primarily for the U.S. market
Service-inspired graphics
Tank graphic celebrating the iconic white five-point star used during WWII
Stenciled H-D logo and location of Milwaukee, Wisconsin on tank graphic
Inspired by Harley-Davidson riders who have served or actively serve in the U.S. Armed Forces
