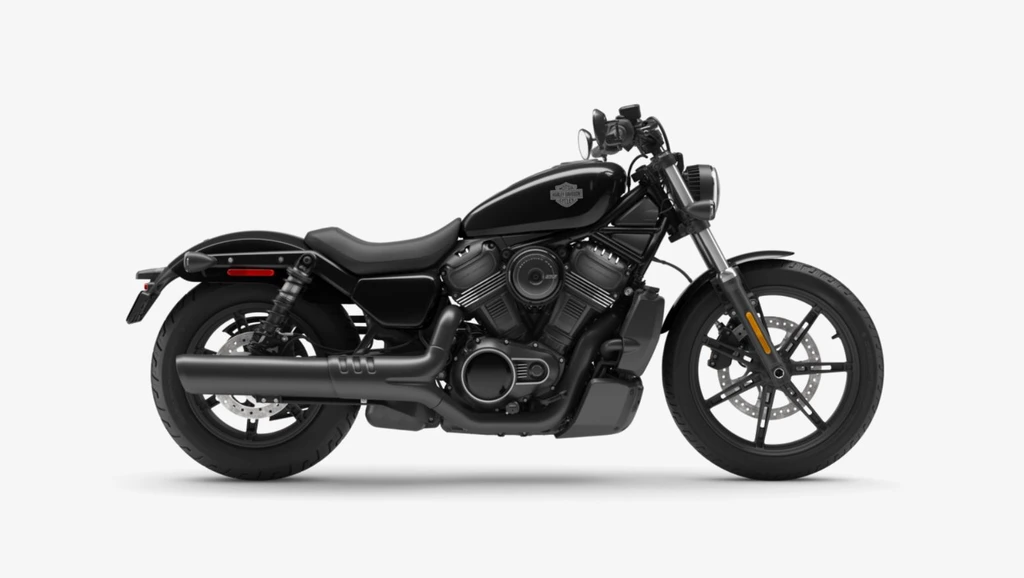

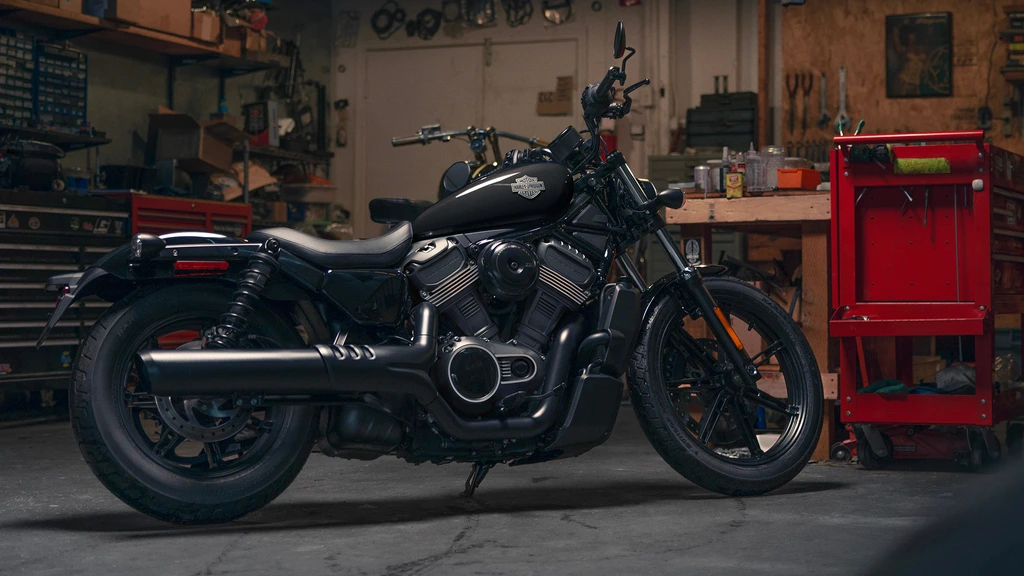

Light, low, and loaded, the 2026 Nightster is built to be the motorcycle you’ve been looking for. At 481 lbs wet with a low 27.1” seat height, the 2026 Nightster carries its weight where it counts: low, centered, and in your control. Add a blacked-out 975T Revolution Max® motor, selectable ride modes, LED lighting, and legacy Sportster® styling, and you’ve got an incomparably capable machine, no matter where you’re coming from.
Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Rake
30
Trail
5.4 inches / 137.2 mm
Wheels & Brakes
Wheels
Aluminum cast, satin black
Front Tire Size
100/90-19 57H
Rear Wheel/Rim Size
16 in.
Rear Tire Size
150/80B16 77H
Front Brakes
Brembo single rotor, floating, hub – mounted,axially mounted, 4-piston caliper
Rear Brakes
Brembo, solid uniform expansion rotor, floating, single piston caliper
Dimension & Weights
Overall Length
88.6 inches / 2250.4 mm
Overall Width
33 inches / 838.2 mm
Seat Height
27.1 inches / 688.3 mm (laden)
Wheelbase
60.8 inches / 1544.3 mm
Ground Clearance
4.3 inches / 109.2 mm
Fuel Tank Capacity
3.1 US gallons / 11.7 L
Wet (kerb/curb) Weight
481 lbs / 218.2 kg
Infotainment
Screen Size
4″ Analog Instrument with Segmented LCD
Type
Analog display
Languages
English (default)
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
Total Odometer (Selectable Miles or km), Trip A/B, Gear Position Indication, Fuel Range, 12/24 Hr Clock, Digital Tachometer, Segmented Fuel Level, Ride Mode Indication
Rider Safety Enhancements
Anti-lock Brake System (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.

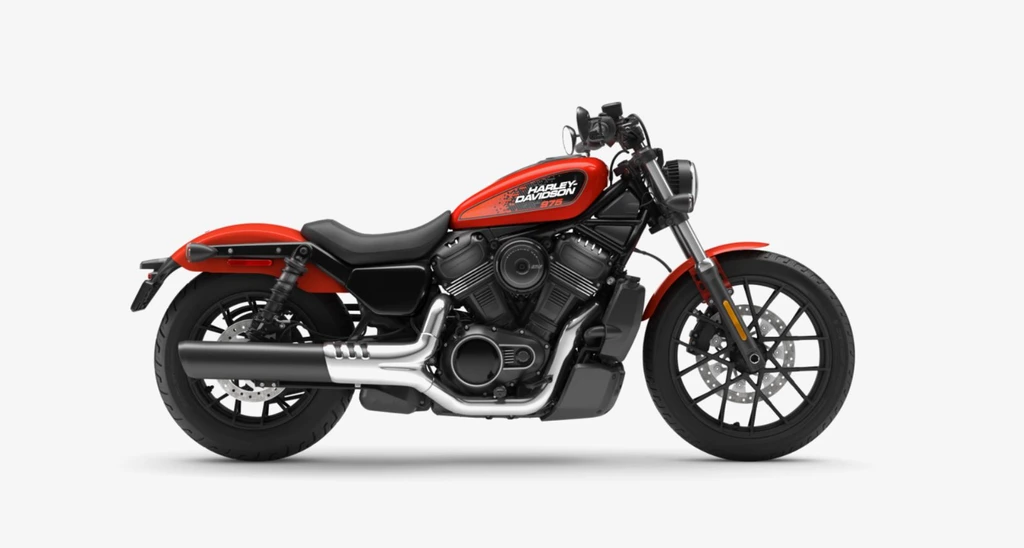

Harley Davidson Nightster Motorcycles (2026) Color Options
Black
Dark Billiard Gray
Vivid Black
Blood Orange Custom
