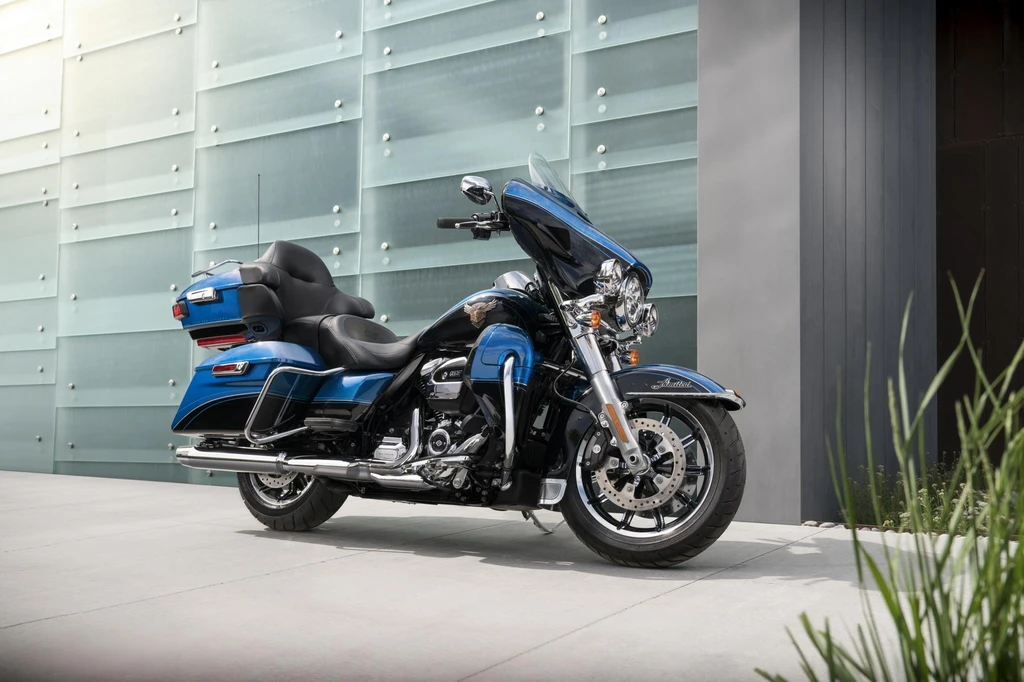

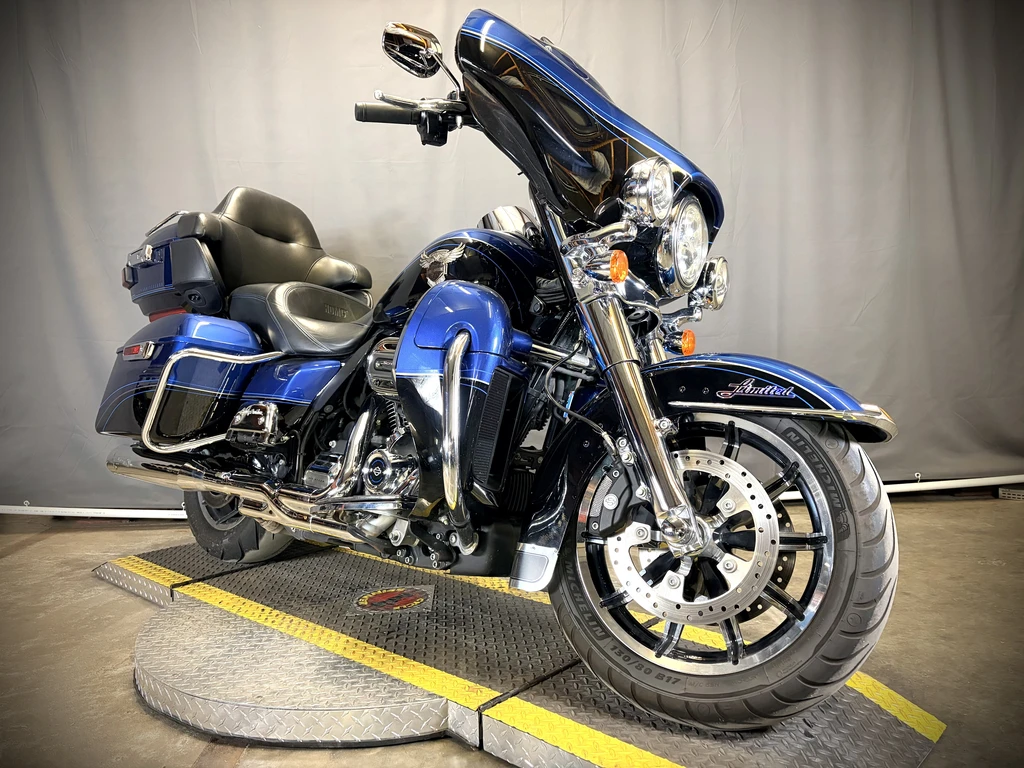

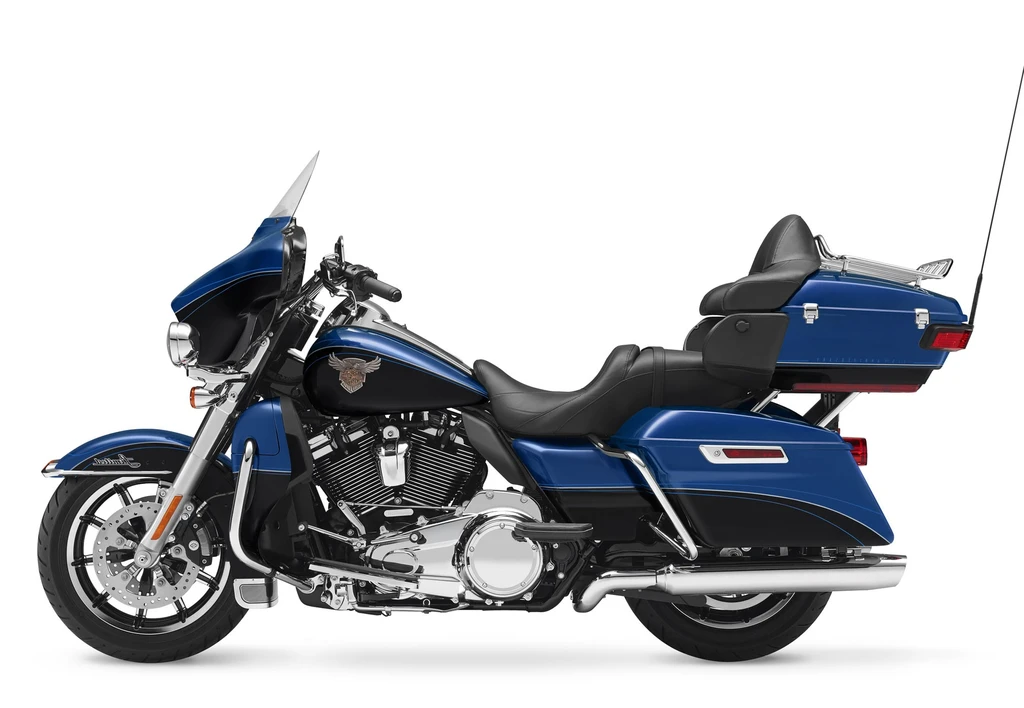

Harley Davidson ltra Limited 115th Anniversary (2018)

The Harley-Davidson Ultra Limited 115th Anniversary is a tour-de-force of engineering and design. This ultimate touring machine boasts an unstoppable powertrain in the form of the Twin-Cooled Milwaukee-Eight 107 engine.

With its unmistakable Batwing fairing and split-stream air vent, this bike delivers optimal airflow and reduced head buffeting for a comfortable ride. The premium BOOM! Box 6.5GT touch screen infotainment system offers unparalleled entertainment options for both rider and passenger.

Ride long hauls with confidence thanks to electronic cruise control, Reflex linked Brembo brakes with ABS, responsive front and rear suspension, and a premium Tour-Pak luggage carrier that can house both helmets. This limited-edition bike is the ultimate expression of Harley-Davidson’s 115-year heritage, combining power, comfort, and handling for an unforgettable riding experience.

The Ultra Limited 115th Anniversary edition comes in two exclusive paint schemes, each serialized to add a touch of exclusivity. With its exceptional performance, premium features, and limited-edition looks, this bike is the ultimate touring machine that will leave riders feeling truly unstoppable.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1746 cc / 107 cub in
Max Torque	113.6 ft-lb / 154 nm
Fuel Tank Capacity	6 US gallons / 22.7 L
Weight (Wet/Kerb)	910 lbs / 413 kg
Seat Height	29.1 inches / 740 mm

*n/a – information not provided by manufacturer

Harley Davidson ltra Limited 115th Anniversary (2018)

All Specifications

Make & Model

Model	Harley Davidson ltra Limited 115th Anniversary
Year	2018

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1746 cc / 107 cub in
Bore x Stroke	100 x 111 mm
Compression Ratio	10.0:1
Max Torque	113.6 ft-lb / 154 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Chrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, cartridge-style damping
Rear Suspension	Swingarm Mild steel, two-piece drawn and welded section, forged junctions, MIG welded, Rear Shocks Air-adjustable
Rake	26
Trail	170 mm / 6.7 in

Wheels & Brakes

Front Tire Size	130/80B17 65H
Rear Tire Size	180/65B16 81H

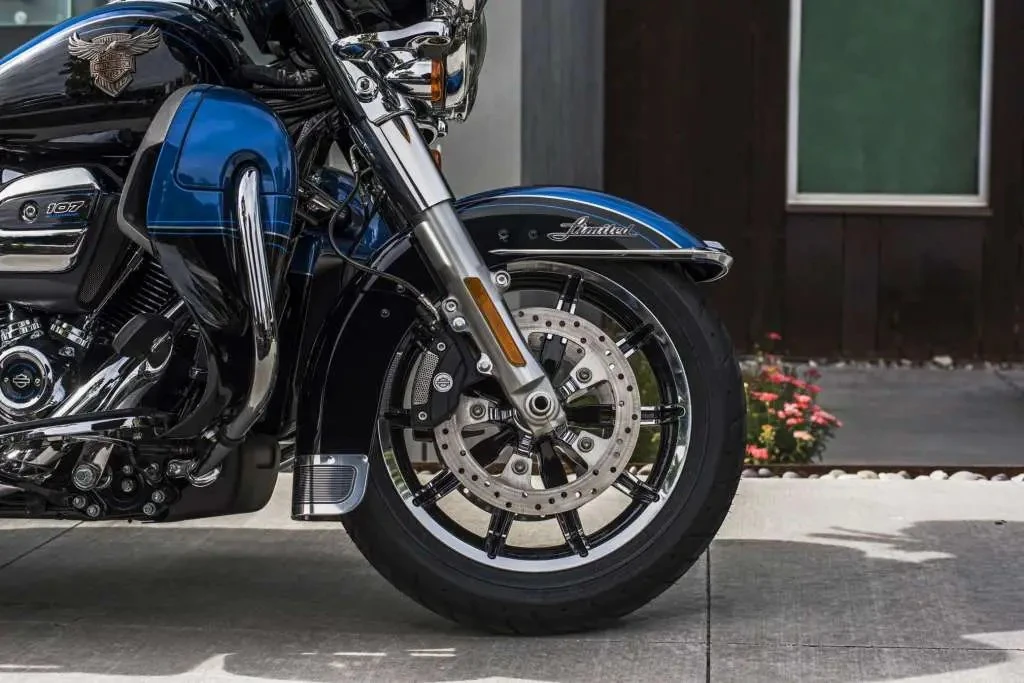

Front Brakes	2 x 300mm discs, 4 piston caliper ABS
Rear Brakes	Single 300 mm disc, 4 piston caliper ABS

Dimension & Weights

Seat Height	29.1 inches / 740 mm
Wheelbase	64 inches / 1625 mm
Ground Clearance	116.8 mm / 4.6 in
Fuel Tank Capacity	6 US gallons / 22.7 L
Wet (kerb/curb) Weight	910 lbs / 413 kg
Dry Weight	398 kg / 877 lbs

Features

Milwaukee-Eight V-Twin Engine
Twin-Cooled engine design
Heated Handgrips with 6 settings
Batwing Fairing & Splitstream Air Vent
Premium BOOM! Box 6.5GT infotainment and navigation
Electronic cruise control
Reflex linked Brembo brakes with ABS
Responsive front and rear suspension
Tour-Pak luggage carrier
One-touch saddlebags
Air-adjustable rear shocks
Mild steel swingarm
Forged junctions
MIG welded swingarm section
Premium BOOM! Box 6.5 infotainment system display
Full-color touch screen display with voice activation
