The performance pedigree of the 2026 Low Rider ST shows up in every detail. From its FXRT-inspired fairing and special touches on the chrome and black trim that nod to its roots, to the Milwaukee-Eight® 117 High Output motor, performance-tuned suspension, Heavy Breather intake, and performance 2-into-1 exhaust, it’s designed for life on the limiter. Oh, and USB-C charging comes standard.
Key Specifications
| Engine Type | Milwaukee-Eight® 117 High Output |
| Engine Capacity | 117 cubic inches / 1917 cc |
| Max Power | 114 HP / 85 kW @ 5000 rpm |
| Max Torque | 128 ft-lb / 173.5 Nm @ 4000 rpm |
| Fuel Tank Capacity | 5 US gallons / 18.9 L |
| Weight (Wet/Kerb) | 712 lbs / 323 kg |
| Seat Height | 27 inches / 685.8 mm (laden) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Harley Davidson Low Rider ST |
| Year | 2026 |
Engine
| Engine Type | Milwaukee-Eight® 117 High Output |
| Displacement | 117 cubic inches / 1917 cc |
| Bore x Stroke | 4.1 inches x 4.5 inches 103.5 mm x 114.3 mm |
| Compression Ratio | 10.3:1 |
| Max Horsepower | 114 HP / 85 kW @ 5000 rpm |
| Max Torque | 128 ft-lb / 173.5 Nm @ 4000 rpm |
| Fuel-mixture System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust System | 2-into-1; catalyst in header |
Performance
| Acceleration (0-100 km/h, 0-60 mph) | n/a |
| Fuel Consumption | 47 mpg / 20 kmpl |
| Range | ~ 235 miles / 378.2 kms |
*n/a – information not provided by manufacturer
Transmission
| Gearbox | 6-Speed |
| Primary Drive Ratio | 34:46 |
| Gear Ratios | 1st gear – 9.311 2nd gear – 6.454 3rd gear – 4.793 4th gear – 3.882 5th gear – 3.307 6th gear – 2.79 |
| Traction Control System | C-TCS |
Electrical & Electronics System
| Headlight Type | All LED, low beam, high beam and signature position lamp |
| Taillight Type | LED Buffett tail lamp |
| Instrumentation | 4-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication |
| Riding Modes | Road, Rain, Sport |
| Traction Control System | C-TCS |
| ABS | C-ABS |
Chassis & Suspension
| Front Suspension | Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring |
| Rear Suspension | Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment |
| Rake | 28 |
| Trail | 5.7 inches / 144.8 mm |
Wheels & Brakes
| Wheels | Chrome, Radiate Cast Aluminum |
| Front Wheel/Rim Size | 19 in. |
| Front Tire Size | 110/90B19,62H,BW |
| Rear Wheel/Rim Size | 16 in. |
| Rear Tire Size | 180/70B16,77H,BW |
| Front Brakes | Front, 4-piston fixed front |
| Rear Brakes | Rear black, Split 7-spoke floating rotors, 2-piston floating rear |
| ABS | C-ABS |
Dimension & Weights
| Overall Length | 92.9 inches / 2359.7 mm |
| Overall Width | 35 inches / 889 mm |
| Seat Height | 27 inches / 685.8 mm (laden) |
| Wheelbase | 63.6 inches / 1615.4 mm |
| Ground Clearance | 5.7 inches / 144.8 mm |
| Fuel Tank Capacity | 5 US gallons / 18.9 L |
| Wet (kerb/curb) Weight | 712 lbs / 323 kg |
Rider Safety Enhancements
- Anti-lock Brake System (ABS)
- ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
- Traction Control System (TCS)
- The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
- Drag-Torque Slip Control System (DSCS)
- DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
- Tire Pressure Monitoring System (TPMS)
- TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
- Cornering Enhanced Anti-lock Brake System (C-ABS)
- C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
- Cornering Enhanced Traction Control System (C-TCS)
- C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
- Cornering Drag-Torque Slip Control System (C-DSCS)
- On motorcycles equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel Motorcycle is leaning or the side-to-side motion on a Trike.

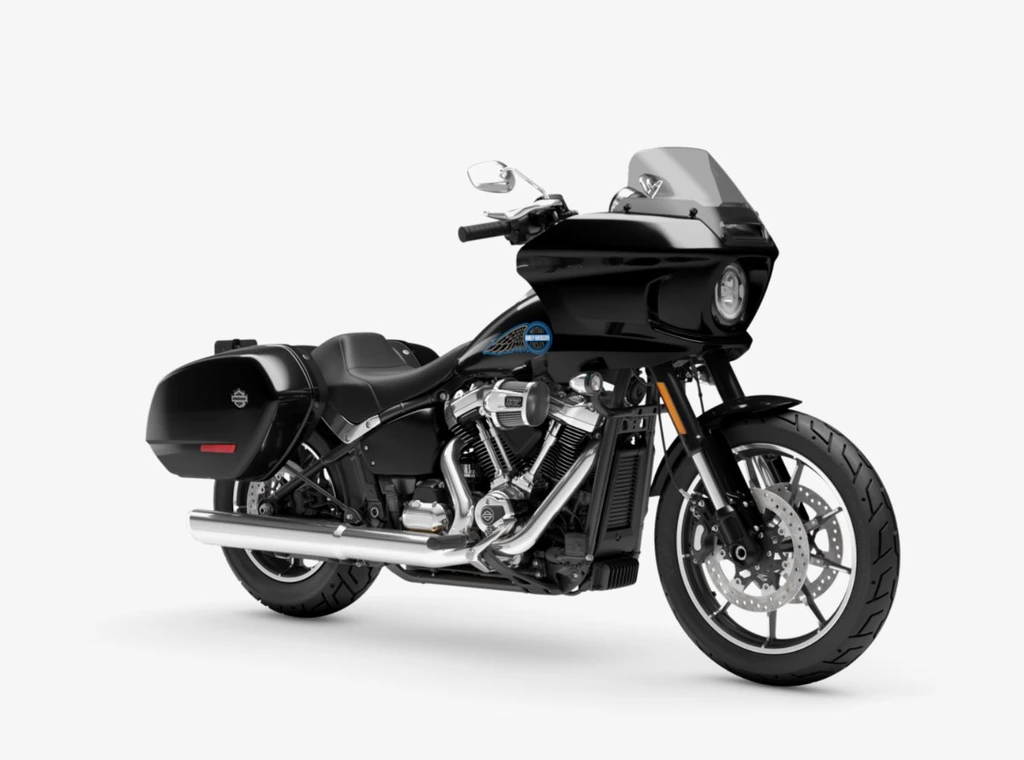

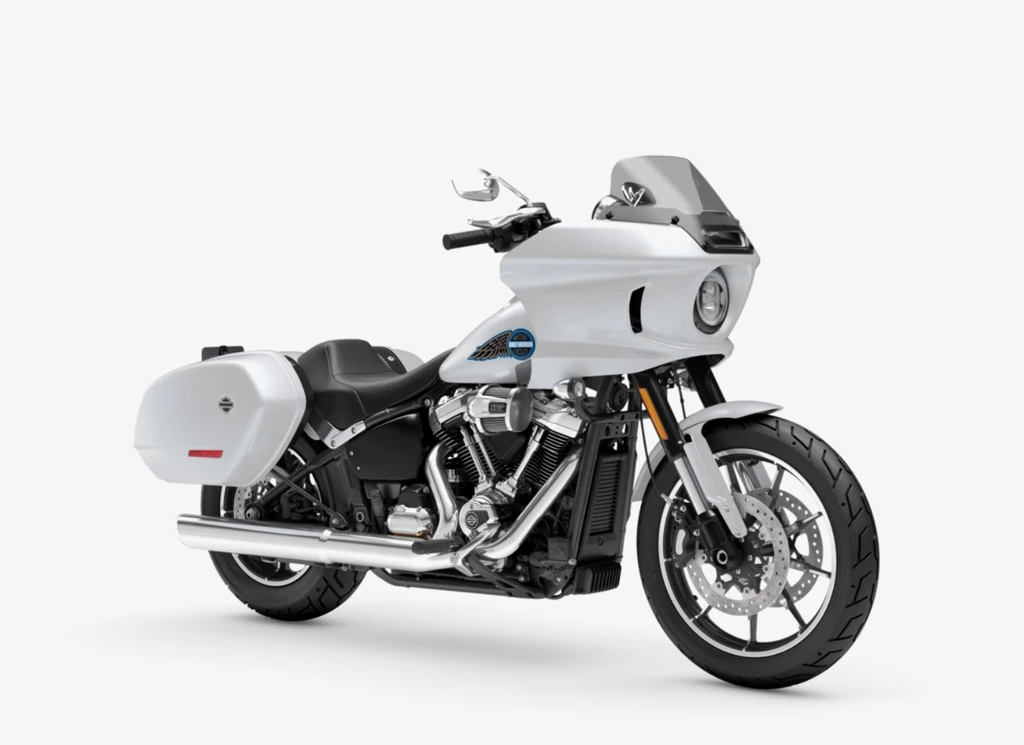

Harley Davidson Low Rider ST (2026) Color Options
- Chrome
- Dark Billiard Gray
- Vivid Black
- White Onyx Pearl
- Olive Steel Metallic
- Black
- Dark Billiard Gray
- Vivid Black
- Blood Orange
- White Onyx Pearl
- Aurora Blue Denim
