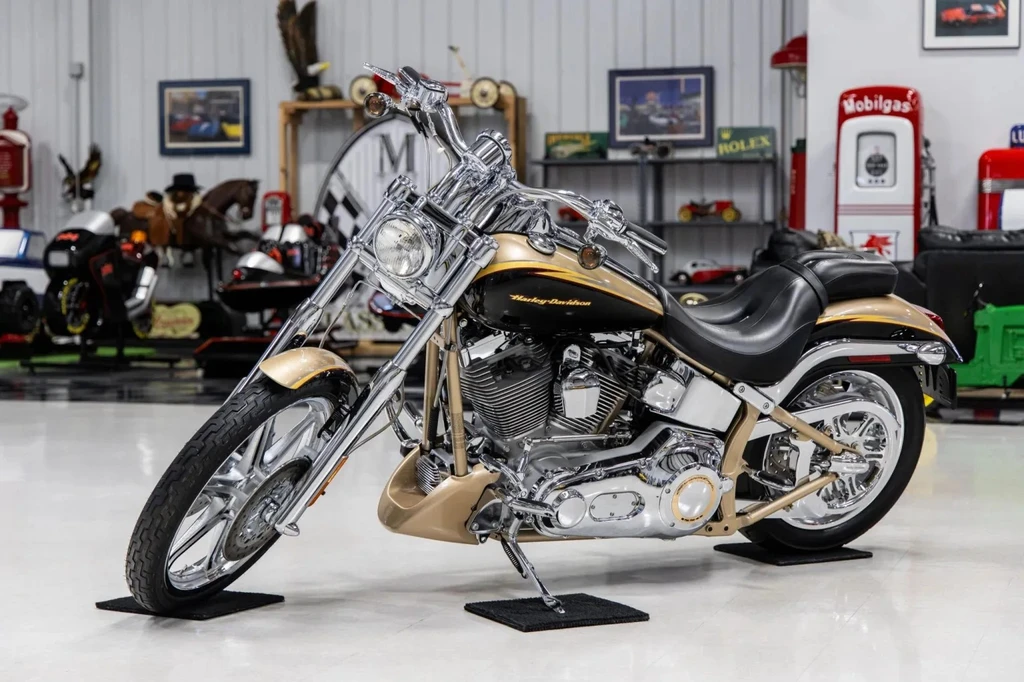

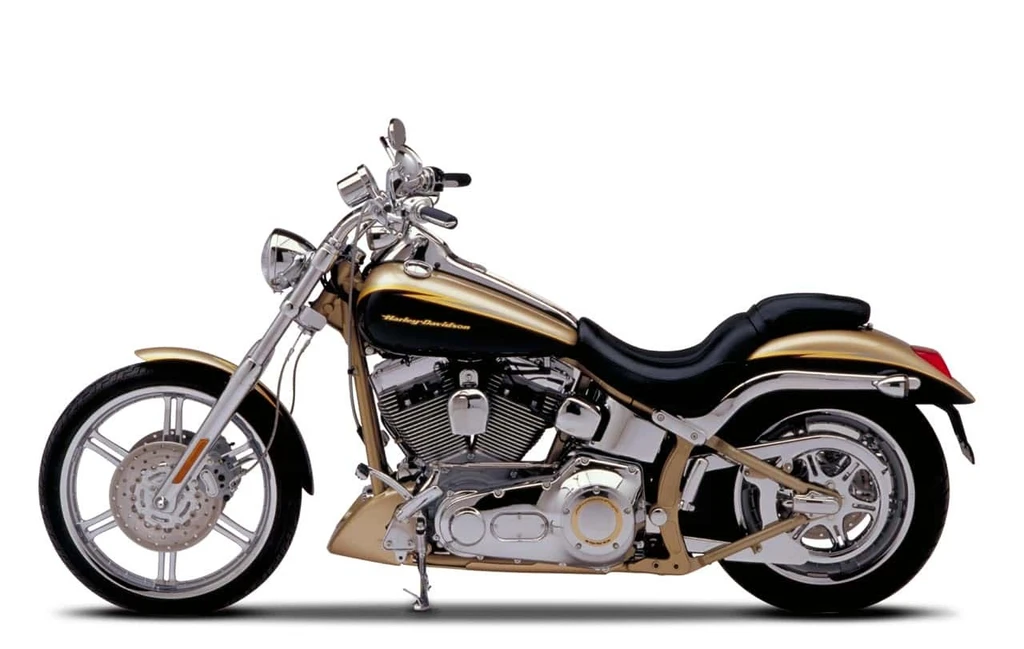

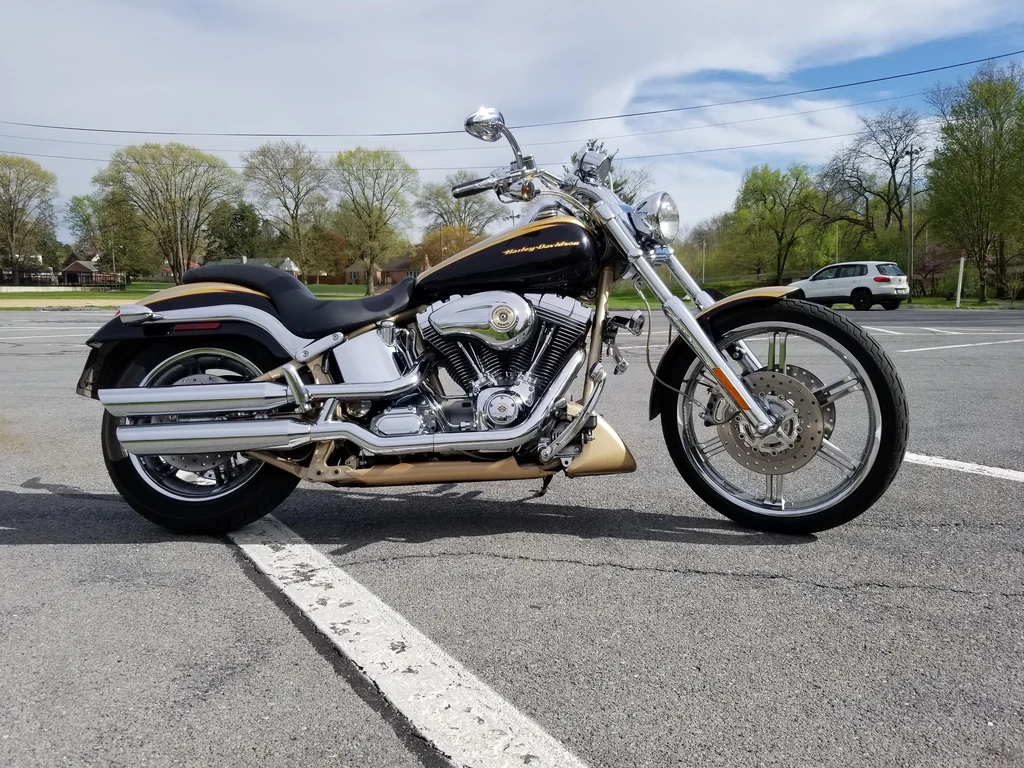

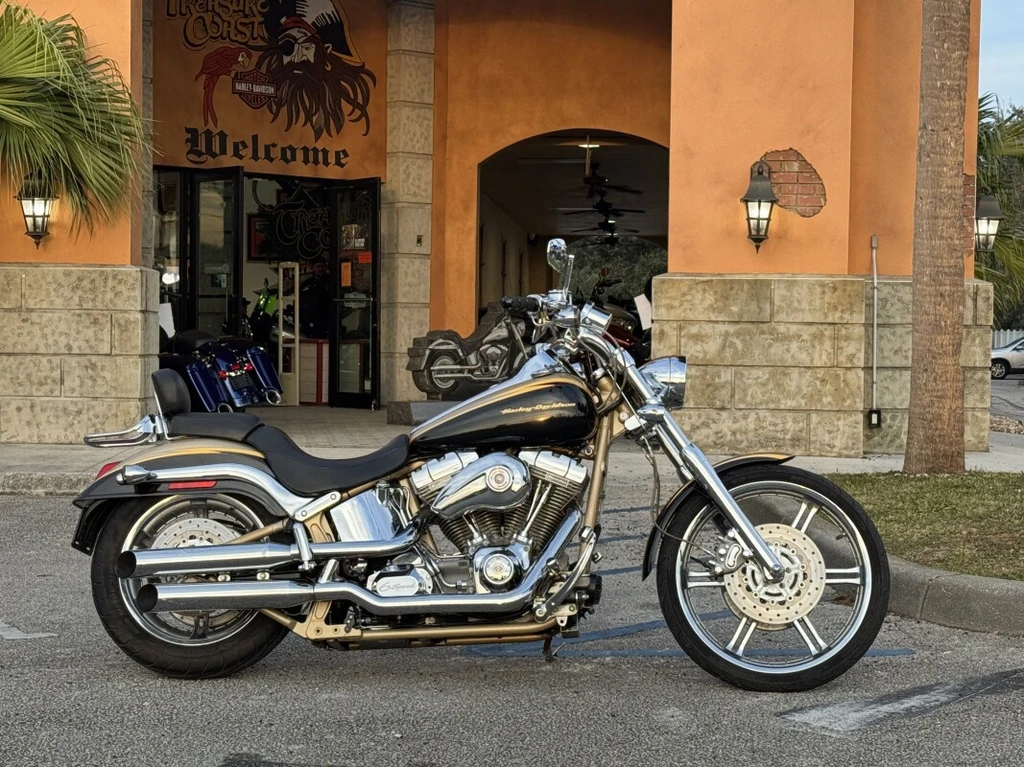

Harley Davidson FXSTD-SE Screamin’ Eagle Softail Deuce (2003)

Harley Davidson FXSTD-SE Screamin' Eagle Softail Deuce (2003)

The Harley Davidson FXSTD-SE Screamin’ Eagle Softail Deuce is a masterpiece of American muscle and style.

This limited-edition behemoth boasts a stunning Centennial Gold and Vivid Black paint job that stretches right down to the color-matched frame, exuding an aura of exclusivity. But it’s not just about looks – every 1550cc of its Twin Cam engine demands to be unleashed on the open road, with its fuel-injected powertrain delivering a thrilling dose of torque and horsepower from the factory.

From the gleaming Silver and Chrome finish of the Big Bore powertrain to the intricate details like color-matched air cleaner and timer inserts, every aspect of this bike screams high-performance. And let’s not forget the exclusive touches: 100th Anniversary Badges on the fuel tank console insert and engine crankcase, chrome slotted six-spoke wheels, and dual front disc brakes with billet-style chrome inserts.

As one of only a limited number produced, the FXSTD-SE Screamin’ Eagle Softail Deuce is the ultimate collector’s item for serious Harley enthusiasts – a true icon that embodies the spirit of American motorcycling.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque123.4 Nm / 91 ft/ lbs. @ 3500 rpm
Fuel Tank Capacity4.9 US gallons / 18.5 L
Weight (Wet/Kerb)712.4 lbs / 323 kg
Seat Height24.7 inches / 629.0 mm
Harley Davidson FXSTD-SE Screamin' Eagle Softail Deuce (2003)

All Specifications

Make & Model

ModelHarley Davidson FXSTD-SE Screamin’ Eagle Softail Deuce
Year2003

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.3 x 111.1 mm
Compression Ratio9.2:1
Max Torque123.4 Nm / 91 ft/ lbs. @ 3500 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox5 Speed
Gear Ratios1st 10.1102nd 6.9583rd 4.9534th 3.8625th 3.150
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, rectangular section backbone w/ twin downtubesSwing Arm Tubular mild steel
Front Suspension41.3 mm custom fork w/ tri-rate springs
Rake34
Trail120 mm / 4.7 in

Wheels & Brakes

Front Tire SizeMH90-21 54H
Rear Tire Size160/70B17 73V
Front Brakes2x 292mm discs 2 piston calipers
Rear BrakesSingle 292mm disc

Dimension & Weights

Seat Height24.7 inches / 629.0 mm
Wheelbase66.6 inches / 1690.3 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity4.9 US gallons / 18.5 L
Wet (kerb/curb) Weight712.4 lbs / 323 kg
Dry Weight307 kg / 677 lbs

Features

  • 1550cc Fuel Injected Twin Cam 95 Powertrain finished in Silver and Chrome
  • Color-matched Centennial Gold Frame, Swingarm and Front Spoiler
  • Color-matched Air Cleaner, Timer, Derby Cover, and Fuel Tank Console Inserts
  • 100th Anniversary Badges on Fuel Tank Console Insert and Engine Crankcase
  • Chrome Slotted Six Spoke Wheels, 21-inch front and 17-inch rear
  • Chrome Slotted Six Spoke Rear Sprocket
  • Chrome Slotted Floating Brake Rotors
  • Dual Front Disc Brakes, Silver Brake Calipers with Billet-style Chrome Inserts
  • Chrome Slotted Six Spoke Rear Sprocket
  • Chrome Front and Rear Wheel Spacers
  • Chrome Bullet Front Axle Covers
  • Chrome Smooth-look Fork Stem Covers
  • Chrome, Fat 11/4-inch diameter Handlebar with Internal Wiring
  • Clear-coated, Braided Stainless Steel Control Cables and Brake Lines
  • Silver-faced Speedometer and Mini-Tach
  • Smoked Turn Signal Lenses with Amber Bulbs
