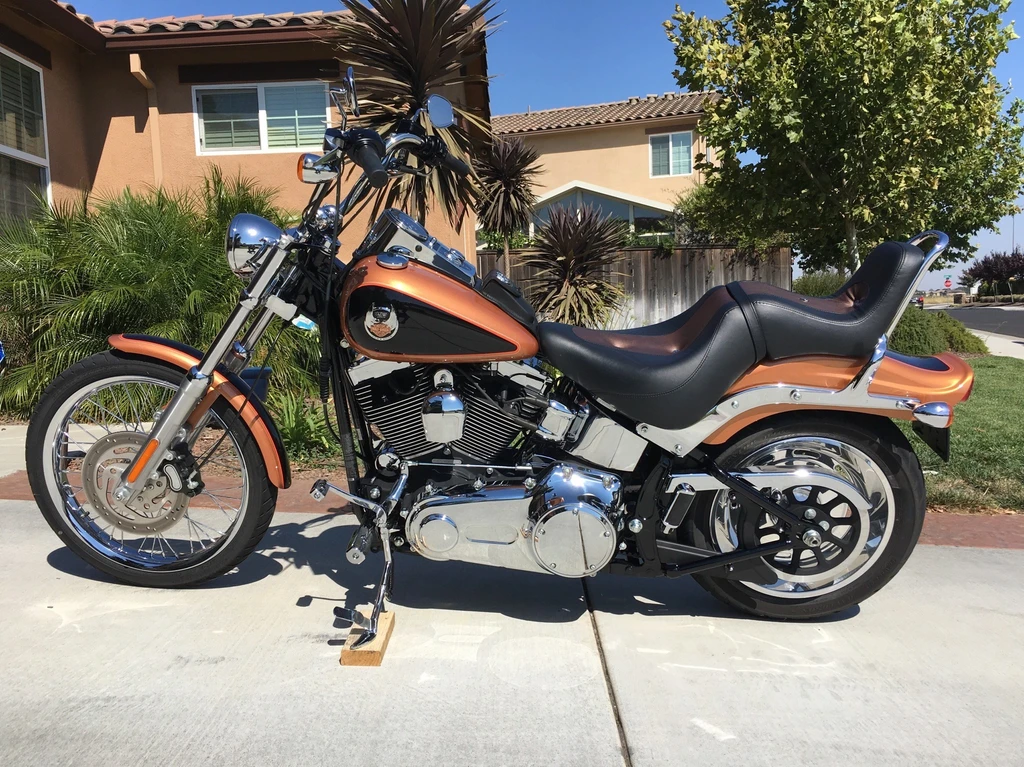

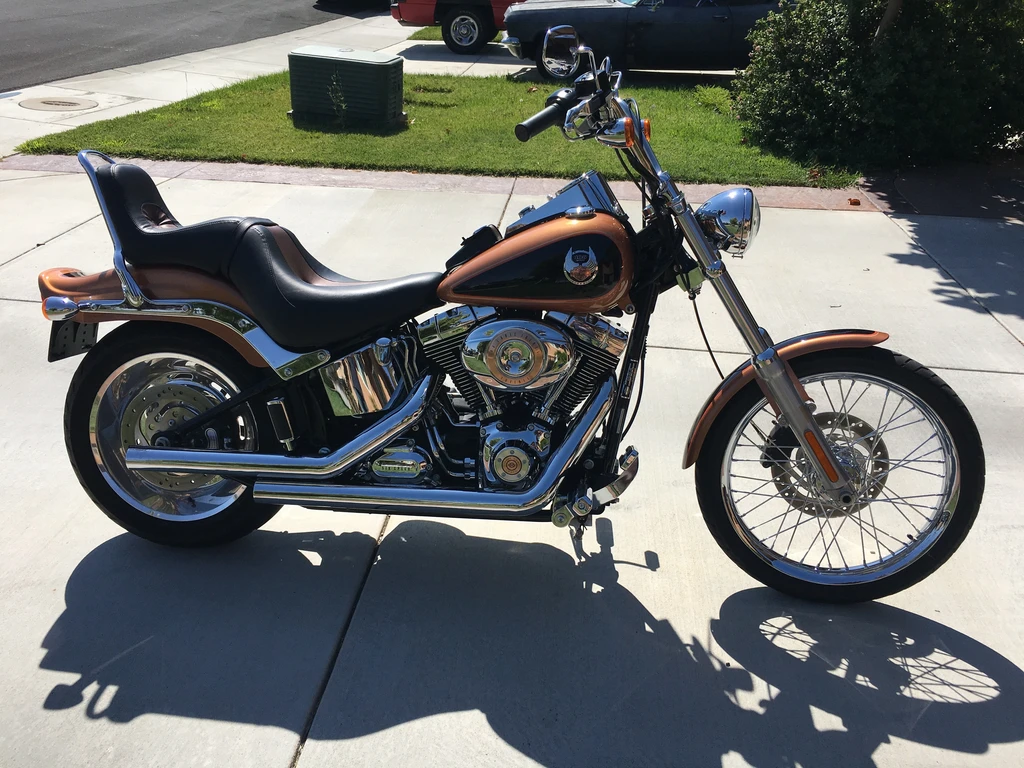

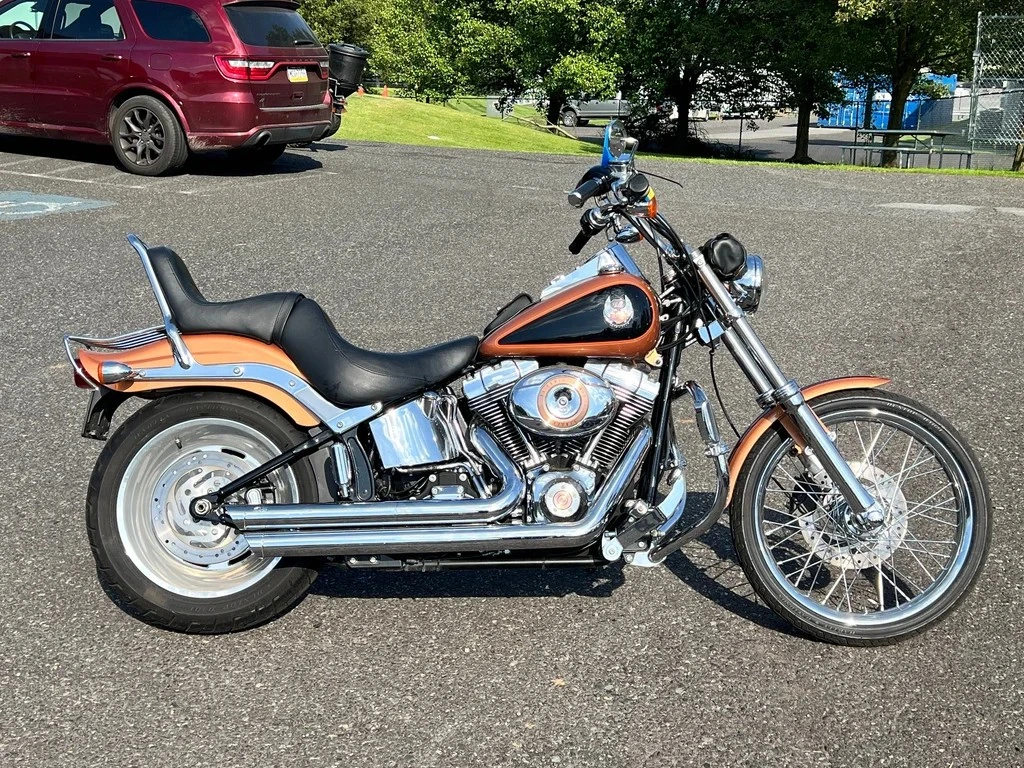

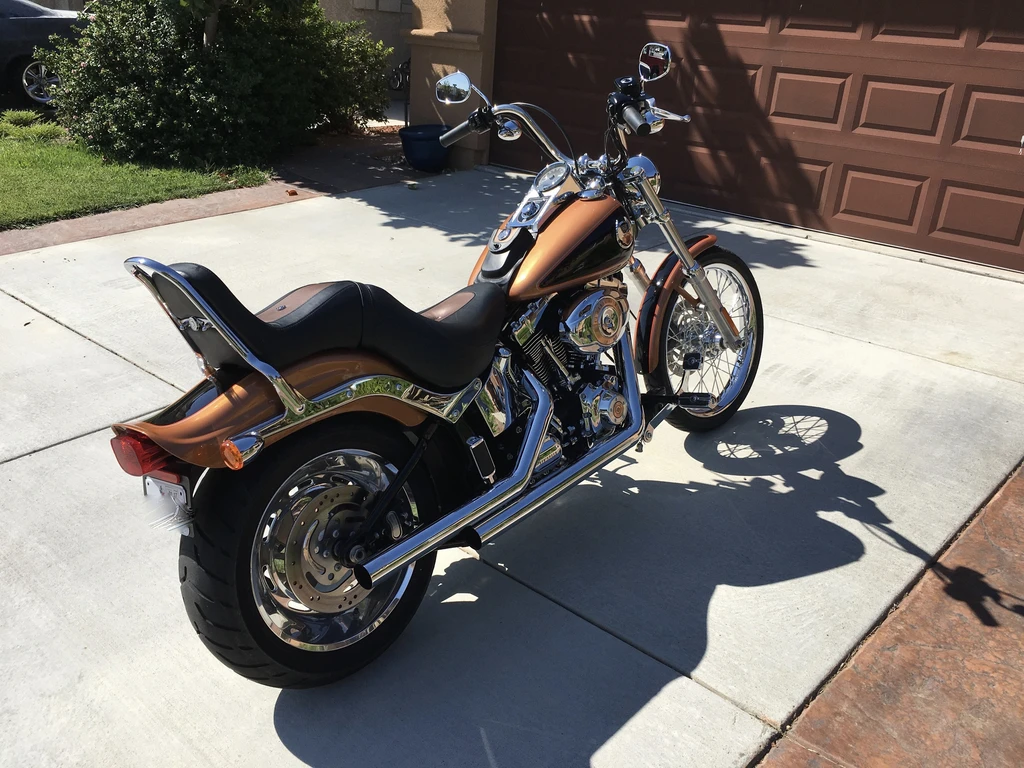

Harley Davidson FXSTC Softail Custom ANV 105th Anniversary (2008)

The Harley-Davidson FXSTC Softail Custom ANV 105th Anniversary is an exercise in classic cool, with its hands-high profile, feet-out stance, and comfortable two-up seat.

A polished ape-hanger handlebar and Fat Bob fuel tank add to the bike’s vintage appeal, while a black powder-coated engine with chrome covers gives it a sleek, high-performance look. The 1584cc Twin Cam 96B engine is the beating heart of this Softail, delivering its signature V-twin rumble through six-speed Cruise Drive transmission.

On the open road, the FXSTC Softail Custom comes alive, its smooth power delivery and relaxed engine speed making it an ideal companion for long-distance touring. With its optional Smart Security System and advanced technology features, this bike is a true masterpiece of American motorcycle design.

The combination of the Twin Cam 96B engine and Cruise Drive transmission creates a riding experience that’s both effortless and exhilarating, as if the bike is floating down the highway at a mere whisper of speed.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity	5 US gallons / 9.0 L
Weight (Wet/Kerb)	703 lbs / 318 kg
Seat Height	26.40 inches / 670.56 mm

*n/a – information not provided by manufacturer

Harley Davidson FXSTC Softail Custom ANV 105th Anniversary (2008)

All Specifications

Make & Model

Model	Harley Davidson FXSTC Softail Custom ANV 105th Anniversary
Year	2008

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.3 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Rake	32
Trail	127 mm / 5.0 in

Wheels & Brakes

Front Tire Size	MH90-21 54H
Rear Tire Size	200/55R17 78V
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.40 inches / 670.56 mm
Wheelbase	66.90 inches / 1699.2 mm
Fuel Tank Capacity	5 US gallons / 9.0 L
Wet (kerb/curb) Weight	703 lbs / 318 kg
Dry Weight	304.8 kg / 672 lbs

Features

1584cc Twin Cam 96B balanced engine
6-Speed Cruise Drive transmission
Black powder-coated engine with chrome covers
Chrome Staggered Shorty dual exhaust
Chrome oil tank
200 mm-17 rear / MH90-21 front tire
Polished, Slotted Disc Forged Aluminum 17-inch rear wheel
Chrome Profile Laced Aluminum 21-inch front wheel
Bobtail rear fender
Chrome button tufted two-up seat with chrome backrest
Profile ape-hanger handlebar with Bare Knuckle risers
Five-gallon Fat Bob fuel tank with custom-sewn, leather strap
Forward-mount foot controls
33.5-degree FX front forks
Optional Smart Security System
