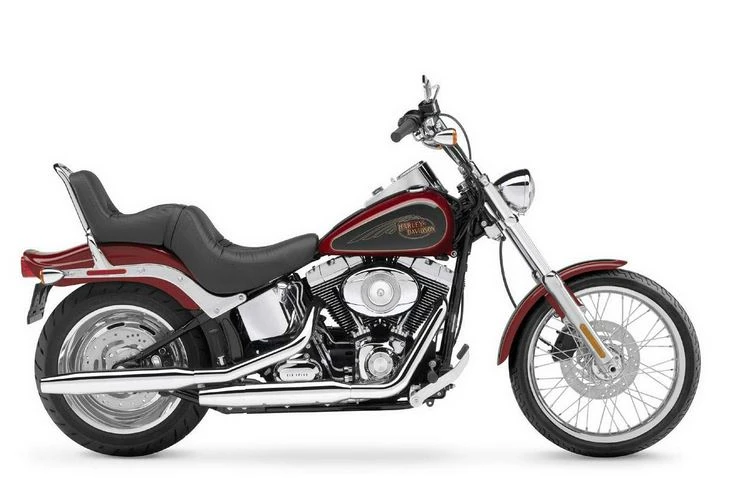

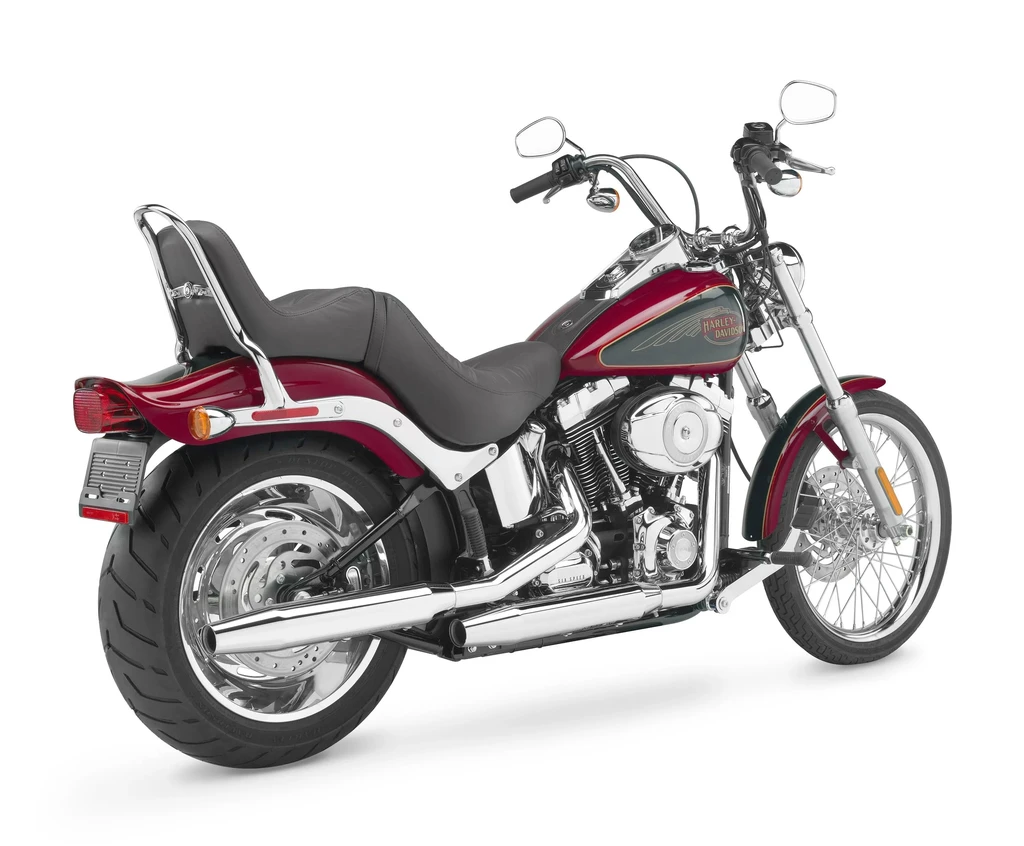

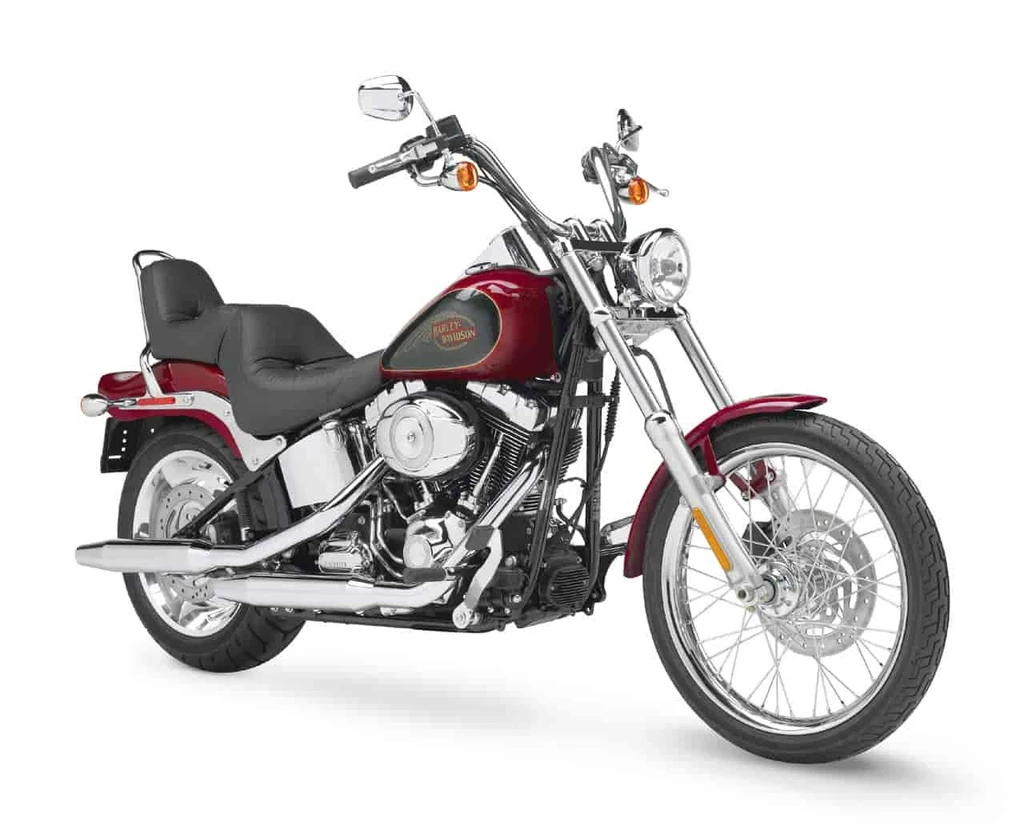

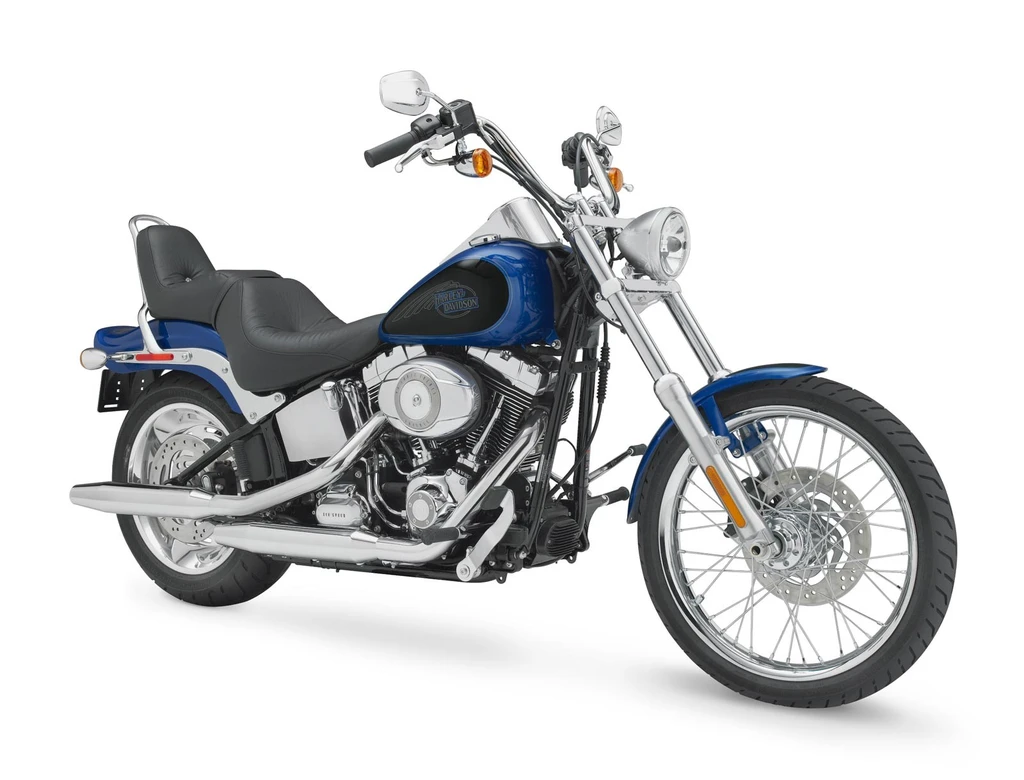

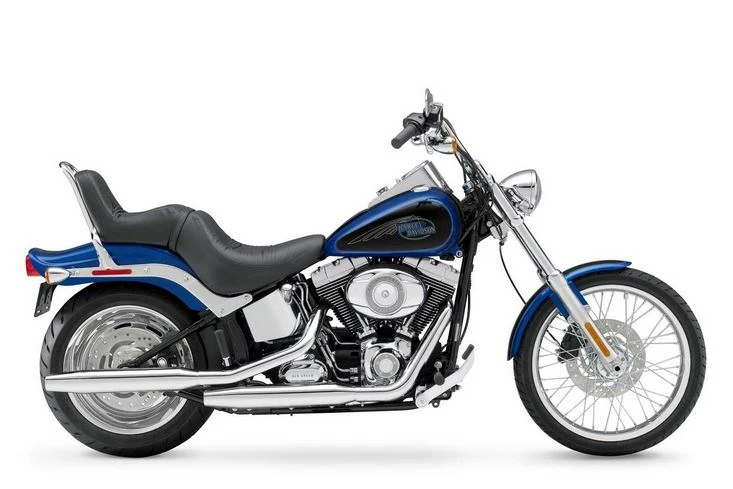

Harley Davidson FXSTC Softail Custom (2007 - 2008)

The Harley-Davidson FXSTC Softail Custom is a masterclass in balance and style, combining laid-back chopper-inspired design with the comfort of a two-up seat and backrest.

Its 1584cc Twin Cam 96B engine delivers a smooth, effortless ride, courtesy of its balanced design and new 6-speed Cruise Drive transmission. The result is an exhilarating experience that invites you to stretch out for a comfortable solo ride or enjoy the thrill of sharing the road with a passenger.

Chrome accents adorn every detail, from the polished stainless steel ape-hanger handlebar to the bullet-style headlamp, creating a sleek and refined appearance that’s sure to turn heads on the street. With its new rigid-mount engine, wide 200mm rear tire, and Polished Slotted Disc Forged Aluminum wheel, the Softail Custom is a force to be reckoned with. Whether you choose one of three solid colors or four two-tone options, this bike is an unapologetic statement of individuality that leaves nothing but its name in the past.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity	5 US gallons / 9.0 L
Weight (Wet/Kerb)	703 lbs / 318 kg
Seat Height	26.40 inches / 670.56 mm

*n/a – information not provided by manufacturer

Harley Davidson FXSTC Softail Custom (2007 - 2008)

All Specifications

Make & Model

Model	Harley Davidson FXSTC Softail Custom
Year	2007 – 2008

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.3 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Rake	32
Trail	127 mm / 5.0 in

Wheels & Brakes

Front Tire Size	MH90-21 54H
Rear Tire Size	200/55R17 78V
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.40 inches / 670.56 mm
Wheelbase	66.90 inches / 1699.2 mm
Fuel Tank Capacity	5 US gallons / 9.0 L
Wet (kerb/curb) Weight	703 lbs / 318 kg
Dry Weight	304.8 kg / 672 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI) standard
Twin Cam 96B engine
6-speed Cruise Drive transmission
200mm rear tire
Polished Slotted Disc Forged Aluminum wheel
Traditional Bobtail fender
Chrome, Profile Laced Aluminum 21-inch front wheel
Chrome button tufted two-up seat with chrome backrest
Profile ape hanger handlebar with bare knuckle risers
Custom, silkscreen graphics on traditional Fat Bob fuel tank
Custom-sewn, leather strap
Front fork slider cover
Chrome bullet headlamp
Hard tail styling with hidden, horizontal rear shocks
Raked FX front forks
Forward highway-style rider pegs
Chrome horseshoe oil tank
