The Harley-Davidson Softail Custom defies easy explanation, its character revealed only in the ride itself.
With a wet weight of 651 pounds, this air-cooled V-twin is an imposing presence, yet the Milwaukee-based company’s intentions are conveyed through more than just numbers.
Our test bike features the Custom package, including a color-matched frame, extra chrome accents, and a plush seat with integral passenger backrest. The candy red and burgundy paint job with gold lettering exudes unrestrained opulence, while the black engine adds a touch of practicality to the glittering Custom.
The Softail’s riding position is perhaps its most notable feature – or drawback, depending on one’s perspective. With pegs placed for comfort rather than control, riders must adapt to a bar-ca-lounger stance that can be awkward at first but becomes habitual with time.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
81.5 cubic inches / 1337 cc
Max Power
54 hp / 40.2 kW @ 5000 rpm
Max Torque
68 ft-lb @ 3500 rpm
Fuel Tank Capacity
4.5 US gallons / 18.9 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

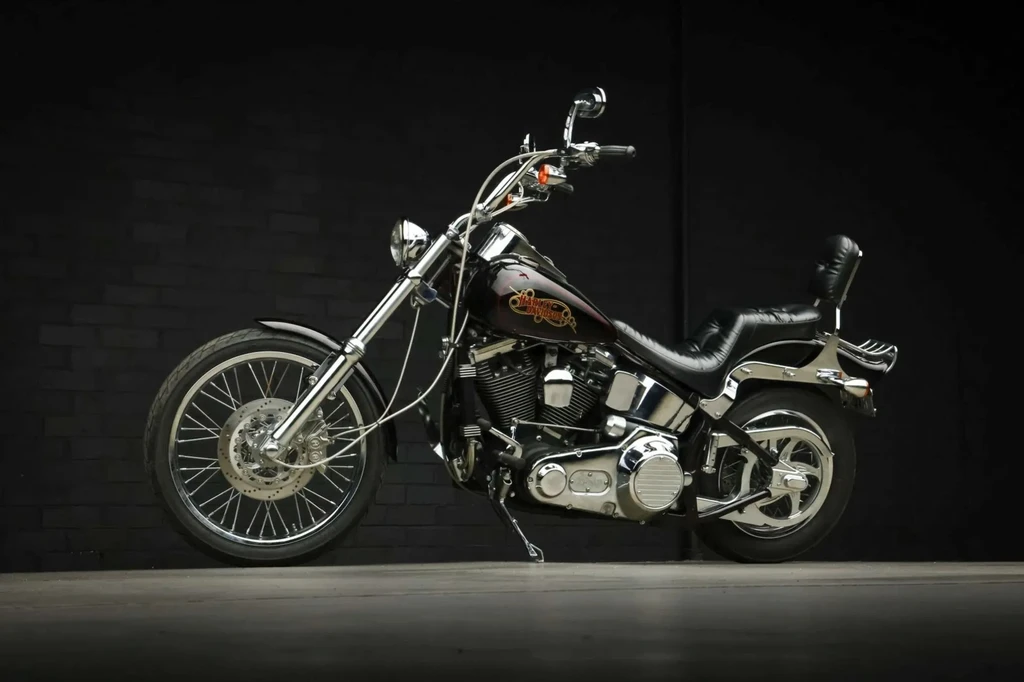

Harley Davidson FXSTC 1340 Softail Custom
Year
1986
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
81.5 cubic inches / 1337 cc
Bore x Stroke
88.8 x 108.0 mm
Compression Ratio
8.5:1
Max Horsepower
54 hp / 40.2 kW @ 5000 rpm
Max Torque
68 ft-lb @ 3500 rpm
Engine Management System
40mm Keihin CV carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
38mm Telescopic air assistance
Front Suspension Travel
6.9 inches / 175 mm
Rear Suspension
Dual shocks preload adjustable
Rear Suspension Travel
3.6 inches / 91 mm
Wheels & Brakes
Front Tire Size
3.00-21
Rear Tire Size
130/90-16
Front Brakes
Single 292mm disc 1 piston caliper
Rear Brakes
Single 292mm disc 1 piston caliper.
Dimension & Weights
Fuel Tank Capacity
4.5 US gallons / 18.9 L
Dry Weight
280 kg / 617 lbs
Features
Air-cooled V-twin engine
1340cc displacement
Rigidly mounted engine
Smooth engine performance
Positive shifting mechanism
Precise and controlled lever throw
Neutral gear found easily
Bike snicks into first from neutral without a click
Light clutch pull
Solid disc rear wheel
Color-matched frame
Extra chrome trim
Black engine with aluminum highlights
Plusher seat and integral passenger backrest
Candy red and burgundy paint job with gold lettering
Weight of 651 pounds (wet weight)
Bar-ca-lounger style seating position
