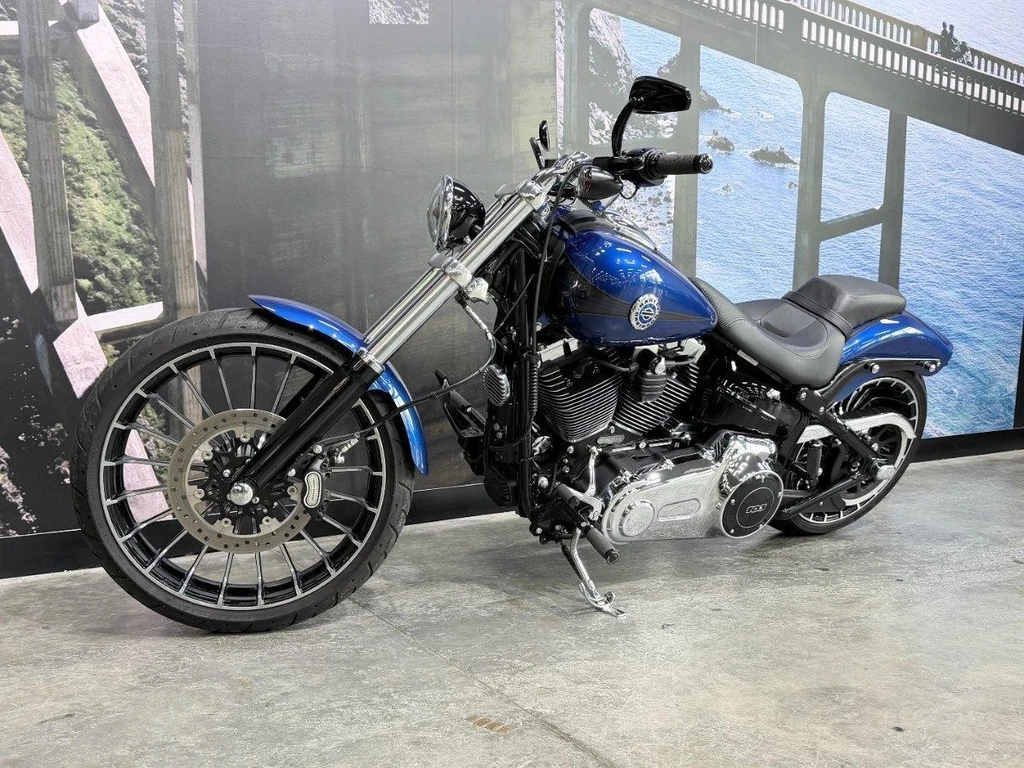

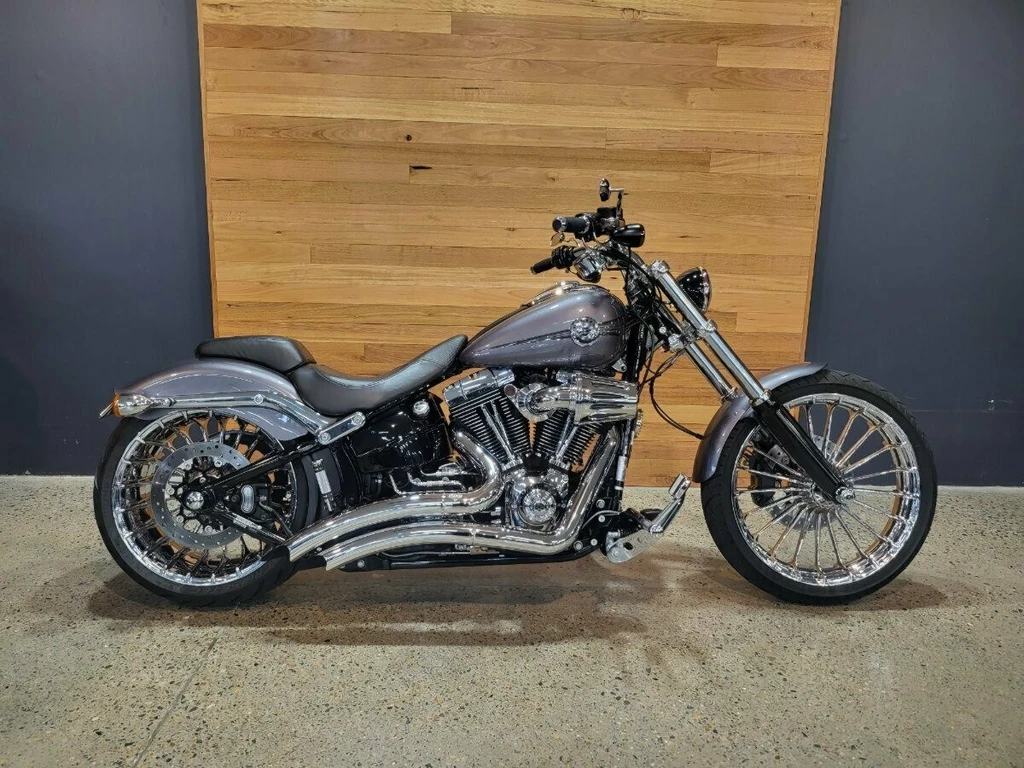

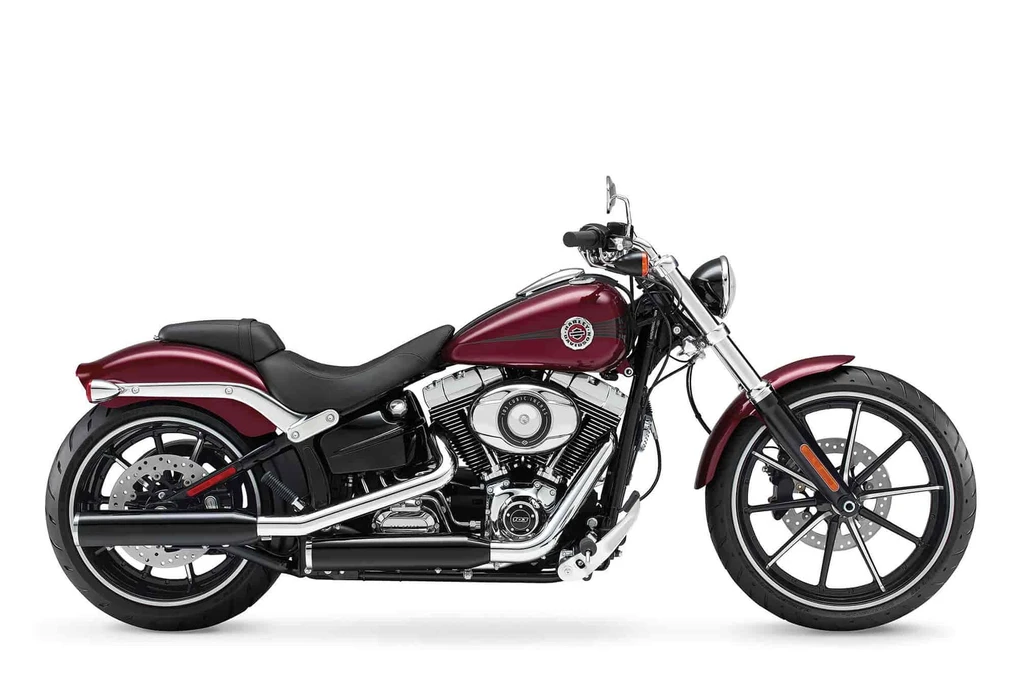

Harley Davidson FXSB Softail Breakout (2015)

The Harley-Davidson FXSB Softail Breakout is a performance cruiser that embodies the perfect blend of classic drag-bike attitude and modern refinement.

Its long, low-slung profile is punctuated by distinctive finishes and specific components, including thick forks, chopped fenders, and a shaved tank console. The Twin Cam 103BTM powertrain is trimmed in gleaming chrome and gloss black paint, creating a striking visual contrast.

The Softail chassis boasts a clean vintage aesthetic, but with the added benefit of rear suspension control via coil-over shock absorbers mounted horizontally within the frame rails. This setup provides an unshakeable connection between rider and powerplant, heightening the emotional experience of riding.

With its new standard Anti-lock Braking System (ABS) and premium paint color options, including Amber Whiskey, Morocco Gold Pearl, and Hard Candy Chrome Flake, this motorcycle is poised to make a statement on any road.

Key Specifications

Engine Type	Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Engine Capacity	1690 cc / 103.1 cu in
Max Torque	99.5 ft-lb / 134 nm
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Weight (Wet/Kerb)	710 lbs / 322 kg
Seat Height	24.7 inches / 627 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FXSB Softail Breakout
Year	2015

Engine

Engine Type	Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Displacement	1690 cc / 103.1 cu in
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	9.6:1
Max Torque	99.5 ft-lb / 134 nm
Engine Management System	Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st.311 2nd 6.454 3r d4.793 4th 3.882 5th 3.307 6th 2.79
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers,
Front Suspension Travel	5.6 inches / 143 mm
Rear Suspension	Hidden, horizontal-mounted, coil-over,
Rear Suspension Travel	3.6 inches / 91 mm
Rake	35
Trail	145 mm / 5.7 in

Wheels & Brakes

Front Tire Size	130/60B21 63H
Rear Tire Size	240/40R18 79V
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 2 piston caliper

Dimension & Weights

Seat Height	24.7 inches / 627 mm
Wheelbase	67.3 inches / 1710 mm
Ground Clearance	120 mm / 4.7 in
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight	710 lbs / 322 kg
Dry Weight	308 kg / 681 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Twin Cam 103BTM powertrain
Chrome and gloss black paint finishes
Wide rear tire
Thick forks
Chopped fenders
Shaved tank console
Drag handlebar
Softail chassis with coil-over shock absorbers
Rigid-mounted, counter-balanced powertrain
NEW Standard Anti-lock Braking System (ABS)
Gloss Black single-rib cast aluminum oil tank
Staggered, straight cut chrome mufflers with Gloss Black muffler shields
Gloss Black Gasser Cast Aluminum wheels with machined highlights
Wide front end with Gloss Black fork lowers and headlamp bucket
1.25-inch Gloss Black drag-style handlebar on pull-back riser
Four-inch riser-mounted speedometer
Chrome-plated low-profile console
Black two-piece, two-up seat with removable pillion
