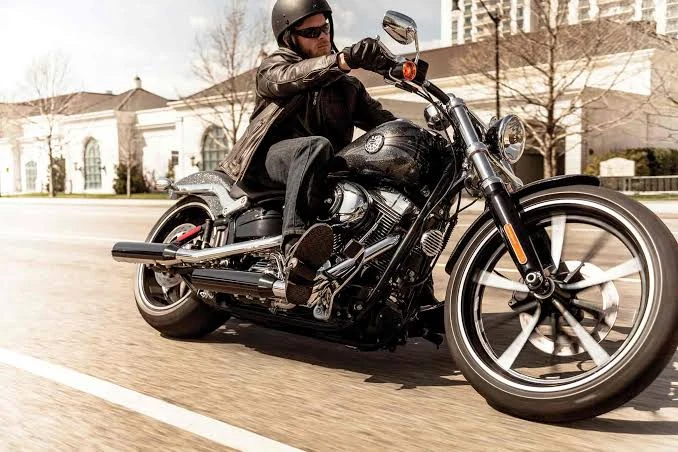

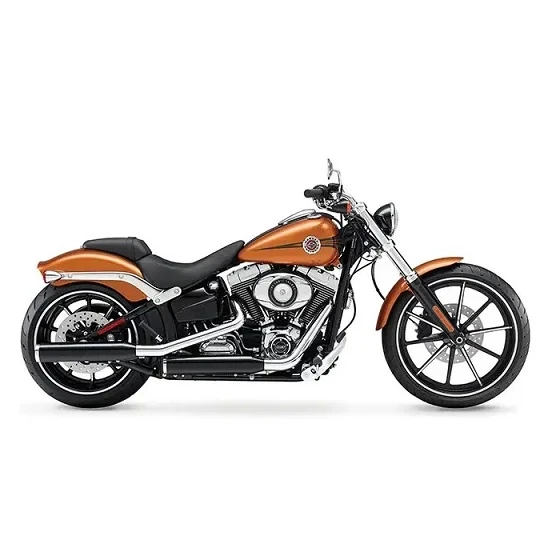

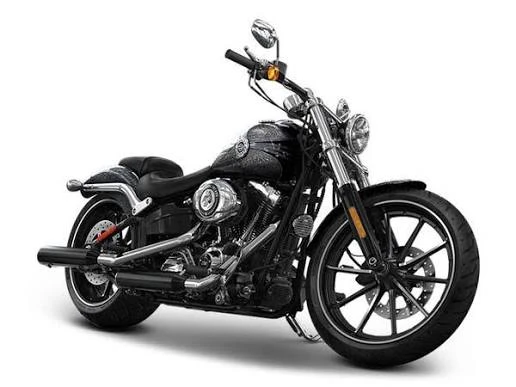

Harley Davidson FXSB Softail Breakout (2014)

The Harley-Davidson FXSB Softail Breakout is a performance cruiser that embodies the perfect blend of vintage charm and modern refinement. Its sleek, low-slung profile is accentuated by big wheels, chopped fenders, and a drag handlebar, giving it a classic drag-bike attitude.

Underneath its gleaming chrome and gloss black paint lies a Twin Cam 103BTM powertrain, delivering 1690cc of air-cooled power with Electronic Sequential Port Fuel Injection (ESPFI) and Automatic Compression Release (ACR). This rigid-mounted engine creates an unbreakable connection between rider and machine, heightening the emotional experience of riding.

The result is a thrilling ride that’s both raw and refined, where every twist of the wrist unleashes a torrent of torque and acceleration. With its responsive handling and potent powertrain, the FXSB Softail Breakout is the ultimate performance cruiser for riders who crave an unbridled adrenaline rush.

Key Specifications

Engine Type	Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Engine Capacity	1690 cc / 103.1 cu in
Max Torque	99.5 ft-lb / 134 nm
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Weight (Wet/Kerb)	675 lbs / 306 kg
Seat Height	24 inches / 610 mm

*n/a – information not provided by manufacturer

Harley Davidson FXSB Softail Breakout (2014)

All Specifications

Make & Model

Model	Harley Davidson FXSB Softail Breakout
Year	2014

Engine

Engine Type	Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Displacement	1690 cc / 103.1 cu in
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	9.6:1
Max Torque	99.5 ft-lb / 134 nm
Engine Management System	Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st.311 2nd 6.454 3r d4.793 4th 3.882 5th 3.307 6th 2.79
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers,
Front Suspension Travel	5.6 inches / 143 mm
Rear Suspension	Hidden, horizontal-mounted, coil-over,
Rear Suspension Travel	3.6 inches / 91 mm
Rake	35
Trail	145 mm / 5.7 in

Wheels & Brakes

Front Tire Size	130/60B21 63H
Rear Tire Size	240/40R18 79V
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 2 piston caliper

Dimension & Weights

Seat Height	24 inches / 610 mm
Wheelbase	67.3 inches / 1710 mm
Ground Clearance	120 mm / 4.7 in
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight	675 lbs / 306 kg
Dry Weight	294 kg / 648 lbs

Features

Twin Cam 103BTM powertrain
Electronic Sequential Port Fuel Injection (ESPFI)
Big wheels with Gloss Black Gasser Cast Aluminum wheels
Paint color options: Amber Whiskey, Morocco Gold Pearl, Hard Candy Chrome Flake
Gloss Black single-rib cast aluminum oil tank
Staggered, straight cut chrome mufflers with Gloss Black muffler shields
Chopped front and rear fenders
Wide front end with Gloss Black fork lowers and headlamp bucket
1.25-inch Gloss Black drag-style handlebar on pull-back riser
Four-inch riser-mounted speedometer
Chrome-plated low-profile console
Black two-piece, two-up seat with removable pillion
Side-mounted license plate and combination stop/turn/tail light
Glass-filled fuel tank medallions
Rigid-mounted, air-cooled, 1690 cc Twin Cam 103B counter-balanced engine
Electronic Sequential Port Fuel Injection (ESPFI)
Automatic Compression Release (ACR)
Standard Anti-lock Braking System (ABS)

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
