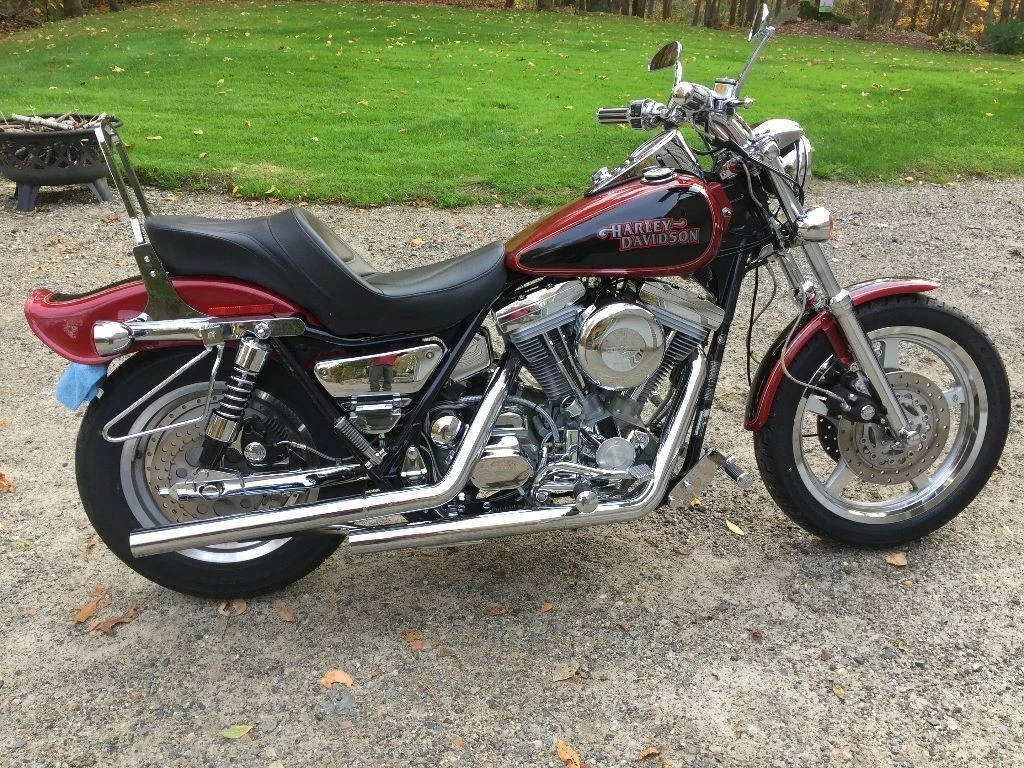

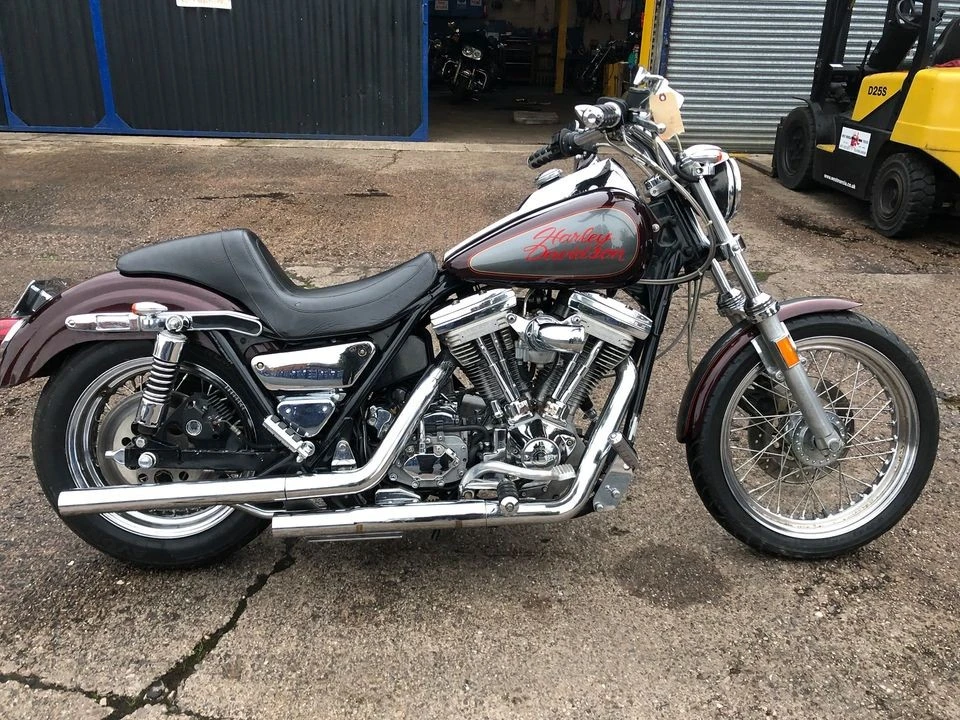

Harley-Davidson’s 1986 FXRS 1340 Low Rider Custom offers a unique blend of style and performance. The Low Rider Custom was designed to be more laid-back than its sportier counterparts, with a lowered rear suspension and a more subdued color palette.
The big V-twin engine produces 72 horsepower at 5,500 rpm, giving the bike a distinctive growl as it accelerates. This engine’s torque-rich character makes it well-suited for cruising and carving up twisties alike.
Whether you’re tooling around town or taking on the open road, the Low Rider Custom is designed to deliver a smooth, comfortable ride. With its sporty styling and laid-back attitude, this bike is sure to stand out in any crowd, making it an ideal choice for anyone looking for a unique motorcycling experience that’s anything but ordinary.
This 1986 FXRS 1340 Low Rider Custom is the perfect bike for those who crave individuality on two wheels.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
81.5 cubic inches / 1337 cc
Max Power
58 hp / 43 kW @ 5800 rpm
Max Torque
90.8 Nm / 67 lb.-ft. @ 3600 rpm
Fuel Tank Capacity
4.2 US gallons / 16.0 L
Weight (Wet/Kerb)
628 lbs / 285 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FXRS 1340 Low Rider Custom
Year
1986 – 87
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
81.5 cubic inches / 1337 cc
Bore x Stroke
88.8 x 108.0 mm
Compression Ratio
8.5:1
Max Horsepower
58 hp / 43 kW @ 5800 rpm
Max Torque
90.8 Nm / 67 lb.-ft. @ 3600 rpm
Engine Management System
34mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
38mm Telescopic air assistance, 175mm wheel travel.
