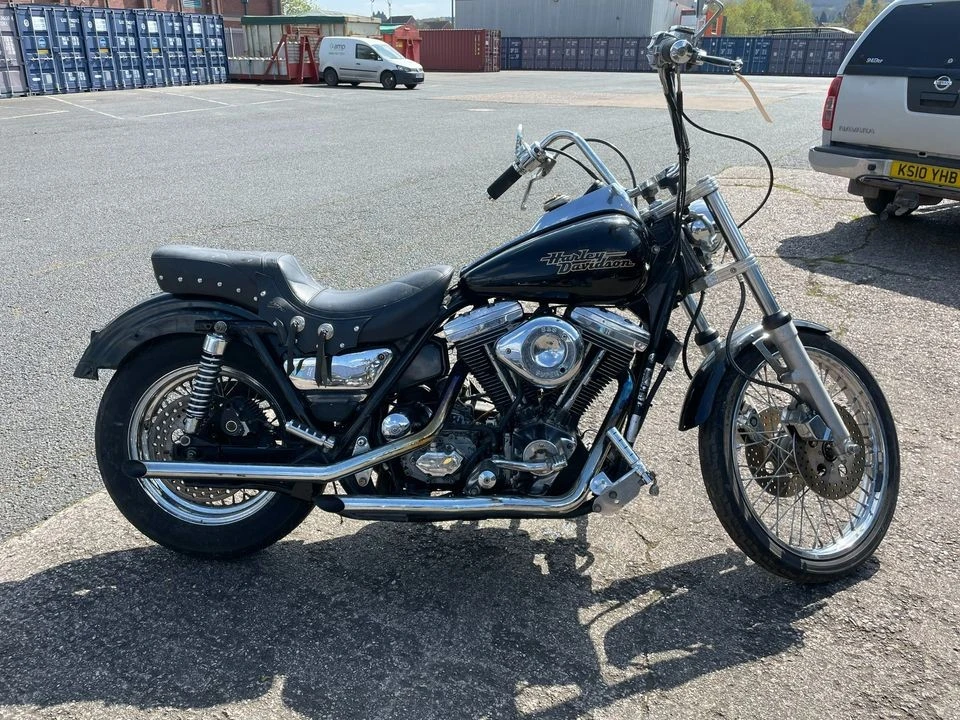

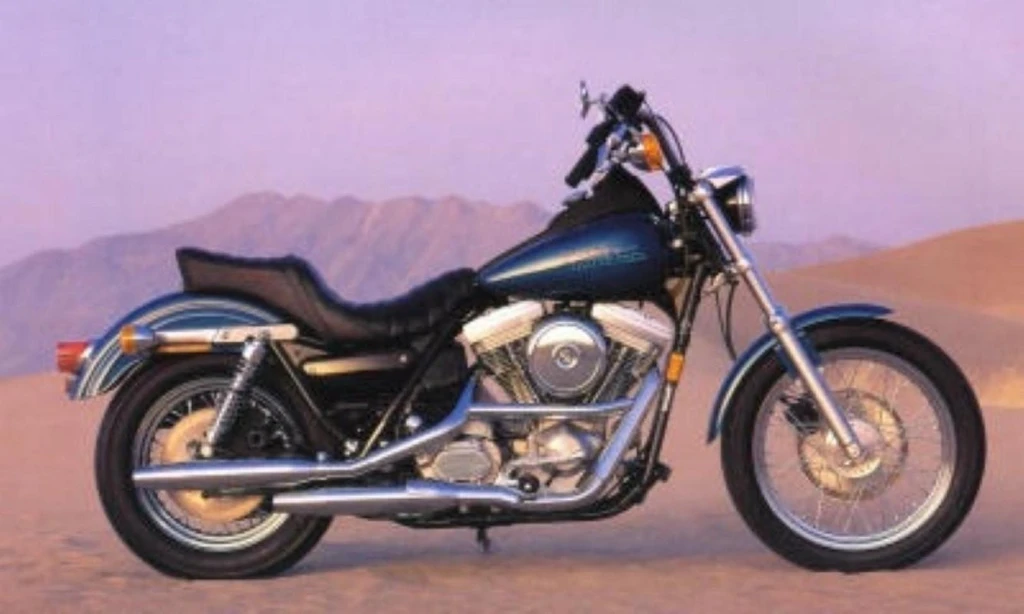

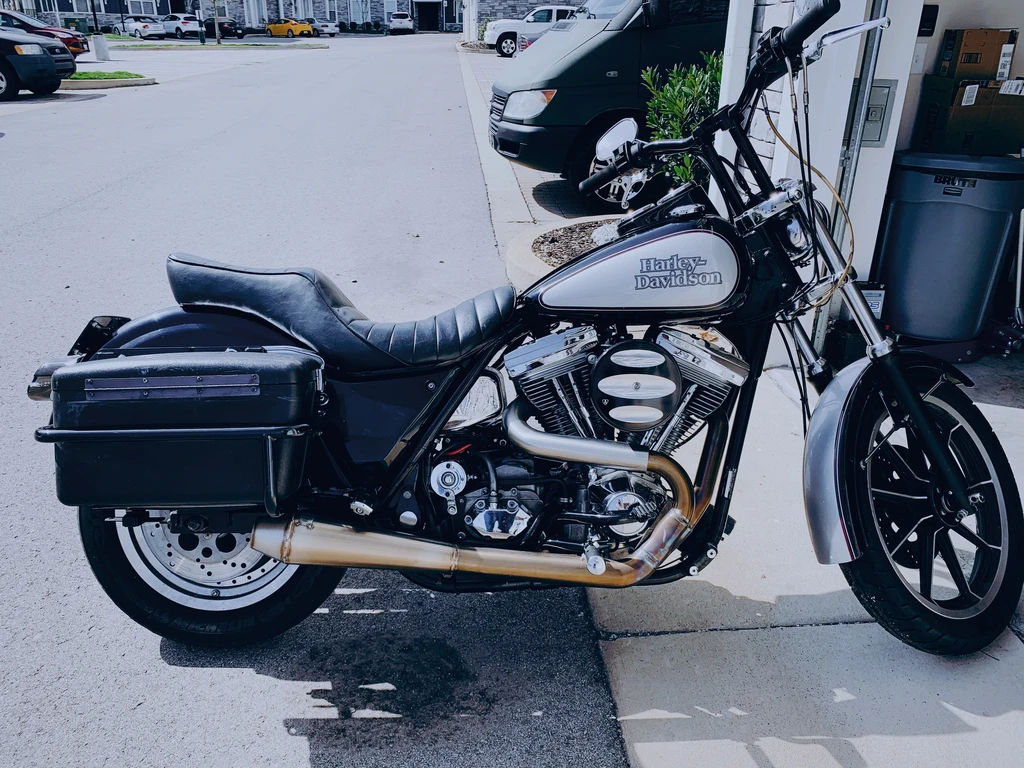

The 1986 Harley-Davidson FXR 1340 Super Glide is a masterclass in evolution, blending timeless style with cutting-edge technology.
This muscular roadster boasts a potent 79ci (1340cc) Evolution V-twin engine, delivering a smooth, predictable power delivery that rewards throttle enthusiasm. As the revs climb, the exhaust note deepens, echoing through the urban canyons and country roads.
In the saddle, the FXR’s ergonomics are tailored to perfection, with a commanding riding position that invites spirited exploration. With its low center of gravity and precise handling, this bike is an absolute joy to ride, devouring twisties and cruising highways with equal aplomb.
The Harley-Davidson FXR 1340 Super Glide is more than just a motorcycle – it’s an experience waiting to happen.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
81.5 cubic inches / 1337 cc
Max Power
50 hp / 35.8 kW @ 5000 rpm
Max Torque
90.8 Nm / 67 lb.-ft. @ 3600 rpm
Fuel Tank Capacity
4.2 US gallons / 16.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FXR 1340 Super Glide
Year
1986
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
81.5 cubic inches / 1337 cc
Bore x Stroke
88.8 x 108.0 mm
Compression Ratio
8.5:1
Max Horsepower
50 hp / 35.8 kW @ 5000 rpm
Max Torque
90.8 Nm / 67 lb.-ft. @ 3600 rpm
Engine Management System
Carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
38mm Showa telescopic forks
Rear Suspension
Dual Showa shocks 5-way preload adjustable.
Wheels & Brakes
Front Tire Size
100/90-19
Rear Tire Size
130/90-16
Front Brakes
Single 292mm disc
Rear Brakes
Single 292mm disc
Dimension & Weights
Fuel Tank Capacity
4.2 US gallons / 16.0 L
Dry Weight
250 kg / 551 lbs
