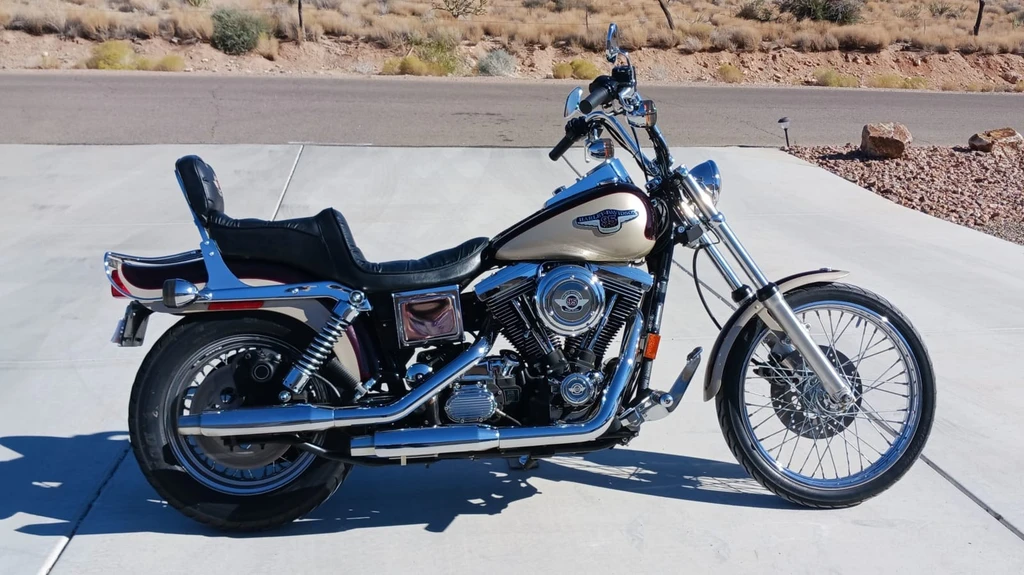

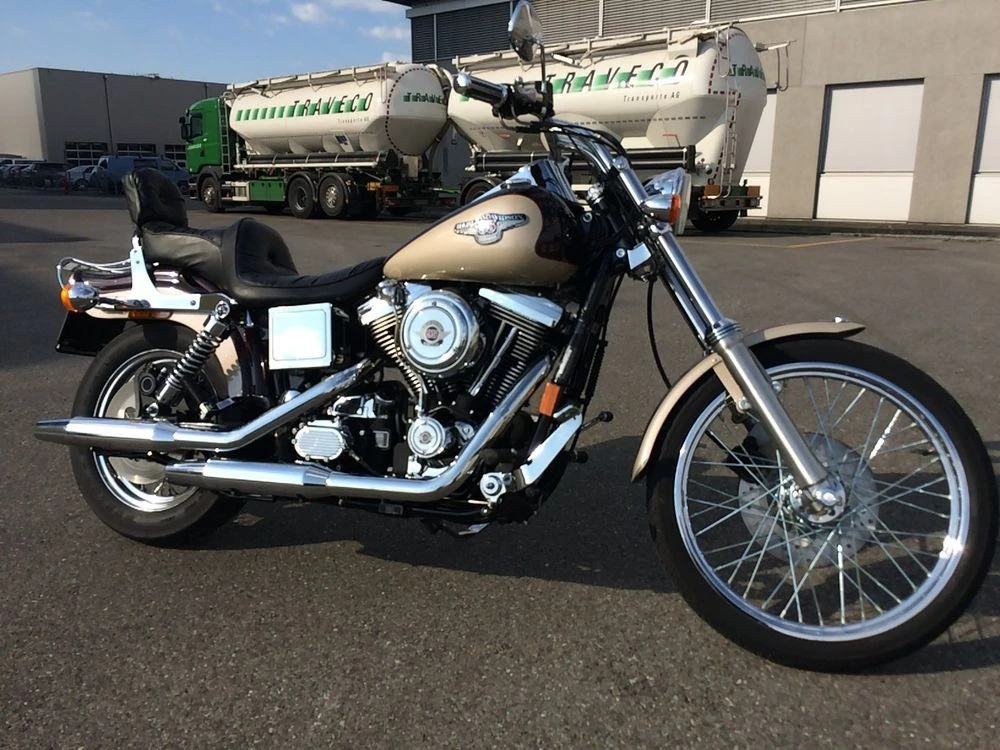

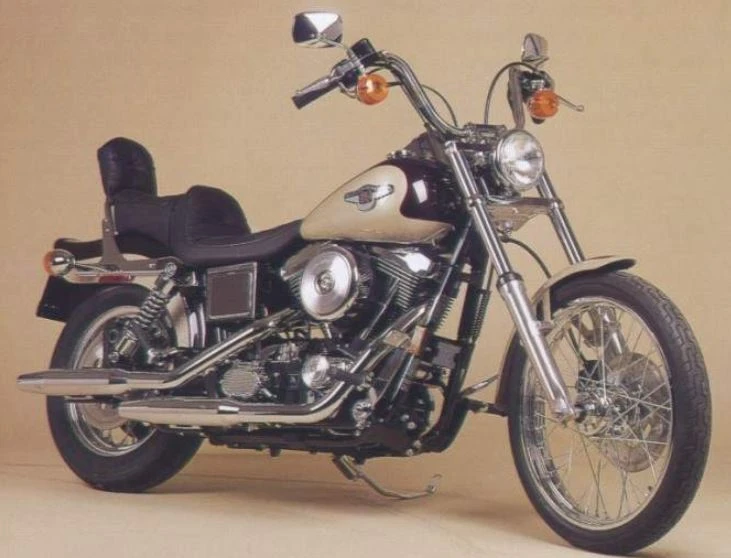

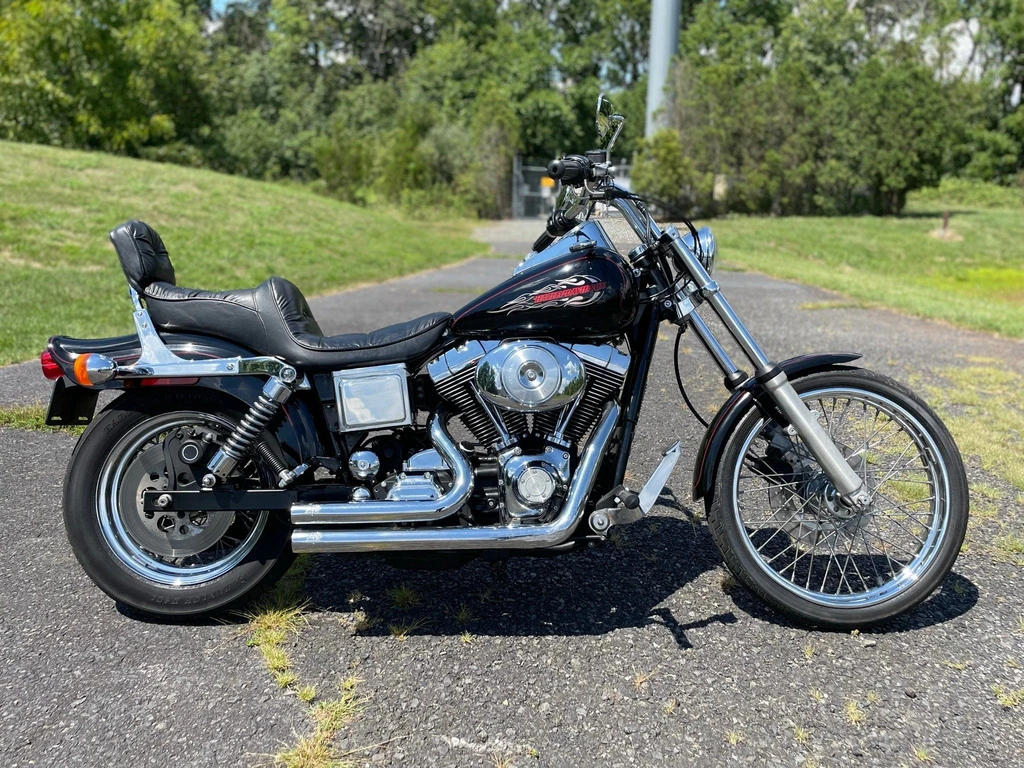

Harley Davidson FXDWG Dyna Wide Glide 95 Anniversary Edition (1998)

Harley Davidson FXDWG Dyna Wide Glide 95 Anniversary Edition (1998)

The Harley-Davidson FXDWG Dyna Wide Glide 95 Anniversary Edition embodies the spirit of rebellion and freedom that defines the iconic American motorcycle brand. For this limited-edition model, Harley-Davidson has distilled its legendary V-Twin engine into a more compact package, producing an impressive 81ci (1,340cc) powerplant with an intoxicating soundtrack.

The Wide Glide’s low-slung profile and wide front end evoke the classic lines of a vintage bobber, while its Fat Bob-style fork and swept-back handlebars deliver a uniquely aggressive riding stance. As you plant your feet on the footpegs and wrap your hands around the grips, the Dyna’s smooth-shifting 5-speed transmission and buttery clutch invite you to carve up the asphalt with reckless abandon.

As you ride off into the sunset, the Wide Glide’s raw power and unbridled torque will leave you breathless, its engine character a harmonious blend of low-end grunt and high-revving exuberance.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity81.5 cubic inches / 1337 cc
Max Power67 hp / 48.9 kW @ 6000 rpm
Max Torque107 Nm @ 3300 rpm
Fuel Tank Capacity5.0 US gallons / 19.0 L
Seat Height26.8 inches / 680 mm
Harley Davidson FXDWG Dyna Wide Glide 95 Anniversary Edition (1998)

All Specifications

Make & Model

ModelHarley Davidson FXDWG Dyna Wide Glide 95 Anniversary Edition
Year1998

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement81.5 cubic inches / 1337 cc
Bore x Stroke88.8 x 108 mm
Compression Ratio8.5:1
Max Horsepower67 hp / 48.9 kW @ 6000 rpm
Max Torque107 Nm @ 3300 rpm
Engine Management System38mm Keihin carburetor
Lubrication SystemDry sump
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet 9-plate
Gearbox5 Speed
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front SuspensionTelescopic fors
Rear SuspensionCoil-over shock

Wheels & Brakes

Front Tire Size80/90-21
Rear Tire Size130/90-16
Front BrakesSingle 292mm discs 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height26.8 inches / 680 mm
Fuel Tank Capacity5.0 US gallons / 19.0 L
Dry Weight278 kg / 598 lbs

Features

  • Here is a plain text list of key features:
  • New Anniversary Edition model celebrates 95 years of Harley-Davidson heritage
  • Based on popular FXDWG Dyna Wide Glide model
  • Unique anniversary badging and commemorative paint schemes
  • Classic wide-glide styling with 26-inch front wheel
  • Twin Cam 96B engine with 6-speed Cruise Drive transmission
  • Dual Brembo disc brakes for improved stopping power
  • ABS as standard on all Anniversary Edition models
  • Showa 43mm fork with 4.5 inches of travel
  • H-D Smart Security System for anti-theft protection
  • High-output accessory system capable of powering larger accessories
  • New high-performance exhaust system with optimized muffler design
  • Improved ergonomics and rider comfort thanks to updated handlebars and seat
  • Optional ABS Pro model features cornering ABS functionality
