Harley Davidson FXDWG Dyna Wide Glide (2016 – 2017)

Harley Davidson FXDWG Dyna Wide Glide (2016 - 2017)

The Harley-Davidson FXDWG Dyna Wide Glide is a rebellious ride that embodies the spirit of the 1970s chopper scene, yet packs modern technology under its retro-styled skin.

Its raw, unapologetic design boasts a chopped rear fender, black rims on 40-spoke laced wheels, and a distinctive “Tommy Gun” exhaust. But beneath its tough exterior lies a sophisticated heart – the Rubber-mounted Twin Cam 103 V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), delivering 100 ft. lbs. of torque.

The result is an effortlessly cool ride that’s both nostalgic and exhilarating, with lowered suspension and internally-wired handlebars adding to its laid-back demeanor. And with a sticker price that’s as attractive as the bike itself, you can experience this slice of American motorcycle culture without breaking the bank – the Harley-Davidson FXDWG Dyna Wide Glide is an authentic thrill ride in every sense.

Key Specifications

Engine TypeFour stroke, Twin Cam 103 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Engine Capacity1690 cc / 103.1 cu in
Max Torque132 Nm / 13.5 kgf-m / 97.4 ft/ lbs @ 3250 rpm
Fuel Tank Capacity17.8 Litres / US 4.7 gal
Weight (Wet/Kerb)677 lbs / 307 kg
Seat Height25.5 inches / 648 mm

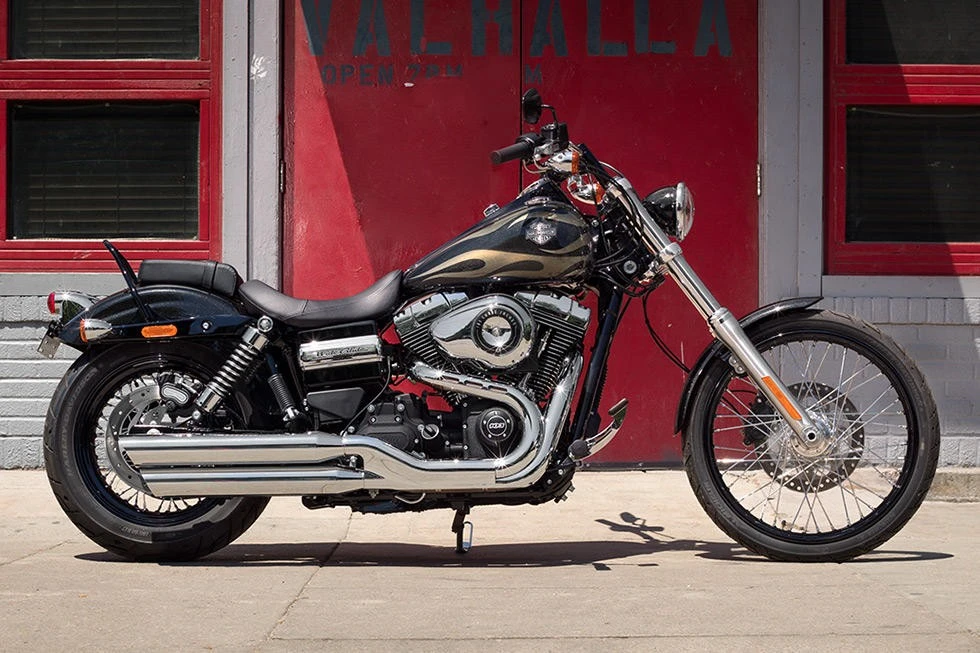

Harley Davidson FXDWG Dyna Wide Glide (2016 - 2017)

All Specifications

Make & Model

ModelHarley Davidson FXDWG Dyna Wide Glide
Year2016 – 2017

Engine

Engine TypeFour stroke, Twin Cam 103 Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Displacement1690 cc / 103.1 cu in
Bore x Stroke98.4 x 111.1 mm
Compression Ratio9.6:1
Max Torque132 Nm / 13.5 kgf-m / 97.4 ft/ lbs @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir-cooled
ExhaustChrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear SuspensionSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,
Trail132 mm / 5.2 in.

Wheels & Brakes

Front Wheel/Rim SizeBlack Steel Laced
Front Tire Size80/90-21 54H
Rear Wheel/Rim SizeBlack Steel Laced
Rear Tire Size180/60B17 75V
Front BrakesSingle 300mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 2 piston torque-free floatingcaliper

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase67.5 inches / 1715 mm
Ground Clearance100 mm / 3.9 in
Fuel Tank Capacity17.8 Litres / US 4.7 gal
Wet (kerb/curb) Weight677 lbs / 307 kg
Dry Weight295 kg / 650 lbs

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • 103 cubic inches V-Twin power
  • Lowered suspension
  • Internally-wired handlebar with 4-inch riser
  • Forward foot controls
  • Standard Anti-lock Braking System (ABS)
  • Paint color options
  • Rubber-mounted Twin Cam 103 V-Twin engine
  • Chrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers
  • 4.7-gallon Street Bob-style fuel tank
  • 40-spoke Black Steel Laced wheels with black rims
  • 21-inch front wheel
  • 34 degree fork angle
  • Wide polished aluminum triple clamps
  • Chopped rear fender with chrome supports
  • Low solo seat with separate passenger pillion
  • Stainless steel internally-wired handlebar on four-inch black riser
  • Black mirrors and headlight bucket
  • Dual red LED lights combine stop/turn/tail functions

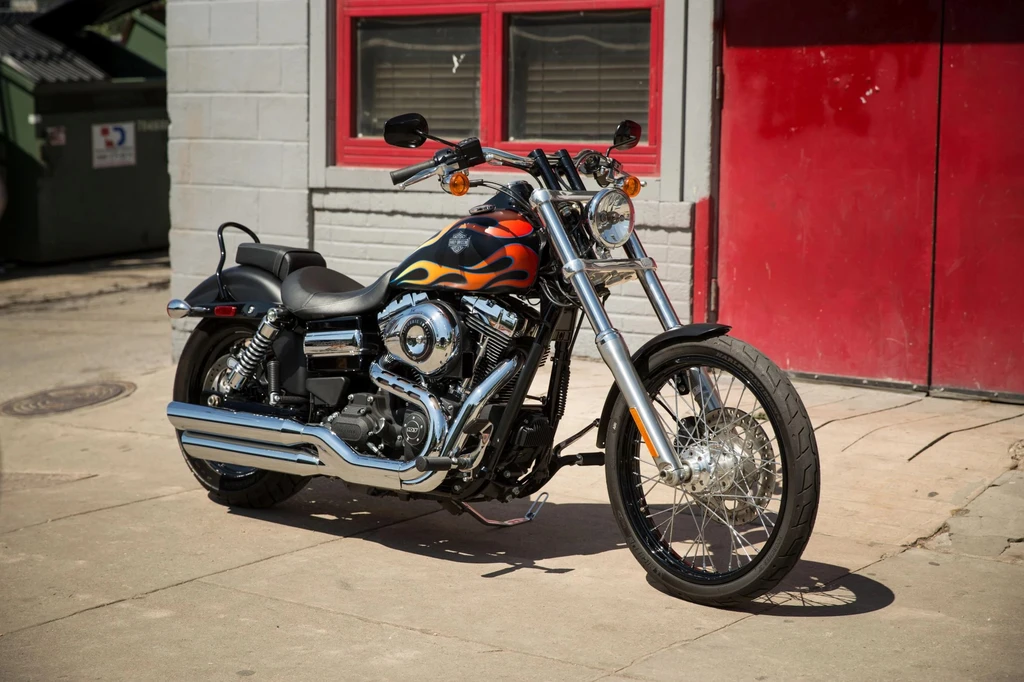

Harley Davidson FXDWG Dyna Wide Glide (2016 - 2017)
