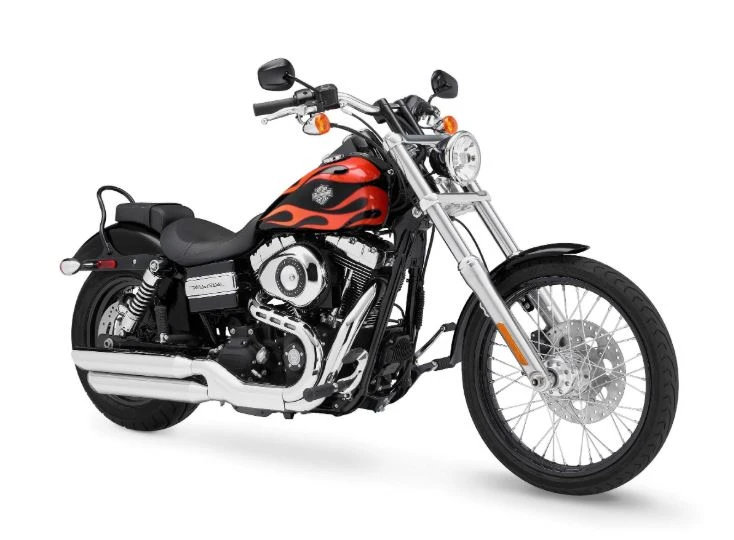

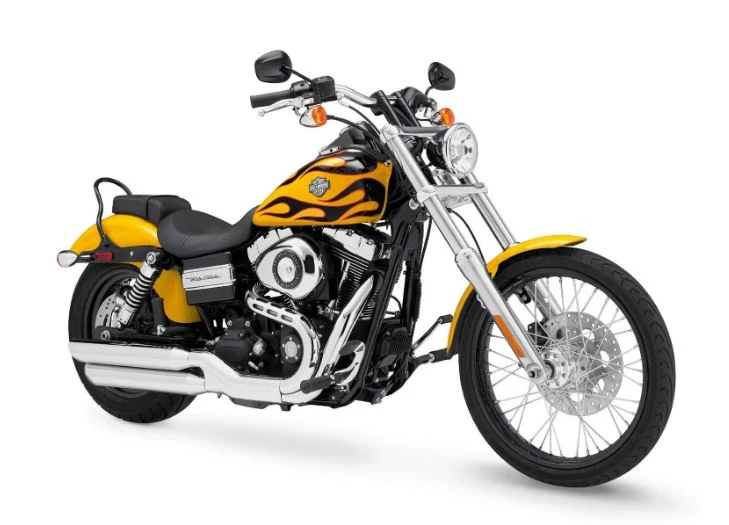

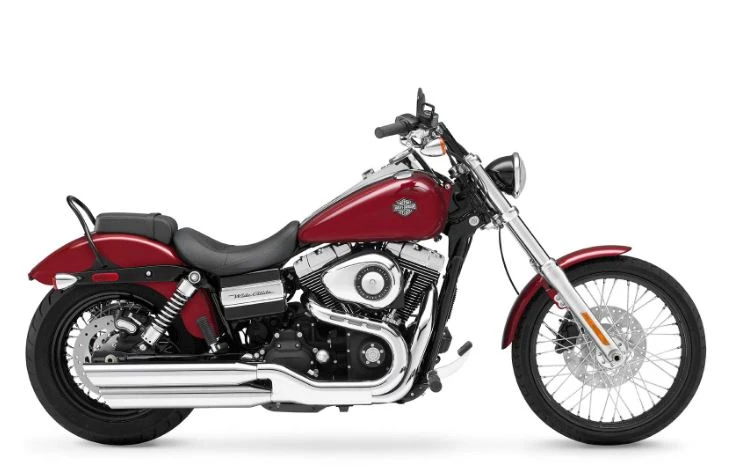

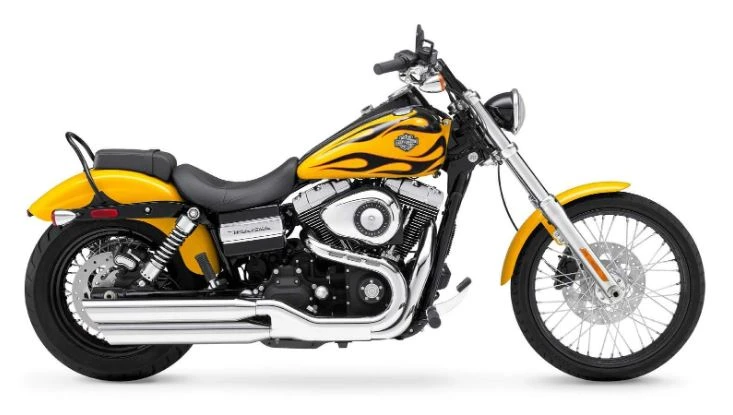

Harley Davidson FXDWG Dyna Wide Glide (2010 – 2011)

Harley Davidson FXDWG Dyna Wide Glide (2010 - 2011)

The Harley-Davidson FXDWG Dyna Wide Glide – a motorcycle that embodies the very essence of rebellion and nonconformity. This latest addition to the Dyna family boasts a lowered front and rear suspension, dropping the seat height to 25.5 inches, making it an ideal choice for riders who crave the freedom of the open road.

With its signature wide front end, black-wire sissy bar, and chopped rear fender, the Wide Glide exudes ageless, throw-back styling that’s sure to turn heads. Its powerful 106ci V-Twin engine roars to life with a distinctive growl, courtesy of the new Helical cut 5th gear and chrome, Tommy Gun 2-1-2 collector exhaust.

As you ride this beast of a bike, you’ll feel an unbridled connection to the road, thanks to its precise handling and responsive acceleration. And when it’s time to stop, the dual red LED rear stop/turn/tail lights will get your attention. With its unique blend of style and substance, the Harley-Davidson FXDWG Dyna Wide Glide is the ultimate machine for riders who refuse to be ordinary. It’s a motorcycle that truly lives up to its name – a true Wide Glide experience.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Weight (Wet/Kerb)683.4 lbs / 310 kg
Seat Height25.5 inches / 648 mm
Harley Davidson FXDWG Dyna Wide Glide (2010 - 2011)

All Specifications

Make & Model

ModelHarley Davidson FXDWG Dyna Wide Glide
Year2010 – 2011

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.3 x 111.1 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear SuspensionSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,
Rake34
Trail132 mm / 5.2 in.

Wheels & Brakes

Front Tire Size80/90-21
Rear Tire Size180/60B17
Front BrakesSingle 300mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase67.5 inches / 1715 mm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Wet (kerb/curb) Weight683.4 lbs / 310 kg
Dry Weight293 kg / 647 lbs

Features

  • Lowered front and rear suspension
  • 25.5 inch seat height
  • Wide front end
  • Black-wire sissy bar on the back
  • Chopped rear fender
  • Michelin Scorcher tires
  • Dual red LED rear stop/turn/tail lights
  • Bobbed license plate mount
  • New Helical cut 5th gear
  • Black powder-coated powertrain with chrome covers
  • Chrome, Tommy Gun 2-1-2 collector exhaust
  • 4.7-gallon Street Bob-style fuel tank
  • 40-spoke laced steel wheels
  • 21-inch front wheel
  • Front and rear suspension lowered one inch
  • 34 degree fork angle
  • Wide polished aluminum triple clamps
  • Low solo seat with separate passenger pillion
  • Stainless steel internally-wired handlebar on four-inch black riser
  • Wrinkle-black battery box and fender struts
  • Black mirrors and headlight bucket
  • LED stop/turn/tail light combo
  • Side-mounted license plate
