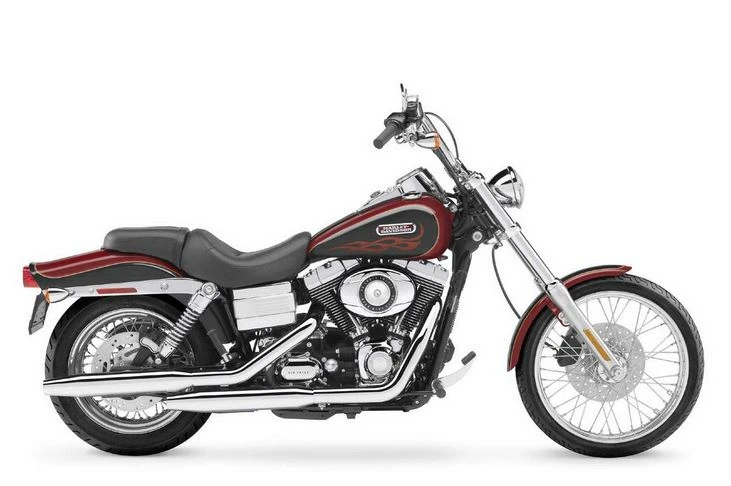

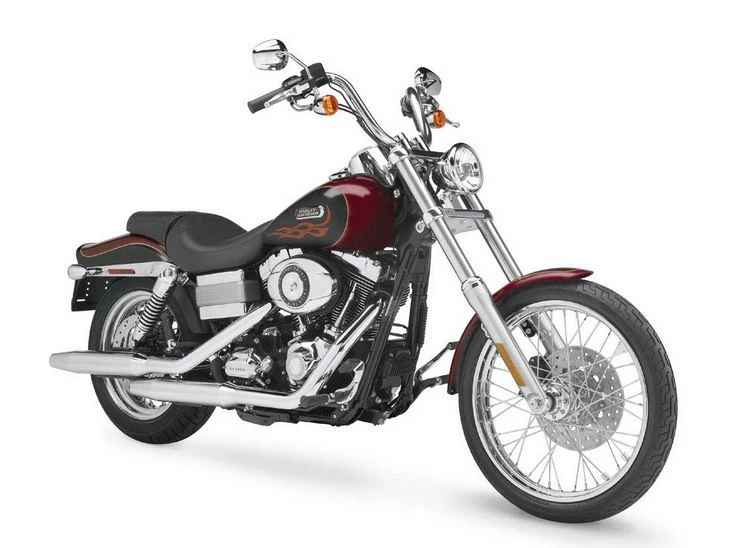

Harley Davidson FXDWG Dyna Wide Glide (2007)

Harley Davidson FXDWG Dyna Wide Glide (2007)

The Harley-Davidson FXDWG Dyna Wide Glide is a true factory custom motorcycle that embodies the raw spirit of the street. Its stretched-out design and aggressive stance are matched only by its powerful performance, courtesy of the new Twin Cam 96 engine with ESPFI fuel injection.

This beast of a bike boasts a raked fork angle of 36 degrees, a 21-inch Chrome, Laced Steel front wheel, and a massive 160mm rear tire. The ape-hanger handlebar rises above a stepped chopper-style seat, while the tank-mounted speedometer adds to its retro charm.

The FXDWG Dyna Wide Glide is a masterclass in Harley-Davidson’s art of combining style with substance, and it’s available in an impressive range of colors. With its vibration-isolated Twin Cam 96 engine and six-speed Cruise Drive transmission, this motorcycle is ready to devour the open road with authority. The result is an unforgettable riding experience that will leave you breathless every time.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Weight (Wet/Kerb)683.4 lbs / 310 kg
Seat Height25.5 inches / 648 mm
Harley Davidson FXDWG Dyna Wide Glide (2007)

All Specifications

Make & Model

ModelHarley Davidson FXDWG Dyna Wide Glide
Year2007

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.3 x 111.1 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear SuspensionSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,
Rake34
Trail132 mm / 5.2 in.

Wheels & Brakes

Front Tire Size80/90-21
Rear Tire Size180/60B17
Front BrakesSingle 300mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase67.5 inches / 1715 mm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Wet (kerb/curb) Weight683.4 lbs / 310 kg
Dry Weight293 kg / 647 lbs

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Twin Cam 96 engine
  • Raked-out fork at 36 degrees
  • 49mm fork
  • Chrome, Laced Steel front wheel (21-inch)
  • Bobtail rear fender
  • 160mm rear tire
  • 1.25-inch ape-hanger handlebar with internal wiring
  • Stepped chopper-style seat
  • Tank-mounted speedometer
  • Redesigned gauges with clock and LED indicators
  • Enhanced clutch lever interlock operations
  • Cruise Drive transmission (6-speed)
  • Staggered shorty dual exhaust
  • Chrome covers on black powder-coated engine
