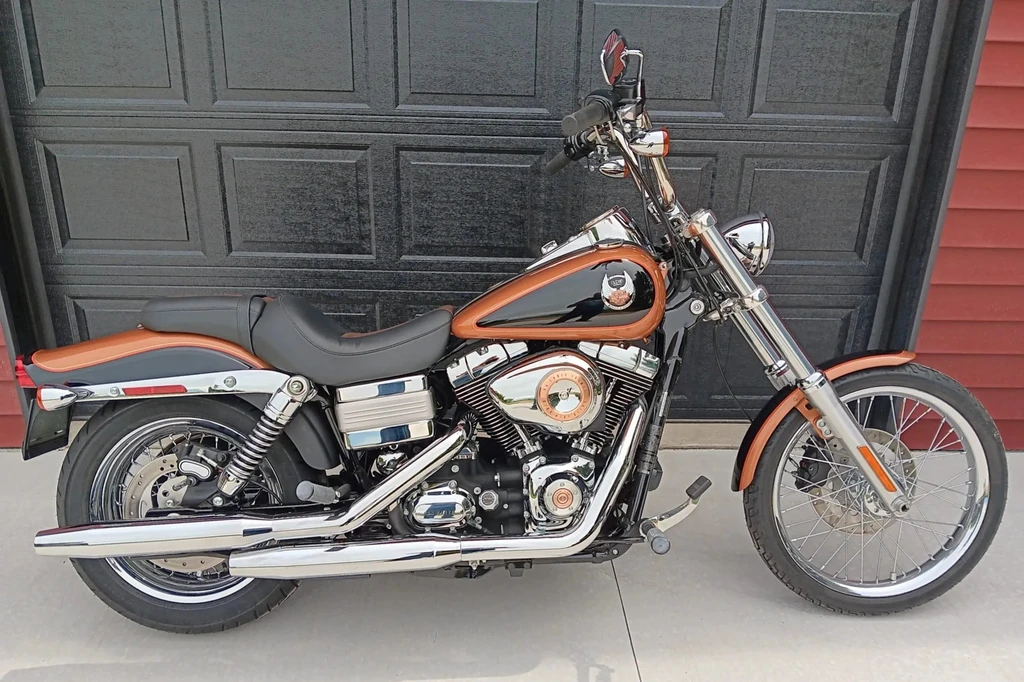

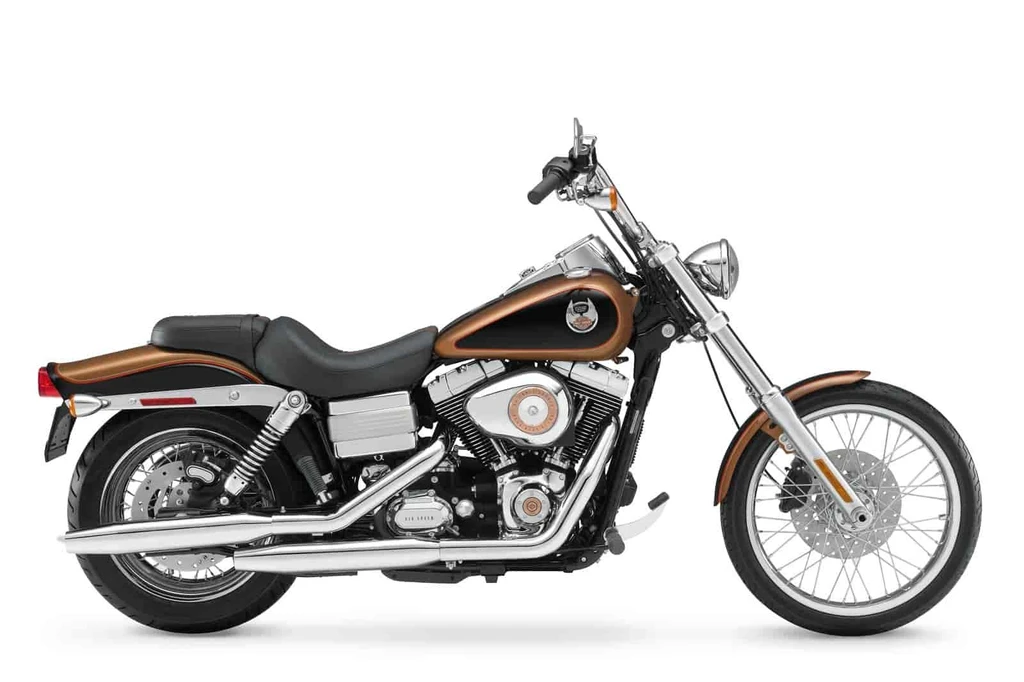

Harley Davidson FXDWG Dyna Wide Glide 105th Anniversary Edition (2008)

Harley Davidson FXDWG Dyna Wide Glide 105th Anniversary Edition (2008)

The Harley-Davidson FXDWG Dyna Wide Glide 105th Anniversary Edition is a limited-edition masterpiece that embodies the spirit of American motorcycle heritage. This iconic chopper boasts a classic profile, featuring a Bobtail rear fender and 36-degree forks holding a massive 21-inch Chrome Laced wheel.

At its heart lies a V-twin behemoth – the Twin Cam 96 engine, delivering a rich, pulsing soundtrack that’s as much a part of the riding experience as the rush of wind in your face. With six gears to work through, the Cruise Drive transmission ensures smooth, effortless cruising at all speeds.

Whether you’re carving up twisties or cruising down Main Street, this bike is sure to turn heads with its Anniversary Copper and Vivid Black two-tone paint scheme, complete with orange and pale gold pin striping. And when it comes time to put on the brakes, the braided stainless steel lines deliver a tactile feel that’s every bit as satisfying as the ride itself.

This highly-specialized limited edition is truly a collector’s item, not just for its exclusivity but also for its unique blend of style and substance – a true 105th Anniversary celebration in metal.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Weight (Wet/Kerb)683.4 lbs / 310 kg
Seat Height25.5 inches / 648 mm
Harley Davidson FXDWG Dyna Wide Glide 105th Anniversary Edition (2008)

All Specifications

Make & Model

ModelHarley Davidson FXDWG Dyna Wide Glide 105th Anniversary Edition
Year2008

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.3 x 111.1 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear SuspensionSwingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,
Rake34
Trail132 mm / 5.2 in.

Wheels & Brakes

Front Tire Size80/90-21
Rear Tire Size180/60B17
Front BrakesSingle 300mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase67.5 inches / 1715 mm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Wet (kerb/curb) Weight683.4 lbs / 310 kg
Dry Weight293 kg / 647 lbs

Features

  • Vibration isolated Twin Cam 96 engine
  • 6-Speed Cruise Drive transmission
  • Braided stainless steel brake lines
  • Chrome Staggered Shorty Dual exhaust
  • 160 mm-17 rear / 90 mm-21 front tires
  • Chrome Aluminum Profile Laced wheels
  • 17-inch rear / 21-inch front wheels
  • Bobtail rear fender
  • 5.1-gallon Fat Bob fuel tank
  • 1.25-inch mini ape-hanger style handlebar with internal wiring
  • 36-degree fork angle
  • Stylized battery cover
  • 105th Anniversary badging
  • Forward foot controls
  • Large, tank-mounted speedometer
  • Two-up seat with copper-vinyl insert
