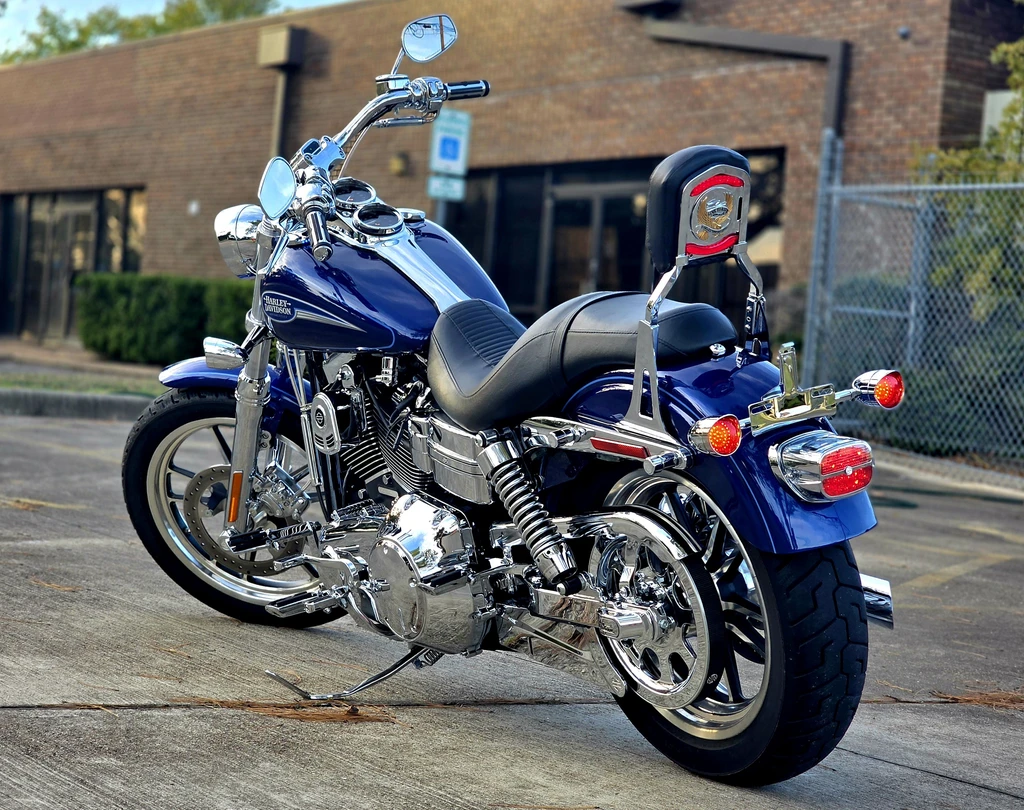

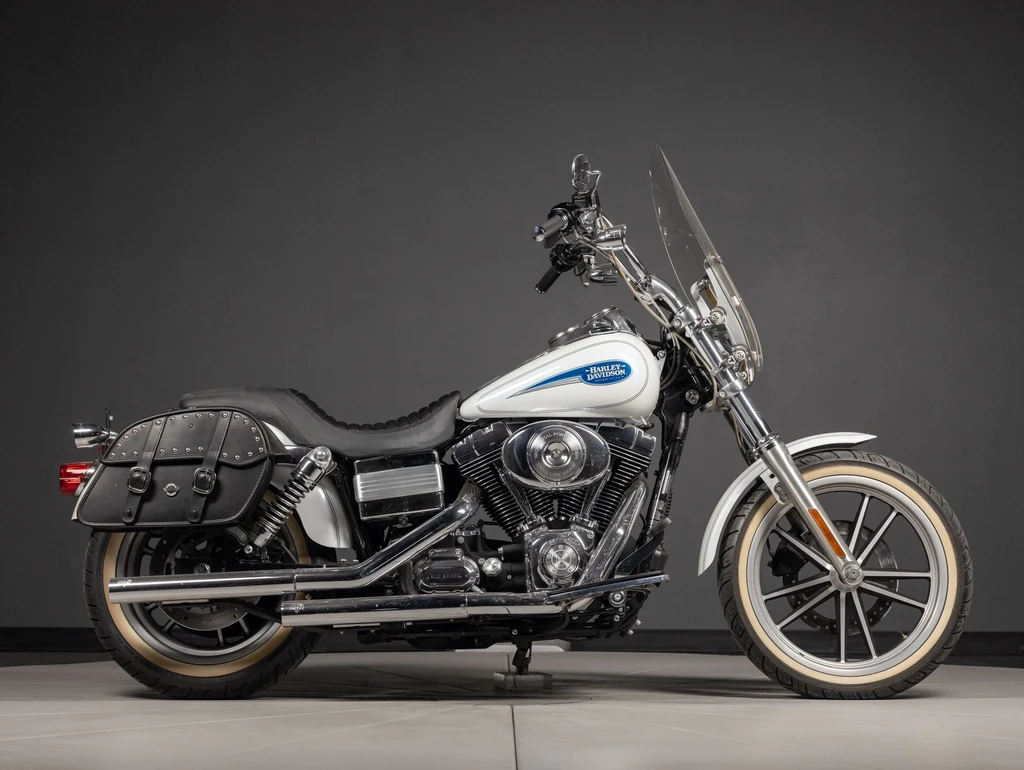

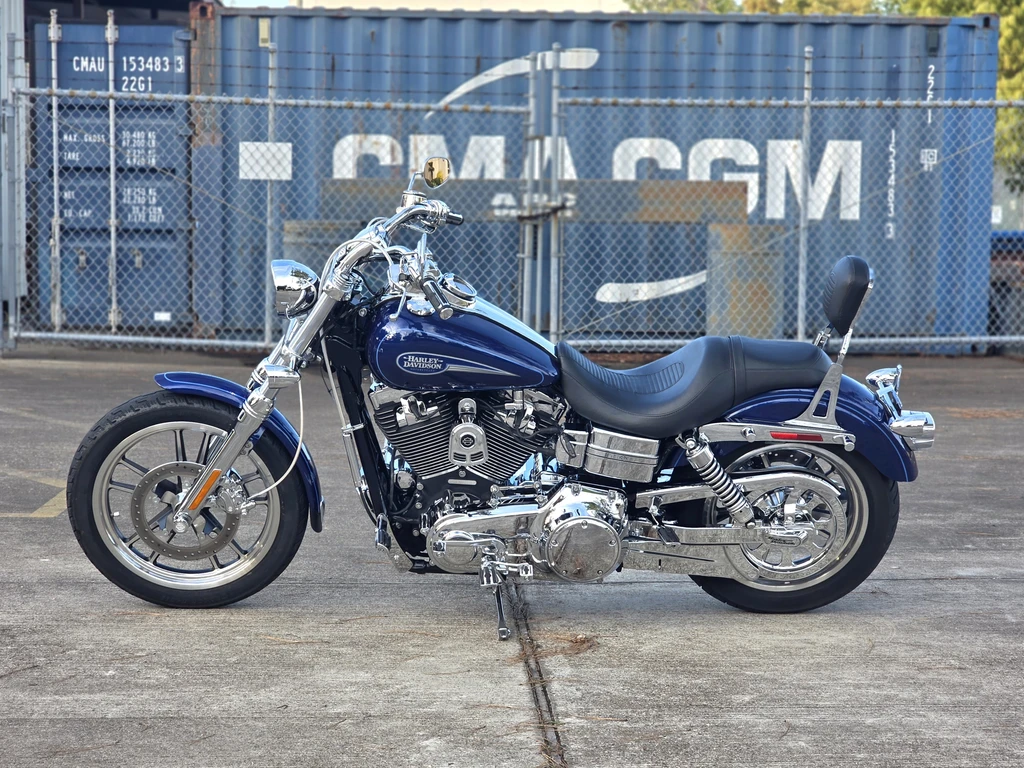

The Harley-Davidson FXDL/I Dyna Low Rider embodies the quintessential definition of a long and low motorcycle. With its powerful Twin Cam 88 engine, mated to the new 6-speed Cruise Drive transmission, this bike delivers plenty of go with its signature style.
Its low-slung custom seat and mid-mount controls create a comfortable riding experience, while pullback handlebars and highway pegs ensure a relaxed stance on long hauls. New features such as 49mm forks, stylized low-profile suspension, and black 10-Spoke Cast Aluminum wheels enhance the bike’s already impressive handling capabilities.
The result is an unbridled freedom to ride with confidence, the FXDL/I Dyna Low Rider is the ultimate expression of Harley-Davidson’s long-standing tradition of innovation.
Key Specifications
Engine Type
Four stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity
88.4 cubic inches / 1449 cc
Max Power
67 hp / 48.8 kW @ 5200 rpm
Max Torque
86 ft-lb / 116.6 nm
Fuel Tank Capacity
4.6 US gallons / 17.4 L
Seat Height
25.8 inches / 655 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FXDL/IDyna Low Rider
Year
2006
Engine
Engine Type
Four stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement
88.4 cubic inches / 1449 cc
Bore x Stroke
95.3 x 101.6 mm
Compression Ratio
8.9:1
Max Horsepower
67 hp / 48.8 kW @ 5200 rpm
Max Torque
86 ft-lb / 116.6 nm
Engine Management System
Carburetion 40 mm constant velocity with enrichener and accelerator pumpESPFI 38 mm throttle bore electronic sequential port fuel injection
Lubrication System
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10 pressurized oil filter
