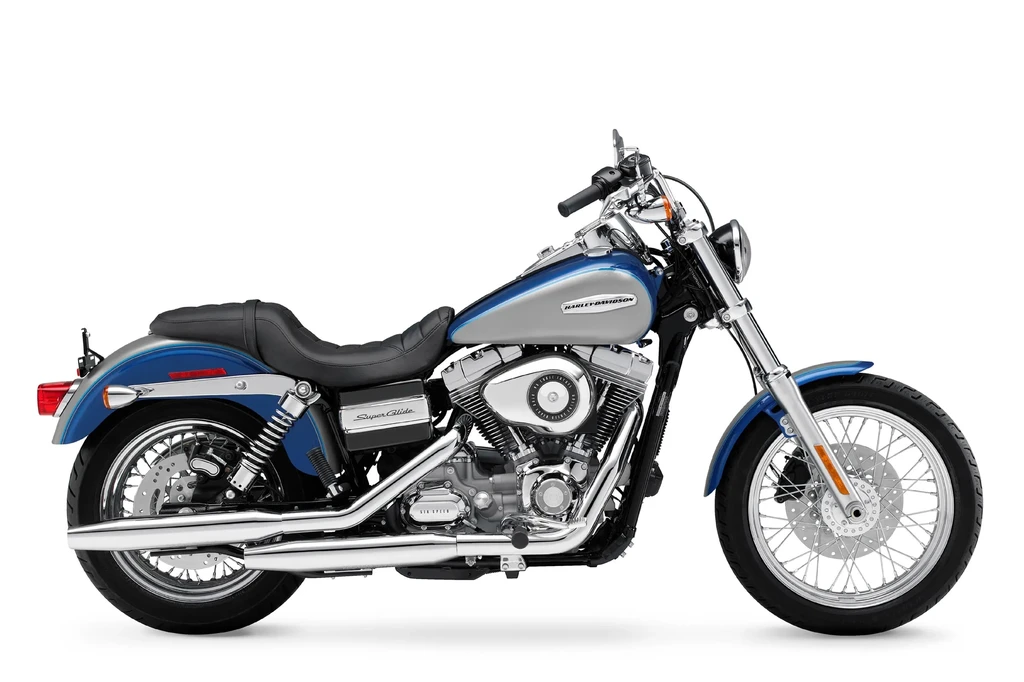

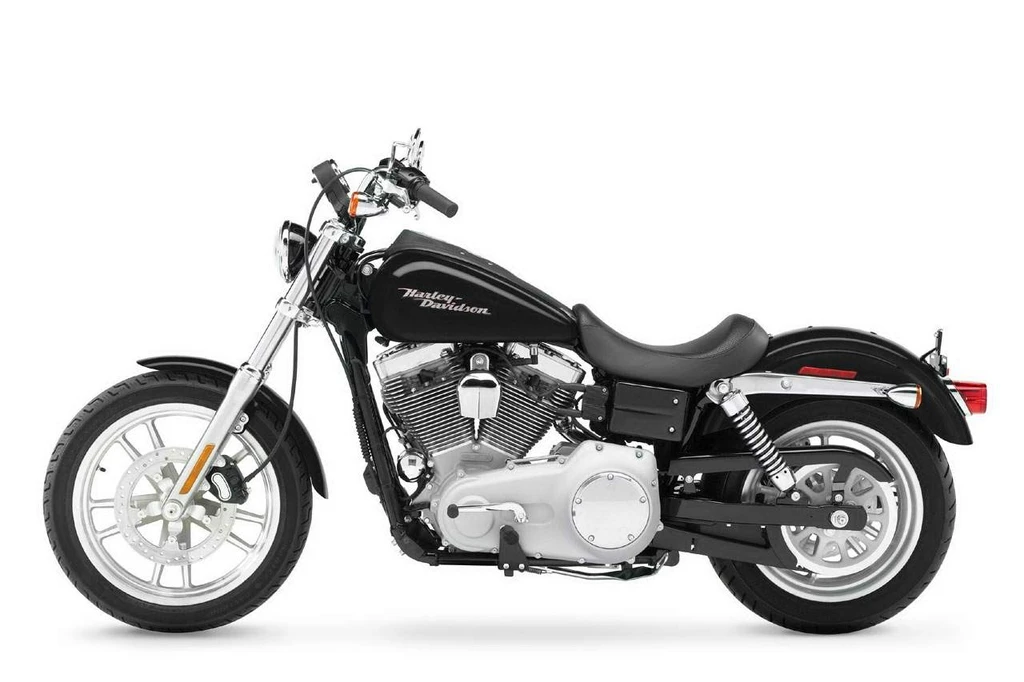

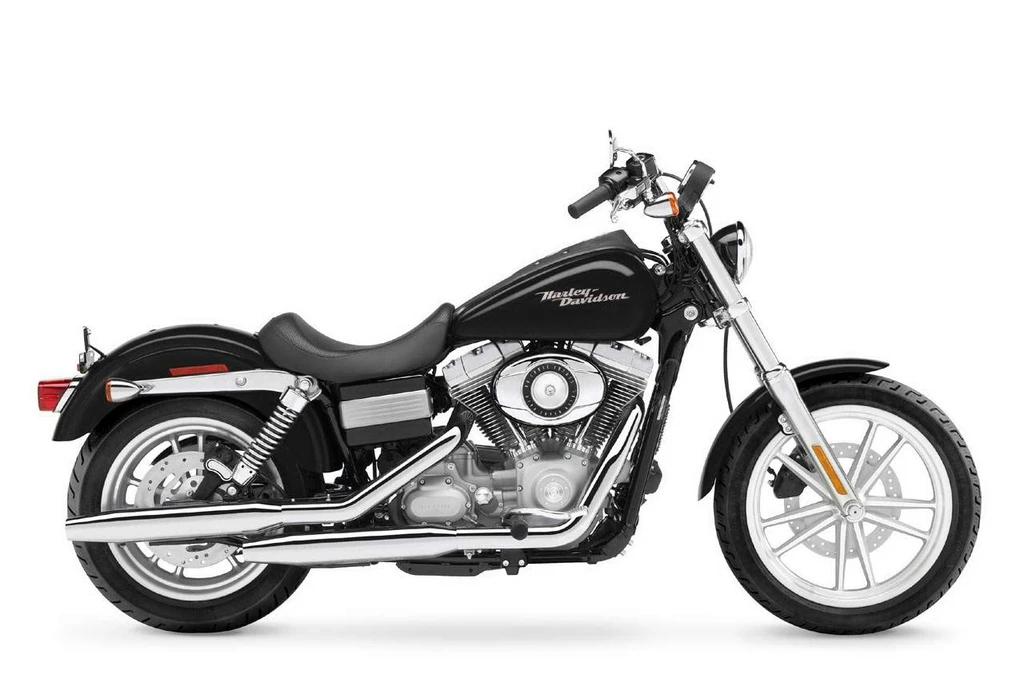

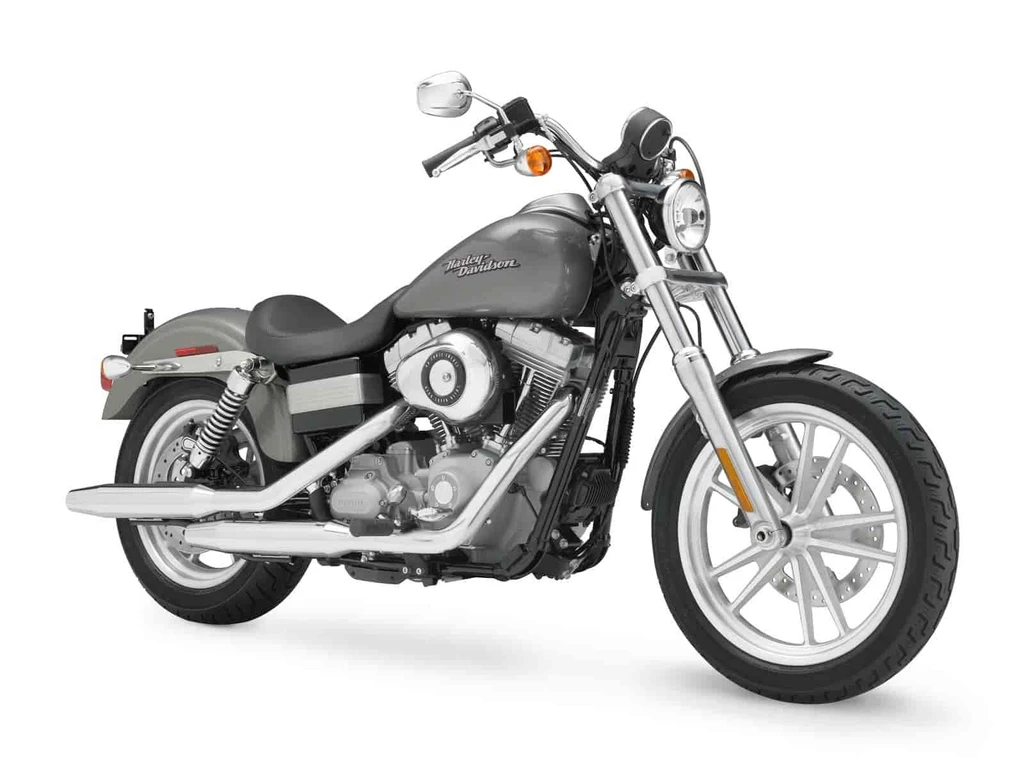

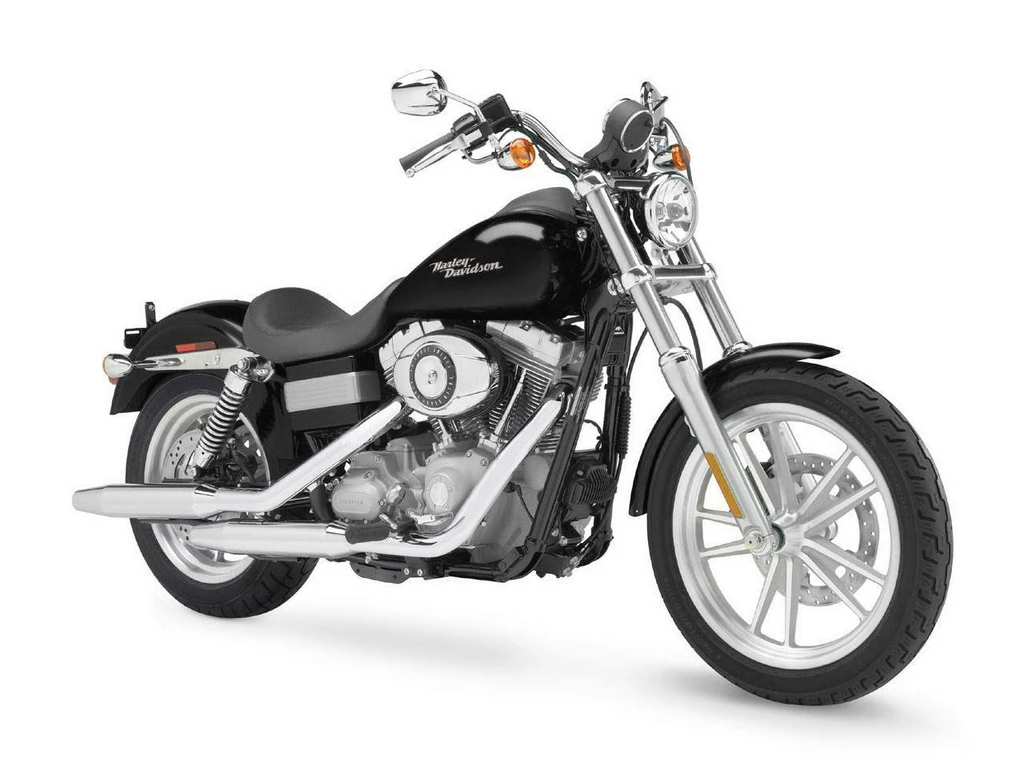

Harley Davidson FXDDyna Super Glide (2008 – 2009)

The Harley-Davidson FXDDyna Super Glide is a force to be reckoned with on the open road.

Powering this dynamic machine is the impressive Twin Cam 96 engine, boasting a significant boost in performance. Coupled with the smooth-shifting 6-speed Cruise Drive transmission and agile Dyna chassis design, the Super Glide delivers an exhilarating riding experience.

From its wide 160mm rear tire to its sleek solo seat, every detail of this bike screams customization potential – perfect for riders who crave individuality. The Twin Cam 96 engine’s vibration-isolated design ensures a smoother ride, while the chrome staggered shorty dual exhaust adds a touch of classic Harley-Davidson style.

With its array of cutting-edge features, including redesigned gauges and LED lighting, the FXDDyna Super Glide is more than just a motorcycle – it’s an experience.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity	4.7 US gallons / 7.0 L
Weight (Wet/Kerb)	663 lbs / 301 kg
Seat Height	26.30 inches / 668.0 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FXDDyna Super Glide
Year	2008 – 2009

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.2 x 111.2 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate, wet
Gearbox	6 Speed
Gear Ratios	1st 9.3112nd 6.4543rd 4.7934th 3.8825th 3.3076th 2.790
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear Suspension	Coil over shock ,
Rake	29
Trail	120 mm / 4.7 in

Wheels & Brakes

Front Tire Size	100/90-19 57H
Rear Tire Size	160/70-17 73V
Front Brakes	Single 300mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	26.30 inches / 668.0 mm
Wheelbase	1630.6 .. 64.2 in
Ground Clearance	117 mm / 4.6 in
Fuel Tank Capacity	4.7 US gallons / 7.0 L
Wet (kerb/curb) Weight	663 lbs / 301 kg
Dry Weight	286.68 kg / 632 lbs

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Twin Cam 96 powertrain
6-speed Cruise Drive transmission
Dyna chassis design
Wide 160mm rear tire
Solo seat
Silver, 10-spoke Cast Aluminum wheels
Four solid color options
New vibration-isolated Twin Cam 96 engine
ESPFI with Silver powder-coated engine and polished covers
Chrome, staggered shorty dual exhaust
Redesigned gauges with clock and LED indicators
49mm forks
29-degree fork angle and steering head angle
Wrap-around rear fender
