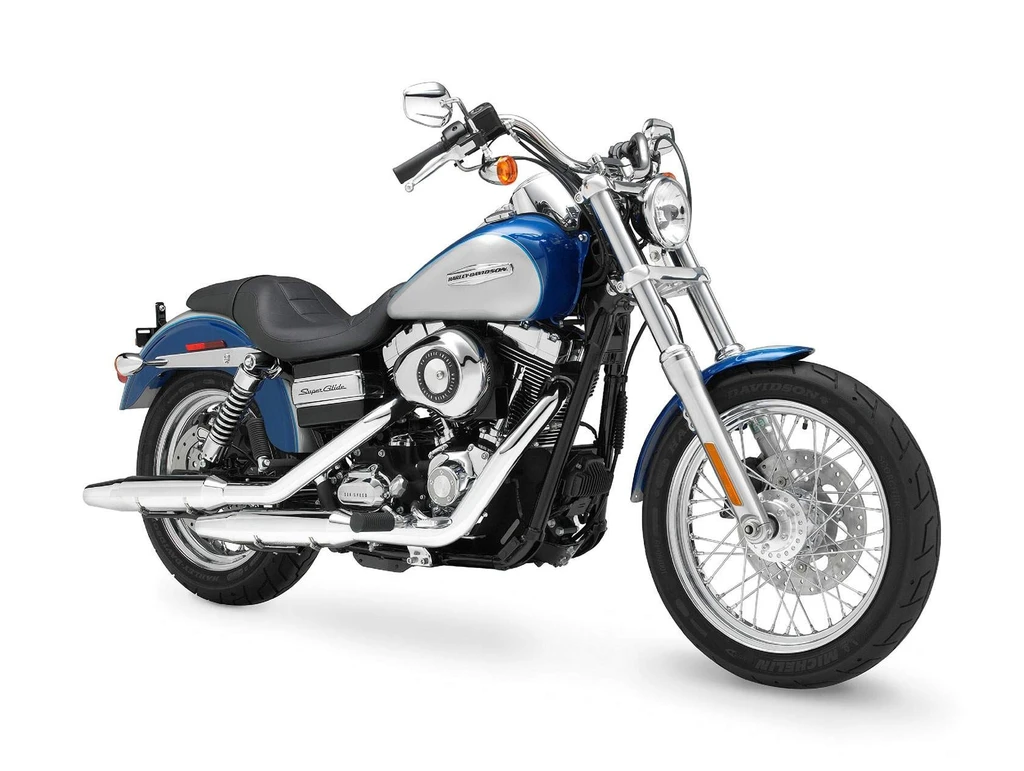

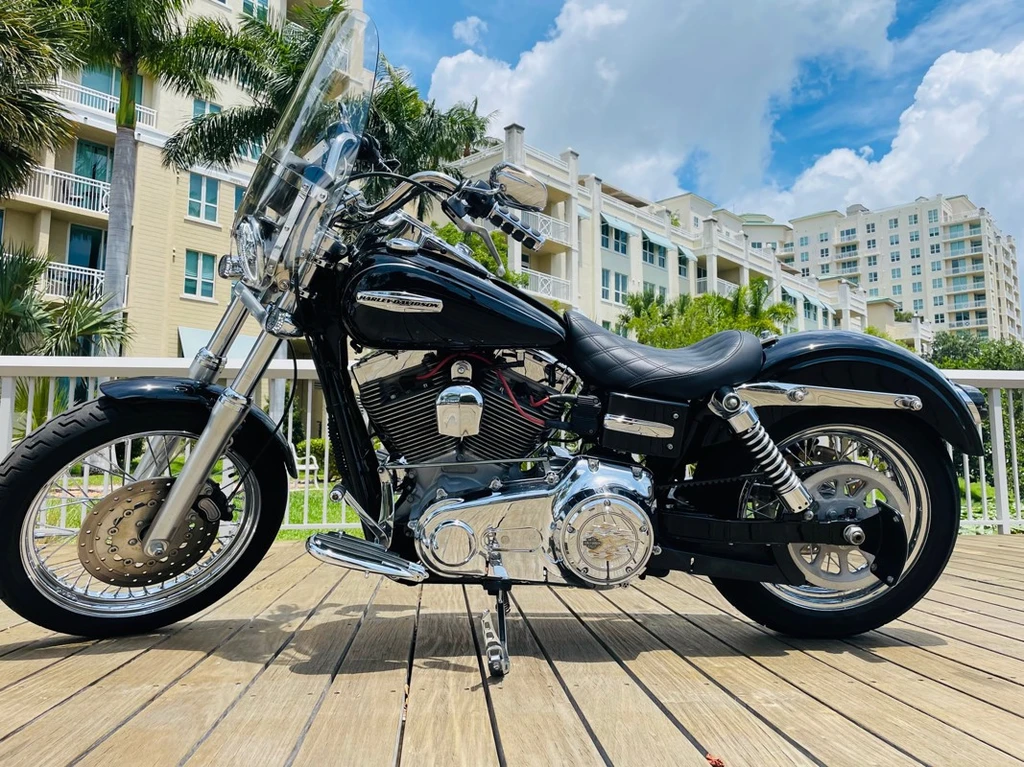

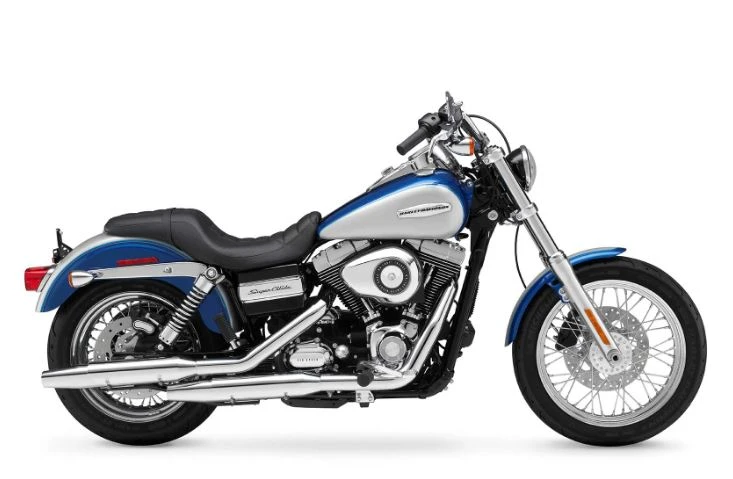

Harley Davidson FXDC Dyna Super Glide Custom (2009 – 2010)

The Harley-Davidson FXDC Dyna Super Glide Custom is a masterclass in minimalist style and effortless performance.

Its sleek, low-slung profile is heightened by a low two-up ribbed seat and the iconic Fat Bob fuel tank, while steel laced wheels add to the classic aesthetic. The tank-mounted speedometer/ignition console is a stylish touch that draws attention to its powerful presence on the road.

With a nimble frame, Twin Cam 96 engine, and smooth-shifting 6-Speed Cruise Drive gearbox, this Dyna Super Glide Custom is an absolute joy to ride – delivering pure, unadulterated fun with every twist of the throttle.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity	4.8 US gallons / 2.0 L
Weight (Wet/Kerb)	679 lbs / 308.0 kg
Seat Height	25.8 inches / 655.3 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FXDC Dyna Super Glide Custom
Year	2009 – 2010

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.3 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.3112nd 6.4543rd 4.7934th 3.8825th 3.3076th 2.79
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear Suspension	Coil over shock ,
Rake	29
Trail	114 mm / 4.3 in

Wheels & Brakes

Front Tire Size	100/90-19 57H
Rear Tire Size	160/70B17 73V
Front Brakes	Single 300mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	25.8 inches / 655.3 mm
Wheelbase	64.6 inches / 1640.0 mm
Ground Clearance	142 mm / 5.6 in
Fuel Tank Capacity	4.8 US gallons / 2.0 L
Wet (kerb/curb) Weight	679 lbs / 308.0 kg
Dry Weight	291 kg / 641 lbs

Features

Vibration isolated Twin Cam 96 engine
6-speed Cruise Drive transmission
Silver powder-coated engine with chrome treatment (FXDC)
Black powder-coated engine with chrome covers (FXDL)
Two-up ribbed seat
Mini pullback handlebar
New silver-faced speedometer with range countdown
New low profile front fender
New fuel sender
5.1-gallon Fat Bob fuel tank (FXDC)
4.8-gallon Fat Bob fuel tank (FXDL)
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Chrome Laced steel wheels
Optional Chrome Aluminium Profile laced wheels
Optional Smart Security System
Twin Cam 96 engine
6-Speed Cruise Drive gearbox
Low-slung, two-up ribbed seat
Fat Bob fuel tank
Laced wheels
