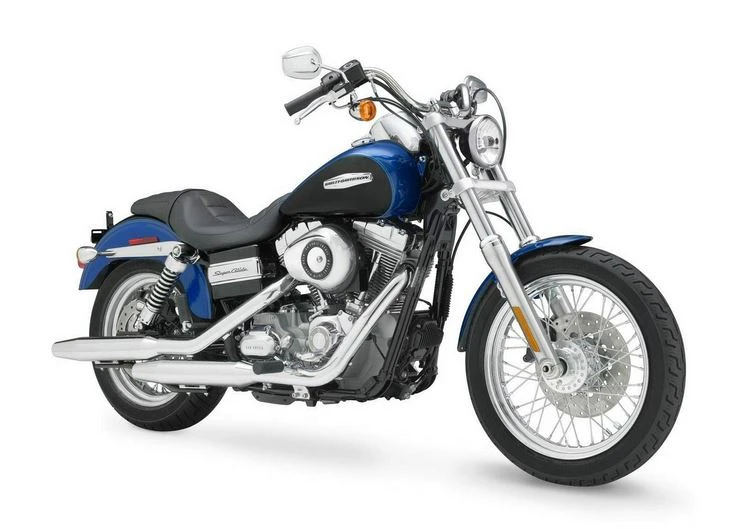

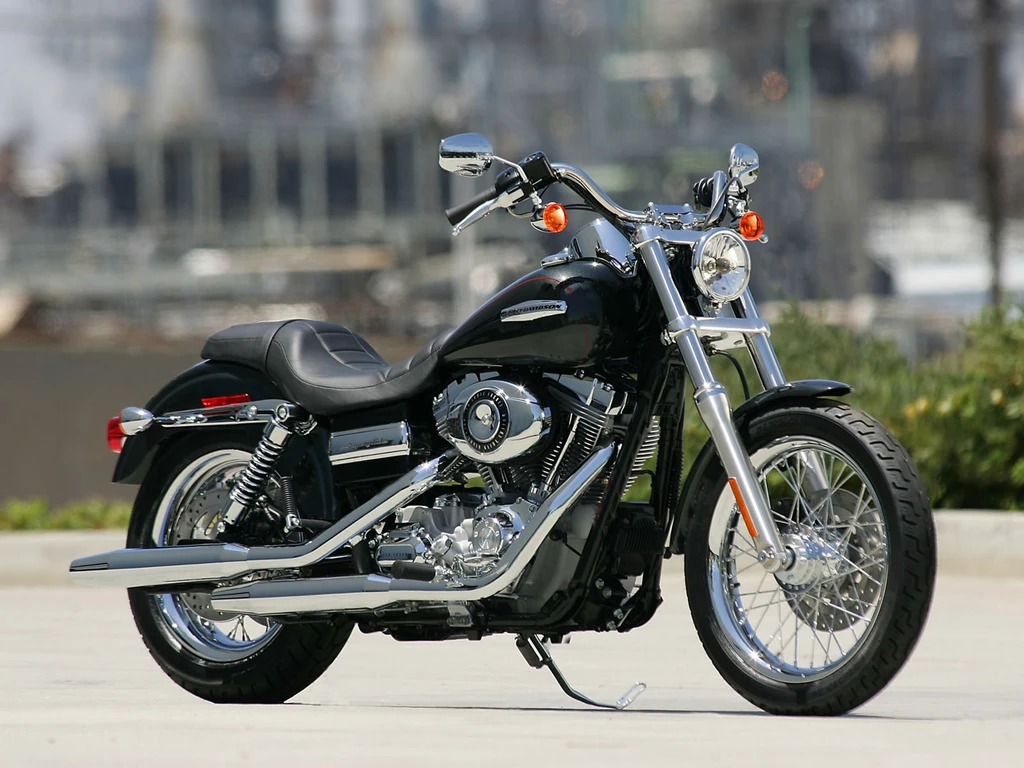

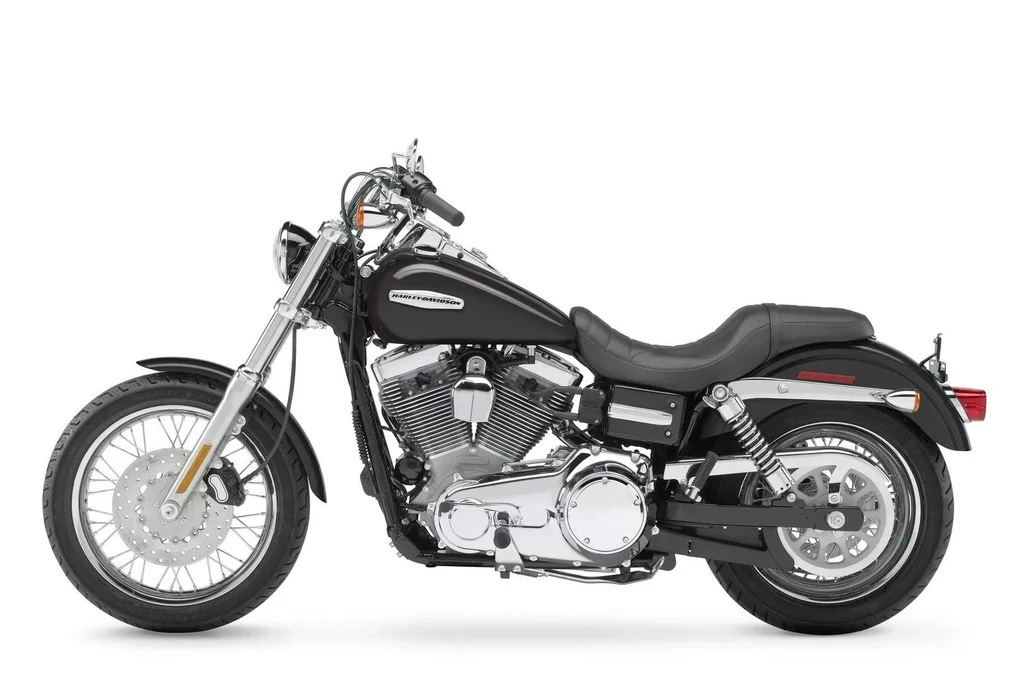

Harley Davidson FXDC Dyna Super Glide Custom (2007 - 2008)

The Harley-Davidson FXDC Dyna Super Glide Custom is a masterclass in understated style and raw power. Its sleek, low-slung profile is augmented by the Fat Bob fuel tank, laced wheels, and generous chrome accents.

Underpinning this visual feast is the Vibration Isolated Twin Cam 96 engine, a potent force that delivers its torque with smooth, linear authority. Mated to a six-speed Cruise Drive transmission, the FXDC is an absolute joy to ride – its long, low stance making it perfectly suited to carving up twisties or cruising down highways.

Whether you’re building your dream custom motorcycle or simply seeking a premium riding experience straight from the showroom floor, the Dyna Super Glide Custom stands ready to deliver.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity	4.8 US gallons / 2.0 L
Weight (Wet/Kerb)	679 lbs / 308.0 kg
Seat Height	25.8 inches / 655.3 mm

*n/a – information not provided by manufacturer

Harley Davidson FXDC Dyna Super Glide Custom (2007 - 2008)

All Specifications

Make & Model

Model	Harley Davidson FXDC Dyna Super Glide Custom
Year	2007 – 2008

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.3 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.3112nd 6.4543rd 4.7934th 3.8825th 3.3076th 2.79
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear Suspension	Coil over shock ,
Rake	29
Trail	114 mm / 4.3 in

Wheels & Brakes

Front Tire Size	100/90-19 57H
Rear Tire Size	160/70B17 73V
Front Brakes	Single 300mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper

Dimension & Weights

Seat Height	25.8 inches / 655.3 mm
Wheelbase	64.6 inches / 1640.0 mm
Ground Clearance	142 mm / 5.6 in
Fuel Tank Capacity	4.8 US gallons / 2.0 L
Wet (kerb/curb) Weight	679 lbs / 308.0 kg
Dry Weight	291 kg / 641 lbs

Features

Twin Cam 96 engine
Vibration isolated engine
6-Speed Cruise Drive transmission
Silver powder-coated engine with chrome treatment (FXDC)
Black powder-coated engine with chrome covers (FXDL)
Two-up ribbed seat
Mini pullback handlebar
New silver-faced speedometer with range countdown
New low profile front fender
New fuel sender
5.1-gallon Fat Bob fuel tank (FXDC)
4.8-gallon Fat Bob fuel tank with new decals (FXDL)
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 100 mm-19 front tires
Chrome Laced steel wheels 19-inch front / 17-inch rear (FXDC)
Black 10-spoke Cast Aluminium wheels 19-inch front / 17-inch rear (FXDL)
Wrap-around rear fender
Console-mounted speedometer
Chrome tank console with leather strap
Mid-mount foot controls
