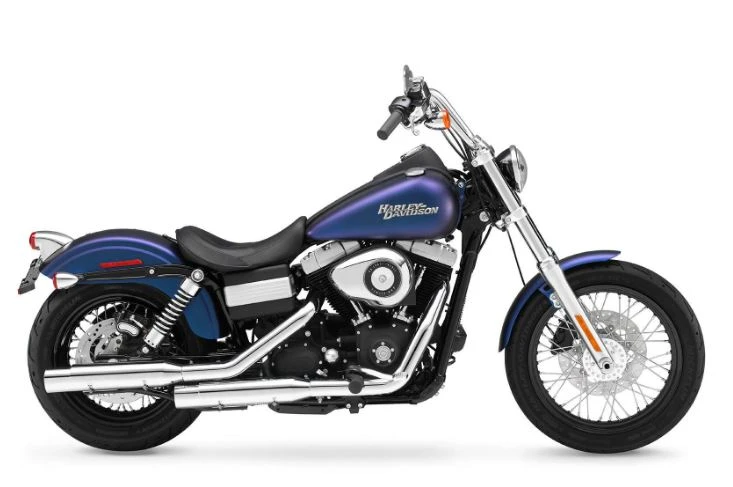

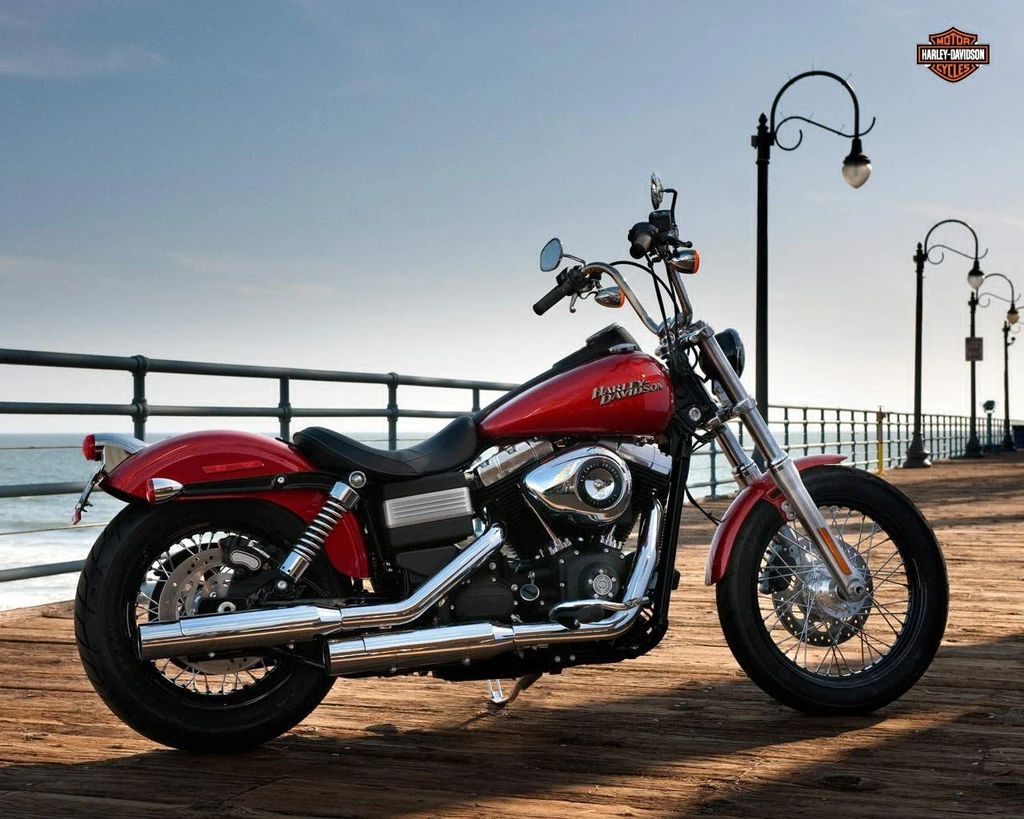

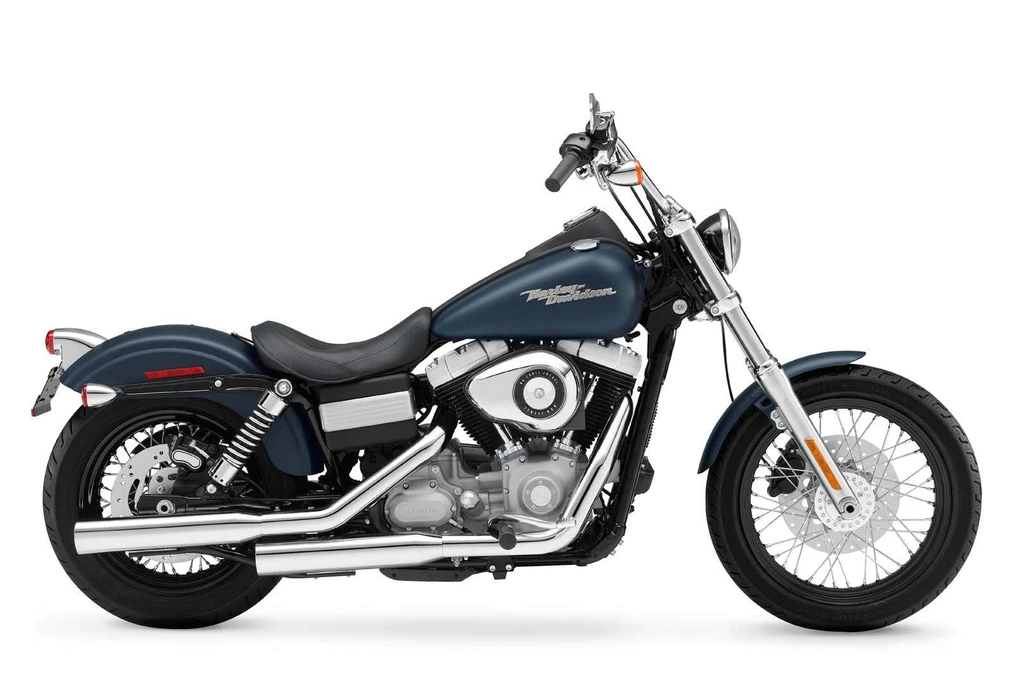

Harley Davidson FXDB Dyna Street Bob (2011 – 2012)

The Harley Davidson FXDB Dyna Street Bob embodies the unadulterated spirit of the bobber scene, stripped bare to reveal its pure essence. Underpinned by a big, black Twin Cam 96 engine delivering 92 ft-lbs of torque, this minimalist masterpiece is powered by Electronic Sequential Port Fuel Injection (ESPFI) and features a raw, retro aesthetic.

The Street Bob’s uncluttered design boasts a mini ape-hanger handlebar, Fat Bob fuel tank, solo seat, and mid-mounted foot controls. Its 4.7-gallon fuel tank and black, laced steel wheels add to the bike’s rugged charm. New paint color options are available, as well as Michelin Scorcher tires for improved grip.

The riding experience is characterized by a responsive, 6-speed Cruise Drive transmission and exposed under-seat battery box. The Street Bob’s retro-style LED tail light and exposed rear coil-over shock absorbers complete its edgy look. With an optional Harley-Davidson Smart Security System available, this bike is ready to hit the streets in style.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity	4.7 US gallons / 17.8 L
Weight (Wet/Kerb)	667 lbs / 302.6 kg
Seat Height	25.5 inches / 648 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FXDB Dyna Street Bob
Year	2011 – 2012

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.3 x 111.1 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear Suspension	Coil over shock ,
Rake	29
Trail	120 mm / 4.7 in

Wheels & Brakes

Front Tire Size	100/90-19 57H
Rear Tire Size	160/70-17 73V
Front Brakes	Single 300mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 2 piston caliper

Dimension & Weights

Seat Height	25.5 inches / 648 mm
Wheelbase	64.2 inches / 1630 mm
Fuel Tank Capacity	4.7 US gallons / 17.8 L
Wet (kerb/curb) Weight	667 lbs / 302.6 kg
Dry Weight	288 kg / 634 lbs.

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Big, black Twin Cam 96 engine
Mini ape-hanger handlebar
Fat Bob fuel tank
Solo seat
Mid-mounted foot controls
Michelin Scorcher tires
All-black powertrain
Tank medallion
Chrome exhaust with dual straight-cut staggered shorty mufflers
4.7-gallon Street Bob fuel tank
Black, Laced Steel wheels
Chopped rear fender without support covers
Top triple clamp with integrated riser
Wrinkle-black low-profile tank console with electronic speedometer
