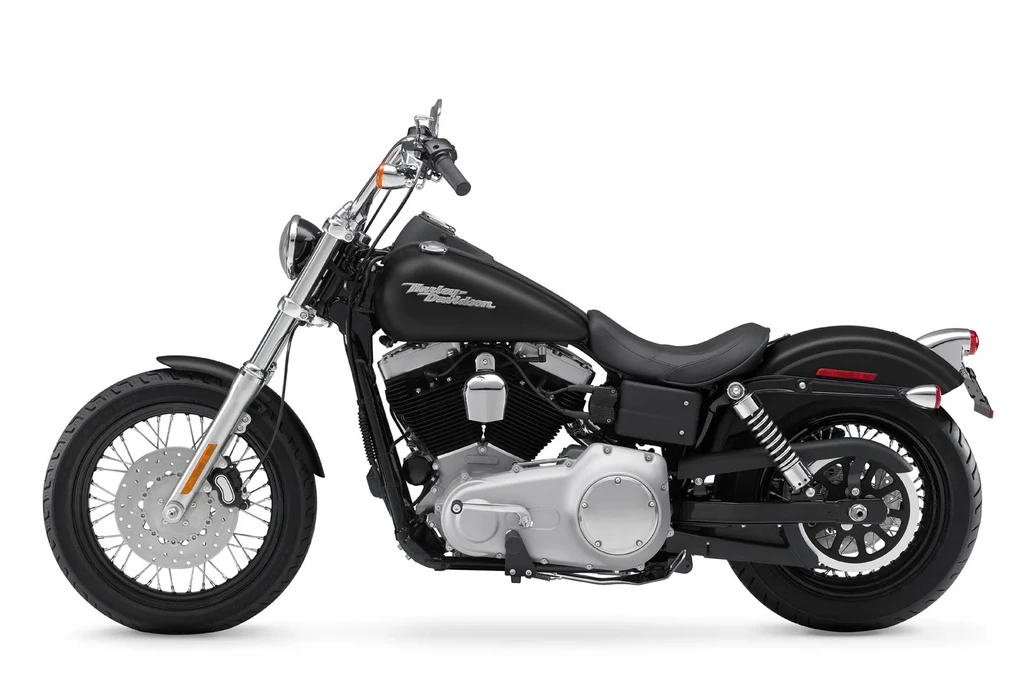

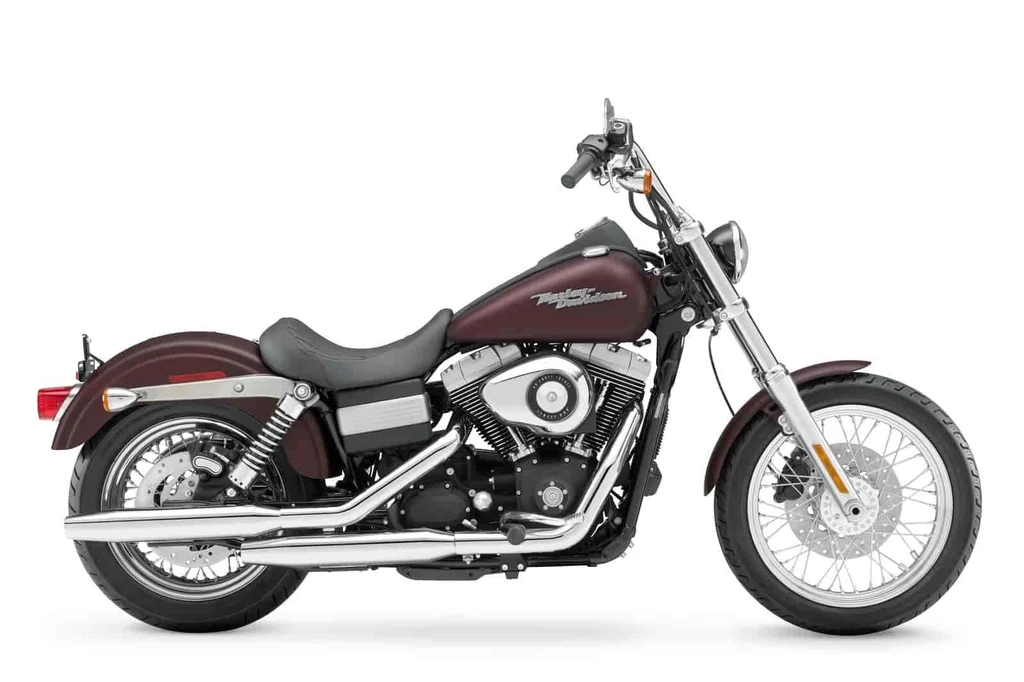

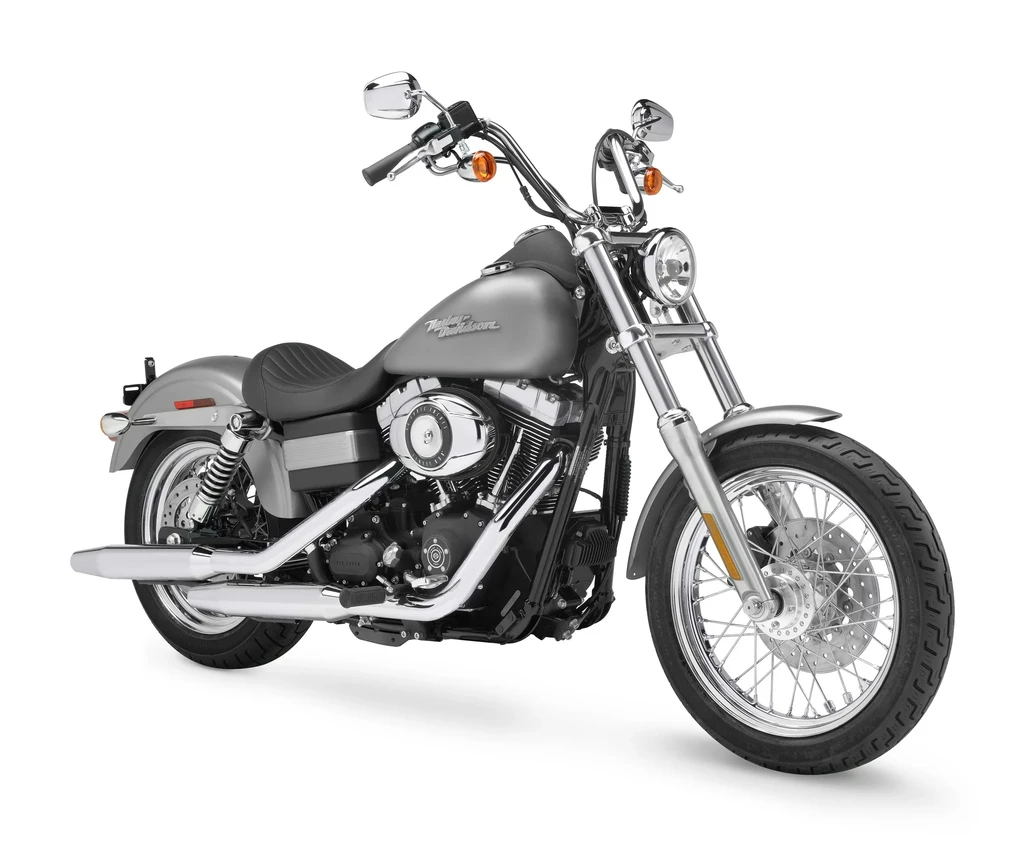

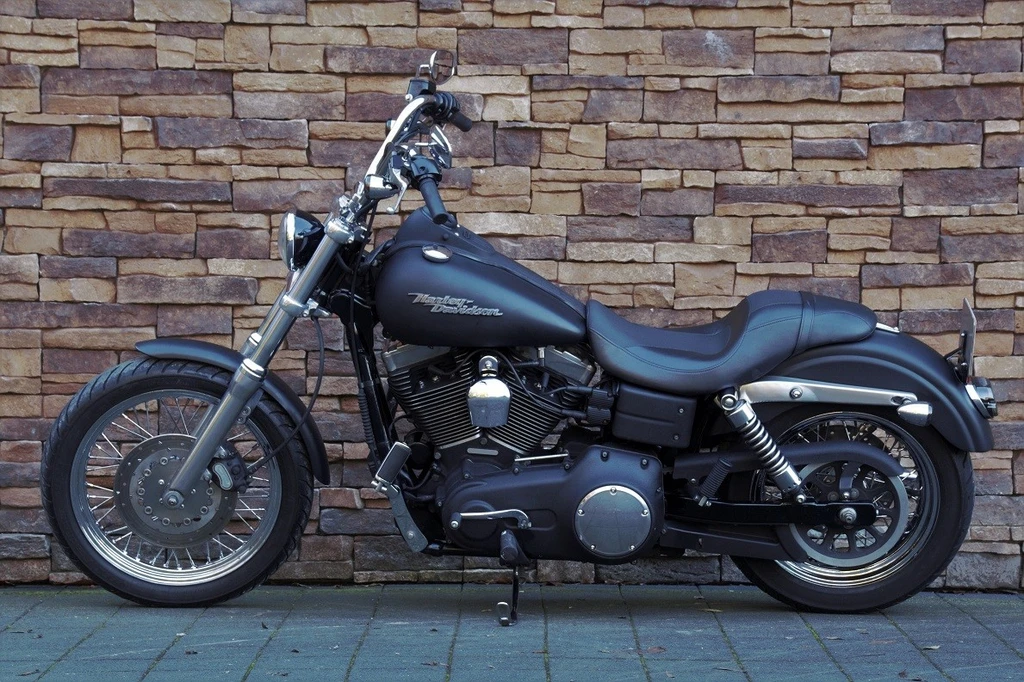

Harley Davidson FXDB Dyna Street Bob (2007 – 2008)

Harley Davidson FXDB Dyna Street Bob (2007 - 2008)

The 2007 Harley-Davidson FXDB Dyna Street Bob embodies the essence of minimalist style and unbridled power.

Its Twin Cam 96 engine roars to life with a deep, throaty growl, delivering a raw, emotional riding experience that connects you to the road. The ESPFI system ensures seamless fuel delivery, while the six-speed Cruise Drive transmission provides smooth acceleration through the gears.

With its unique blend of classic and modern design cues – think Fat Bob fuel tank, mini ape-hanger handlebar, and wrap-around rear fender – this motorcycle is unmistakably a statement piece on the street. And with its wrinkle-black finishes and polished trim, it’s clear that this bike means business.

The result is a riding experience that’s equal parts raw power and refined sophistication – making the Street Bob an unforgettable companion for any solo journey you embark upon.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Weight (Wet/Kerb)667 lbs / 302.6 kg
Seat Height25.5 inches / 648 mm
Harley Davidson FXDB Dyna Street Bob (2007 - 2008)

All Specifications

Make & Model

ModelHarley Davidson FXDB Dyna Street Bob
Year2007 – 2008

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.3 x 111.1 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension49 mm with polished aluminum fork triple clamp and dual-rate springs,
Rear SuspensionCoil over shock ,
Rake29
Trail120 mm / 4.7 in

Wheels & Brakes

Front Tire Size100/90-19 57H
Rear Tire Size160/70-17 73V
Front BrakesSingle 300mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 2 piston caliper

Dimension & Weights

Seat Height25.5 inches / 648 mm
Wheelbase64.2 inches / 1630 mm
Fuel Tank Capacity4.7 US gallons / 17.8 L
Wet (kerb/curb) Weight667 lbs / 302.6 kg
Dry Weight288 kg / 634 lbs.

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Twin Cam 96 engine
  • Black powder-coated engine with polished covers
  • Chrome, staggered shorty dual exhaust
  • 6-speed Cruise Drive transmission
  • Enhanced clutch lever interlock operations
  • Redesigned gauges with clock and LED
  • 49mm forks
  • Mini ape-hanger handlebar
  • Fat Bob fuel tank
  • Street Bob air cleaner trim ring
  • Special tank emblems
  • Wrinkle-black console with turn signal indicators
  • Wrinkle-black battery cover with polished trim
  • Wrinkle-black belt guard
  • Tank-mounted speedometer
  • Solo seat
  • Mid-mount foot controls
  • Wrap-around rear fender
