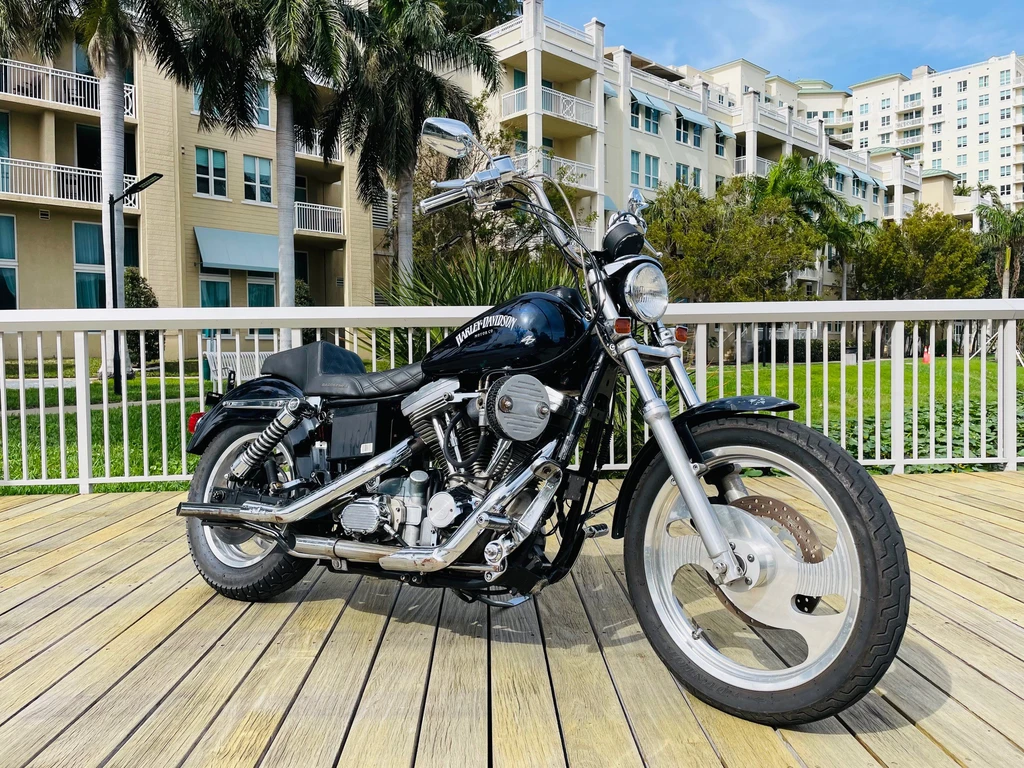

Harley Davidson FXD Dyna Super Glide (1995 – 98)

Harley Davidson FXD Dyna Super Glide (1995 - 98)

The Harley-Davidson FXD Dyna Super Glide has emerged from the shadows, its understated charm and rugged character making it a compelling choice for riders seeking an authentic Harley experience. With its no-frills approach and entry-level price point, this bike is perfect for those looking to get into the world of big-twin cruisers without breaking the bank.

The FXD’s 1340cc engine may not be as flashy as some of its siblings, but it delivers a robust and satisfying ride experience. The addition of rubber mounts in the Dyna Glide chassis helps smooth out vibrations, making this bike feel at home on both urban streets and open highways. With a lower seat height and raked-out rear shocks, the FXD offers an incredibly laid-back riding position that’s hard to beat.

This Harley-Davidson FXD Dyna Super Glide is more than just a utilitarian machine – it’s a masterclass in balance and poise, with its sharp steering, short wheelbase, and lightweight design making it an absolute blast to ride.

Key Specifications

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity81.5 cubic inches / 1337 cc
Max Power67 hp / 48.9 kW @ 6000 rpm
Max Torque71.5 ft-lb / 97 nm
Fuel Tank Capacity4.2 US gallons / 16.0 L
Harley Davidson FXD Dyna Super Glide (1995 - 98)

All Specifications

Make & Model

ModelHarley Davidson FXD Dyna Super Glide
Year1995 – 98

Engine

Engine TypeFour stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement81.5 cubic inches / 1337 cc
Bore x Stroke88.8 x 108 mm
Compression Ratio8.5:1
Max Horsepower67 hp / 48.9 kW @ 6000 rpm
Max Torque71.5 ft-lb / 97 nm
Engine Management System38mm Keihin carburetor
Lubrication SystemDry sump
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet 9-plate
Gearbox5 Speed
Gear Ratios1st 10.1102nd 6.9583rd 4.9534th 3.8625th 3.150
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension39 mm w/ polished aluminum fork triple clamp and dual-rate springs
Rear SuspensionCoil over shock

Wheels & Brakes

Front Tire Size100/90-19
Rear Tire SizeMT90 B16
Front BrakesSingle 292mm disc
Rear BrakesSingle 292mm disc

Dimension & Weights

Fuel Tank Capacity4.2 US gallons / 16.0 L
Dry Weight271.0 kg / 597.5 lbs

Features

  • New Dyna-chassised FXD Super Glide model
  • 1340 Harley engine with rubber-mounted isolation system
  • Two-point engine mounts for reduced vibration
  • Rubber grommets to further dampen engine vibrations
  • Lower seat height compared to other 1340 Harleys
  • Raked-out rear shocks for improved handling and stability
  • Shorter wheelbase than other 1340 Harleys (1588mm)
  • Lightest 80 cubic inch Harley at 271kg dry weight
  • Dual rate front fork springs for improved ride quality
  • Smoother ride at cruising speeds thanks to Dyna frame and fork springs
  • Reduced vibration and buzzing at high speeds
  • Respectably light and precise steering
  • Low, bump-hugging seat with deep and snug design
  • Fat Bob tank with centre-mounted filler (181litre capacity)
  • Electronic speedometer mounted on pull-back buckhorn bars
