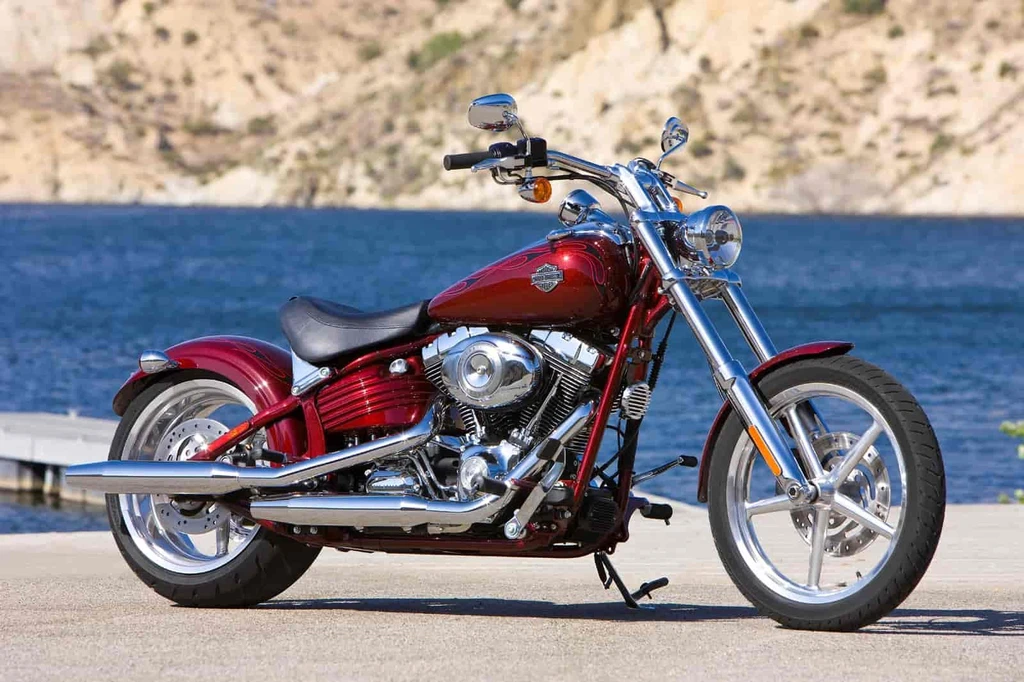

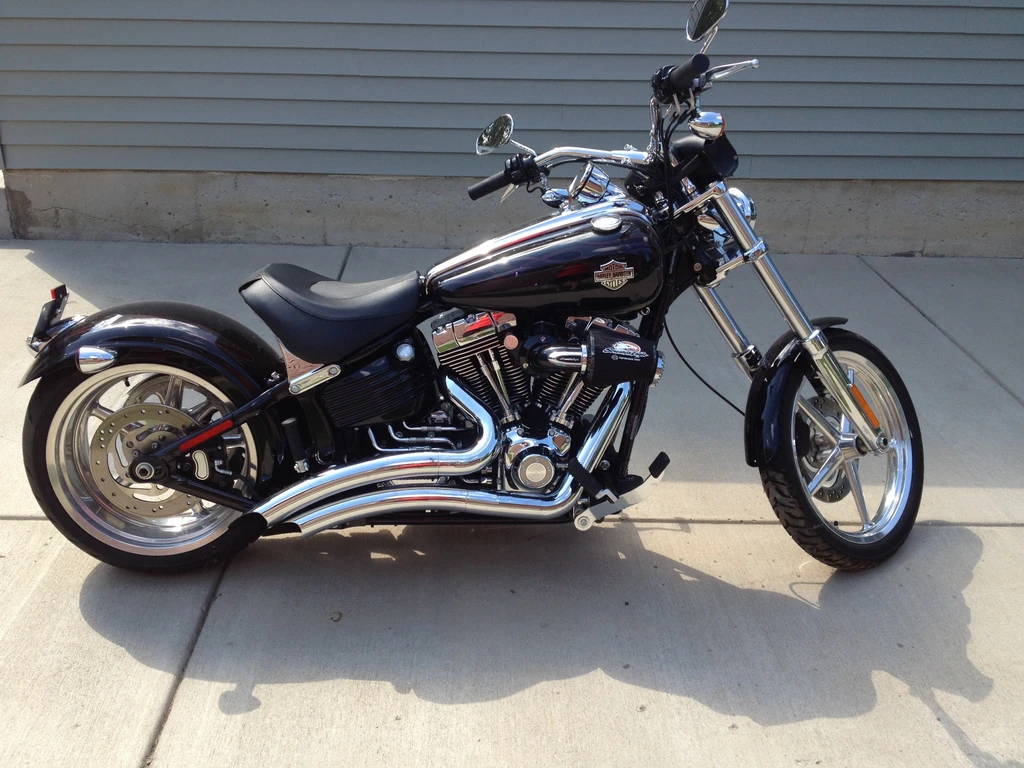

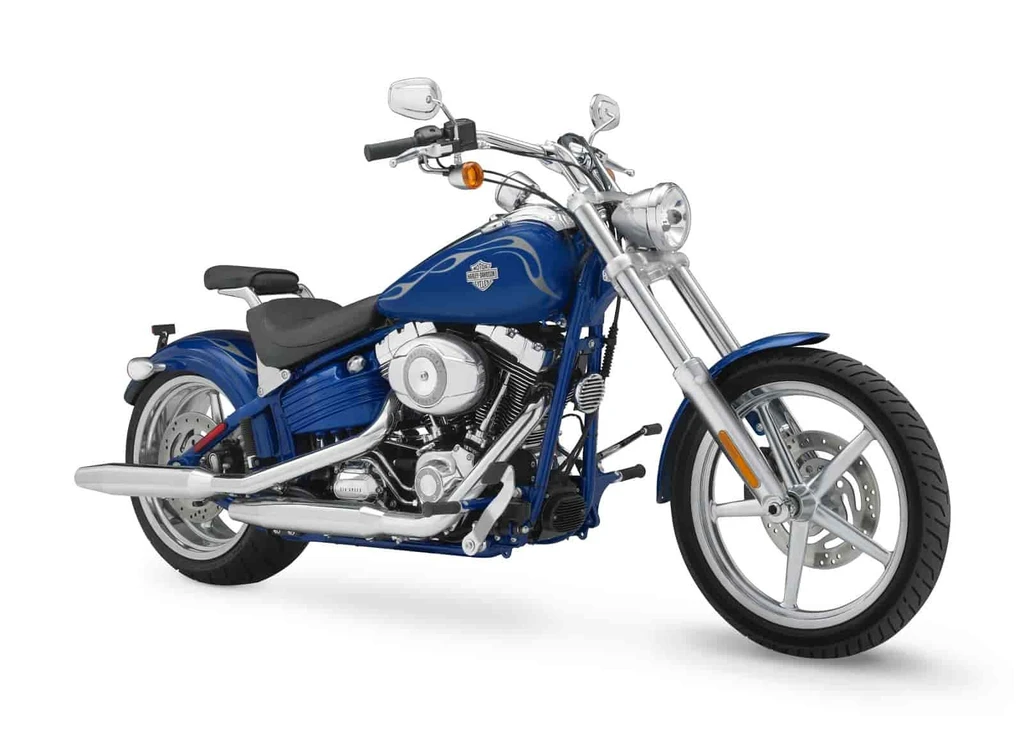

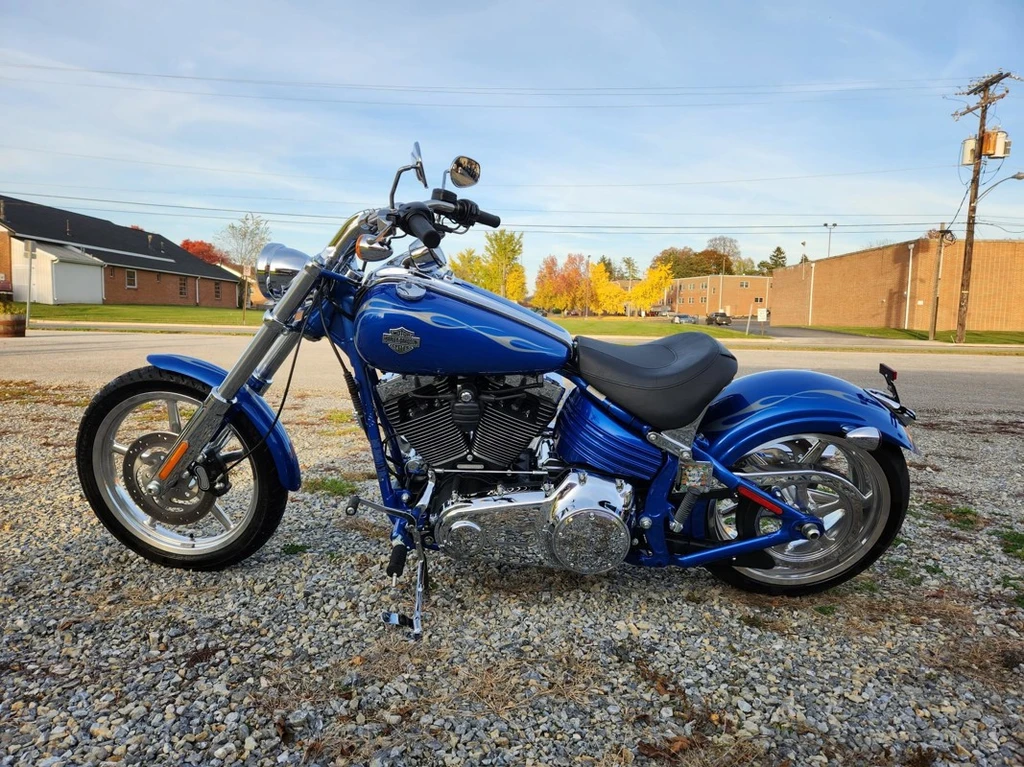

Harley Davidson FXCWC Softail Rocker C (2008 – 2009)

Harley Davidson FXCWC Softail Rocker C (2008 - 2009)

The Harley-Davidson FXCWC Softail Rocker C is a masterclass in fusion of style and substance, where chrome-plated finery meets raw power. This industry-first Trick seat design conceals a passenger pillion beneath the solo seat, folding out with surprising comfort for two-up riding. The engine, a potent Twin Cam 96B, provides a rigid connection between rider and machine, elevating the emotional experience of riding.

The Softail Rocker C is part of an illustrious eight-model Harley-Davidson Softail line, each offering unique styling and attitude that has set new benchmarks in motorcycle design. Its Electronic Sequential Port Fuel Injection (ESPFI) system delivers crisp throttle response, effortless starting, and seamless performance across changing conditions.

With its sleek lines, low seat height, and the unmistakable growl of its powertrain, the Softail Rocker C promises an unforgettable riding experience that will leave you craving more. Whether cruising down open roads or carving through twisties, this bike embodies the very essence of Harley-Davidson’s custom vision – a harmonious blend of art, engineering excellence, and sheer riding pleasure.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity5.0 US gallons / 9.0 L
Weight (Wet/Kerb)716.9 lbs / 325.1 kg
Seat Height25.2 inches / 640.08 mm
Harley Davidson FXCWC Softail Rocker C (2008 - 2009)

All Specifications

Make & Model

ModelHarley Davidson FXCWC Softail Rocker C
Year2008 – 2009

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.2 x 111.2 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.312 9.312 9.0302nd 6.421 6.421 6.2263rd 4.774 4.774 4.6304th 3.926 3.926 3.8075th 3.279 3.279 3.1796th 2.790 2.790 2.706
Final DriveBelt

Electrical & Electronics System

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swing Arm Mild steel, elliptical tube sections, forged junctions; MIG welded
Front Suspension49mm telescopic forks
Front Suspension Travel5.0 inches / 127 mm
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Suspension Travel3.3 inches / 86.3 mm
Rake36.5
Trail157.4 mm / 6.2 in

Wheels & Brakes

Front Tire SizeD407 90/90-19
Rear Tire SizeD407 240/40R18
Front BrakesSingle 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 2 piston caliper

Dimension & Weights

Seat Height25.2 inches / 640.08 mm
Wheelbase69.2 inches / 1757.68 mm
Ground Clearance130 mm / 5.1 in
Fuel Tank Capacity5.0 US gallons / 9.0 L
Wet (kerb/curb) Weight716.9 lbs / 325.1 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Trick seat design with hidden passenger pillion
  • Struts under the solo seat for comfortable two-up riding
  • Chrome plated headlamp, handlebar riser, fork lowers, and tank console
  • Finned aluminum oil tank color-matched to sheet metal
  • Flame graphics on sheet metal
  • Twin Cam 96B powertrain with rigid-mounted engine
  • Counter-balanced for smooth ride
  • 6-speed Cruise Drive transmission
  • Clean lines and low seat height
  • Rigid connection between rider and powertrain
  • Electronic Sequential Port Fuel Injection (ESPFI) enhances efficiency
  • Crisp throttle response and easy starting
  • Self-adjusts for changing environmental conditions
  • Horseshoe oil tank located below the seat
  • Forward foot controls or foot boards
  • Classic Fat Bob fuel tank
  • Chrome Over/Under Shotgun exhaust
  • 200 mm-17 rear / 140 mm-17 front tire
  • Silver Bullet Hole Disc Cast Aluminum 17-inch wheels
