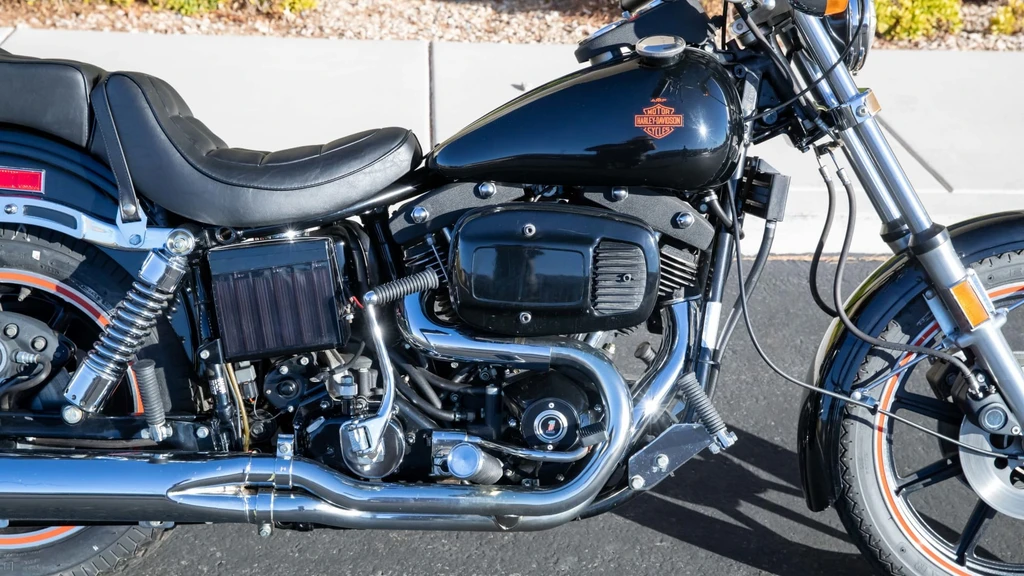

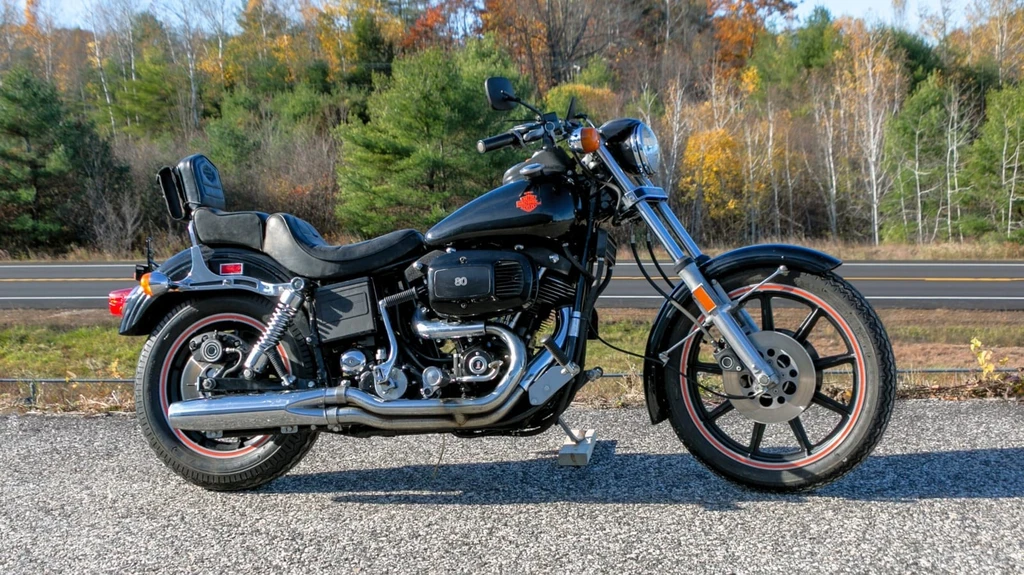

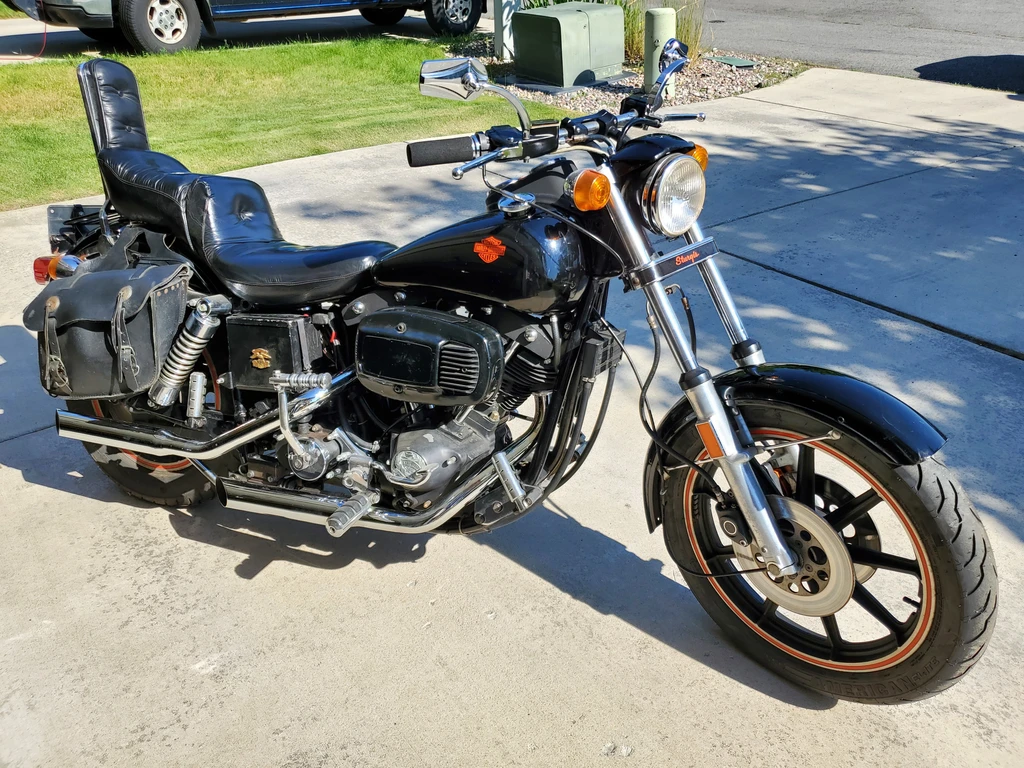

The Harley-Davidson FXB 1340 Sturgis – a true American icon born from the spirit of freedom and rebellion that defines the annual pilgrimage to the Black Hills in South Dakota.
This classic black beauty with its bold red trim exudes a timeless style that pays homage to the rally’s rich history. The dual-belt design, still in use at the time, proved itself to be a durable option over traditional chain drives found on most other motorcycles.
The FXB Sturgis proudly wears an emblem on its front fender, commemorating the first year of Harley-Davidson’s reorganized motor company after being under AMF management and ownership for several prior years.
Power is provided by the legendary “shovelhead” 80 cubic inch engine, which effortlessly turns the primary and final belt drive through a four-speed transmission. This original motorcycle is an unadulterated delight to ride and own, boasting a classic look and feel that embodies the essence of what makes a Harley-Davidson so iconic.
With its distinctive gold wheels and black paint job, this bike stands out from the crowd at every stop, becoming the center of attention as onlookers can’t help but marvel at the reflection of America’s spirit embodied in this magnificent machine.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
81.5 cubic inches / 1337 cc
Max Power
67hp @5800 rpm
Max Torque
69 ft-lb @ 3000 rpm
Fuel Tank Capacity
3.3 US gallons / 12.5 L
Weight (Wet/Kerb)
612.9 lbs / 278 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FXB 1340 Sturgis
Year
1980
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
81.5 cubic inches / 1337 cc
Bore x Stroke
88.8 x 108 mm
Compression Ratio
7.4:1
Max Horsepower
67hp @5800 rpm
Max Torque
69 ft-lb @ 3000 rpm
Engine Management System
38mm Keihin carburetor
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet 9-plate
Gearbox
4 Speed
Final Drive
Belt
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swinging fork.
Wheels & Brakes
Front Tire Size
MJ 90-19
Rear Tire Size
MT 90-16
Front Brakes
Single 255mm disc
Rear Brakes
Single 255mm disc
Dimension & Weights
Fuel Tank Capacity
3.3 US gallons / 12.5 L
Wet (kerb/curb) Weight
612.9 lbs / 278 kg
Features
Dual-belt design
Classic black paint with red trim
80 Cubic Inch “shovelhead” engine
Four speed transmission
Belt drive standard
Primary as well as final belt drive
Gold wheels
Low-slung design
Primarily black color scheme
Emblem on the front fender noting the first year of reorganized Harley-Davidson Motor company
