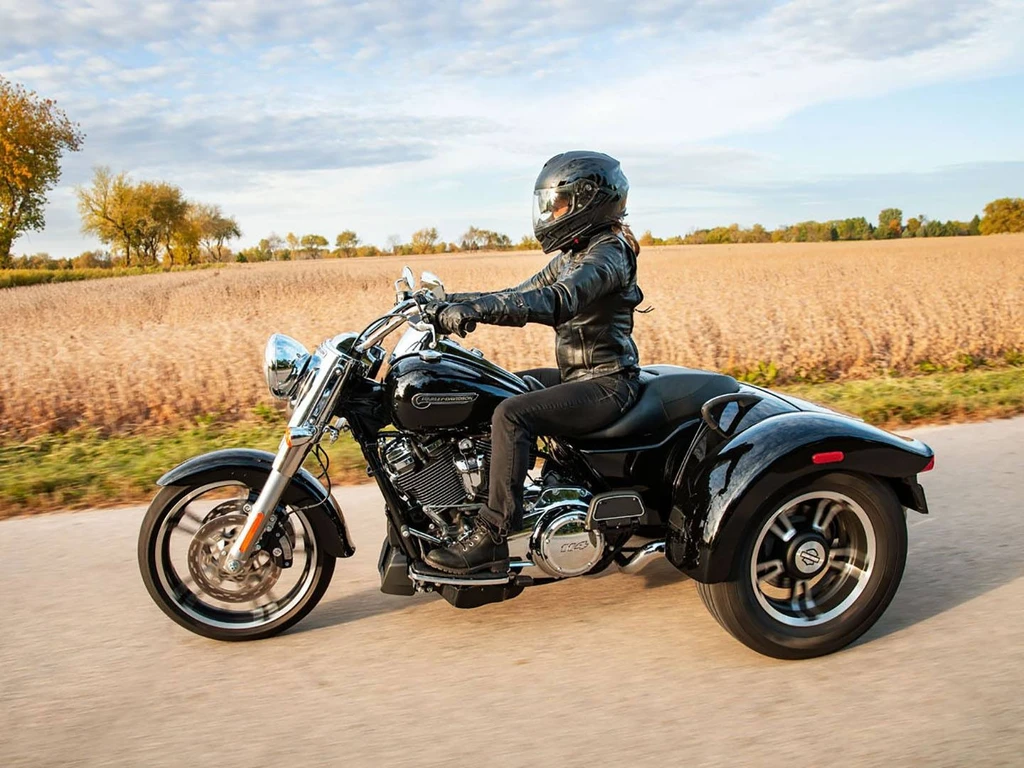

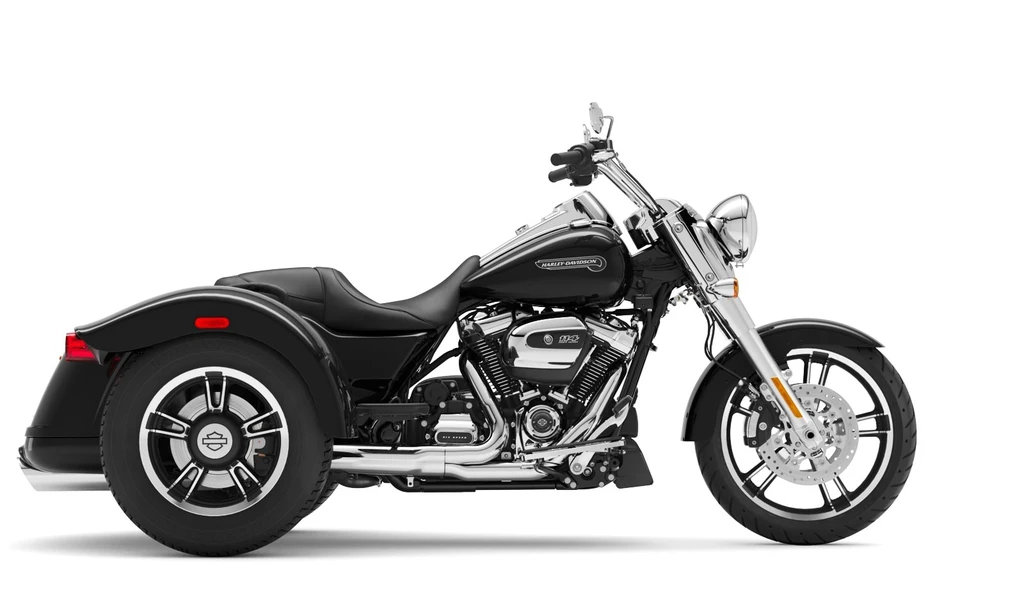

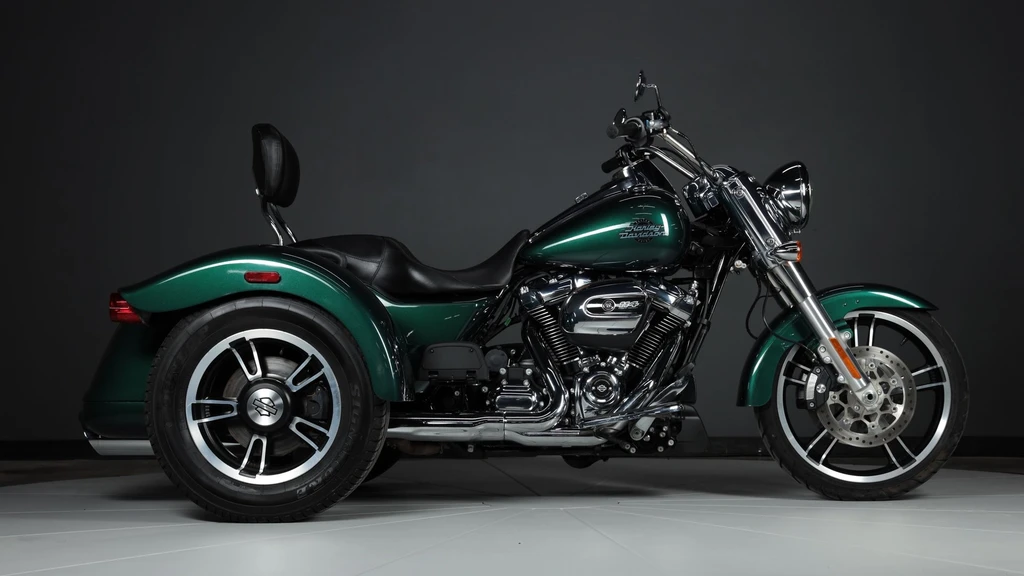

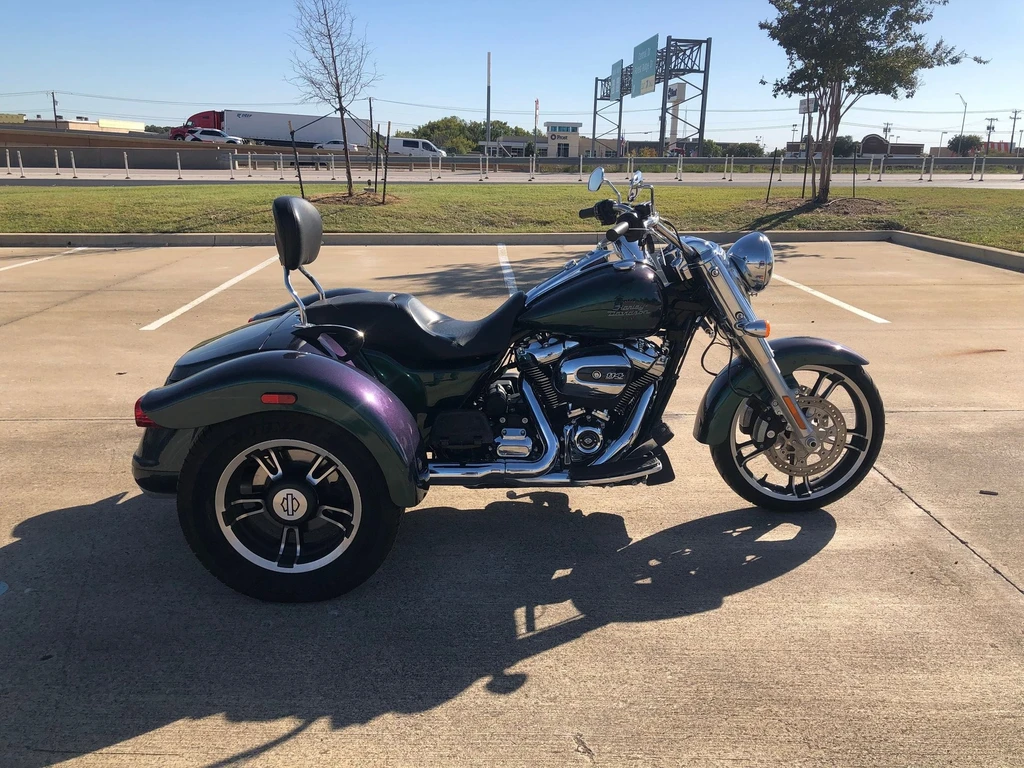

Harley Davidson Freewheeler 114 (2021)

The Harley-Davidson Freewheeler 114 (2021) embodies the perfect blend of raw power, refined styling, and premium touring technology. At its heart lies the massive Milwaukee-Eight 114 V-Twin engine, delivering an abundance of passing and horizon-chasing power.

With a silky-smooth ride courtesy of dual bending valve 49mm front forks and easily adjustable rear suspension, you’ll feel fully immersed in the riding experience. Classic styling cues like bobtail fenders, slash cut pipes, and mini ape hangers evoke the nostalgia of Harley-Davidson’s rich heritage.

But beneath its vintage-inspired exterior lies a robust suite of modern safety features, including Reflex Linked Brembo brakes with standard ABS, high-performance suspension, and traction control.

Key Specifications

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity	1868 cc / 114 cu in
Max Torque	122 ft-lb / 165 nm
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Weight (Wet/Kerb)	1118 lbs / 507 kg
Seat Height	26.2 inches / 665 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson Freewheeler 114
Year	2021

Engine

Engine Type	Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement	1868 cc / 114 cu in
Bore x Stroke	102 x 114 mm
Compression Ratio	10.5:1
Max Torque	122 ft-lb / 165 nm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Cooling System	Air cooled
Exhaust	Shorty slash down-style chrome finish mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanically actuated 10 plate, wet Assist & Slip
Gearbox	6 Speed
Gear Ratios	1st 10.534 2nd 7.302 3rd 5.423 4th 4.392 5th 3.741 6th 3.157
Final Drive	Belt

Electrical & Electronics System

Starter	Electric
ABS	Standard

Chassis & Suspension

Frame Type	Mild steel, square-section backbone with twin downtubes Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded
Front Suspension	41.3 mm telescopic, triple-circuit damping
Front Suspension Travel	4.6 inches / 117 mm
Rear Suspension	Air-adjustable
Rear Suspension Travel	2.9 inches / 76 mm
Rake	26
Trail	101 mm / 3.96 in

Wheels & Brakes

Front Tire Size	MT 130/60B19 M/C 61H
Rear Tire Size	2xP205/65R15
Front Brakes	2x 300mm discs, 4 piston fixed caliper
Rear Brakes	2x 270mm discs, 1 piston floating caliper with integrated park brake
ABS	Standard

Dimension & Weights

Overall Length	2615 mm / 103 in
Overall Width	1405 mm / 55.3 in
Overall Height	1150 mm / 45.3 in
Seat Height	26.2 inches / 665 mm
Wheelbase	65.7 inches / 1670 mm
Ground Clearance	125 mm / 4.9 in
Fuel Tank Capacity	6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight	1118 lbs / 507 kg
Dry Weight	492 kg / 1085 lbs

Features

Cornering enhanced Reflex linked brakes with ABS and traction control.
Milwaukee-Eight 114 V-Twin engine.
Dual bending valve 49mm front forks.
Easily adjustable rear suspension.
Cargo space to hold two full-face helmets plus extra gear.
Bobtail fenders.
Slash cut pipes.
12-inch mini apes.
Enforcer aluminum wheels.
High performance suspension.
Mini-ape hanger bars.
Chrome slash cut mufflers.
Premium brake rotors.
7-piece nacelle with classic chrome headlight design.
Unique trunk system with one-hand opening and left-to-right operation.
Steering head and front forks for stiff responsiveness.
Milwaukee-Eight 114 engine with 114 cubic inches of displacement.
