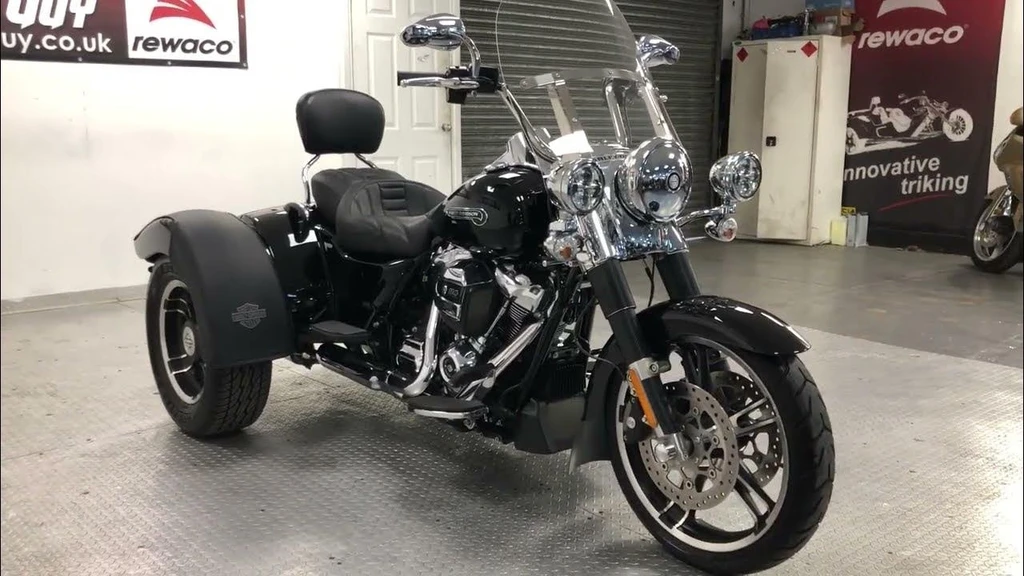

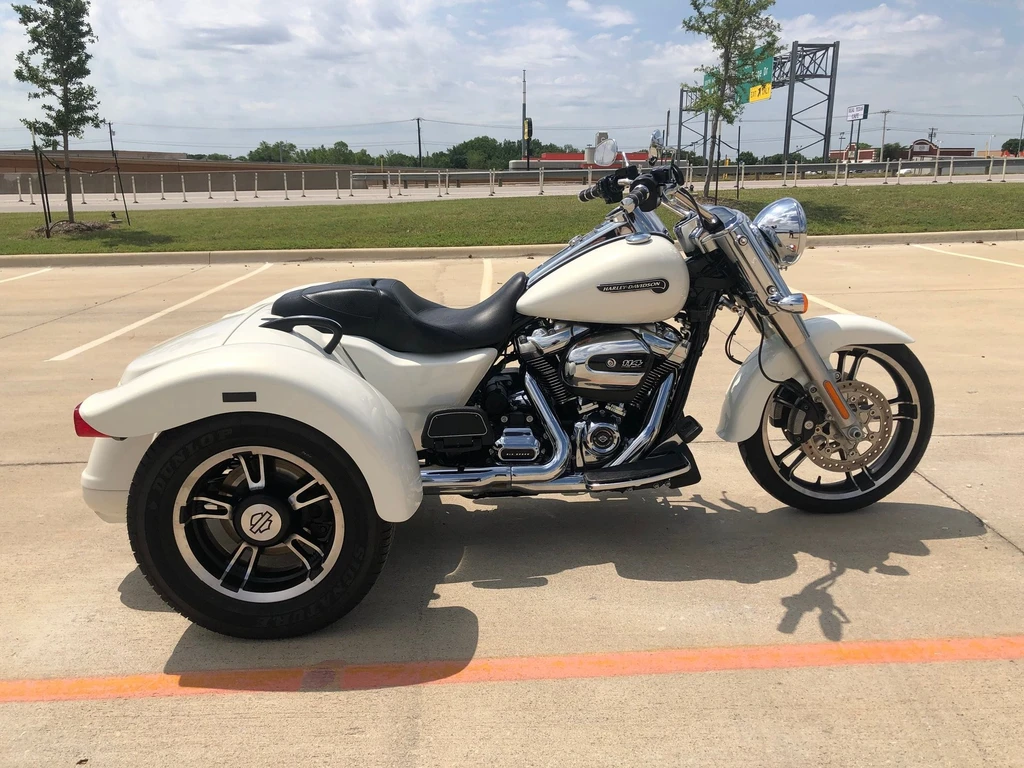

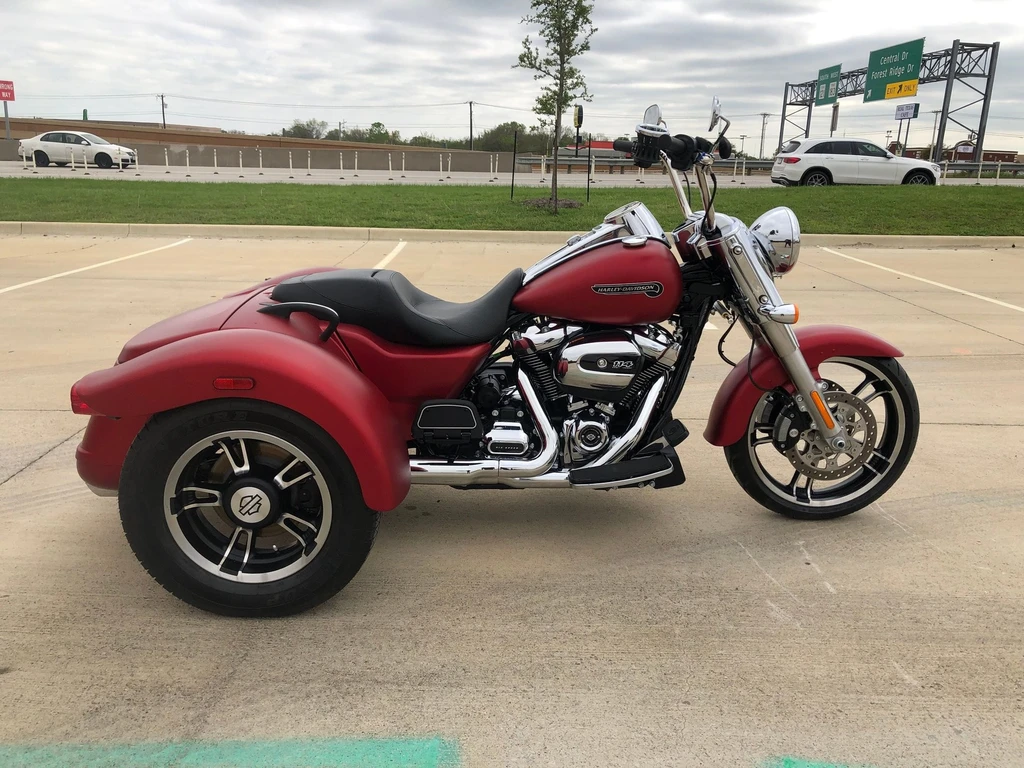

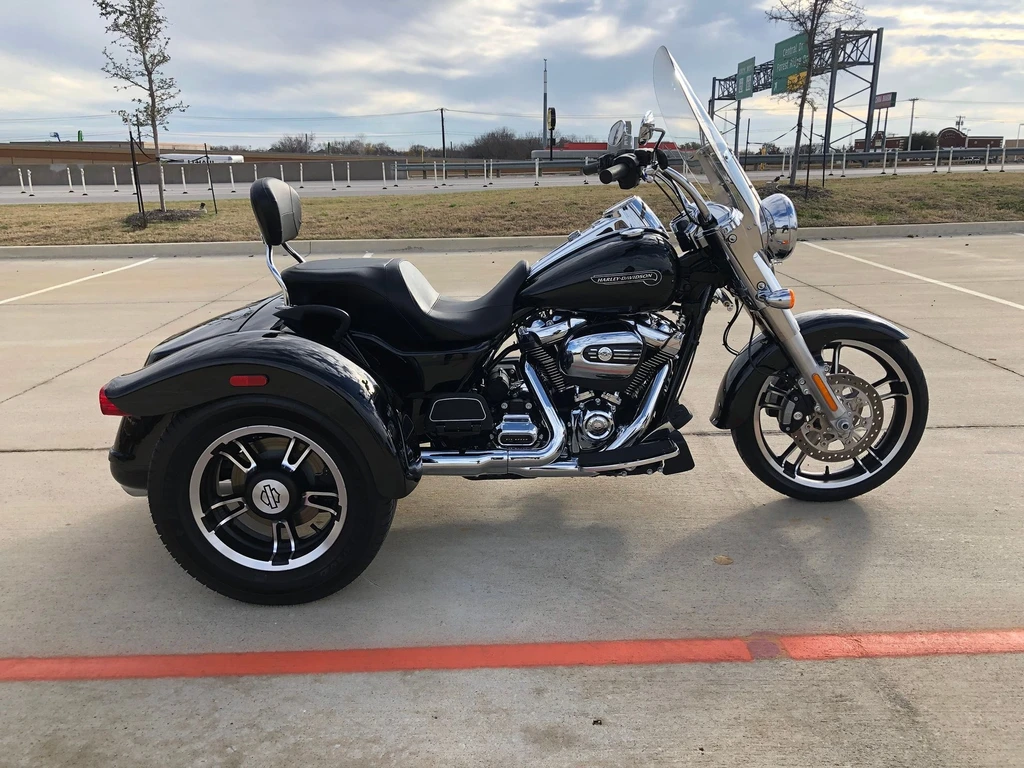

Harley Davidson Freewheeler 114 (2019 – 2020)

Harley Davidson Freewheeler 114 (2019 - 2020)

The open road beckons, and Harley-Davidson’s 2019 Freewheeler 114 answers with a resounding roar. Powered by the potent Milwaukee-Eight 114 Powertrain engine, this touring trike boasts stronger passing performance and acceleration, making every ride an exhilarating experience.

A host of innovative technologies comes together to deliver unparalleled riding dynamics. The Reflex Linked Brake System, featuring electronically linked brakes, ABS, and traction control, provides enhanced cornering capability and confidence-inspiring control.

The Freewheeler 114 also benefits from premium touring suspension technology, specifically calibrated for trike models to provide a smooth and responsive ride. Additional features include the 12-inch Mini-Ape Hanger Bars, which offer effortless handling and control, while classic cruiser lines are accentuated by the pair of bobtail rear fenders.

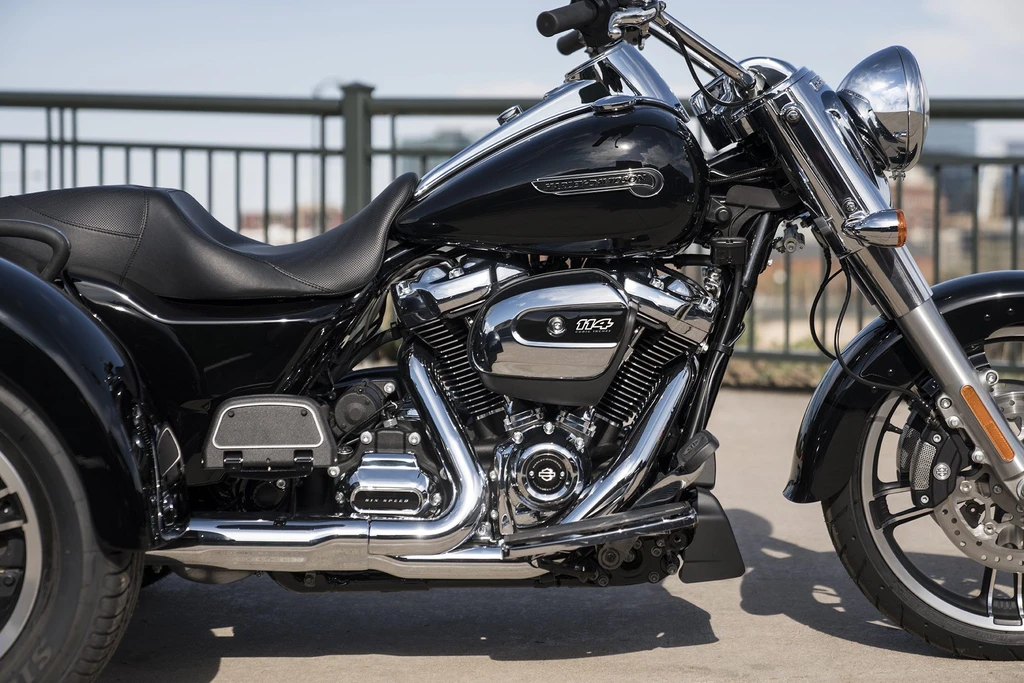

As you hit the open road, the Milwaukee-Eight 114 engine’s exhaust note is amplified through chrome slash cut mufflers, while Enforcer Cast Aluminum Wheels add a touch of premium custom style. The result is an unforgettable riding experience that embodies the spirit of adventure and freedom.

Key Specifications

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Engine Capacity1868 cc / 114 cu in
Max Torque122 ft-lb / 165 nm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)1118 lbs / 507 kg
Seat Height26.2 inches / 665 mm
Harley Davidson Freewheeler 114 (2019 - 2020)

All Specifications

Make & Model

ModelHarley Davidson Freewheeler 114
Year2019 – 2020

Engine

Engine TypeFour stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Displacement1868 cc / 114 cu in
Bore x Stroke102 x 114 mm
Compression Ratio10.5:1
Max Torque122 ft-lb / 165 nm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Lubrication SystemPressurized, dry-sump with oil cooler
Cooling SystemAir cooled
ExhaustShorty slash down-style chrome finish mufflers

Performance

Top Speedn/a

Transmission

ClutchMechanically actuated 10 plate, wet Assist & Slip
Gearbox6 Speed
Gear Ratios1st 10.534 2nd 7.302 3rd 5.423 4th 4.392 5th 3.741 6th 3.157
Final DriveBelt

Electrical & Electronics System

StarterElectric
ABSStandard

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes Swingarm Mild steel, rectangular tube sections with plate junctions; MIG welded
Front Suspension41.3 mm telescopic, triple-circuit damping
Front Suspension Travel4.6 inches / 117 mm
Rear SuspensionAir-adjustable
Rear Suspension Travel2.9 inches / 76 mm
Rake26
Trail101 mm / 3.96 in

Wheels & Brakes

Front Tire SizeMT 130/60B19 M/C 61H
Rear Tire Size2xP205/65R15
Front Brakes2x 300mm discs, 4 piston fixed caliper
Rear Brakes2x 270mm discs, 1 piston floating caliper with integrated park brake
ABSStandard

Dimension & Weights

Overall Length2615 mm / 103 in
Overall Width1405 mm / 55.3 in
Overall Height1150 mm / 45.3 in
Seat Height26.2 inches / 665 mm
Wheelbase65.7 inches / 1670 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight1118 lbs / 507 kg
Dry Weight492 kg / 1085 lbs

Features

  • Milwaukee-Eight 114 Powertrain engine
  • Reflex Linked Brake System
  • All-New Braking Enhancements
  • Electronically linked brakes
  • ABS (Anti-lock braking system)
  • Traction control
  • Premium Harley-Davidson touring suspension technology
  • 12″ Mini-Ape Hanger Bars
  • Bobtail Rear Fenders
  • Chrome Slash Cut Mufflers
  • Enforcer Cast Aluminum Wheels
  • Redesigned brake rotors
  • Classic style chrome headlight nacelle
  • Windshield mounting system
  • Milwaukee-Eight 114 engine exhaust note
Harley Davidson Freewheeler 114 (2019 - 2020)
Harley Davidson Freewheeler 114 (2019 - 2020)
Harley Davidson Freewheeler 114 (2019 - 2020)
Harley Davidson Freewheeler 114 (2019 - 2020)
Harley Davidson Freewheeler 114 (2019 - 2020)
