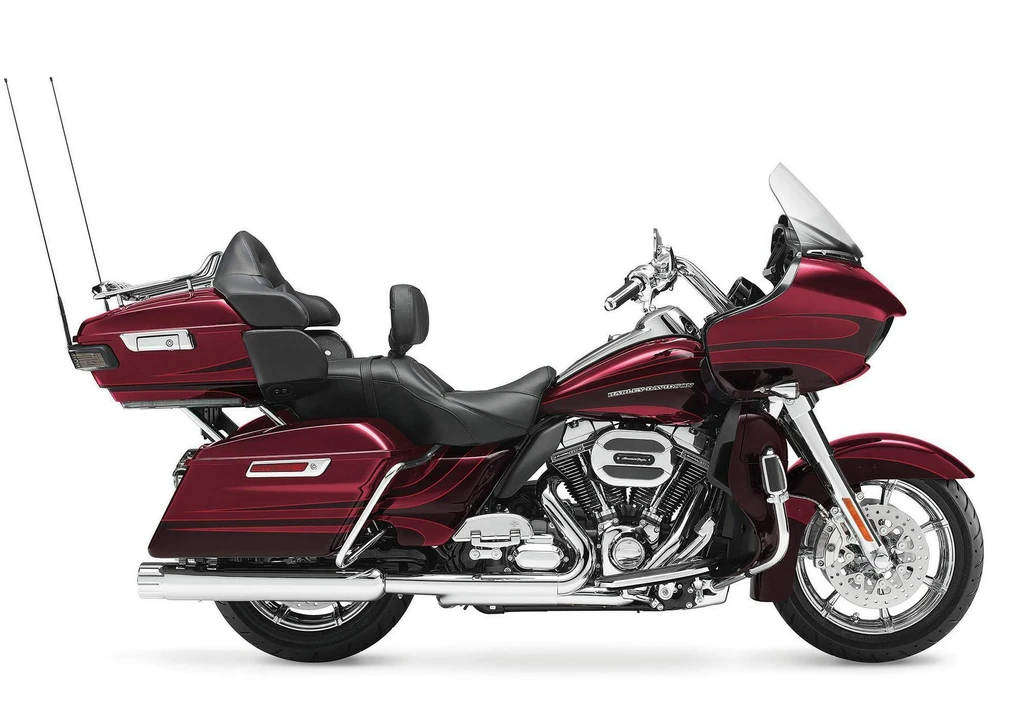

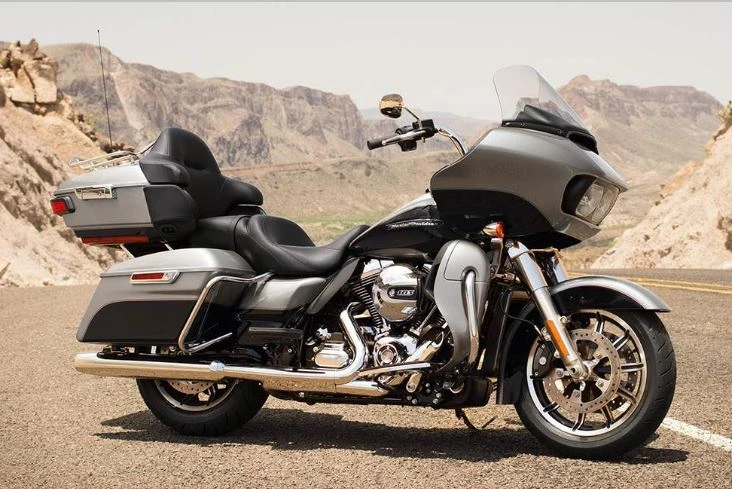

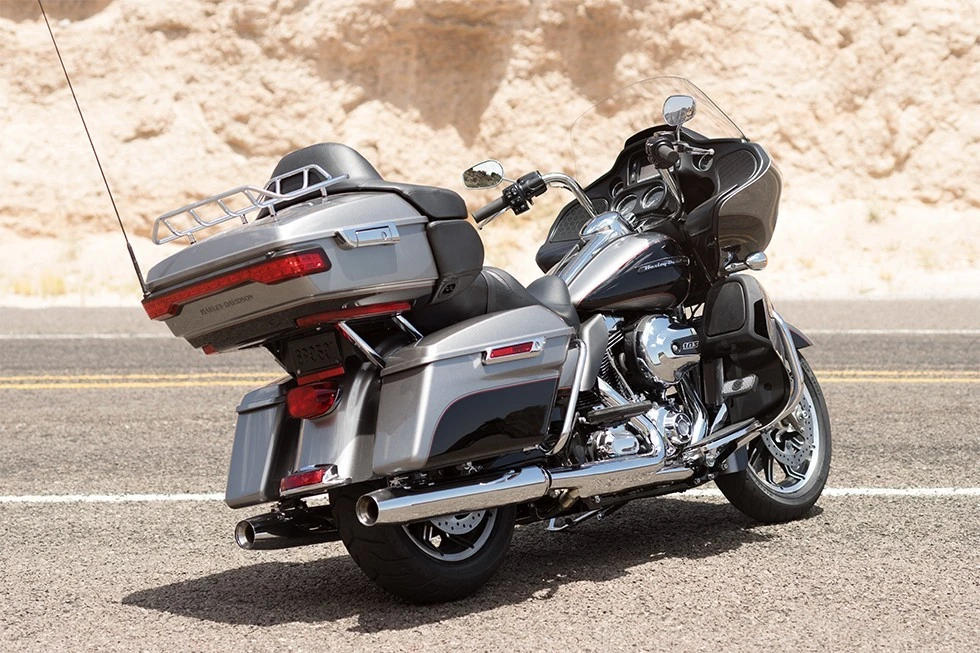

Harley Davidson FLTRU Road Glide Ultra (2015 – 2016)

Harley Davidson FLTRU Road Glide Ultra (2015 - 2016)

The Harley-Davidson FLTRU Road Glide Ultra is a behemoth of a motorcycle that embodies the spirit of unbridled adventure. Its Electronic Sequential Port Fuel Injection (ESPFI) system ensures seamless power delivery from its Twin Cooled Twin Cam 103 engine, while the aggressive fairing and Project RUSHMORE features combine to create an unparalleled riding experience.

The Road Glide Ultra is equipped with the latest in touring technology, including a Tour-Pak luggage carrier, saddlebags that open with one hand, and the top-of-the-line infotainment system. This comprehensive package provides riders with effortless control and convenience on the go.

But it’s not just about function – the Road Glide Ultra is also a masterclass in comfort and style. The Twin Cooled Twin Cam 103 engine provides plenty of oomph for long road trips, while the aggressive fairing and sleek design make this bike a head-turner on any highway.

Riding a Harley-Davidson FLTRU Road Glide Ultra is to experience the ultimate freedom of the open road, where the only limits are those of your own imagination. Whether you’re cruising down the Pacific Coast Highway or carving through the twisties in the mountains, this incredible machine has got your back – and will take you farther than you ever thought possible.

Key Specifications

Engine TypeFour stroke, V-Twin, Twin Cam 103 Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Engine Capacity1690 cc / 103.1 cu. in.
Max Torque138 Nm / 14.1 kgf-m /101.8 ft/lb @ 3750 rpm
Fuel Tank Capacity6.0 US gallons / 22.7 L
Weight (Wet/Kerb)935 lbs / 424 kg
Seat Height27.5 inches / 699 mm
Harley Davidson FLTRU Road Glide Ultra (2015 - 2016)

All Specifications

Make & Model

ModelHarley Davidson FLTRU Road Glide Ultra
Year2015 – 2016

Engine

Engine TypeFour stroke, V-Twin, Twin Cam 103 Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Displacement1690 cc / 103.1 cu. in.
Bore x Stroke98.4 x 111.1 mm
Compression Ratio10.0:1
Max Torque138 Nm / 14.1 kgf-m /101.8 ft/lb @ 3750 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st: 9.593 / 2nd: 6.65 / 3rd: 4.938 / 4th: 4 / 5th: 3.407 / 6th: 2.875:1
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, square-section backbone with twin downtubes
Front Suspension41.3 mm Telescopic, cartridge-style damping
Rear SuspensionShort, air-adjustable shock
Rake26
Trail170 mm / 6.7 in

Wheels & Brakes

WheelsOptional Style Type: Tubeless Chrome Aluminum Profile Laced
Front Wheel/Rim SizeImpeller, cast aluminum
Front Tire Size130/80B17 65H
Rear Wheel/Rim SizeImpeller, cast aluminum
Rear Tire Size180/65B16 81H
Front Brakes2 x 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height27.5 inches / 699 mm
Wheelbase64.0 inches / 1625 mm
Ground Clearance125 mm / 4.9 in
Fuel Tank Capacity6.0 US gallons / 22.7 L
Wet (kerb/curb) Weight935 lbs / 424 kg
Dry Weight407 kg / 897 lbs

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Twin Cooled Twin Cam 103 engine
  • Project RUSHMORE infotainment system
  • Tour-Pak luggage carrier
  • Saddlebags that open with one hand
  • Jukebox with USB port for iPod/iPhone
  • Voice activation for music, phone, and GPS
  • Full-color touch screens
  • Brighter Daymaker LED headlamps
  • Fog lamps
  • Brighter Tour-Pak luggage carrier lighting
  • Brighter turn signals
  • Brighter brake lights
  • Reflex Linked Brakes with ABS
  • Stiffer front forks
  • Increased storage space
