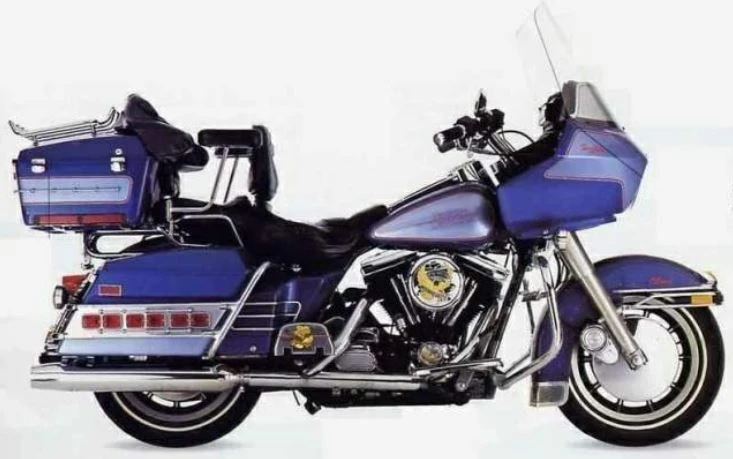

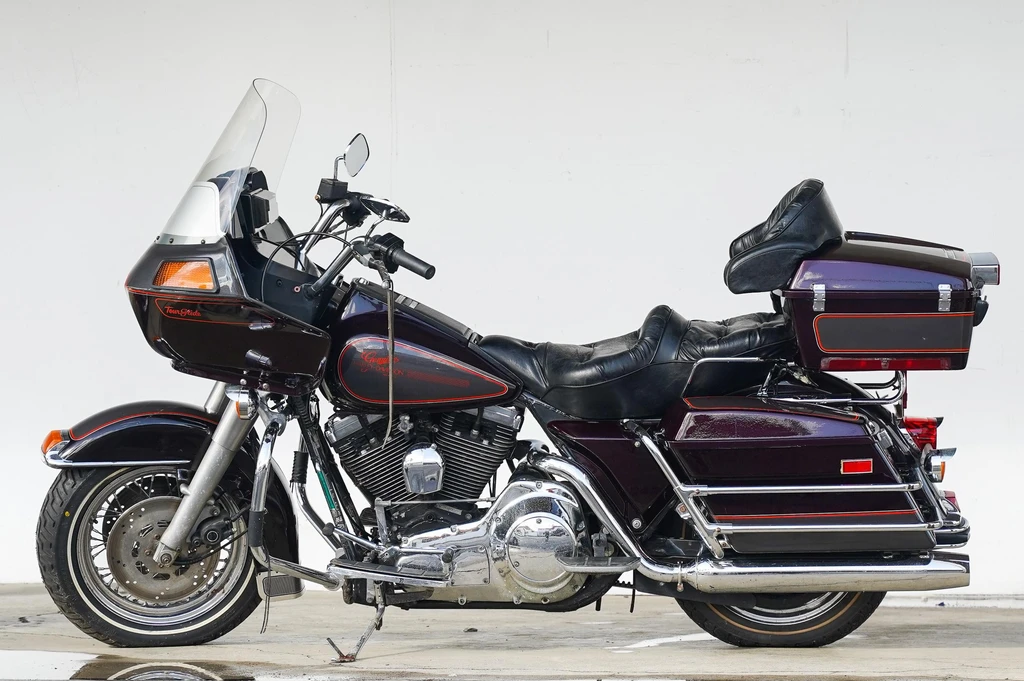

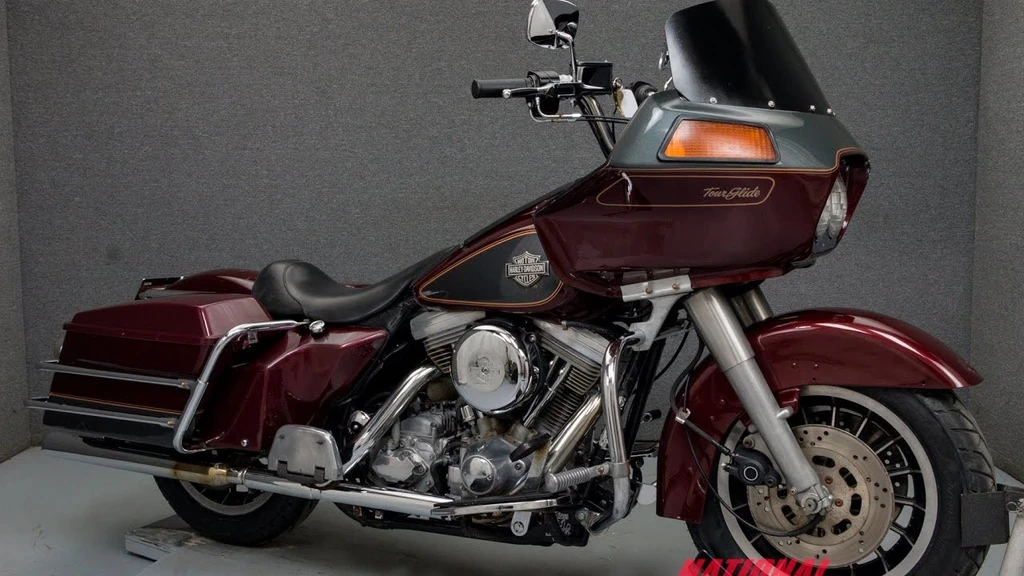

Harley Davidson FLTC 1340 Tour Glide Classic (1986)
The Harley-Davidson FLTC 1340 Tour Glide Classic defies convention with its unapologetic approach to heavyweight touring.
With a potent 1338cc vee-twin engine, the FLTC unleashes a distinctive song that’s unmistakably American. This liquid-cooled powerplant is a departure from the multi-cylinder engines and overhead camshafts found in other high-end tourers. Instead, Harley-Davidson’s engineers have crafted an engine with its own unique character, one that rewards riders who appreciate the nuances of a well-tuned vee-twin.
The Tour Glide Classic’s running gear is equally unconventional, featuring Gates Poly Chain belt drive and whitewall tires that evoke a bygone era. The heel-and-toe shifter and brake pedal are distinctive touches that set this bike apart from its competitors. Despite initial reservations about the belt drive system, our testing has shown it to be lighter, cleaner, and easier to maintain than traditional chain drives.
As we rode the FLTC through rolling hills and twisty roads, its reduced vibration became increasingly apparent. This, combined with its impressive 26-pound weight loss over previous models, made for a truly engaging riding experience.
Key Specifications
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Engine Capacity
1338 cc / 81.6 cu in
Max Power
52.2 kw / 70 hp
Max Torque
93.5 Nm / 9.53 kgf/m / 69 ft-lb @ 3000 rpm
Fuel Tank Capacity
5.3 US gallons / 20.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Harley Davidson FLTC 1340 Tour Glide Classic
Year
1986
Engine
Engine Type
Four stroke, 45 V-Twin, OHV, 2 valves per cylinder.
Displacement
1338 cc / 81.6 cu in
Bore x Stroke
88.8 x 108 mm
Compression Ratio
7.4:1
Max Horsepower
52.2 kw / 70 hp
Max Torque
93.5 Nm / 9.53 kgf/m / 69 ft-lb @ 3000 rpm
Engine Management System
One butterfly valve Keihin carburetor
Cooling System
Air cooled
Exhaust
Two-into-two, chrome
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Gas telescopic forks
Rear Suspension
Dual shocks preload adjustable.
Wheels & Brakes
Front Tire Size
140/90-16
Rear Tire Size
140/90-16
Front Brakes
2x 292mm disc 1 piston caliper
Rear Brakes
Single 292mm disc 1 piston caliper.
Dimension & Weights
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Dry Weight
336 kg / 740 lbs
Features
1338cc vee-twin engine
Dual headlights
Whitewall tires
Heel-and-toe shifter
Gates Poly Chain belt drive
Belt drive reduces vibration
Driveline maintenance free
Lighter and cleaner than chain drive
Automotive-style, soft-rubber engine mounts
Heim-jointed stabilizers for engine control
5200-rpm redline
Instantaneous throttle response
Power delivery between 2000 rpm and 5200 rpm
Cruising at 60 mph at 2800 rpm
Quick acceleration in top gear
