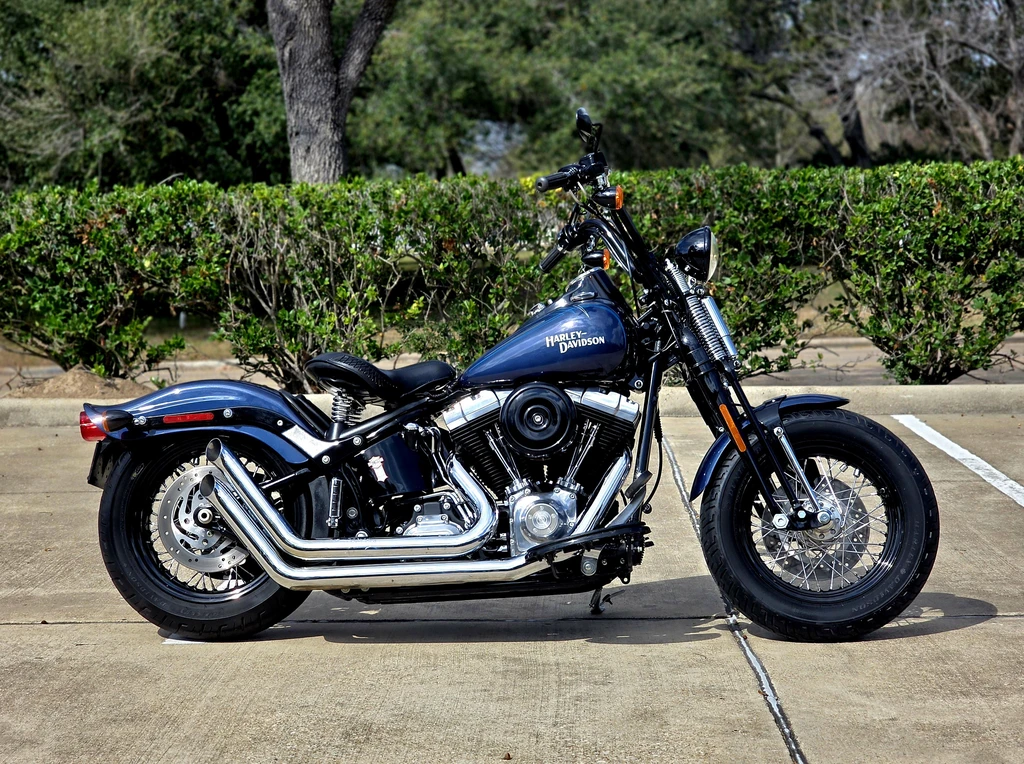

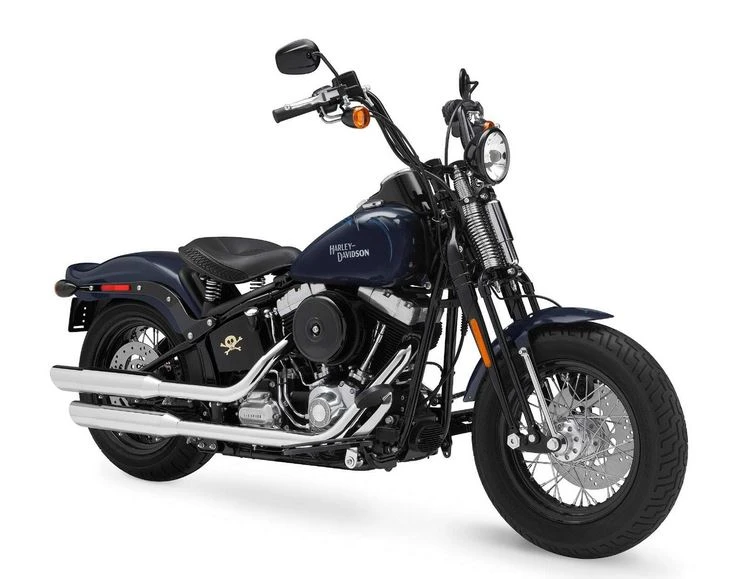

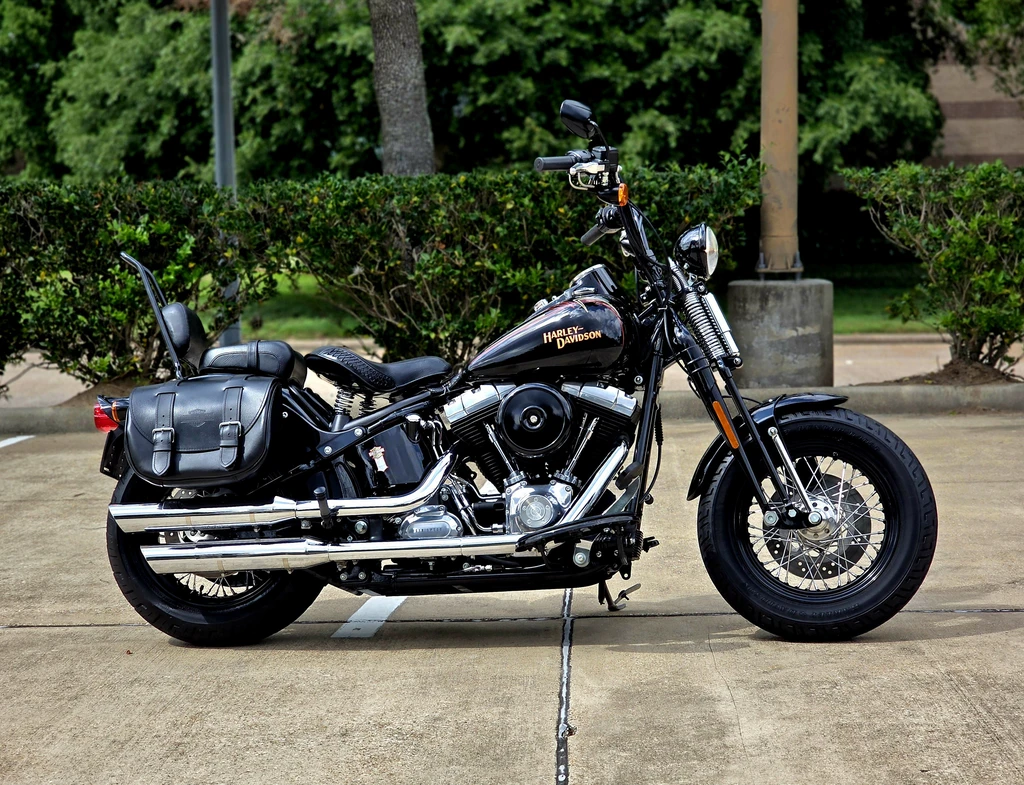

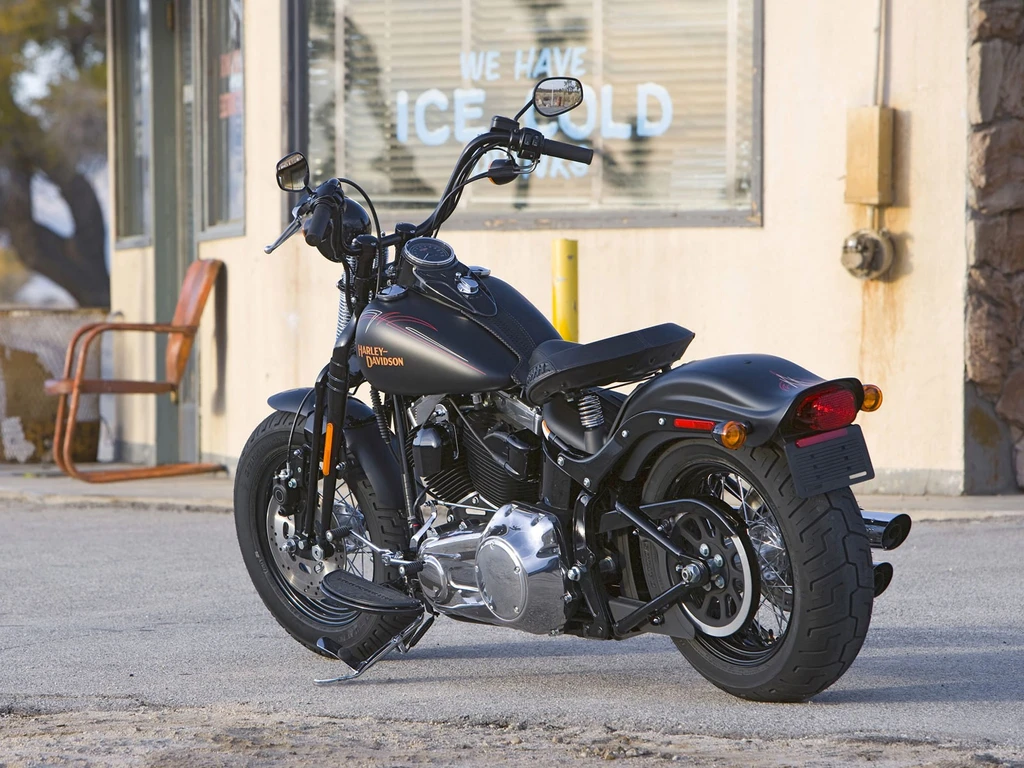

Harley Davidson FLSTSB Softail Cross Bones (2008 - 2009)

The new Harley-Davidson FLSTSB Softail Cross Bones cuts a menacing profile with its authentic custom bobber styling and dark twists.

Riding the Softail Cross Bones is an emotional experience, thanks to its retro look, black and polished Twin Cam 96B powertrain, 6-speed Cruise Drive transmission, and unique Softail suspension. The bike’s post-war era bobber styling cues, such as the sprung solo seat and half-round rider footboards, add to its rebellious charm.

With its raw finishes and stripped-down custom creativity, the Cross Bones is a bold addition to the Harley-Davidson family of motorcycles. It’s a true reflection of the brand’s commitment to innovative technology and content that makes every ride magical and transformative.

Key Specifications

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity	96 cubic inches / 1584 cc
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Weight (Wet/Kerb)	737 lbs / 334 kg
Seat Height	Laden 676.3 mmUnladen 766.8 mm

*n/a – information not provided by manufacturer

Harley Davidson FLSTSB Softail Cross Bones (2008 - 2009)

All Specifications

Make & Model

Model	Harley Davidson FLSTSB Softail Cross Bones
Year	2008 – 2009

Engine

Engine Type	Four stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement	96 cubic inches / 1584 cc
Bore x Stroke	95.2 x 111.2 mm
Compression Ratio	9.2:1
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled
Exhaust	Chrome, straight over / under shotgun, slash-cut with dual mufflers

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multi-plate with diaphragm spring in oil bath
Gearbox	6 Speed
Gear Ratios	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790
Final Drive	Belt

Electrical & Electronics System

Chassis & Suspension

Frame Type	Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Front Suspension	Front Forks Black leading link for Springer model
Rear Suspension	Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Rake	32
Trail	160 mm / 6.3 in

Wheels & Brakes

Front Tire Size	MT90 B16
Rear Tire Size	200/55 R17
Front Brakes	Single 292mm disc 2 piston caliper, Rear Shocks Hidden, horizontal-mounted, coil-over
Rear Brakes	Single 292mm disc 2 piston caliper

Dimension & Weights

Seat Height	Laden 676.3 mmUnladen 766.8 mm
Wheelbase	64.5 inches / 1638 mm
Ground Clearance	124 mm / 4.9 in
Fuel Tank Capacity	5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight	737 lbs / 334 kg

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Twin Cam 96B powertrain
6-speed Cruise Drive transmission
Softail suspension
Hidden horizontal coil-over rear shock absorbers
Rigid-mounted counter-balanced powertrain
Harley-Davidson ESPFI
6-speed Cruise Drive transmission with accommodating clutch lever effort
Gloss Black painted Springer front end
Chrome springs
Black bucket headlamp
Black mini ape-hanger style handlebar
Gloss Black round air cleaner cover
Chopped front fender
Sprung solo seat
Half-round rider footboards
Polished Twin Cam 96B powertrain
