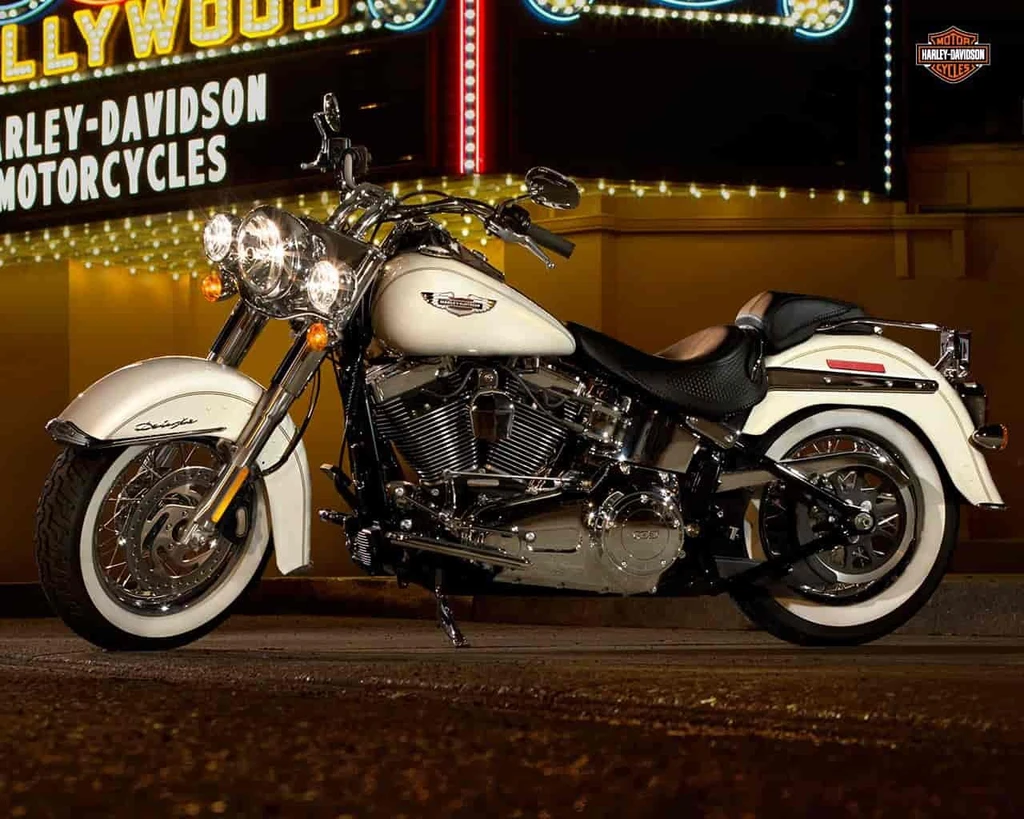

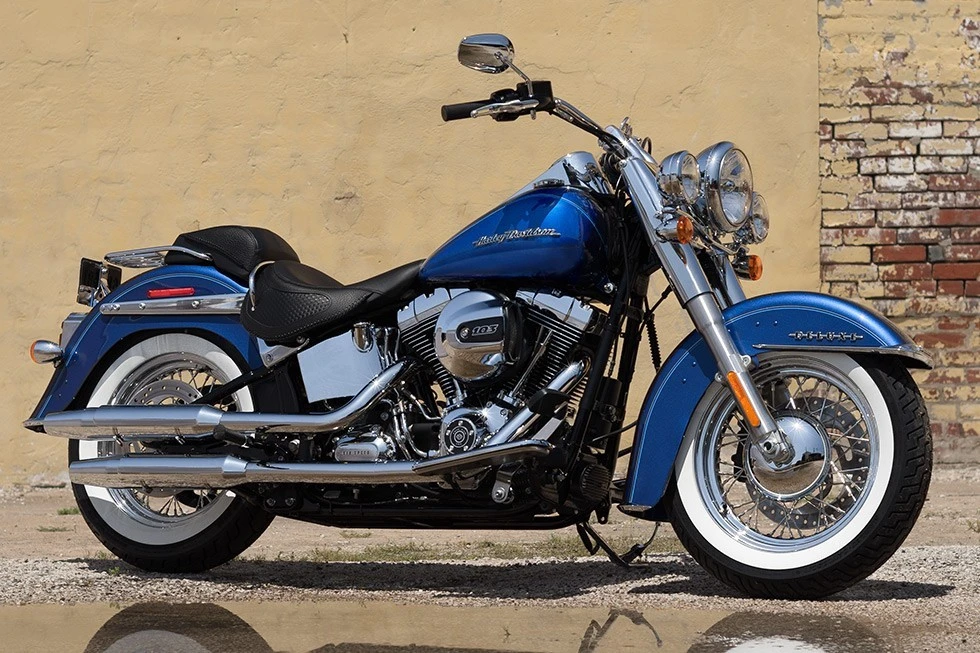

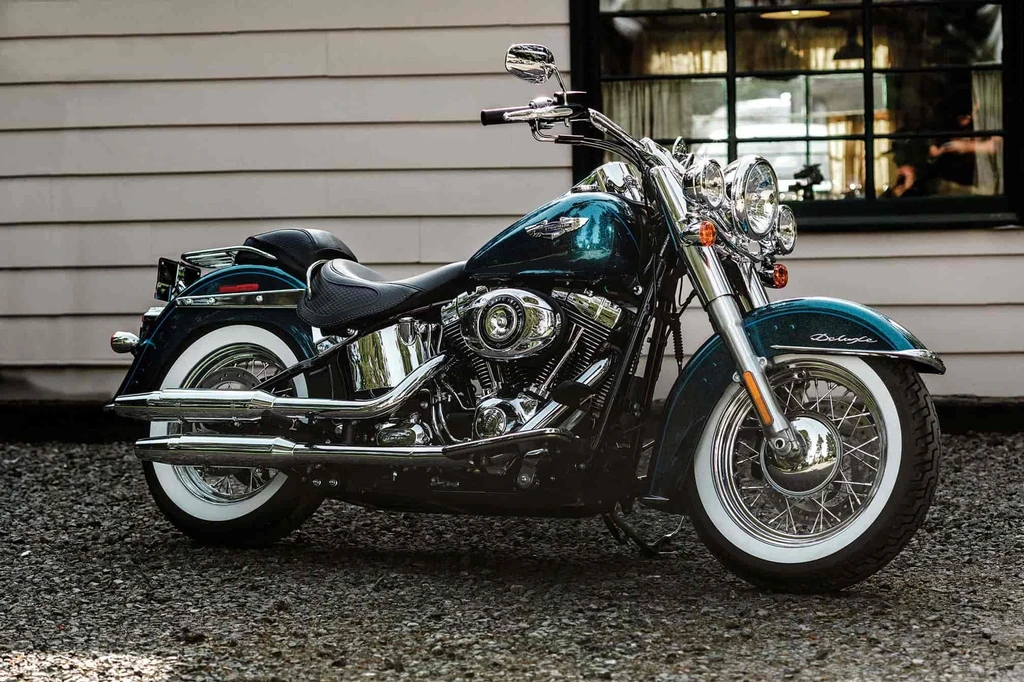

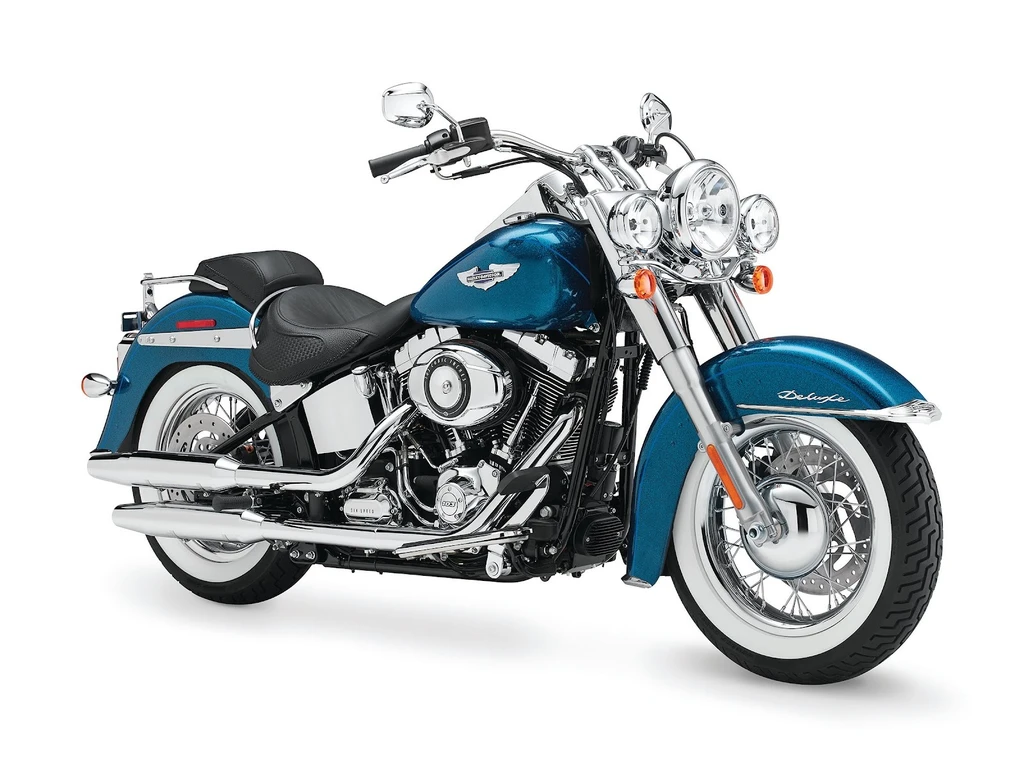

Harley Davidson FLSTN Softail Deluxe (2015)

Experience the unbridled freedom of the open road on the Harley-Davidson FLSTN Softail Deluxe (2015), a masterclass in balance between style and substance.

Its powerful 103BTM Twin Cam V-Twin engine, paired with the intuitive 6-Speed Cruise Drive transmission, delivers a smooth and responsive ride that’s perfect for long-distance touring. The Electronic Sequential Port Fuel Injection (ESPFI) system ensures seamless power delivery, making this bike an absolute pleasure to ride.

From its sleek, chrome-accented front light bar to its nostalgic seven-inch ball headlamp, every detail on the Softail Deluxe exudes a sense of classic American style. The low seat and pull-back handlebar invite you to get comfortable, while the easy-reach kickstand and wide whitewall tires make navigating tight corners a breeze.

With the added security of Anti-lock Braking System (ABS) and an array of optional features, including the Smart Security System with proximity-based, hands-free fob, this bike is ready for anything life throws its way – and it’s sure to leave you grinning from ear to ear.

Key Specifications

Engine Type	Four stroke, V-Twin, Twin Cam 103 Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Engine Capacity	1690 cc / 103.1 cub in.
Max Torque	134 Nm / 13.7 kgf-m / 98.8 ft. lbs @ 3500 rpm
Fuel Tank Capacity	18.9 Litres / US 5.0 gal
Weight (Wet/Kerb)	726 lbs / 329.0 kg
Seat Height	24.5 inches / 622 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Harley Davidson FLSTN Softail Deluxe
Year	2015

Engine

Engine Type	Four stroke, V-Twin, Twin Cam 103 Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Displacement	1690 cc / 103.1 cub in.
Bore x Stroke	98.4 x 111.1 mm
Compression Ratio	9.6:1
Max Torque	134 Nm / 13.7 kgf-m / 98.8 ft. lbs @ 3500 rpm
Engine Management System	Electronic Sequential Port Fuel Injection (ESPFI)
Cooling System	Air cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Gearbox	6 Speed
Gear Ratios	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79
Final Drive	Belt

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, chrome dust covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Trail	147 mm . 5.8 in

Wheels & Brakes

Front Tire Size	MT90-16 72H
Rear Tire Size	MU85B16 77H
Front Brakes	Single 292 mm disc, 4 piston caliper
Rear Brakes	Single 292 mm disc, 2 piston caliper

Dimension & Weights

Seat Height	24.5 inches / 622 mm
Wheelbase	64.2 inches / 1635 mm
Ground Clearance	114 mm / 4.5 in
Fuel Tank Capacity	18.9 Litres / US 5.0 gal
Wet (kerb/curb) Weight	726 lbs / 329.0 kg

Features

Electronic Sequential Port Fuel Injection (ESPFI)
Rigid-mounted, counter-balanced Twin Cam 103B V-Twin engine
Anti-lock Braking System (ABS) – Standard
New Paint color options including Hard Candy Custom color
Chrome Aluminum Profile Laced wheel option
Tubeless wheels
Wide whitewall tires
MU85B-16 rear tire
Chrome nostalgic seven-inch ball headlamp
Stainless steel, low-rise handlebar
Full-length rider footboards
Two-piece, two-up Softail seat with collapsing sides
Integrated chrome luggage rack
Tombstone taillight
6-speed Cruise Drive Transmission
Horseshoe oil tank
Five-gallon fuel tank
