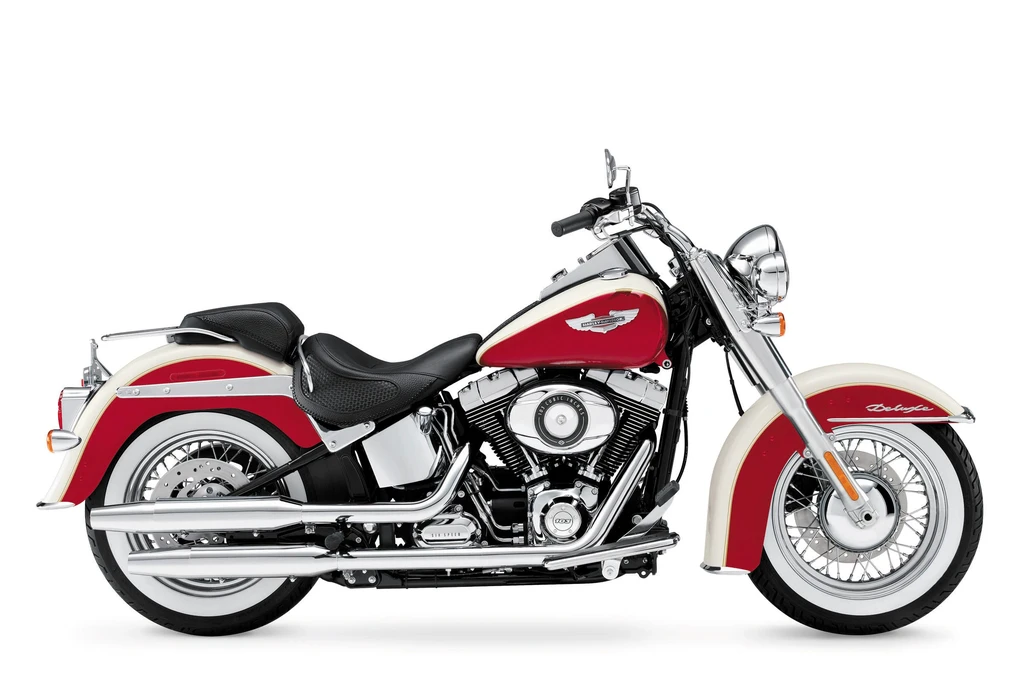

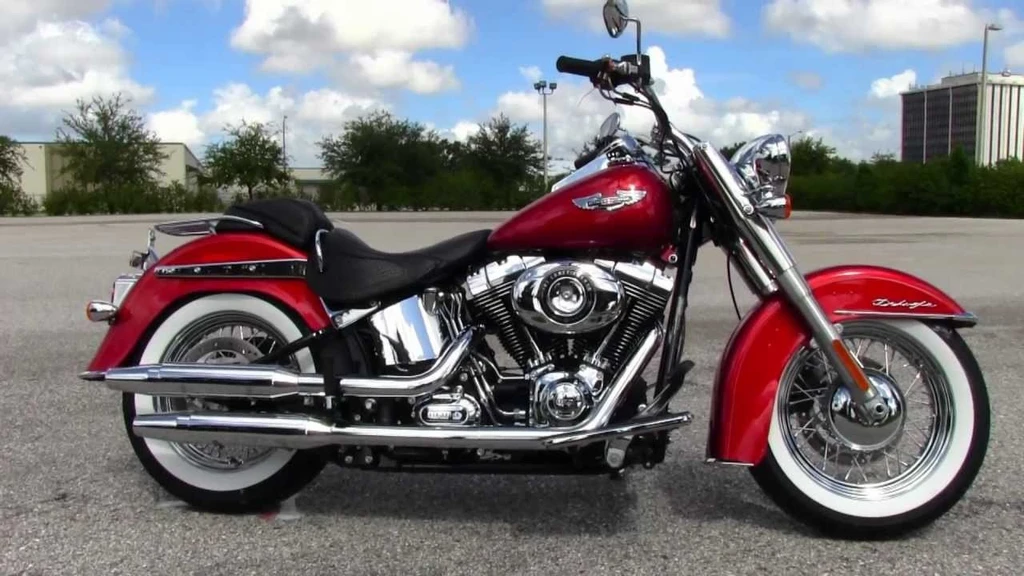

Harley Davidson FLSTN Softail Deluxe (2013)

Harley Davidson FLSTN Softail Deluxe (2013)

The 2013 Harley-Davidson FLSTN Softail Deluxe is a masterclass in effortless style and confident performance. Its Electronic Sequential Port Fuel Injection (ESPFI) engine delivers a smooth, responsive ride, while the Twin Cam 96B V-Twin motor provides exceptional low-end torque.

A key feature of this bike is its attention to detail, with exquisite touches such as chrome grab rails, luggage racks, laced wheels, and wide whitewall tires that evoke the classic look of Harley-Davidson’s heritage models.

Key Specifications

Engine TypeFour stroke, V-Twin, Twin Cam 103 Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Engine Capacity103.1 cubic inches / 1690 cc
Max Torque132 Nm / 98.8 ft. lbs @ 3250 rpm
Fuel Tank Capacity5.0 US gallons / 18.9 L
Weight (Wet/Kerb)726 lbs / 329.0 kg
Seat Height24.5 inches / 622 mm
Harley Davidson FLSTN Softail Deluxe (2013)

All Specifications

Make & Model

ModelHarley Davidson FLSTN Softail Deluxe
Year2013

Engine

Engine TypeFour stroke, V-Twin, Twin Cam 103 Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, with Integrated Oil-Cooler
Displacement103.1 cubic inches / 1690 cc
Bore x Stroke98.4 x 111.1 mm
Compression Ratio9.6:1
Max Torque132 Nm / 98.8 ft. lbs @ 3250 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchMulti-plate, wet
Gearbox6 Speed
Gear Ratios1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension41.3 mm telescopic, chrome dust covers
Rear SuspensionHidden, horizontal-mounted, coil-over shock
Rake32.1
Trail147 mm / 5.8 in

Wheels & Brakes

Front Tire SizeMT90-16 72H
Rear Tire SizeMU85B16 77H
Front BrakesSingle 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 2 piston caliper

Dimension & Weights

Seat Height24.5 inches / 622 mm
Wheelbase64.2 inches / 1635 mm
Ground Clearance114 mm / 4.5 in
Fuel Tank Capacity5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight726 lbs / 329.0 kg

Features

  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Low seat with collapsing sides
  • Pull back handlebar and riser
  • Extended kickstand
  • Powerful, counter-balanced Twin Cam 96B engine
  • 6-Speed Cruise Drive transmission
  • Exquisite style details
  • Clean front light bar
  • Tombstone taillight
  • Chrome grab rail
  • Luggage rack
  • Laced wheels
  • Wide whitewall tires
  • Tubeless Chrome Aluminum Profile Laced wheel option
  • New Paint color options
  • Fuel tank sender for accurate fuel-level readings
  • Black powder-coated powertrain with chrome covers
  • Chrome over/under shotgun exhaust
