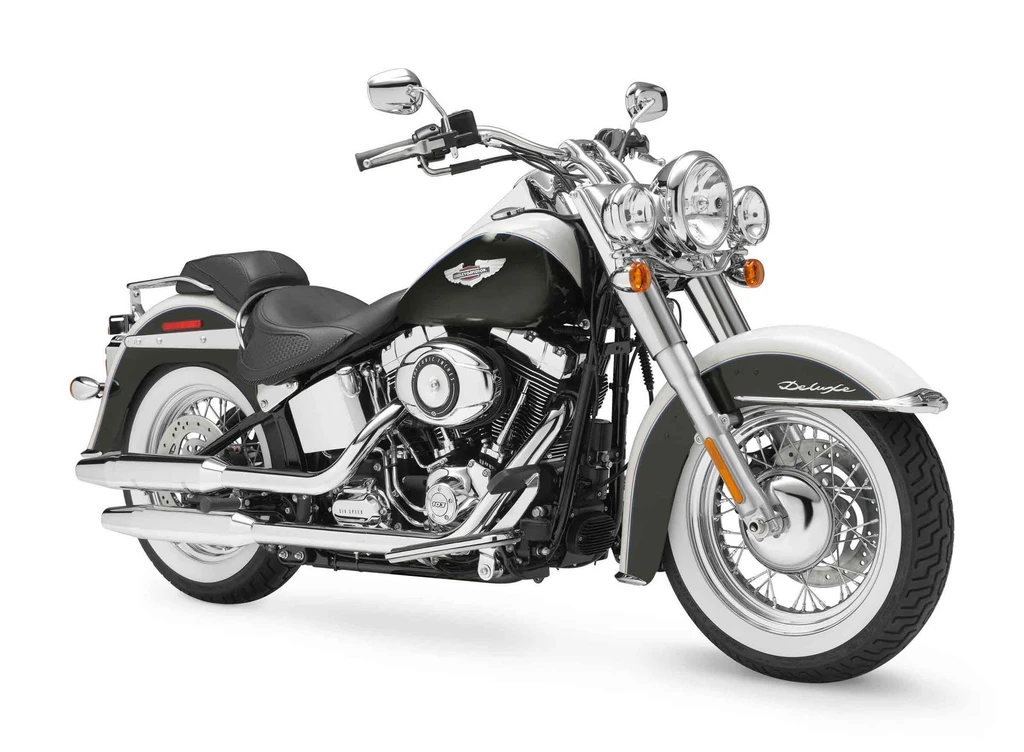

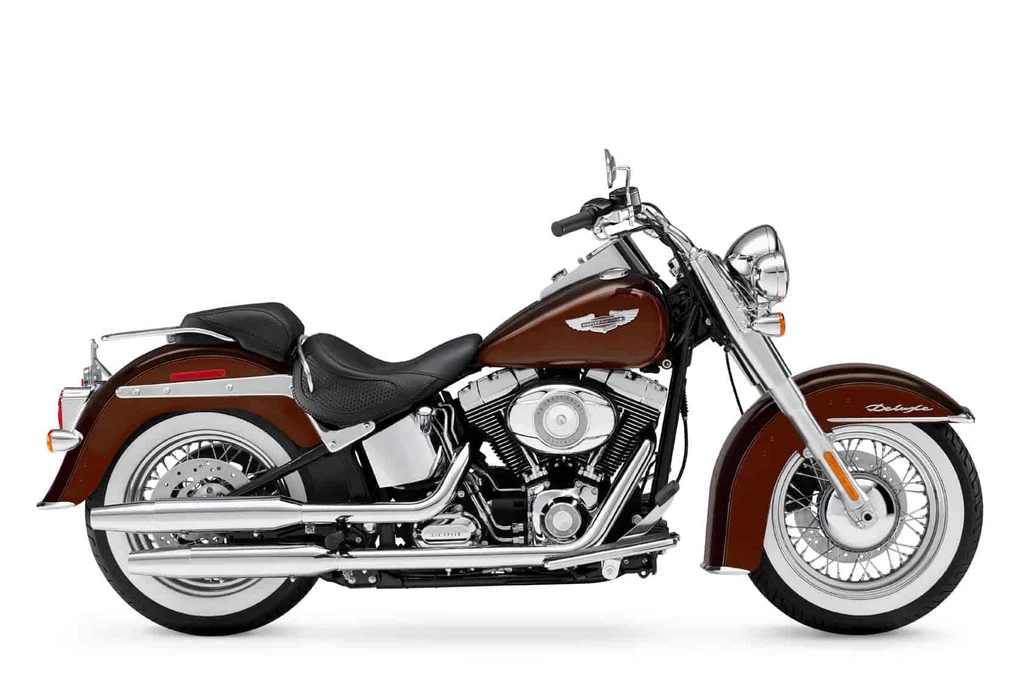

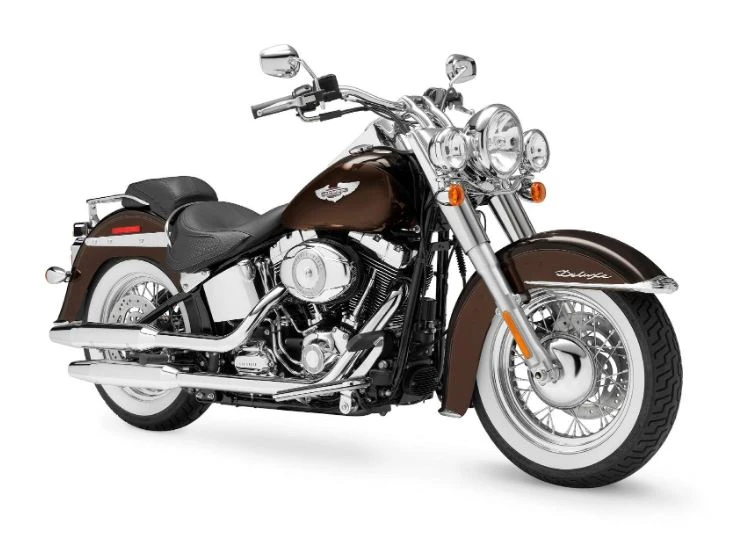

Harley Davidson FLSTN Softail Deluxe (2011)

Harley Davidson FLSTN Softail Deluxe (2011)

The Harley-Davidson FLSTN Softail Deluxe is a masterclass in balance and poise, its extremely low seat with “collapsing sides” and pull back handlebar inviting riders to take control.

At the heart of this majestic machine lies the powerful, counter-balanced Twin Cam 96B V-Twin engine, its Electronic Sequential Port Fuel Injection (ESPFI) delivering effortless acceleration and a rich, throaty soundtrack.

Every detail on this Softail Deluxe has been carefully crafted to create an unforgettable riding experience: from the sleek front light bar to the tombstone taillight, chrome grab rail, and luggage rack. Even the laced wheels and wide whitewall tires are precision-engineered to deliver unparalleled style and performance.

And now, with the addition of the new Security Package option, riders can upgrade their Softail Deluxe with anti-lock brakes, elevating this already impressive machine to new heights of capability and confidence.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity96 cubic inches / 1584 cc
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Fuel Tank Capacity18.9 Litres / 5.0 gal
Weight (Wet/Kerb)329.0 kg / 726 lb
Seat Height24.5 inches / 622 mm
Harley Davidson FLSTN Softail Deluxe (2011)

All Specifications

Make & Model

ModelHarley Davidson FLSTN Softail Deluxe
Year2011

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement96 cubic inches / 1584 cc
Bore x Stroke95.2 x 111.2 mm
Compression Ratio9.2:1
Max Torque124.7 Nm / 92 ft. lbs @ 3000 rpm
Engine Management SystemElectronic Sequential Port Fuel Injection (ESPFI)
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

Gearbox6 Speed
Gear Ratios1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Final DriveBelt

Electrical & Electronics System

Chassis & Suspension

Frame TypeMild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension41.3 mm telescopic, chrome dust covers
Rear SuspensionHidden, horizontal-mounted, coil-over shock
Rake32
Trail147.3 mm / 5.8 in

Wheels & Brakes

Front Tire SizeD402F MT90-16
Rear Tire SizeD402 MU85B16
Front BrakesSingle 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height24.5 inches / 622 mm
Wheelbase64.5 inches / 1638 mm
Ground Clearance122 mm / 4.8 in
Fuel Tank Capacity18.9 Litres / 5.0 gal
Wet (kerb/curb) Weight329.0 kg / 726 lb
Dry Weight315 kg / 693 lbs.

Features

  • Extremely low seat
  • Pull back handlebar and riser
  • Easy-reach, extended kickstand
  • Twin Cam 96B V-Twin engine
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • 6-Speed Cruise Drive Transmission
  • Counter-balanced engine
  • Horseshoe oil tank
  • Five-gallon fuel tank
  • Chrome grab rail and luggage rack
  • Laced wheels
  • Wide whitewall tires
  • Clean front light bar
  • Tombstone taillight
  • Security Package option with anti-lock brakes
