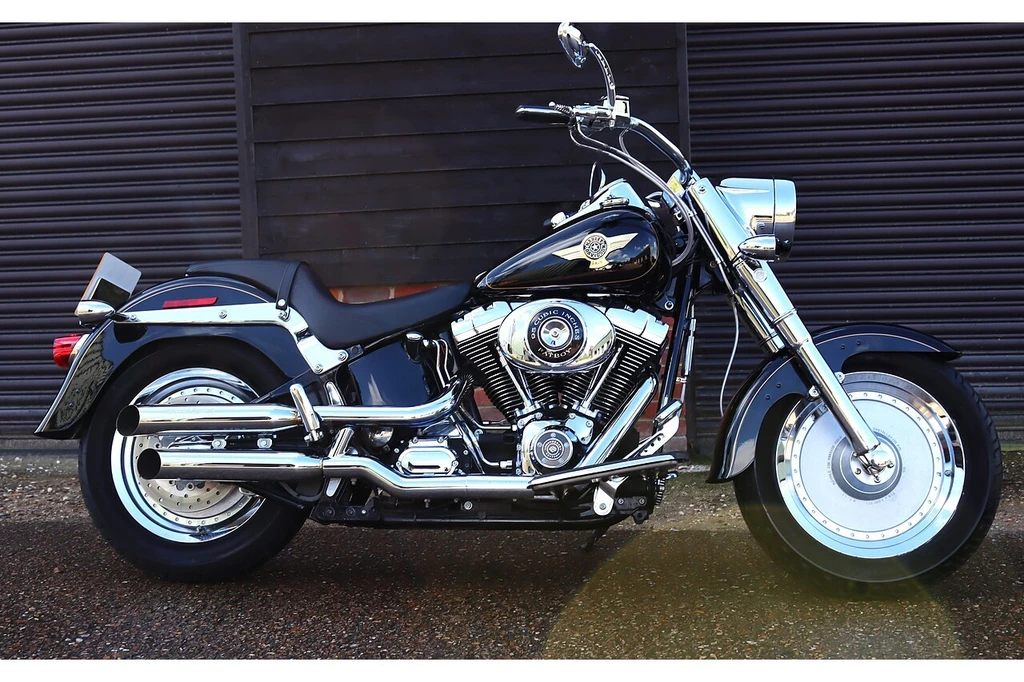

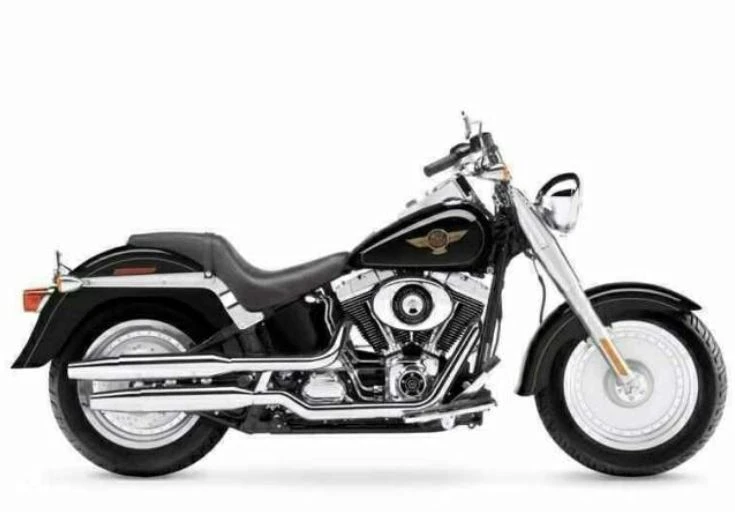

Harley Davidson FLSTF/I Fat BoyLimited Edition 15th Anniversary (2005)

Harley Davidson FLSTF/I Fat BoyLimited Edition 15th Anniversary (2005)

The Harley-Davidson FLSTF/I Fat Boy Limited Edition 15th Anniversary is a testament to the brand’s commitment to performance and style. This behemoth of a motorcycle boasts an impressive 1550cc Twin Cam 95 engine, delivering strong roll-on power with just the right amount of feedback to the rider.

A plethora of chrome accents – including solid disc wheels, a chromed headlight and nacelle, and floorboards as big as surfboards – creates a visual statement that’s as powerful as it is custom. The Fat Boy’s signature style is further enhanced by unique touches such as a 24K gold-plated tank emblem and a Badlander-inspired, double-stitched seam seat.

Whether you’re a seasoned rider or just looking to make a statement on the open road, the FLSTF/I Fat Boy Limited Edition 15th Anniversary is sure to turn heads. With its commanding presence, rich exhaust note, and unmatched style, this motorcycle embodies the very essence of Harley-Davidson’s heritage, making it an absolute must-have for anyone who demands the ultimate riding experience.

Key Specifications

Engine TypeFour stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Engine Capacity88.4 cubic inches / 1449 cc
Max Power67 hp / 48.8 kW @ 5200 rpm
Max Torque86 ft-lb / 116.6 nm
Fuel Tank Capacity5.0 US gallons / 18.9 L
Weight (Wet/Kerb)714 lbs / 324 kg
Seat Height25.4 inches / 645.2 mm
Harley Davidson FLSTF/I Fat BoyLimited Edition 15th Anniversary (2005)

All Specifications

Make & Model

ModelHarley Davidson FLSTF/I Fat BoyLimited Edition 15th Anniversary
Year2005

Engine

Engine TypeFour stroke, 45 V-Twin,Twin Cam 88 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Displacement88.4 cubic inches / 1449 cc
Bore x Stroke95.3 x 101.6 mm
Compression Ratio8.9:1
Max Horsepower67 hp / 48.8 kW @ 5200 rpm
Max Torque86 ft-lb / 116.6 nm
Engine Management SystemCarburetion 40 mm constant velocity with enrichener and accelerator pumpESPFI 38 mm throttle bore electronic sequential port fuel injection
Lubrication SystemDry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10 pressurized oil filter
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchWet 9-plate
Gearbox5 Speed
Primary Drive RatioChain, 36/25
Gear Ratios1st 10.1102nd 6.9583rd 4.9534th 3.8625th 3.150
Final DriveBelt

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast and forged junctions;forged fender supports; MIG weldedSwingarm Mild steel, rectangular tube sections,stamped junctions, MIG welded
Front Suspension41.3 mmTelescopic forkswith beer can covers
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionHidden, horizontal-mounted, coil-over shock
Rear Suspension Travel4.3 inches / 109 mm
Rake32
Trail147 mm / 5.8 in

Wheels & Brakes

Front Tire SizeD402F MT90B16 72H
Rear Tire SizeD401 150/80B16 71H
Front BrakesSingle 292mm disc 4 piston caliper
Rear BrakesSingle 292mm disc 4 piston caliper

Dimension & Weights

Seat Height25.4 inches / 645.2 mm
Wheelbase64.5 inches / 1638 mm
Ground Clearance130 mm /. 5.1 in
Fuel Tank Capacity5.0 US gallons / 18.9 L
Wet (kerb/curb) Weight714 lbs / 324 kg
Dry Weight310 kg /683 lbs

Features

  • 1550cc Twin Cam 95 engine
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • 38 mm throttle bore
  • 40 mm constant velocity carburetor with enrichner and accelerator pump
  • Multi-plate clutch with diaphragm spring in oil bath
  • Carbon fiber belt final drive
  • 5-speed transmission
  • Hardtail styling with hidden horizontal rear shocks
  • Fat front fork
  • Solid disc front and rear wheels
  • Large chrome headlight with fork nacelle
  • Chrome covers on black powder-coated engine
  • Shotgun exhaust pipes
  • Wide tires
  • Floorboards as big as surfboards
  • Counterbalanced Twin Cam 88B powertrain
  • Double-stitched seam seat
  • 24K gold-plated tank emblem and air cleaner cover
